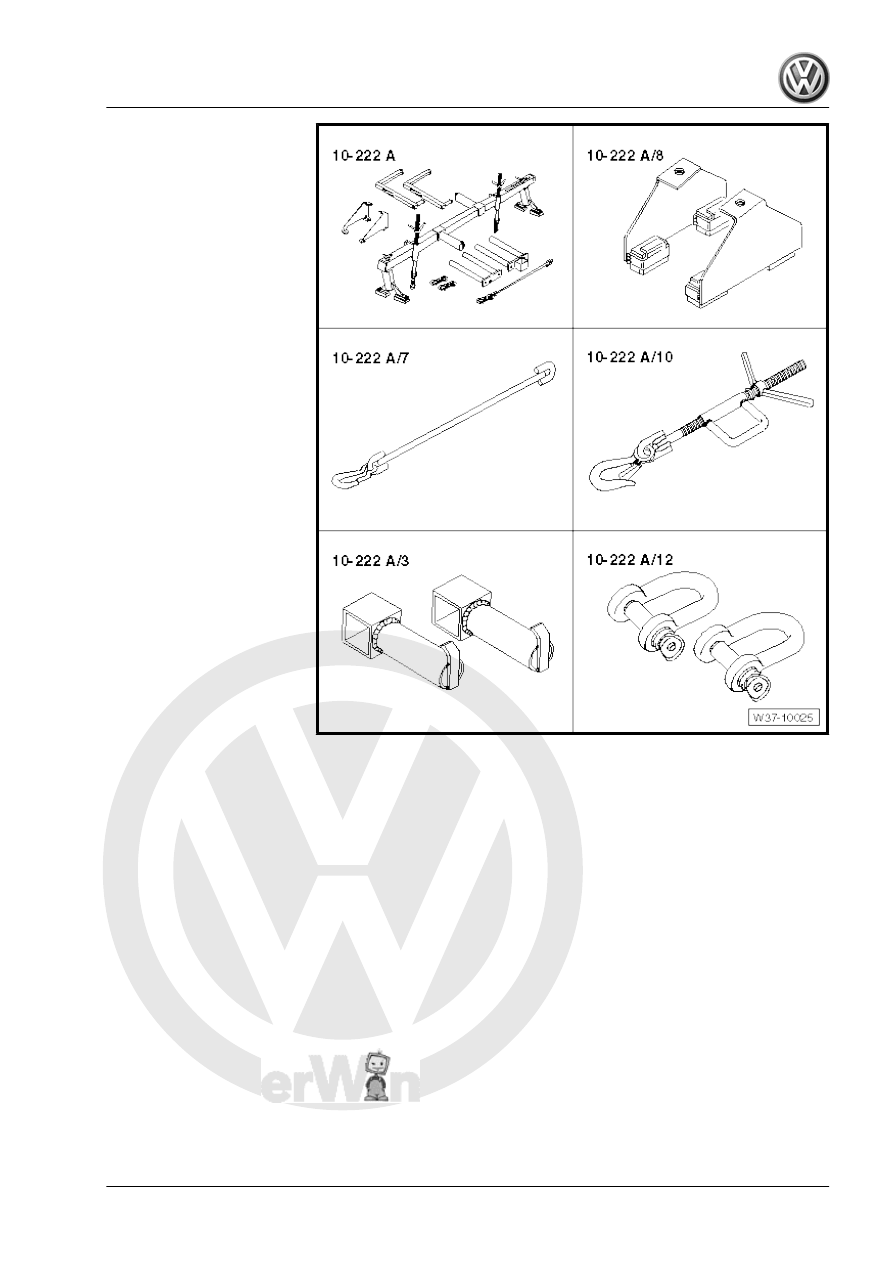

10-222A-

♦ Engine Support Bridge -

Engine Support Feet -

10-222A/8-

♦ Engine Support - Automatic

Transmission Hook -

10-222A/7-

♦ Engine Support - Bracket

w/Spindle and Hook -

10-222A/10-

♦ Engine Support Bridge -

Engine Support 3 -

10-222A/3-

♦ Engine/Gearbox Support

Shackle (2 pc.) - 10-222A/

12-

12. Special Tools

119

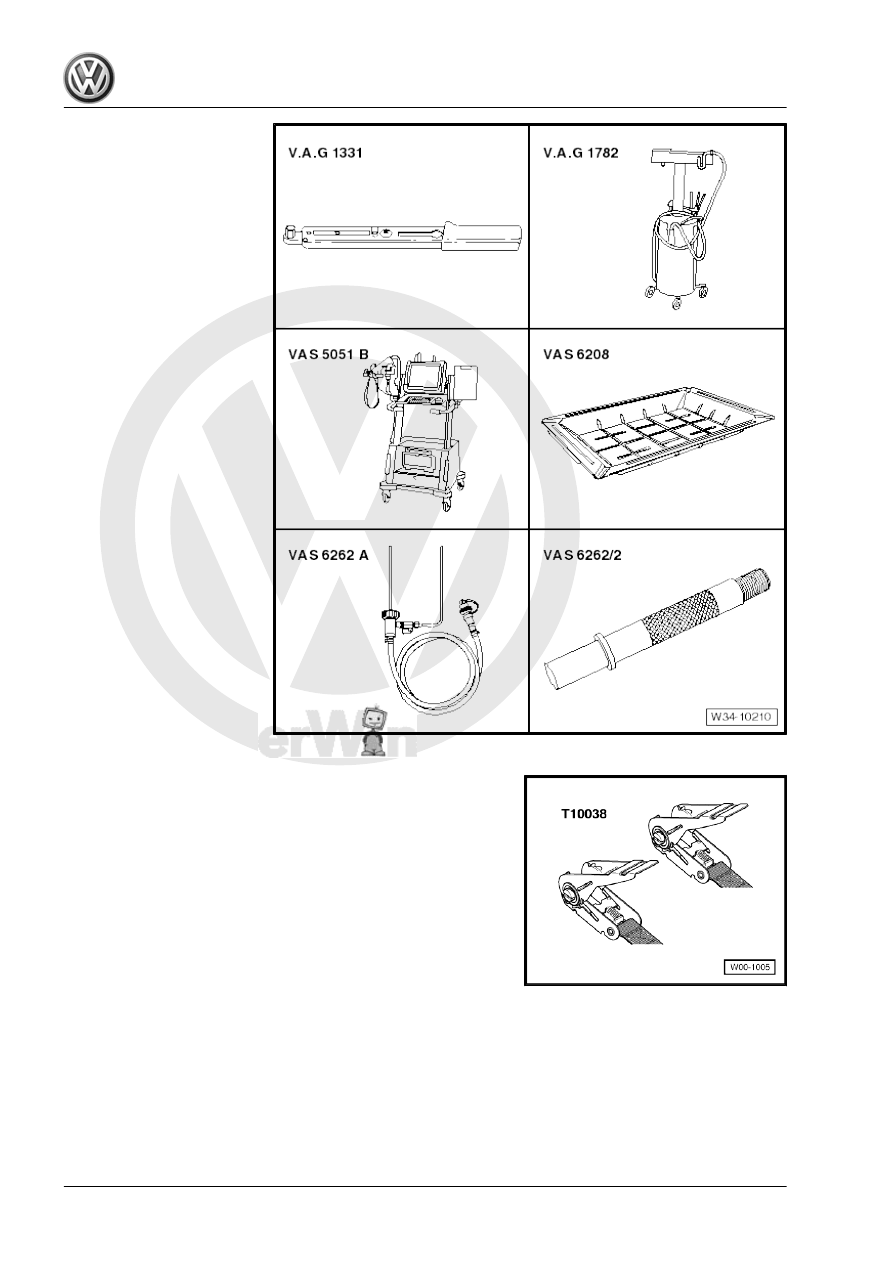

5-50Nm - VAG1331-

♦ Used Oil Collection and Ex‐

traction Unit - SMN372500-

♦ Vehicle Diagnostic Tester
♦ Shop Crane - Drip Tray -

VAS6208-

♦ Oil Filler - VAS6262A-
♦ Oil Filler - Adapter 2 -

VAS6262/2-

♦ Also for some oil containers

Oil Filler - Adapter 6 -

VAS6262/6-

♦ Tensioning Strap - T10038-

120

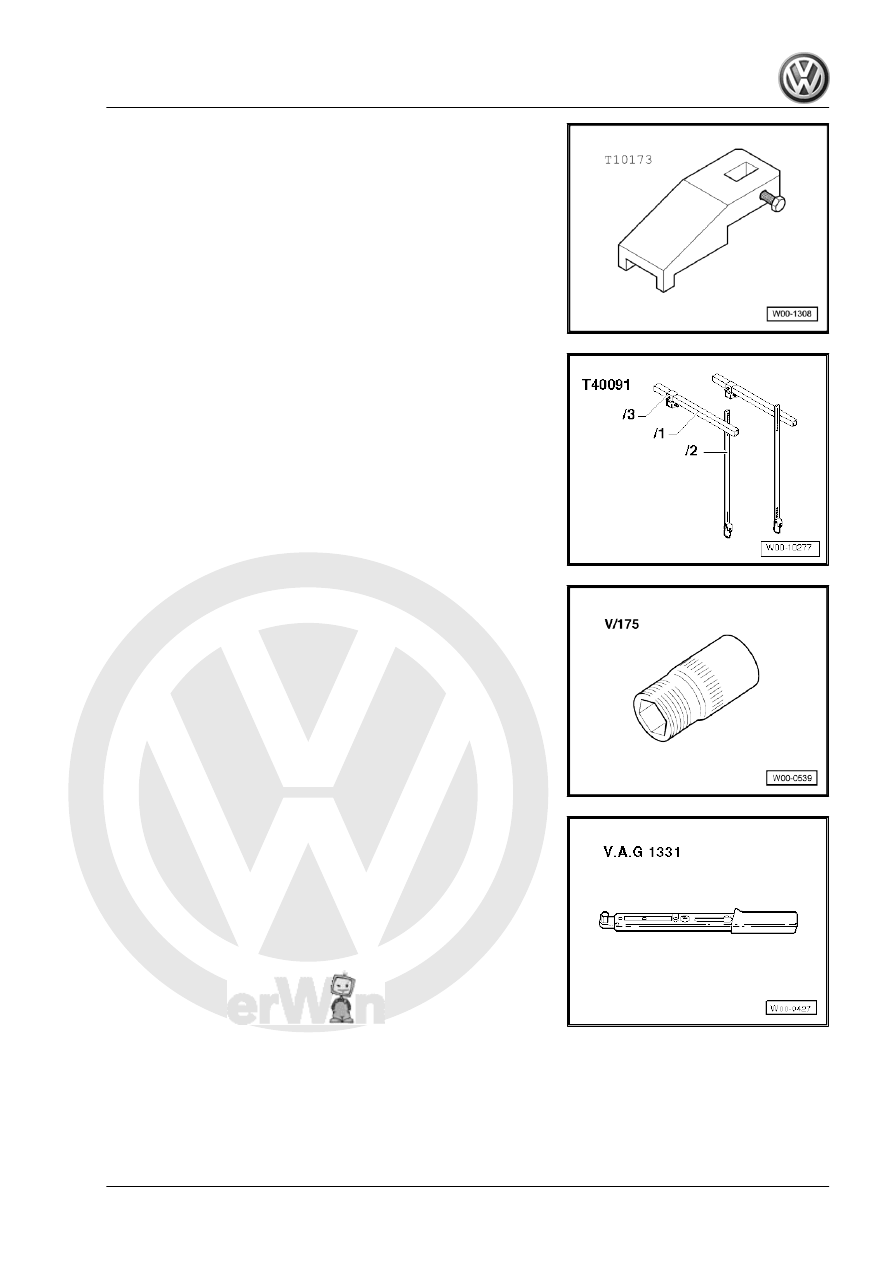

♦ Engine Support - Basic Set - T40091-

♦ Socket - Sw15 - V/175-

♦ Torque Wrench 1331 5-50Nm - VAG1331-

12. Special Tools

121

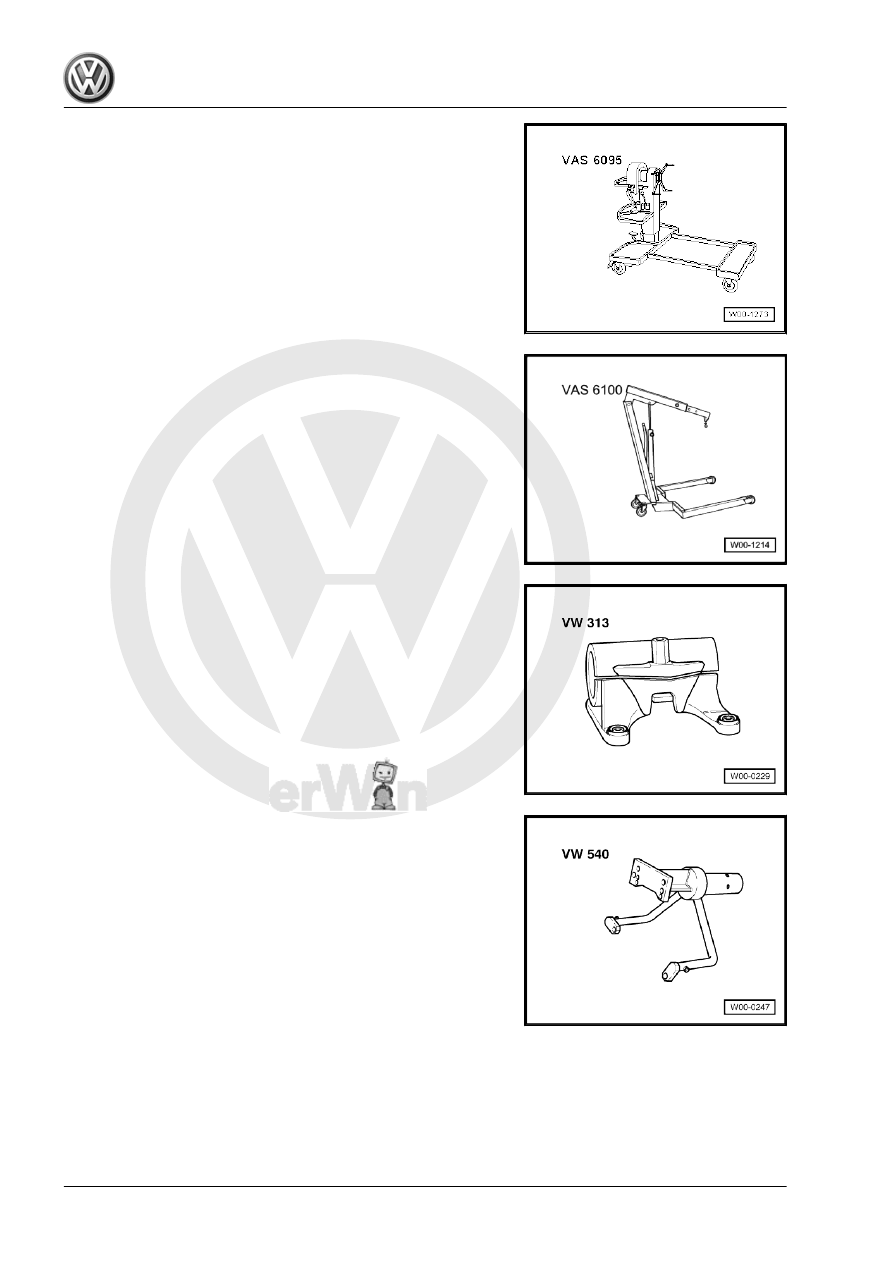

♦ Shop Crane - VAS6100-

♦ Holding Fixture - VW313-

♦ Holding Fixture - VW540-

122
