the engine »running«.

– Shake the fluid containers before opening.

Caution

The ATF filler tool must be clean and the ATF must not be

mixed with any other ATF.
Refer to the Parts Catalog for the allocation.

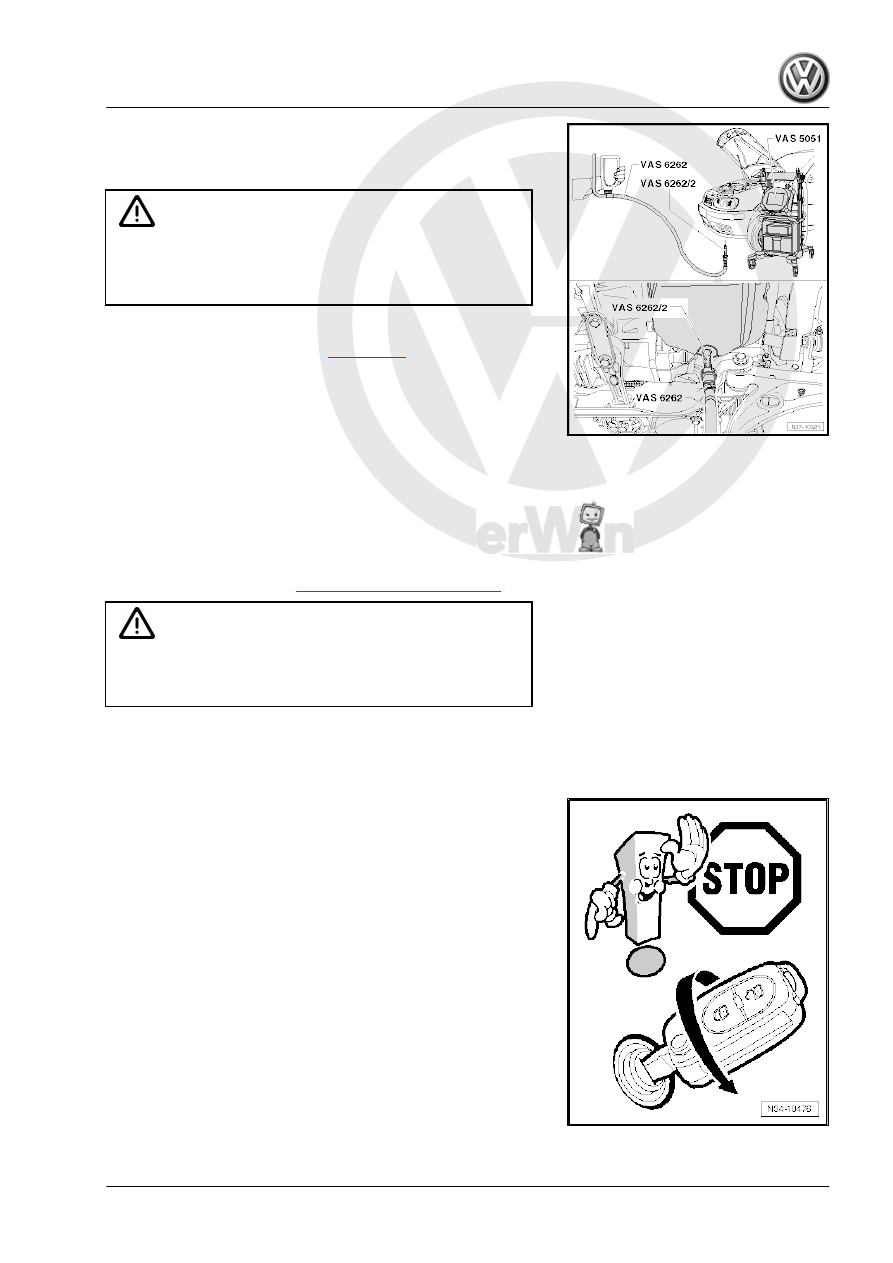

– Attach the Oil Filler - VAS6262A- to the oil bottle. Be sure to

read the instructions. Refer to

⇒ page 112

 .

– Fill one liter (1.05 quarts) of ATF.
– Remove the Oil Filler - VAS6262A- at the quick-release cou‐

pling and check it.

If ATF Flows Out of Adapter Hole
ATF does not need to be topped off.
– Allow ATF to drain until it drips.
– Tighten the ATF check plug with a new gasket to 27 Nm. The

ATF level test is now completed.

If the ATF Does Not Drip
– Fill another liter. Refer to

⇒ “11.2 ATF, Filling”, page 114

 .

WARNING

Too little or too much ATF will impair transmission function. If

two liters (2.1 quarts) are missing, the transmission should be

checked more closely. There is probably a »larger« leak.

11.3

ATF, Draining and Filling

Procedure
– Turn off the engine.
• Place the Drip Tray or Used Oil Collection and Extraction Unit

- SMN372500- under the transmission.

11. ATF Level, Checking and Filling

115

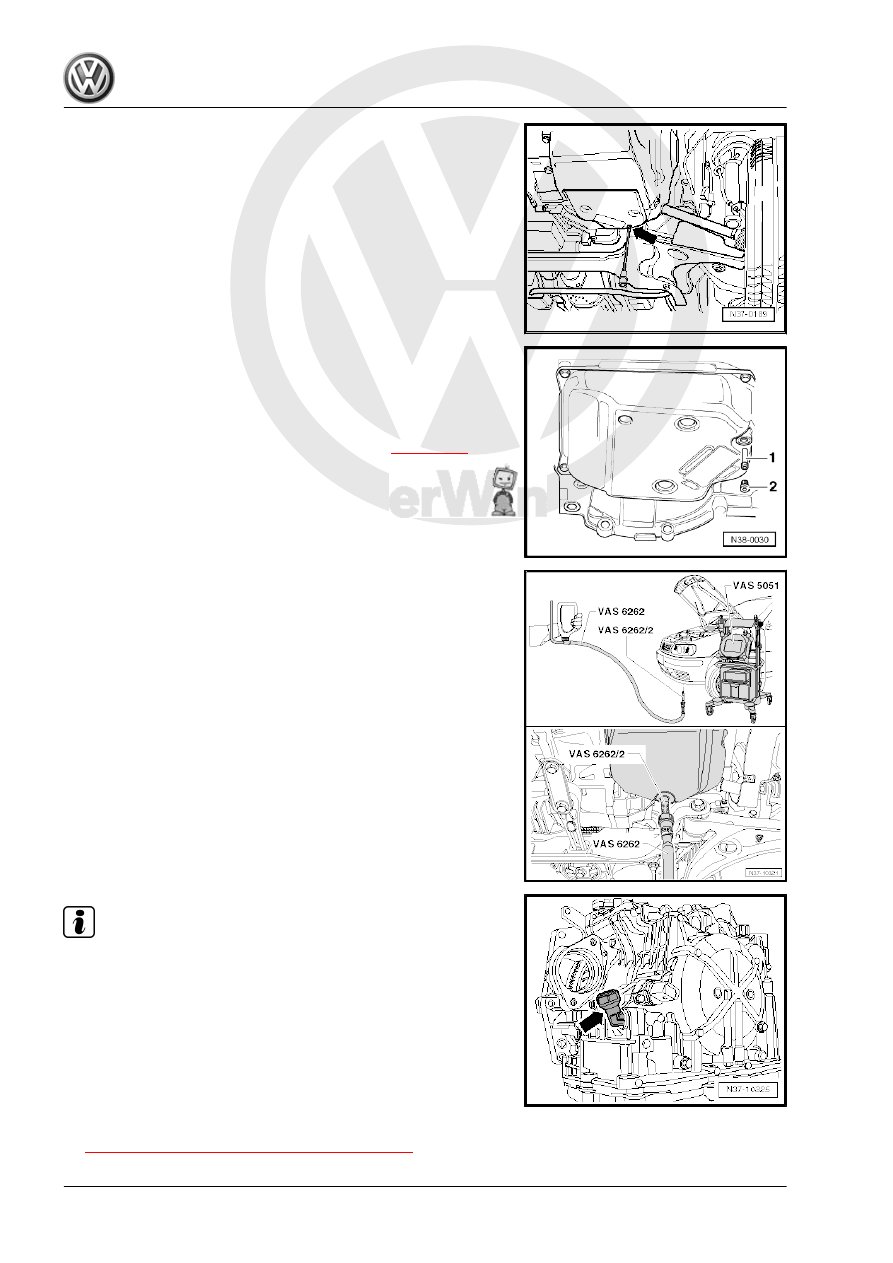

– Remove the overflow pipe -1- through the check hole.
– Let the ATF drain.
– Install the overflow pipe.
– Attach the Oil Filler - VAS6262A- to the oil bottle. At the same

time pay attention to the instructions. Refer to

⇒ page 112

 .

– Install the Oil Filler - Adapter 2 - VAS6262/2- hand-tight in the

ATF-check hole.

– Fill with three liters (3.1 quarts) of ATF. Refer to the Parts Cat‐

alog.

Note

For some »older« transmissions with filling tube -arrow- the ATF

can be filled through the filling tube.

– Remove the Oil Filler - Adapter 2 - VAS6262/2- from the oil

pan and tighten the ATF check plug with the old seal.

– Move the selector lever into “P” position.
– Start the engine, shift through all the selector lever positions.

Leave the selector lever in each position for approximately 10

seconds.

– Check the ATF level and add if necessary. Refer to

⇒ “11 ATF Level, Checking and Filling”, page 112

 .

116

Special Tools

Special tools and workshop

equipment required

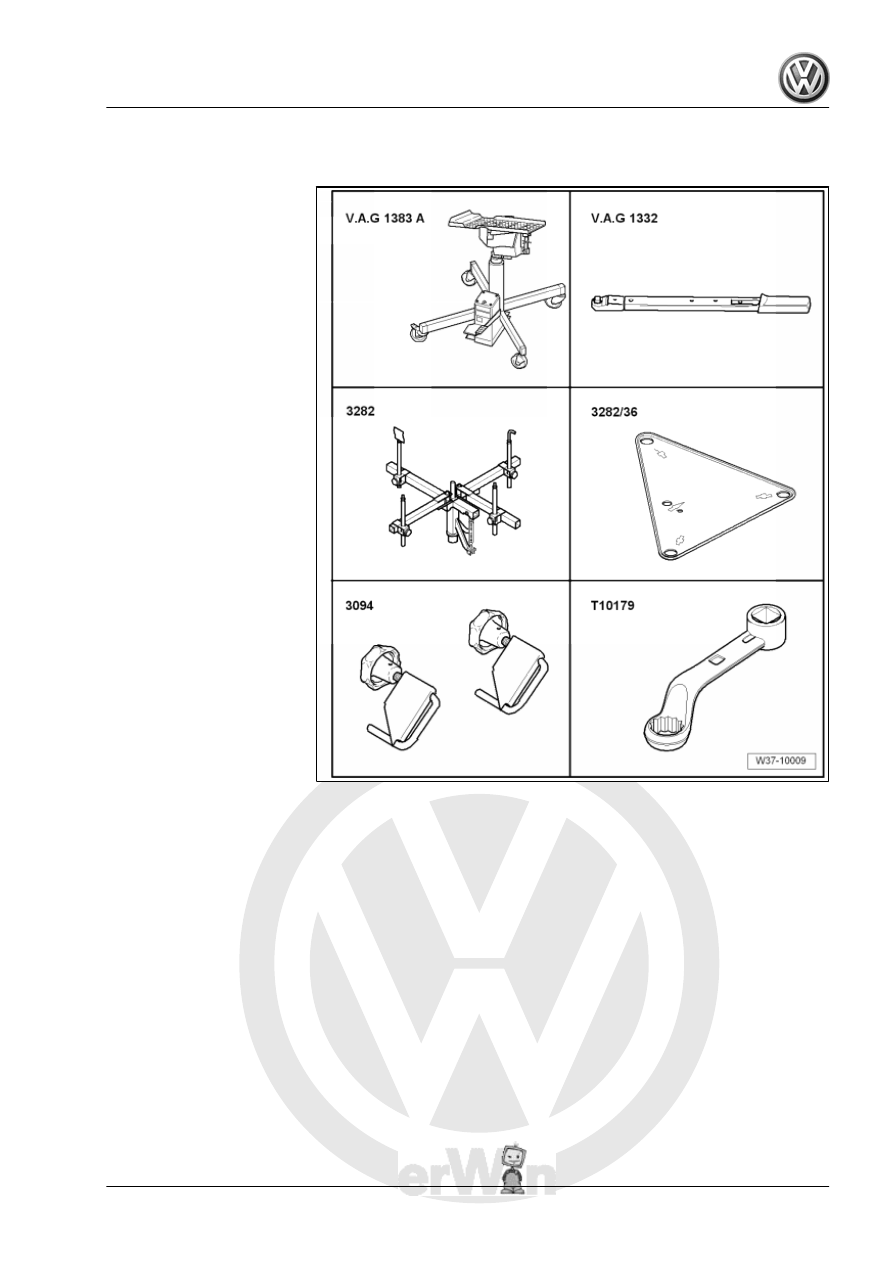

♦ Engine and Gearbox Jack -

VAS6931-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Transmission Support -

3282-

♦ Transmission Support -

Mounting Plate 36 -

3282/36-

♦ Hose Clamps - Up To

25mm - 3094-

♦ Insert Tool - 18mm -

T10179-

12. Special Tools

117

equipment required
♦ Engine and Gearbox Jack -

VAS6931-

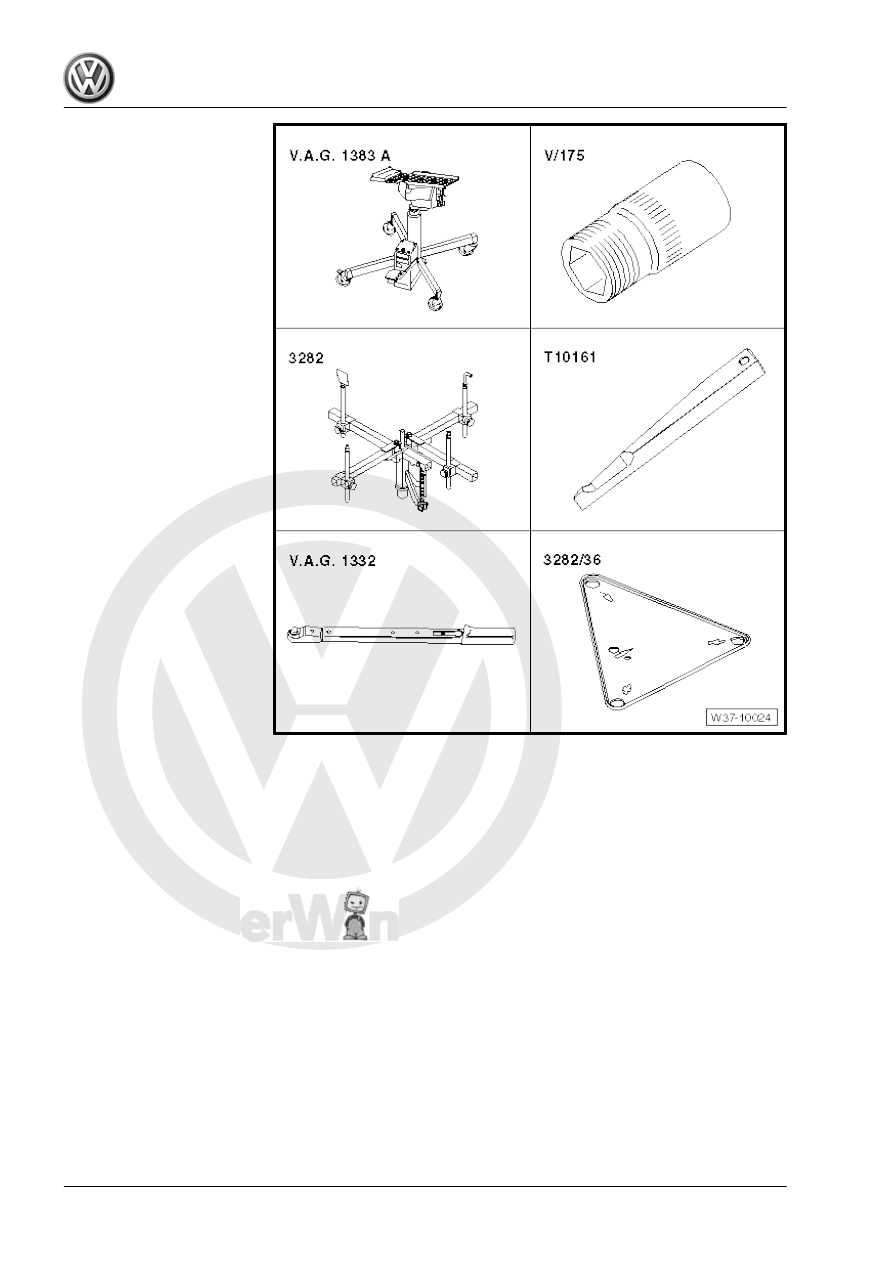

♦ Socket - Sw15 - V/175-
♦ Transmission Support -

3282-

♦ Drive Axle Wedge Tool -

T10161-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Transmission Support -

Mounting Plate 36 -

3282/36-
