Volkswagen Golf Variant / Jetta. Manual - part 102





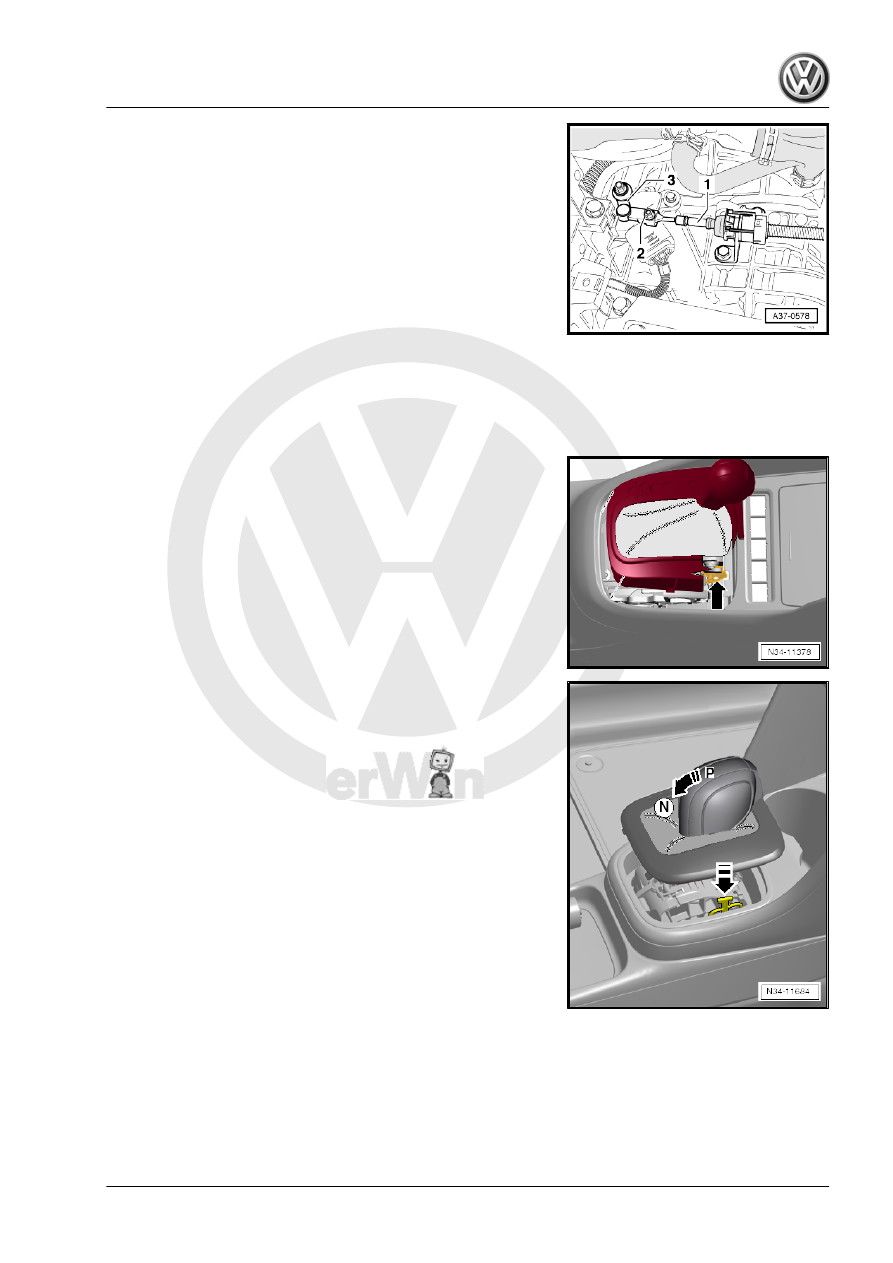

4.6

Selector Lever, Emergency Release

Do Not Remove the Handle
– Unclip the shift cover and hold it to the side.
– Press the brake or set the parking brake.
Vehicles through 02/2009
– Press on the yellow plastic piece from the right to the left

-arrow-.

The lever can now be moved out of »P«.

Vehicles from 03/2009
– Push on the yellow plastic part.
The lever can now be moved out of »P«.

4. Selector Mechanism through 02/2009

39

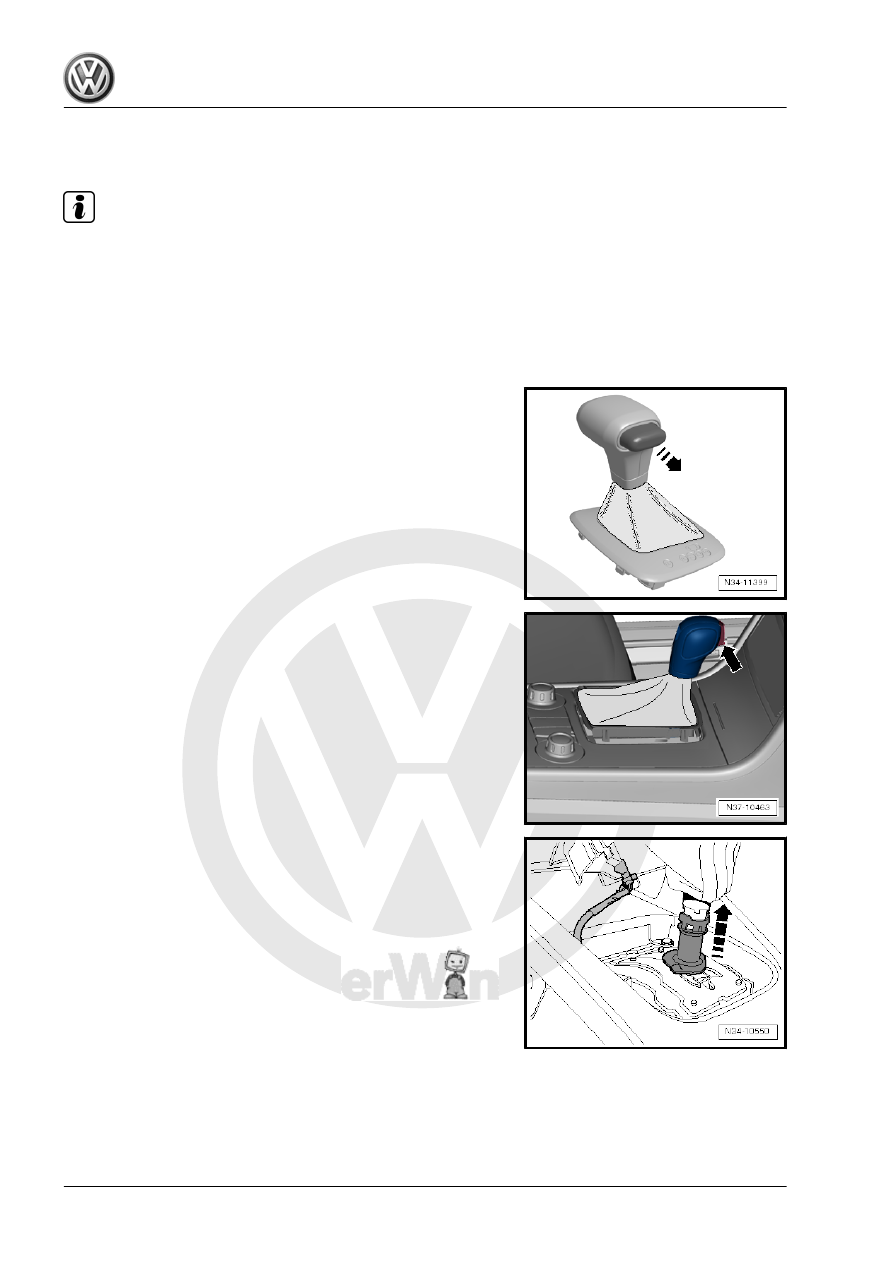

Selector Lever Handle, Removing and

Installing

Note

There are different handles depending on the model.

The handle is removed together with the shift cover.

It is possible that the button could be pressed into the handle.

Never install the handle when the button is pressed in.

Removing
– Move the selector lever into “D” position.
Handle with the Button on the Side
– Pull the button out of the handle just far enough until there is

a small gap between the handle and the button. The button

locks when released.

– Secure the button in this position with a cable tie or wire to

prevent the button from being pressed in.

Handle with Front Button
It is not necessary to pull out the button by hand. The button locks

in the installation position -arrow- when the handle is removed.

Handle with Sleeve
– Unclip the cover.
– Disconnect the connector from the shift cover.
– Push the sleeve upward in the direction of -arrow- to unlock

the handle.

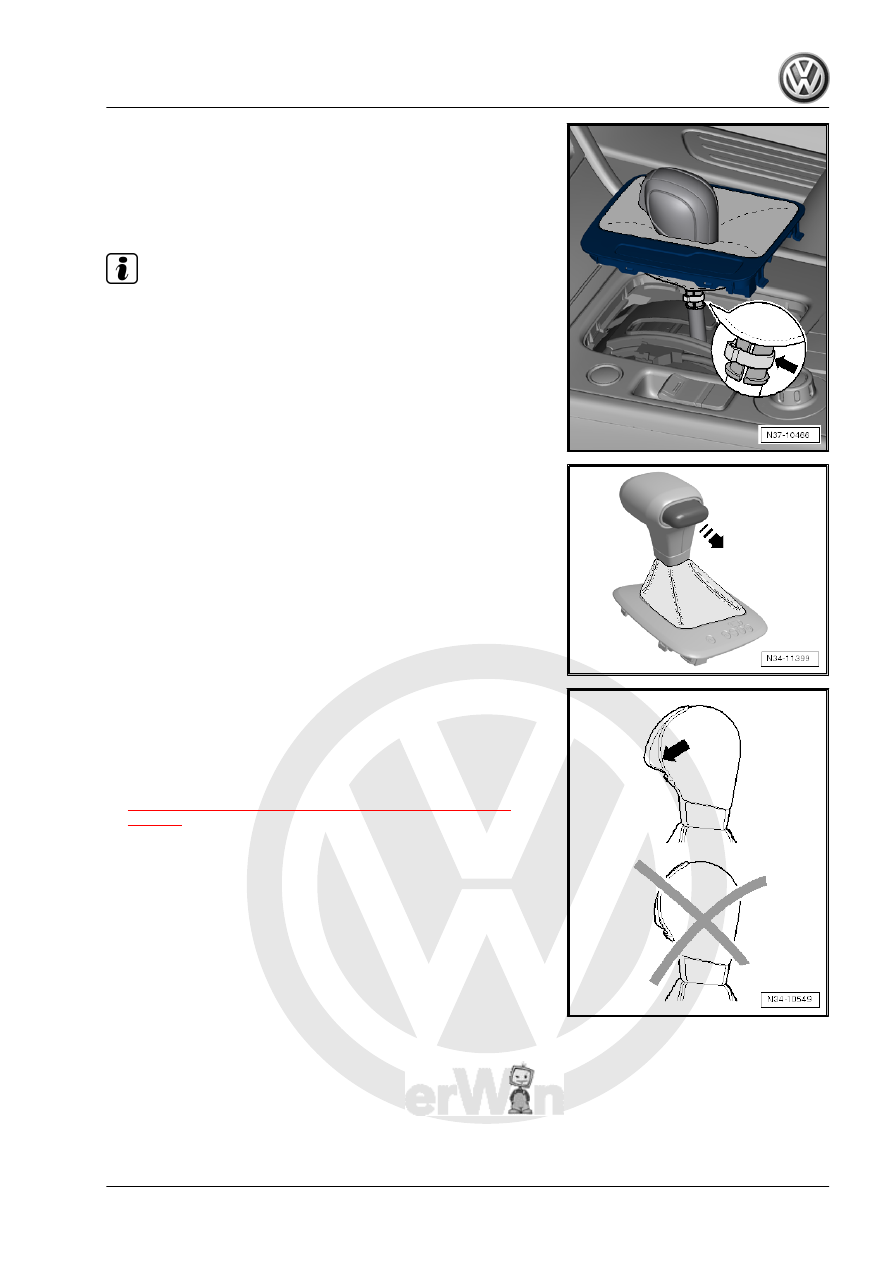

40

button.

Note

Do not push the button after removal or it will not be possible to

install the handle again.

Installing
– Install in reverse order of removal while. Note the following:
• The selector lever is in the “D” position.

Handle with the Button on the Side
• The button inside the handle is pulled out and if necessary is

protected from getting pushed in again.

Handle with Front Button
• The button is in the installation position -arrow-.
If the button was pushed in by mistake, the installed position can

be set again.
– Move the button into the installation position. Refer to

⇒ “4.8 Button in Handle, Moving into Installation Position”,

page 42

 .

4. Selector Mechanism through 02/2009

41

A new handle is delivered with an assembly fastener. Remove

the retainer just before installing.

Handle with Sleeve
– Install the handle all the way onto the selector lever and lock

it.

– Push the sleeve downward to lock it.
Only Handles with Clamps
– Install the handle all the way with a new clamp.
– Clamp off the clamps using Hose Clamp Pliers - VAG1275- .
– Press the button after installation.

Note

If the button stays in the handle after being pressed, this means

it was installed incorrectly. If this happens, remove the handle

again and move the button in the installation position again. Refer

to

⇒ “4.8 Button in Handle, Moving into Installation Position”,

page 42

 . Then install the handle again.

Further installation is performed in the reverse order of the re‐

moval.

4.8

Button in Handle, Moving into Installa‐

tion Position

⇒ “4.8.1 Handle with Side Button”, page 42
⇒ “4.8.2 Handle with Front Button”, page 42

4.8.1

Handle with Side Button

– Pull the button out of the handle just far enough until there is

a small gap between the handle and the button. The button

locks when released.

– Secure the button in this position with a cable tie or wire to

prevent the button from being pressed in.

4.8.2

Handle with Front Button

The button cannot be pulled out on these handles.
There are two ways to move the button into the installation posi‐

tion, »with« or »without« the assembly fastener. Both possibilities

are described here.

42
