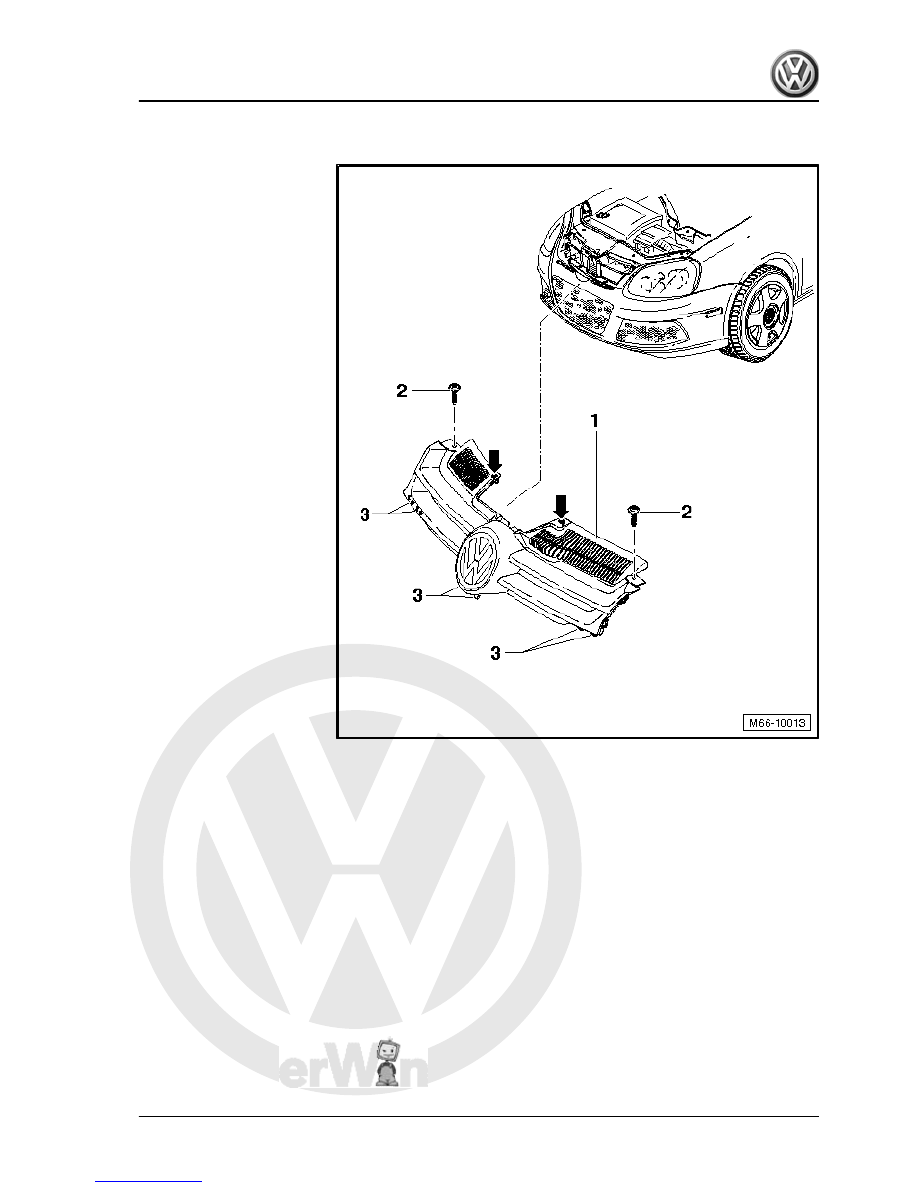

– Remove bolts -2-.
– Release clips -arrows- from lock carrier using a small screw‐

driver.

– Tilt radiator grille -1- backwards slightly and pull locking hooks

-3- upwards out of front bumper cover.

4. Radiator grille

341

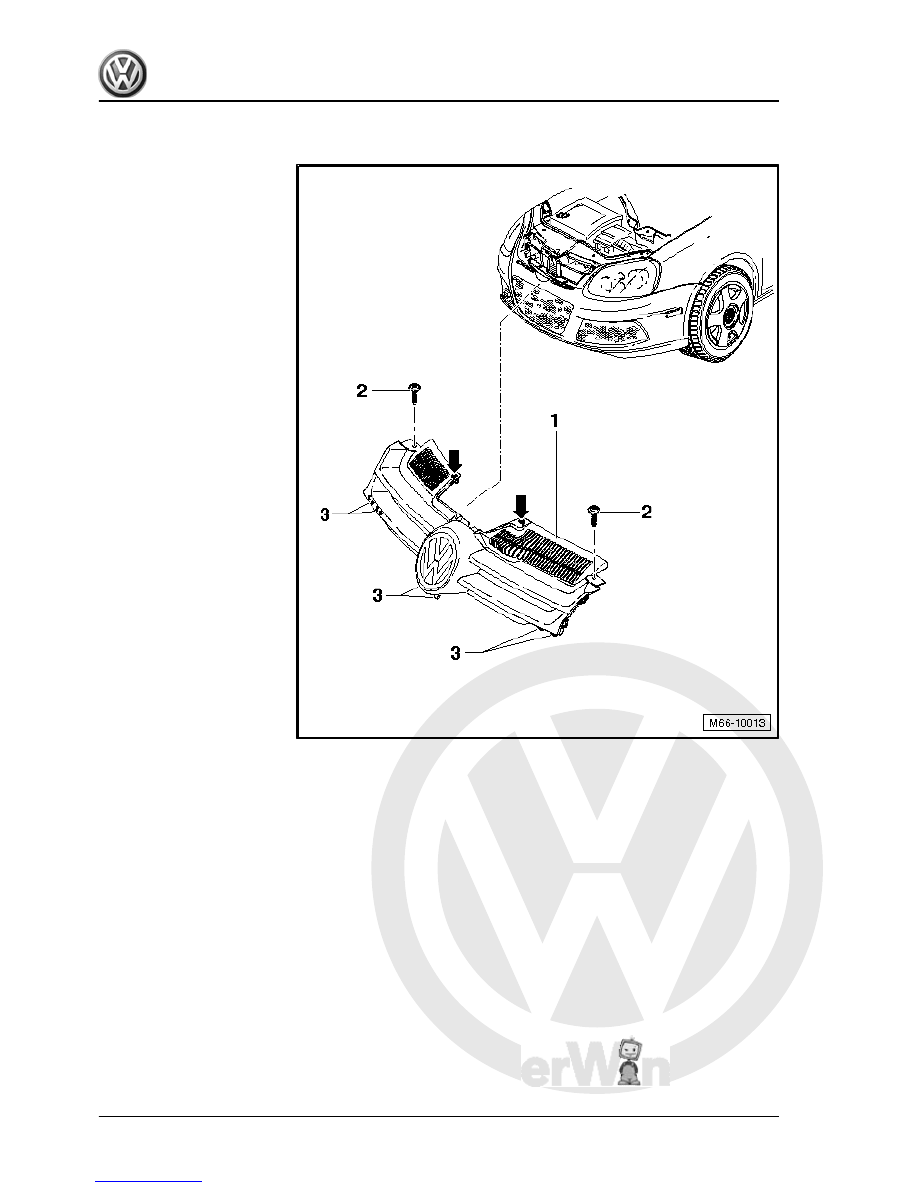

– With radiator grille -1- tilted forward slightly place locking

hooks -3- in front bumper cover.

– Tilt radiator grille -1- towards lock carrier and locate clips

-arrows- in lock carrier.

– Install bolts -2-.

342

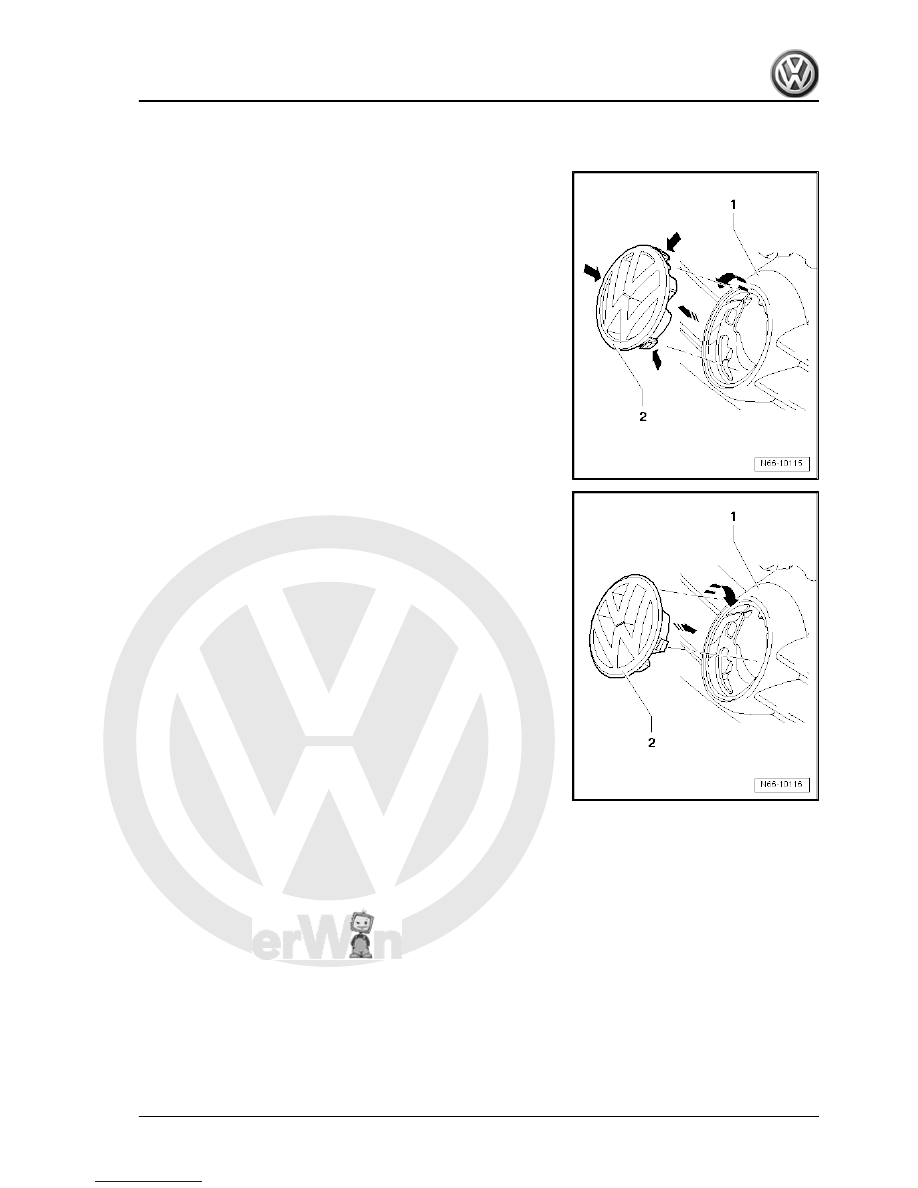

Removing
– Release locking hooks -arrows- on rear of emblem -2- with

radiator grille removed -1-.

– Turn emblem -2- in -direction of arrow- slightly and pull em‐

blem forwards out of radiator grille -1-.

Installing

– Guide emblem -2- with locking hooks in recesses of radiator

grille -1-.

– Turn emblem -2- in -direction of arrow- until emblem -2- en‐

gages with radiator grille -1-.

4. Radiator grille

343



5.1

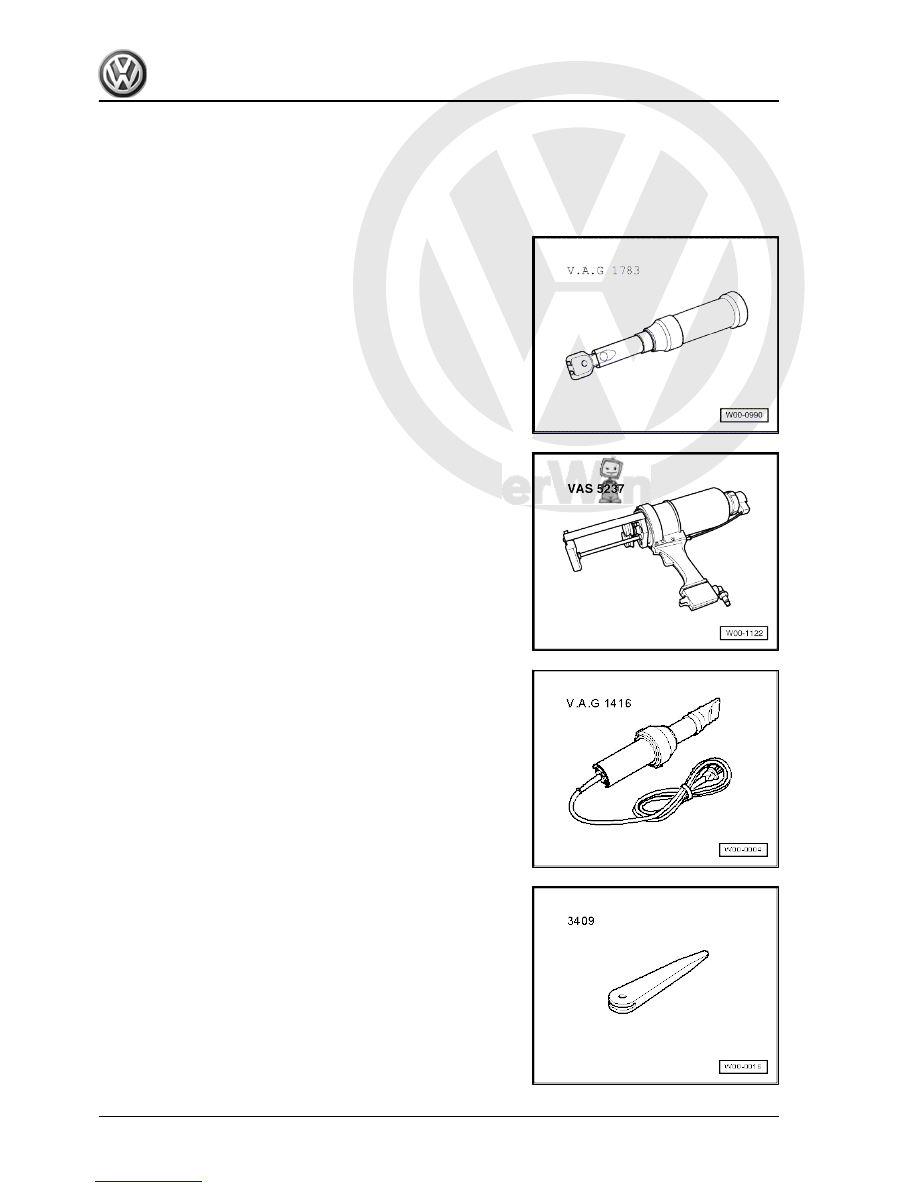

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

♦ Double cartridge gun -VAS 5237-

♦ Hot air blower -V.A.G 1416-

♦ Removal wedge -3409-
