4.2.1

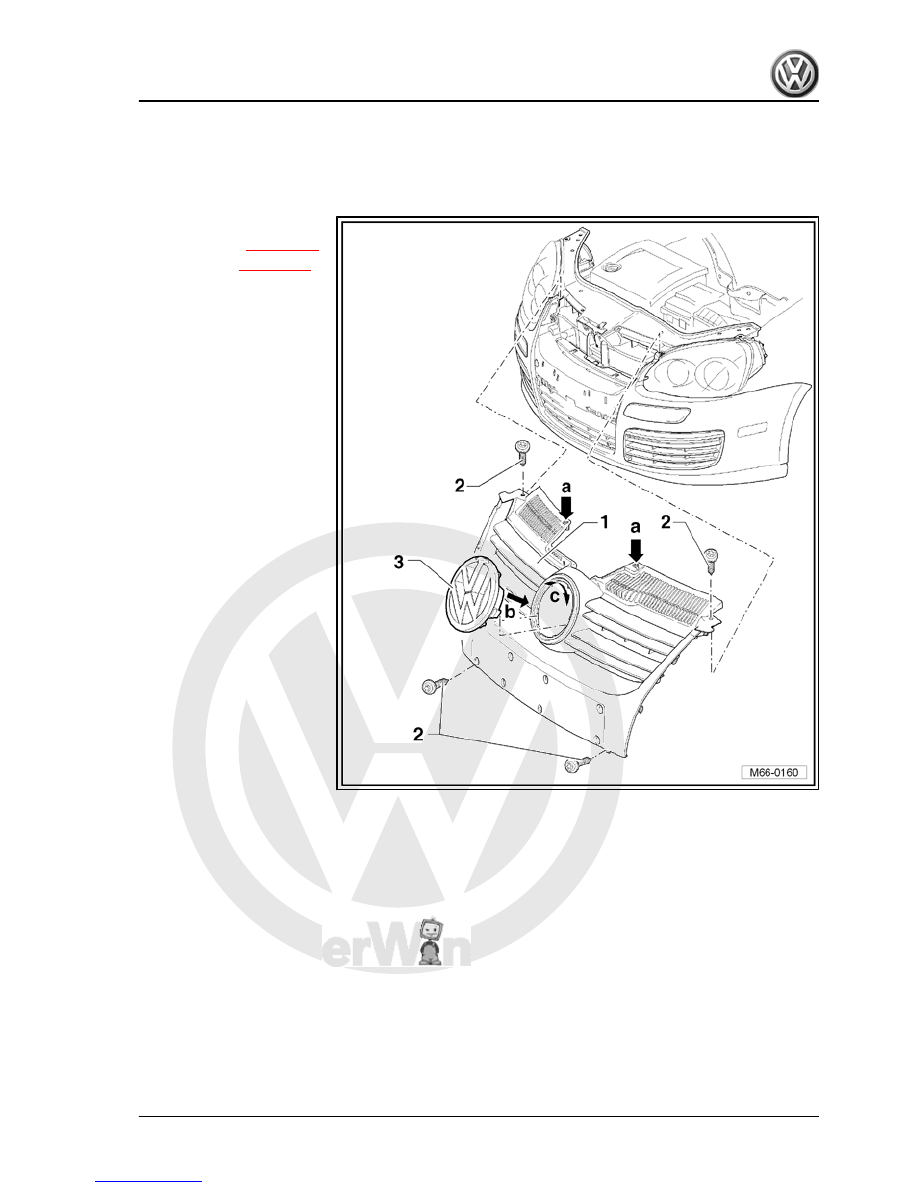

Assembly overview - radiator grille

1 - Radiator grille

❑ Removing

⇒ page 337

❑ Installing

⇒ page 338

2 - Bolt

❑ Qty. 4
❑ Specified torque: 2 Nm

3 - VW emblem

❑ Clipped into radiator

grille

❑ Removing: release lock‐

ing hooks on rear of

company emblem and

remove by turning it in

opposite direction to

-arrow c-.

❑ Installing: guide VW em‐

blem with locking hooks

into recesses in radiator

grille -arrow b-, then turn

slightly in direction of

-arrow c- until VW em‐

blem engages in radia‐

tor grille

4.2.2

Removing

– Remove bolts -2-.
– Release clips -arrows- from lock carrier using a small screw‐

driver.

4. Radiator grille

337



4.2.3

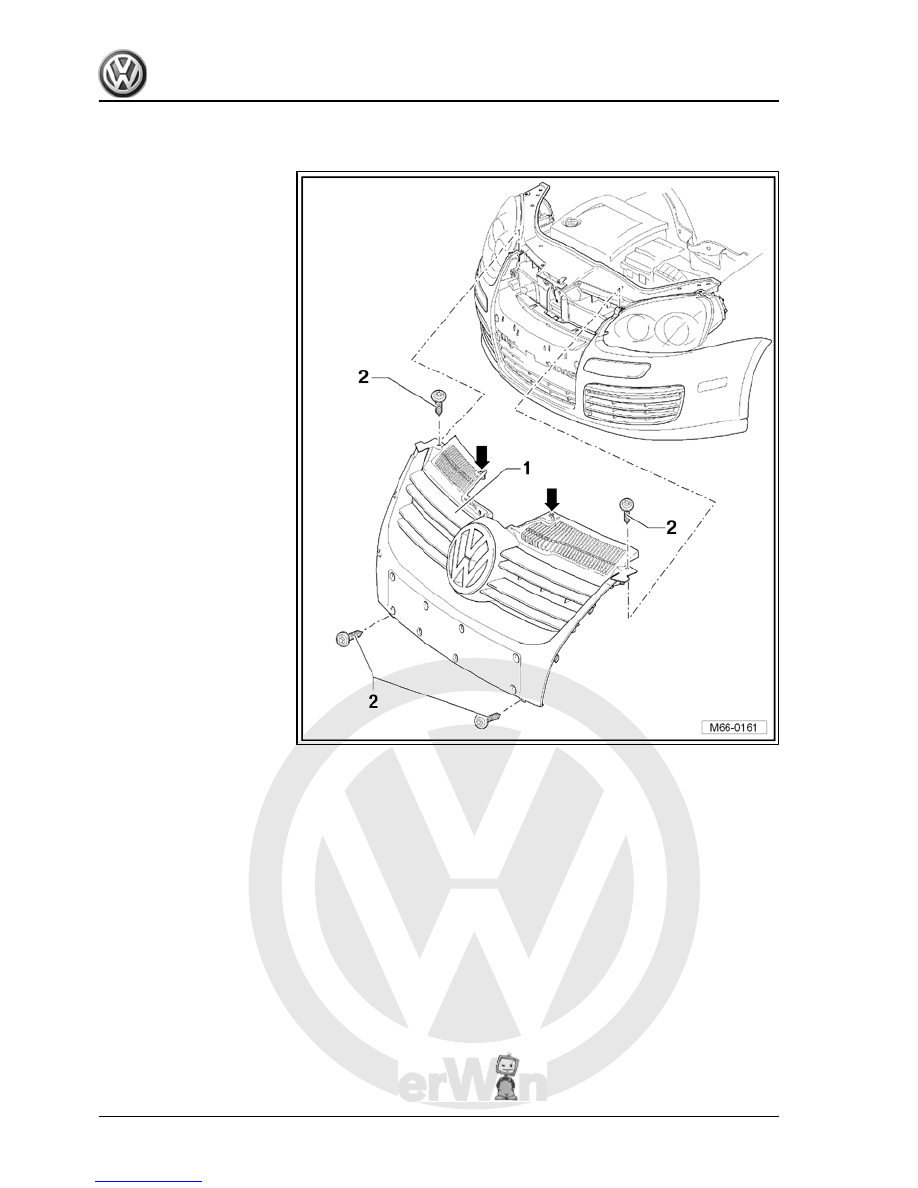

Installing

– Insert radiator grille -1- into bumper cover mounting from

above and tilted forwards slightly.

– Tilt radiator grille -1- towards lock carrier and locate clips

-arrows- in lock carrier.

338



4. Radiator grille

339



4.3.1

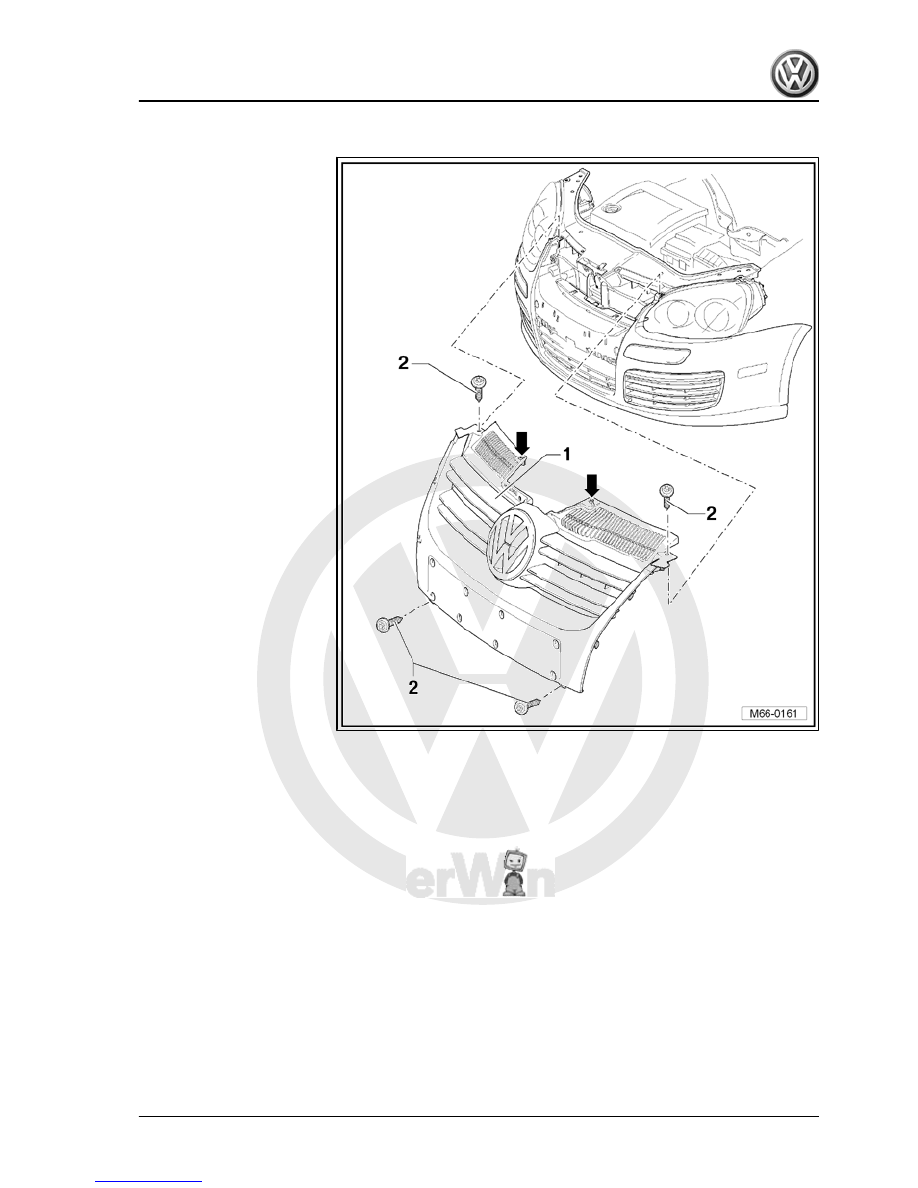

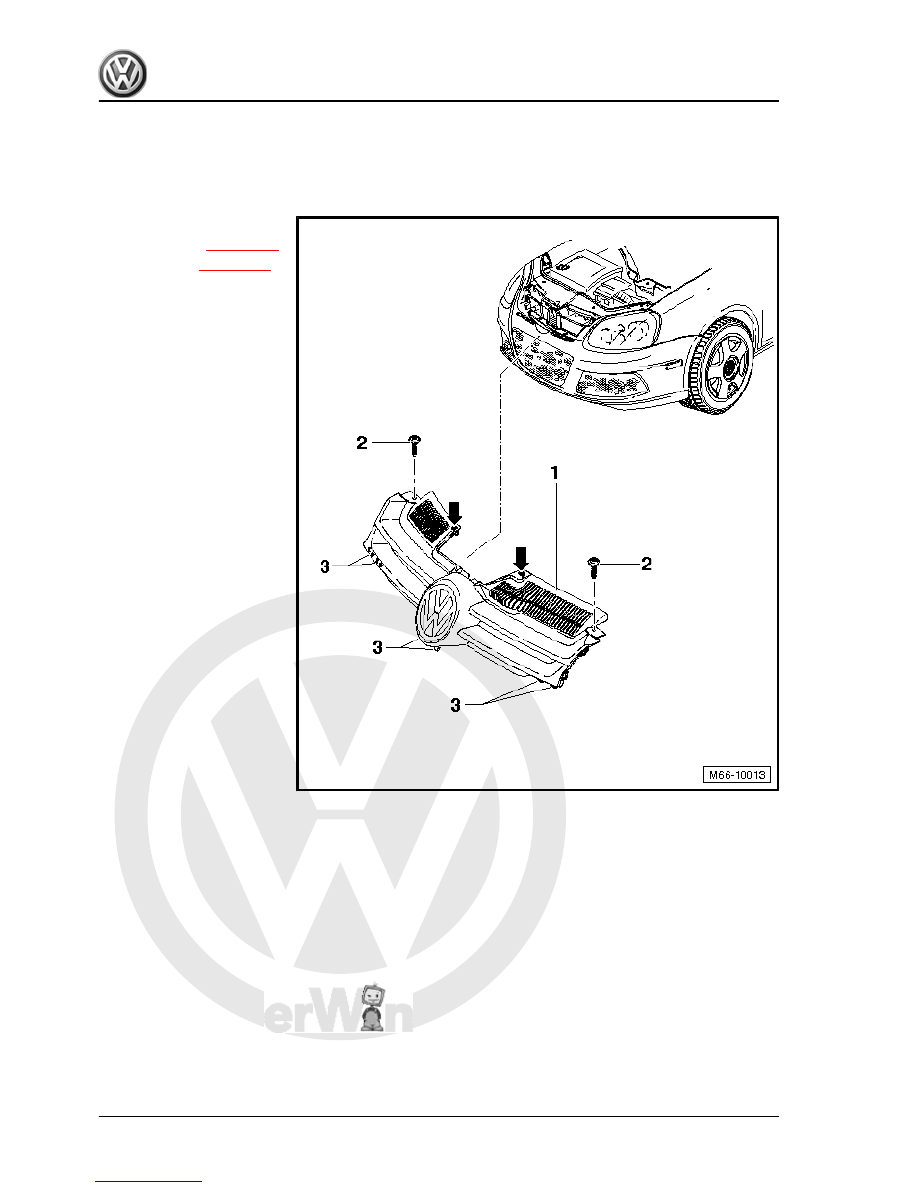

Assembly overview - radiator grille

1 - Radiator grille

❑ Removing

⇒ page 341

❑ Installing

⇒ page 342

2 - Bolt

❑ Qty. 2.
❑ Specified torque: 2 Nm

3 - Locking lug

❑ Qty. 6.

340
