– Remove mirror glass

⇒ page 328

 .

– For ease of assembly, fold exterior mirror forwards.

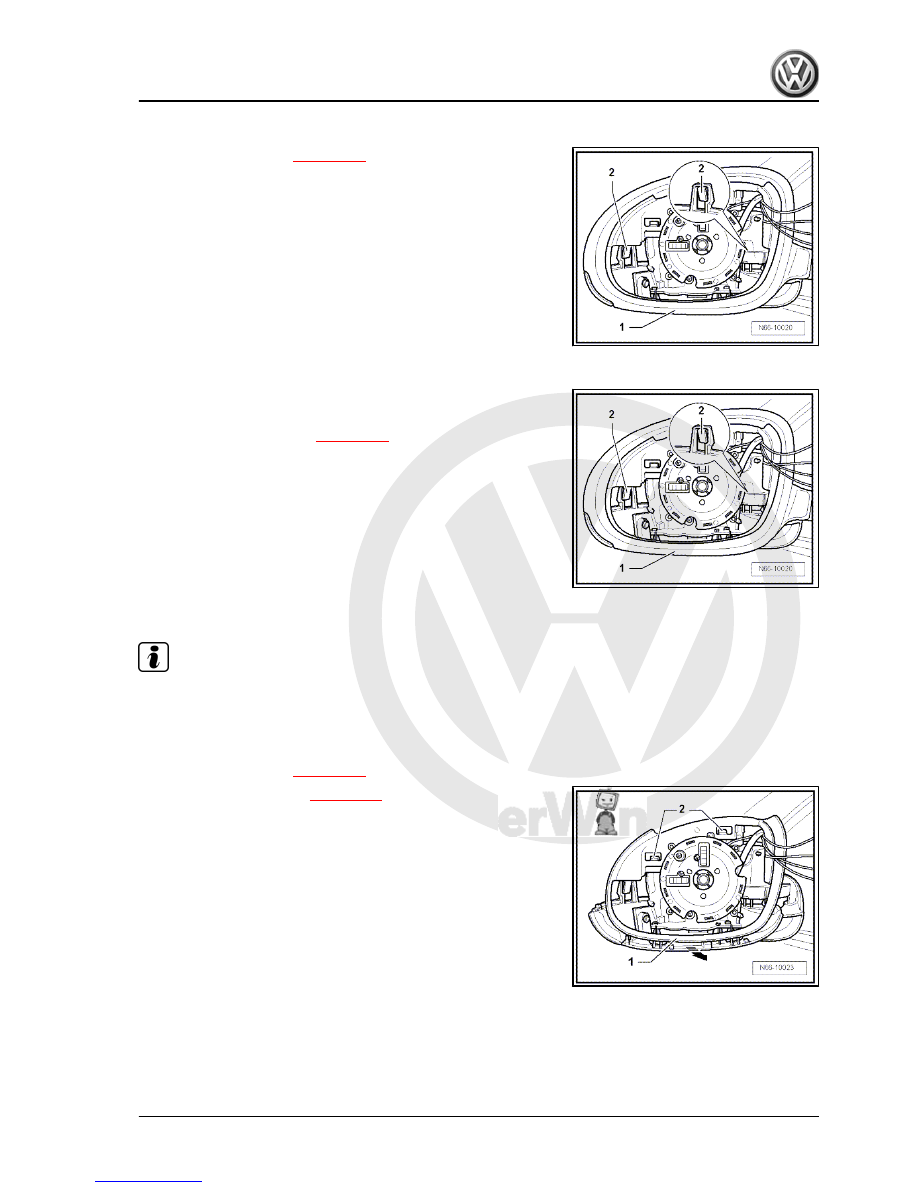

– Using a screwdriver underneath the locking hooks -2- press

mirror housing out of fastening.

– Pull mirror housing slightly forward off mirror base carrier at

front.

– Then pull mirror housing -1- upwards off mirror base carrier.

2.4.2

Installing

– Place mirror housing -1- on mirror base carrier and press mir‐

ror housing down until the locking hooks -2- engage audibly.

– Install mirror glass again

⇒ page 328

 .

Finally carry out a functional check.

2.5

Removing and installing trim

Note

The removal and installation sequence is only for the left trim

plate. The removal and installation of the right trim plate is similar.

2.5.1

Removing

– Remove mirror glass

⇒ page 328

 .

– Remove mirror housing

⇒ page 328

 .

– Using a screwdriver lever locking hooks -2- out of mirror base

carrier.

– Pull trim plate -1- off in -direction of arrow-.

2.5.2

Installing

Install in reverse order of removal.
Finally carry out a functional check.

2. Exterior mirror

329



repeaters

Note

The removal and installation sequence is only for the left side

mounted turn signal. The removal and installation of the right

side turn signal repeater is similar.

The side turn signal repeaters are fitted with long-life light-

emitting diodes (LEDs) instead of conventional bulbs.

Therefore, changing bulbs is not necessary. In case of dam‐

age, the entire turn signal must be renewed.

2.6.1

Removing

– Remove mirror glass

⇒ page 328

 .

– Remove mirror housing

⇒ page 328

 .

– Remove trim

⇒ page 329

 .

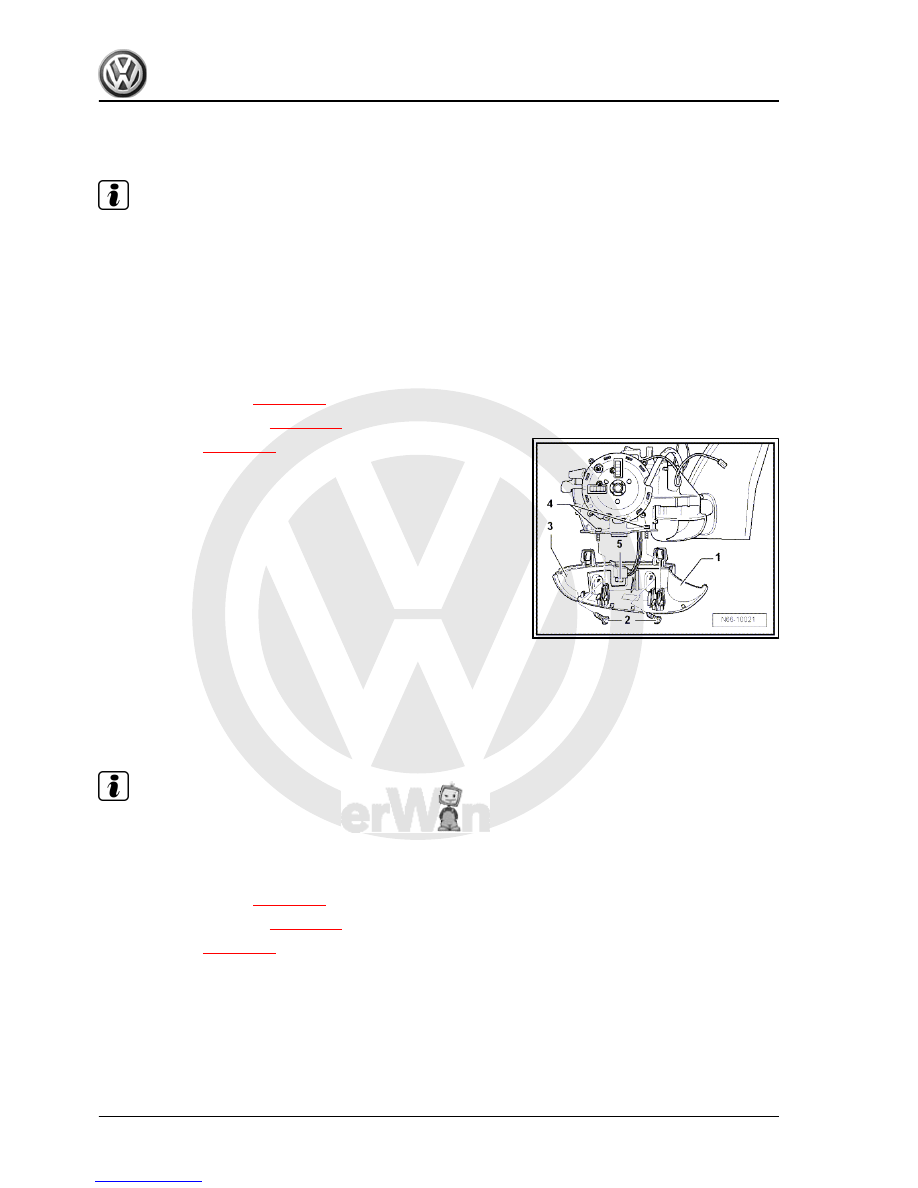

– Remove bolts -4- and remove assembly part -1- downwards.
– Detach connector -5- from turn signal -3-.
– Remove bolts -2- and take turn signal -3- off assembly part

-1-.

2.6.2

Installing

Install in reverse order of removal.
Finally carry out a functional check.

2.7

Removing and installing entry light

Note

The removal and installation sequence is only for the left entry

light. The removal and installation of the right entry light is similar.

2.7.1

Removing

– Remove mirror glass

⇒ page 328

 .

– Remove mirror housing

⇒ page 328

 .

– Remove trim

⇒ page 329

 .

330



 .

– Remove bolt -1-.

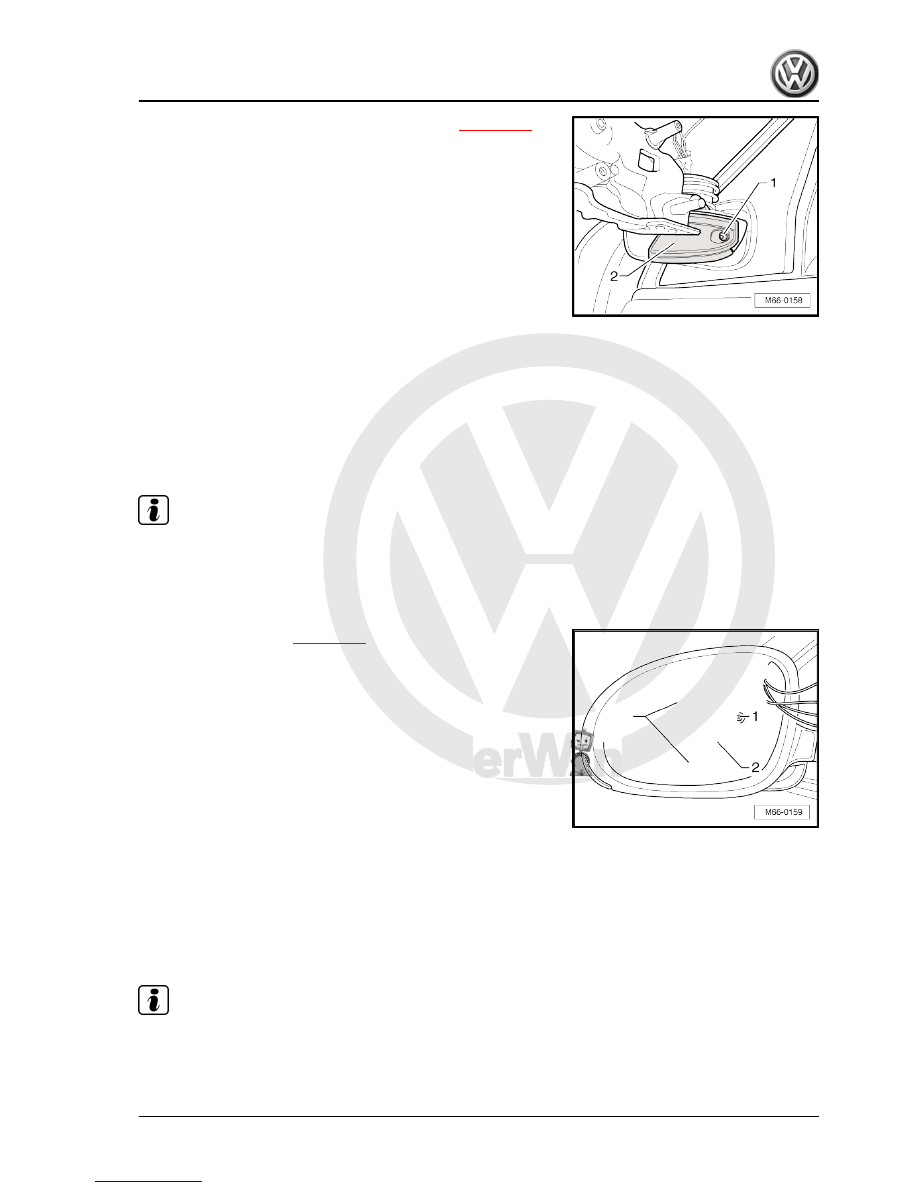

– Swing entry light -2- out downwards and pull bulb out of entry

light housing.

2.7.2

Installing

Install in reverse order of removal.
Specified torque for entry light bolt: 1 Nm
Finally carry out a functional check.

2.8

Removing and installing adjustment unit

with motor for exterior mirror

Note

The removal and installation sequence is only for the left adjust‐

ment unit with motor. The removal and installation of the left

adjustment unit with motor is similar.

2.8.1

Removing

– Remove mirror glass

⇒ page 328

 .

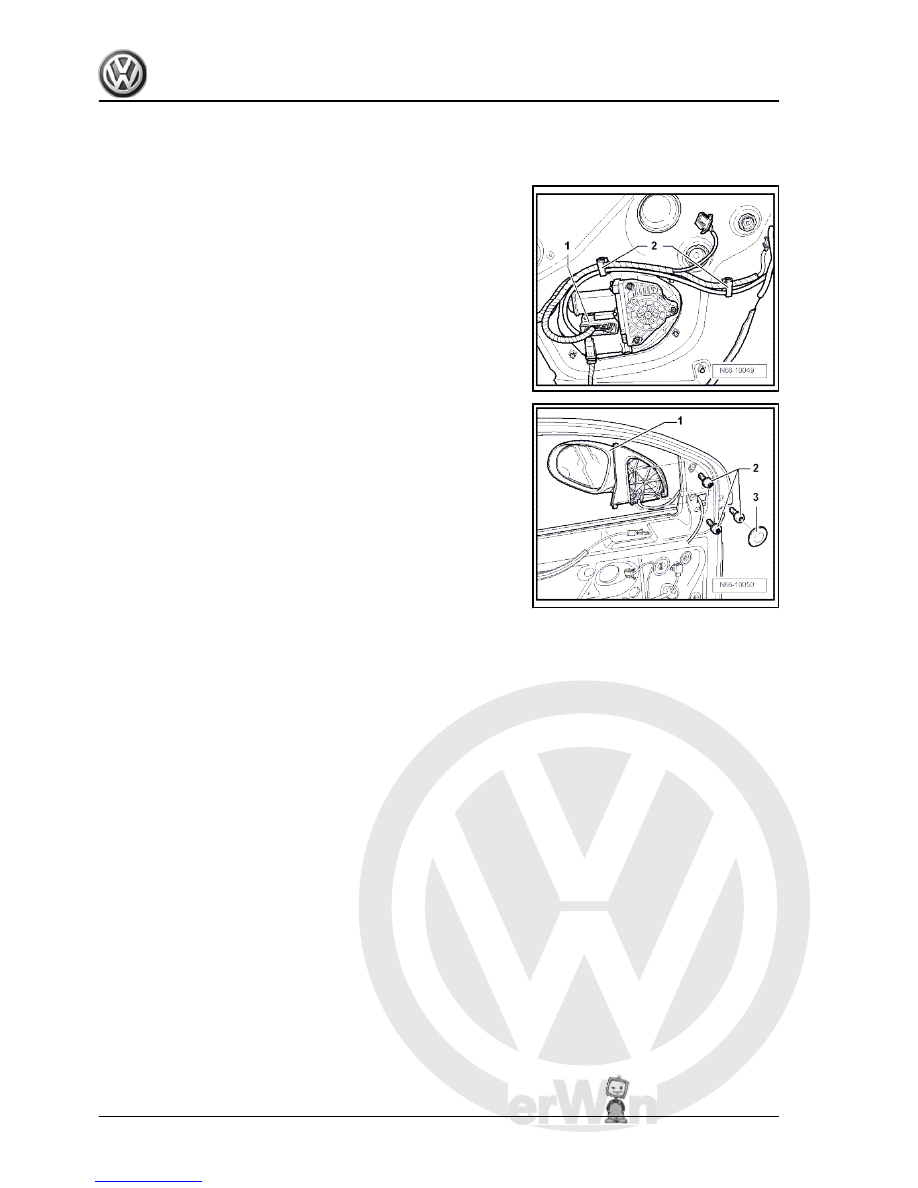

– Remove bolts -1-.
– Remove adjustment unit with motor -2- and disconnect con‐

nector.

2.8.2

Installing

Install in reverse order of removal.
Specified torque for adjustment unit with motor: 1 Nm
Finally carry out a functional check.

2.9

Removing and installing exterior mirror

Note

The removal and installation sequence is only for the left exterior

mirror. The removal and installation of the rear view mirror is sim‐

ilar.

2. Exterior mirror

331



– Removing front door trim on driver's side ⇒  General body re‐

pairs, interior; Rep. Gr.  70 ; Door trim .

– Release cable retainer -2- and detach connector -1- for exte‐

rior mirror.

– Lever cap -3- out of door and remove bolts -2-.
– Remove exterior mirror -1- and guide wire through aperture in

door.

2.9.2

Installing

Install in reverse order of removal.
Specified torque for exterior mirror bolts: 8 Nm
Test function before installing door trim.
