of the bumper cover -3- are used as reference points.

1. Wheel housing liner

325



2.1

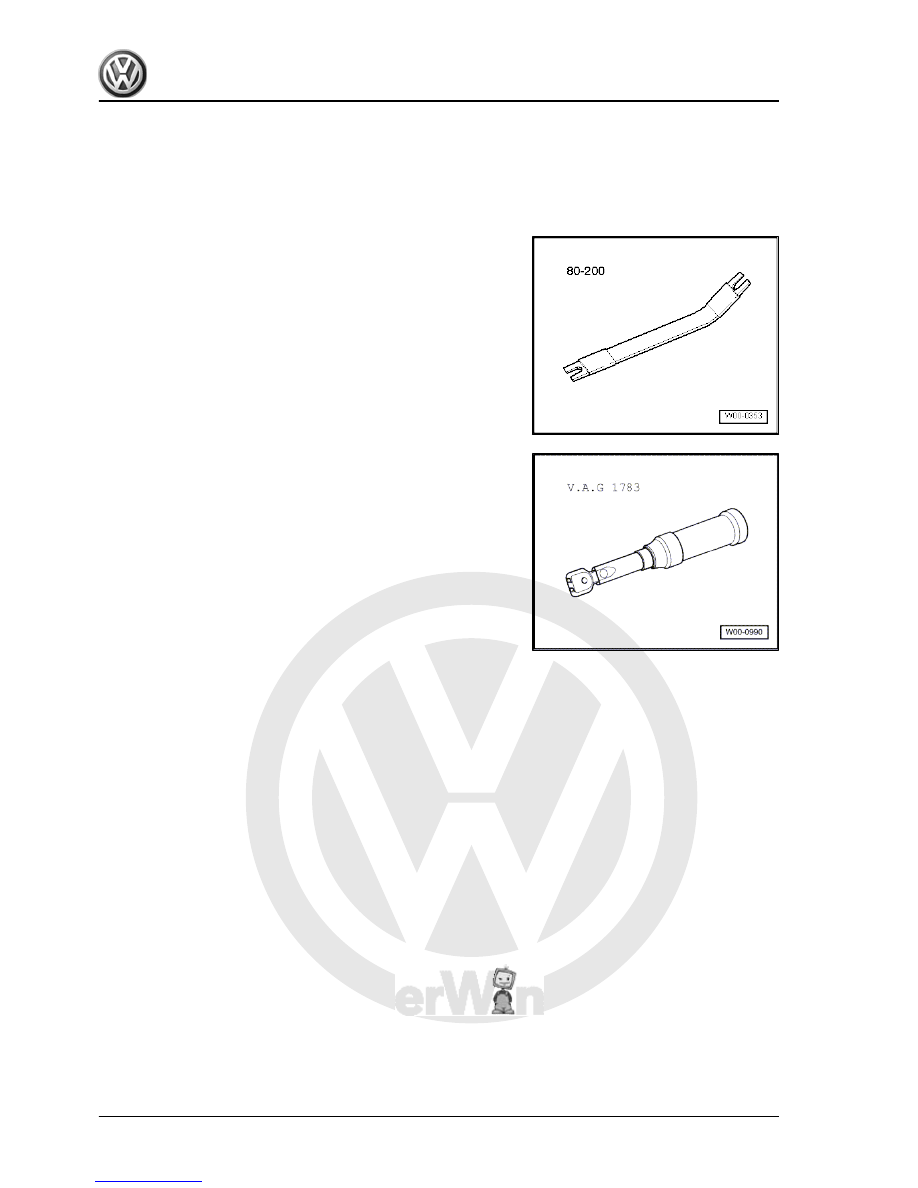

Tools

Special tools and workshop equipment required
♦ Removal lever -80-200-

♦ Torque wrench -V.A.G 1783-

326



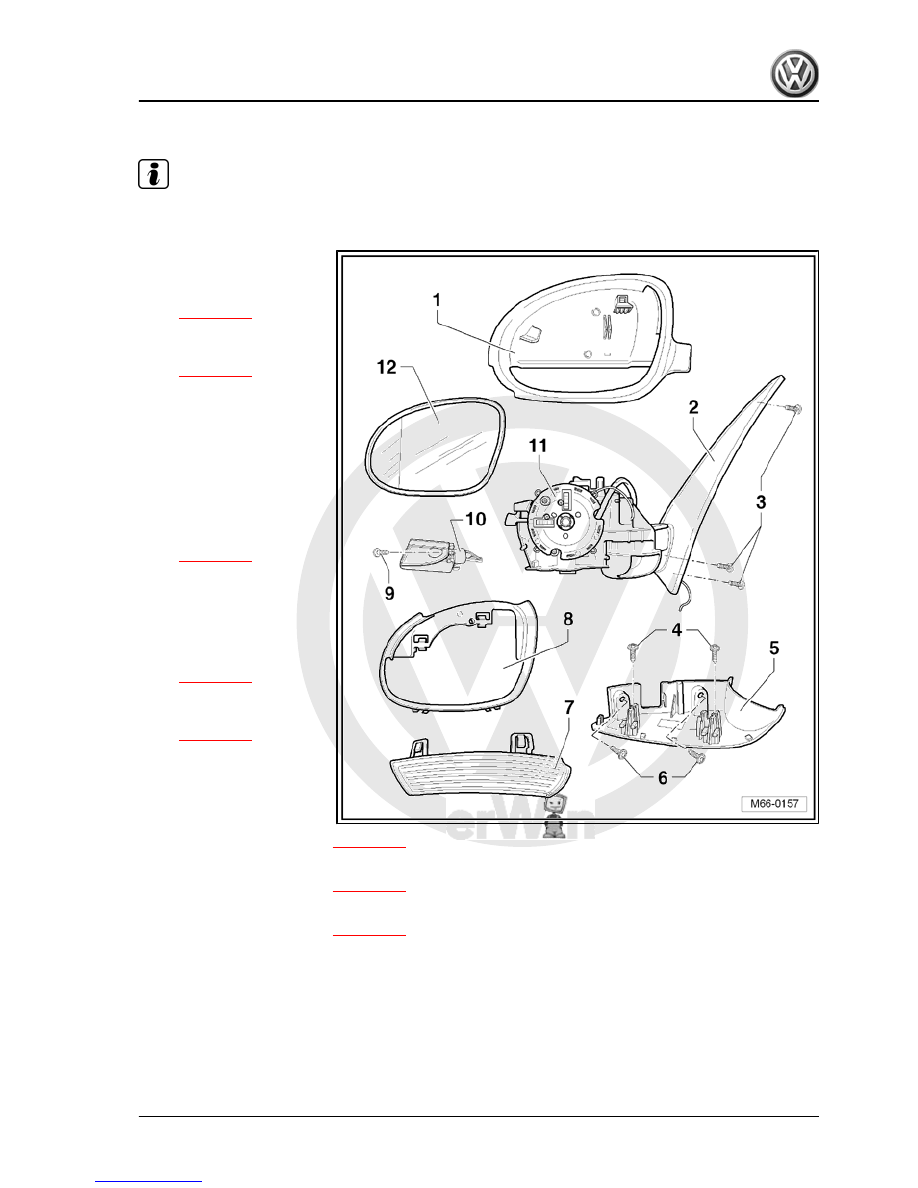

Note

Only the left side is shown. The right side is similar.

1 - Mirror housing

❑ Material: ABS.
❑ Removing and installing

⇒ page 328

2 - Mirror mounting

❑ Removing and installing

⇒ page 331

3 - Bolt

❑ Qty. 3
❑ 8 Nm

4 - Bolt

❑ Qty. 2
❑ 1 Nm

5 - Assembly part

❑ Removing and installing

⇒ page 330

6 - Bolt

❑ Qty. 2
❑ 1 Nm

7 - Side turn signal repeater

❑ Removing and installing

⇒ page 330

8 - Trim

❑ Removing and installing

⇒ page 329

9 - Bolt

❑ Qty. 1
❑ 1 Nm

10 - Ambient light

❑ Removing and installing

⇒ page 330

11 - Adjuster unit with motor for exterior mirror

❑ Removing and installing

⇒ page 331

12 - Mirror glass

❑ Removing and installing

⇒ page 328

2. Exterior mirror

327



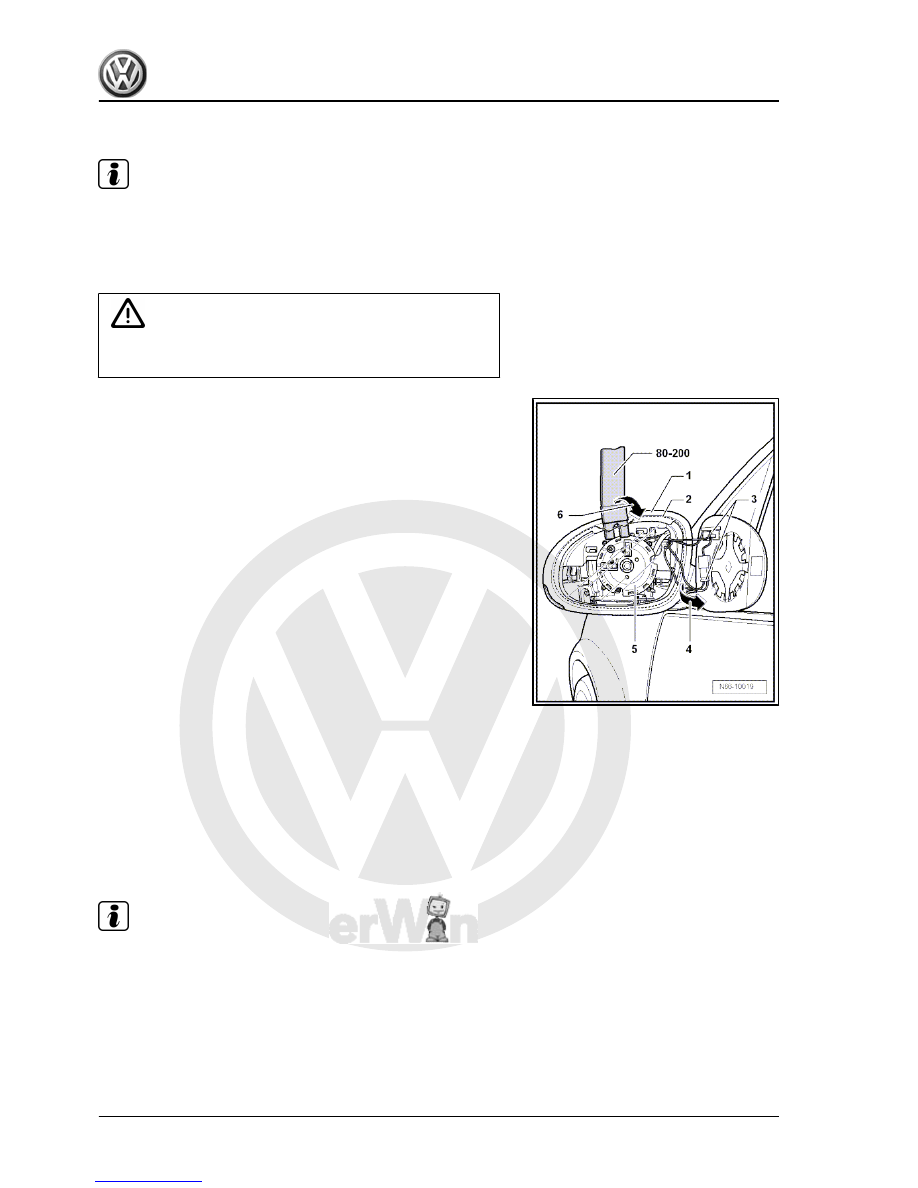

Note

The removal and installation sequence is only for the left mirror

glass. The removal and installation of the right mirror glass is

similar.

2.3.1

Removing

WARNING

When doing this repair work, always wear safety goggles and

leather gloves!

– Protect edge of housing -1- against damage to paintwork with

e.g. fabric-reinforced adhesive tape.

– Press bottom of mirror glass -2- into mirror housing -1-.
– Using removal lever -80-200- , lever -arrow 6- mirror glass

-2- off adjuster unit with mirror -5-.

– Swivel mirror glass -2- to side -arrow 4- and detach connectors

-3- for electric dip and mirror heating on rear of mirror glass

-2-.

2.3.2

Installing

– Push connectors onto mirror glass.
– Press mirror glass centrally onto adjuster unit with motor in

housing.

– Mirror glass engages audibly.
Finally carry out a functional check.

2.4

Removing and installing mirror housing

Note

The removal and installation sequence is only for the left mirror

housing. The removal and installation of the right mirror housing

is similar.
