Note

Only the left side is shown. The right side is similar.

The removal and installation procedures may have to be modified slightly depending on variations in equip‐

ment.

The wheel housing liner consists of a front and a rear part.

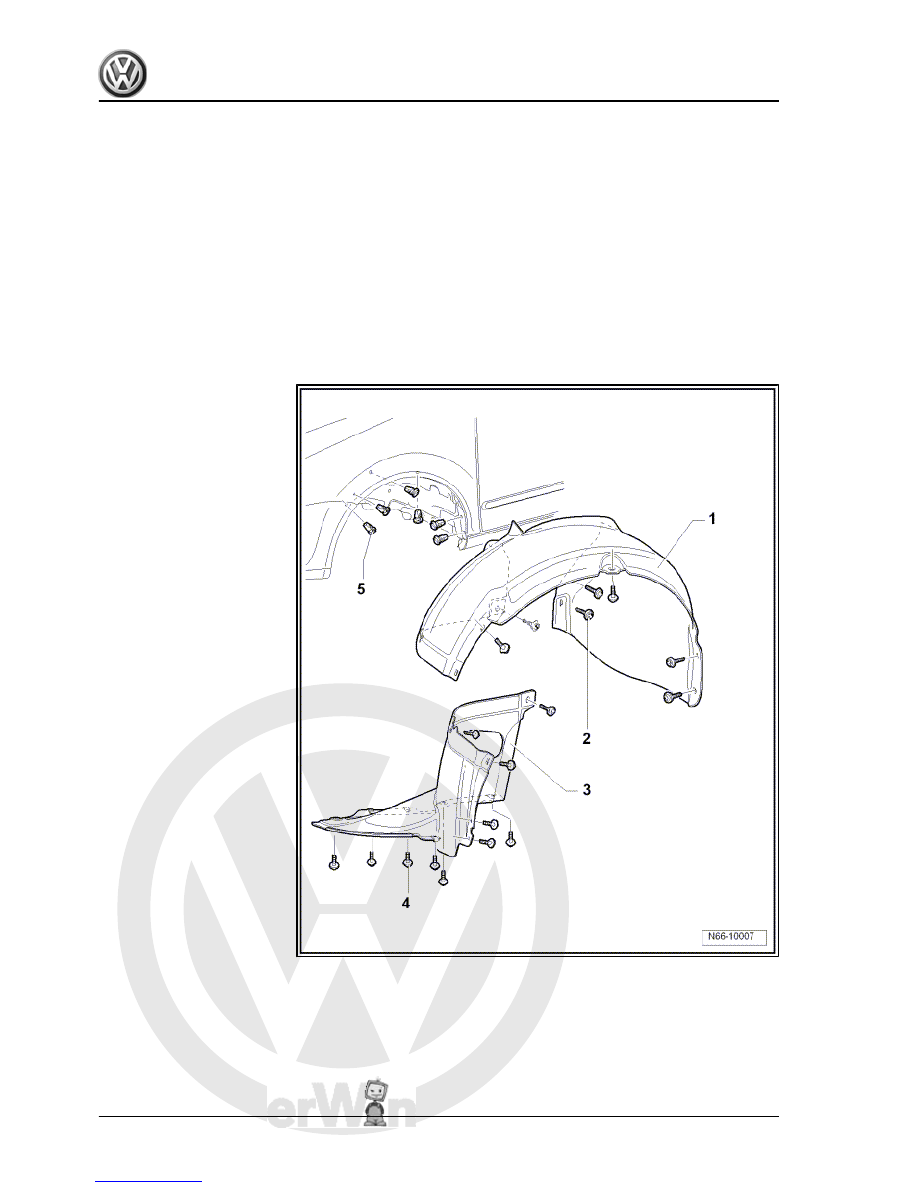

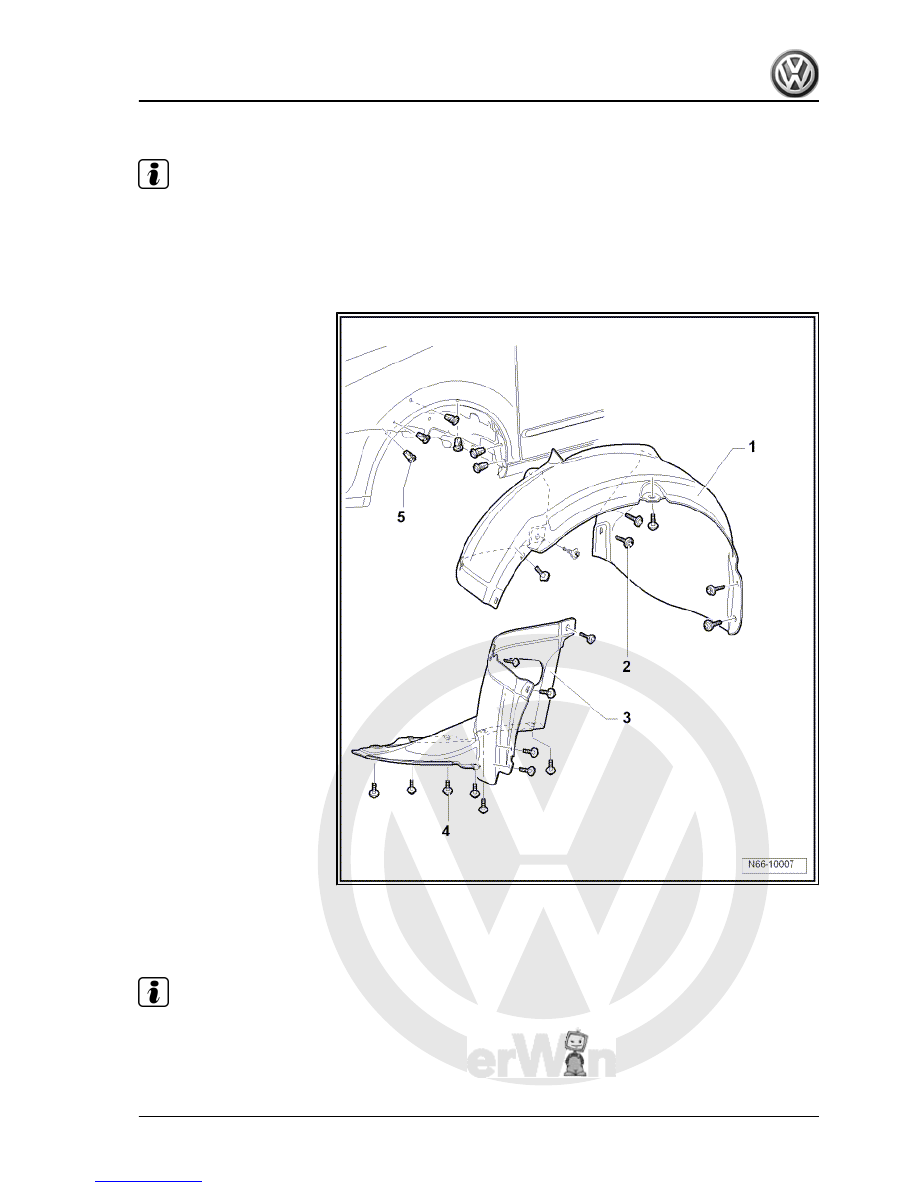

1 - Wheel housing liner rear

part

❑ Material: PP/EPDM

2 - Bolt

❑ Qty. 7
❑ 2 Nm

3 - Wheel housing liner front

part

❑ Material: PP/EPDM

4 - Bolt

❑ Qty. 11
❑ 2 Nm

5 - Expanding nut

1.3

Removing and installing front wheel

housing liner

Note

The removal and installation sequence is only for the left wheel

housing liner. Removal and installation of the right wheel housing

liner are similar.

1. Wheel housing liner

321



Specified torques for wheel bolts .

– Remove bolts -4- (Qty. 3) at transition of front and rear parts

of wheel housing liner

– Remove bolts -2- (Qty 7).
– Pull off rear part of wheel housing liner -1-.
Wheel housing liner front part
– Remove bolts -4- (Qty 11).
– Pull off front part of wheel housing liner -3-.

1.3.2

Installing

Install in reverse order of removal.

322



Note

Only the left side is shown. The right side is similar.

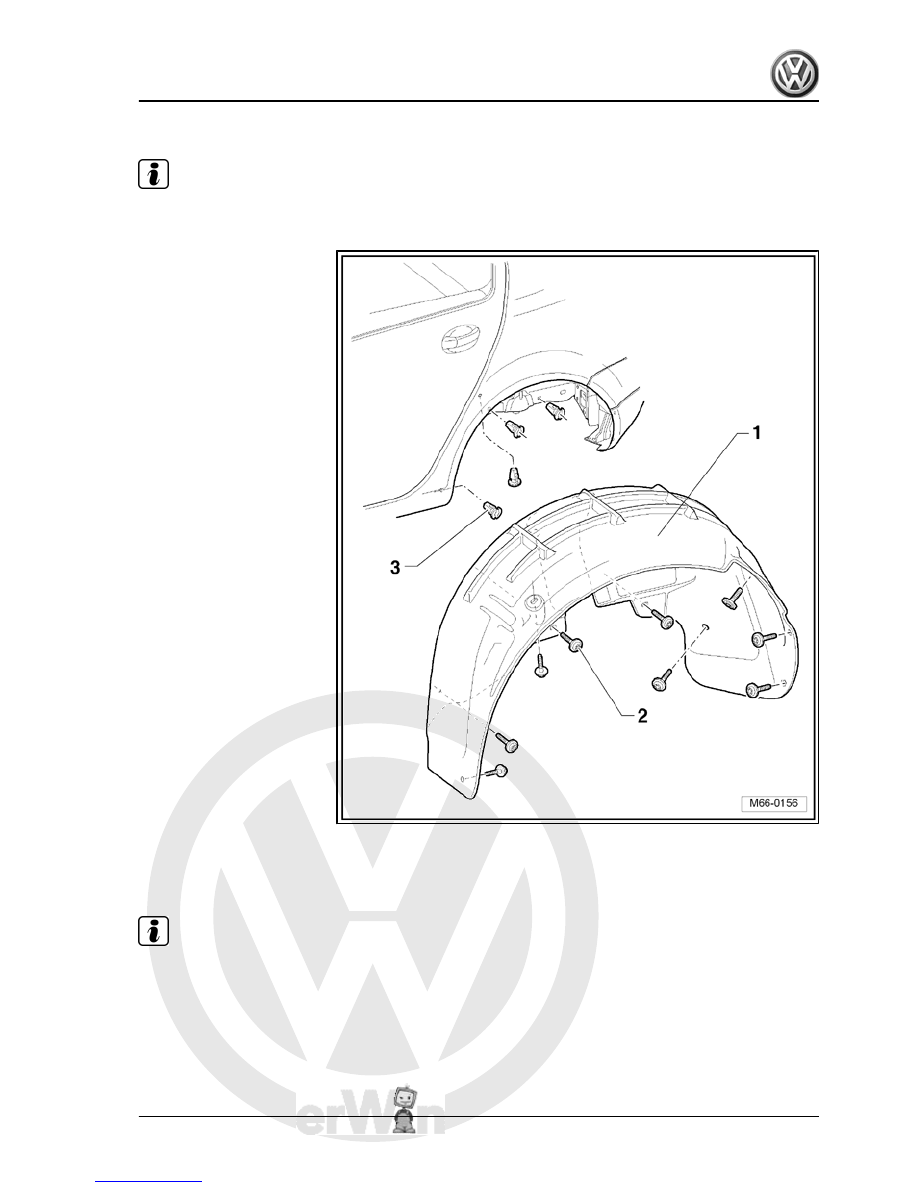

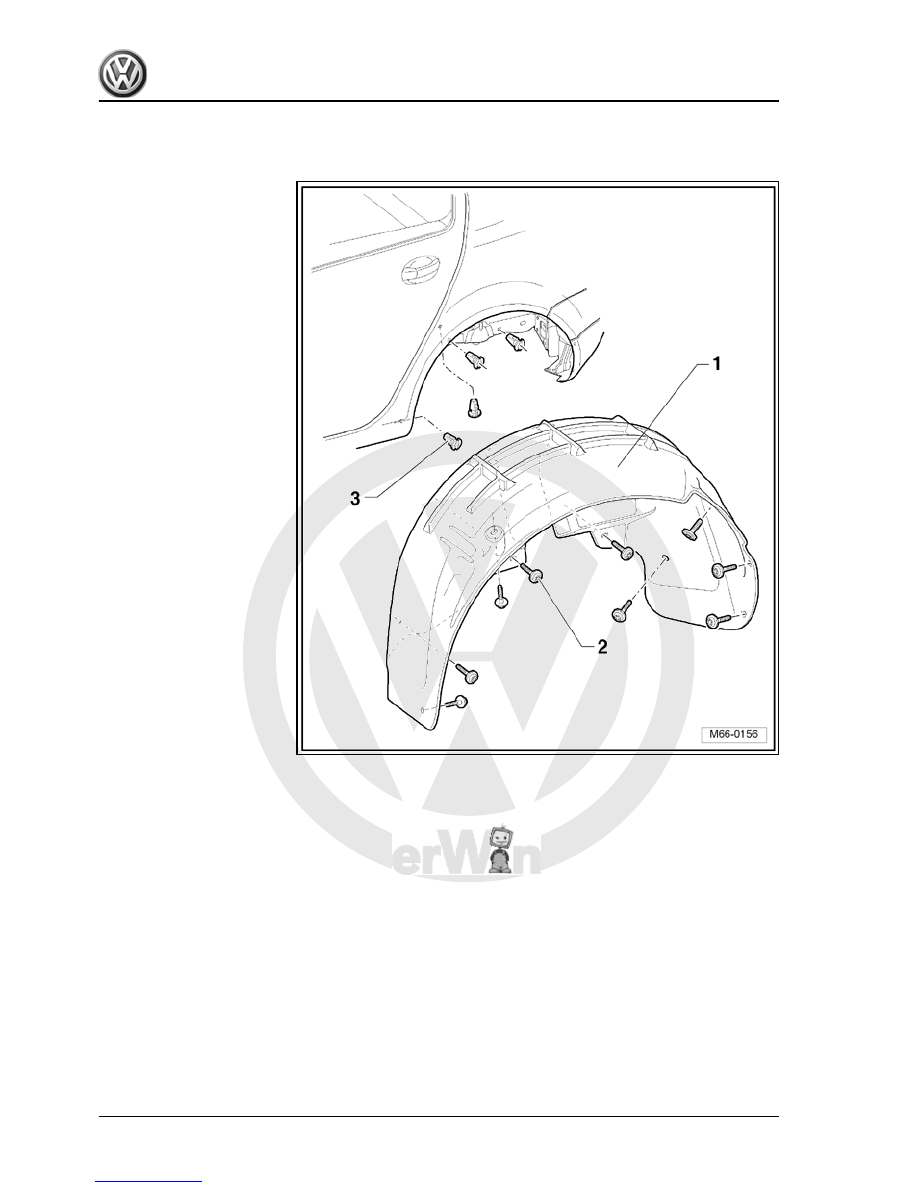

1 - Wheel housing liner

❑ Material: PP/EPDM

2 - Bolt

❑ Qty. 9
❑ 2 Nm

3 - Expanding nut

1.5

Removing and installing rear wheel

housing liner

Note

The removal and installation sequence is only for the left wheel

housing liner. Removal and installation of the right wheel housing

liner are similar.

1.5.1

Removing

Specified torques for wheel bolts .

1. Wheel housing liner

323



Installing

Install in reverse order of removal.

1.6

Installing protective cover for wheel

housing

1.6.1

Installing

– Clean contact surfaces of bumper cover and wheel housing

liner so that they are free of dust and grease. We recommend

isopropyl alcohol.

– Remove protective backing -1- from protective cover -2-.

324
