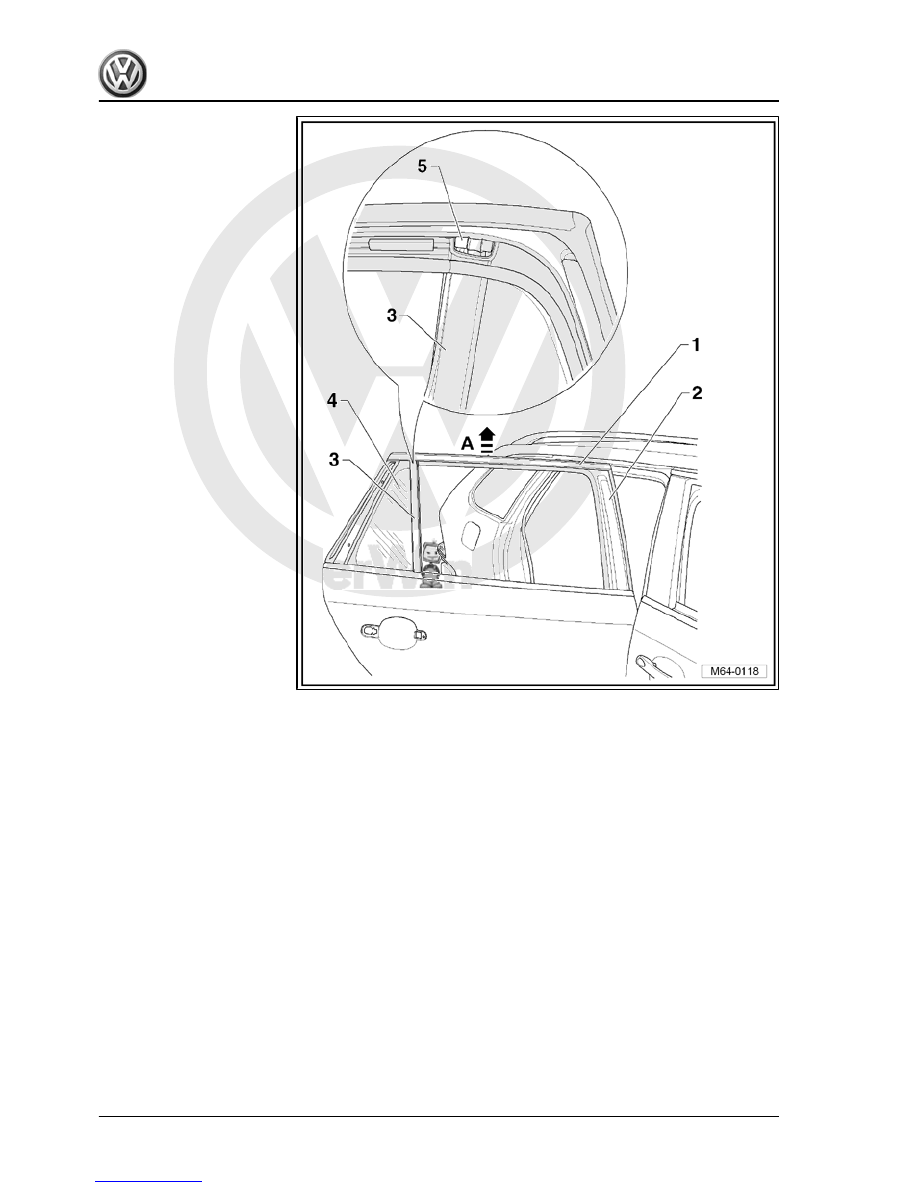

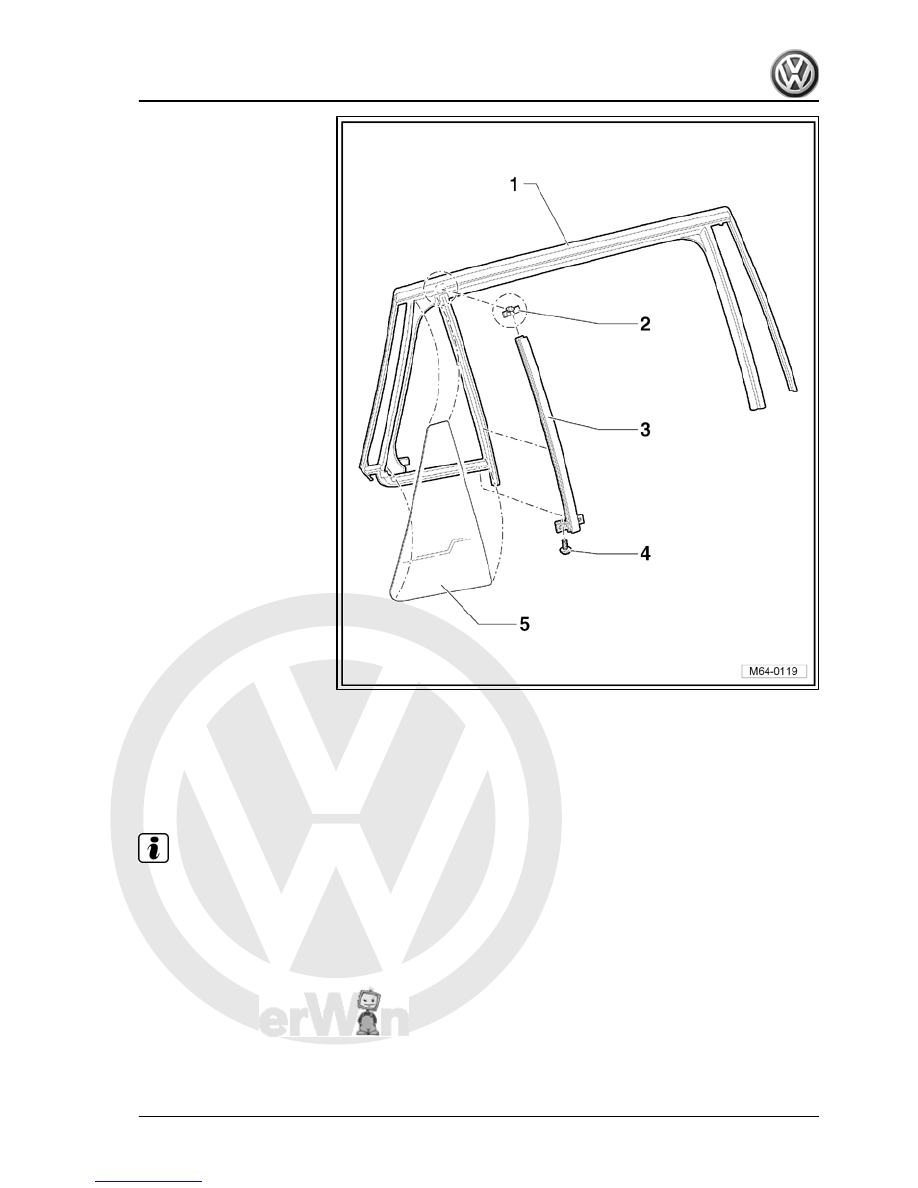

– Carefully prise clip -5- out of window frame -2-.
– Pull complete window channel -1- with fixed door window -4-

and middle frame -3- upwards and out of door in direction of

-arrow A-.

4. Rear door window (Variant)

313



314



Spray window channel with soapy water when installing.
Further installation is performed in reverse order of removal.
Use a new clip when installing middle frame.

Note

When installing fixed door window with window channel ensure it

is seated uniformly (wind noise).

4. Rear door window (Variant)

315



nel trim strip

4.7.1

Removing

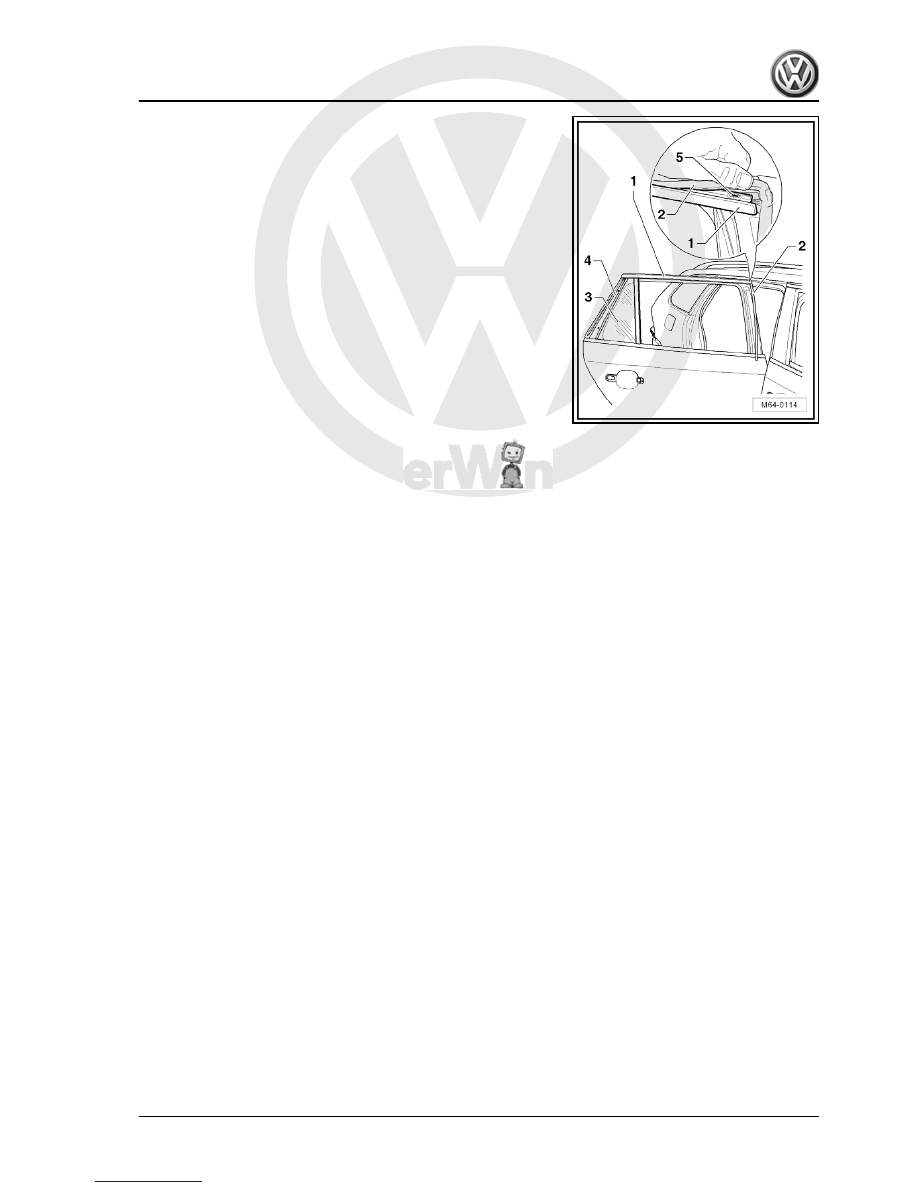

– Push window channel -2- in top front area slightly to side.
– Remove spreader rivet -5- for window channel trim strip -1-.
– Pull trim strip -1- out of window channel -2-.

4.7.2

Installing

– Spray window channel with soapy water.

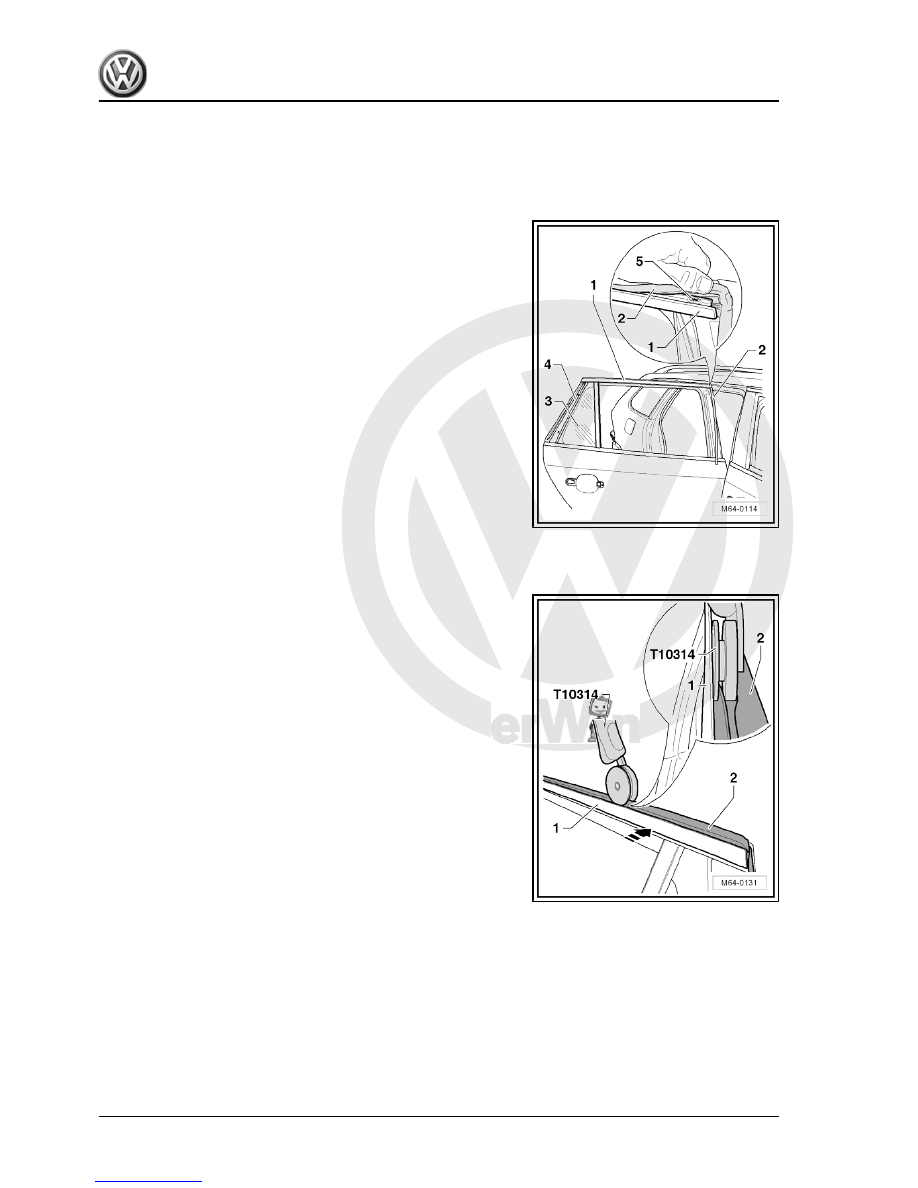

– Press trim strip -1- evenly -arrow- into window channel -2- by

hand.

– Then press window channel -2- fully into mounting of trim strip

with roller -T 10314- .

Further installation is performed in reverse order of removal.
