Volkswagen Golf Variant / Jetta. Manual - part 78





Gr.  70 ; Door trim .

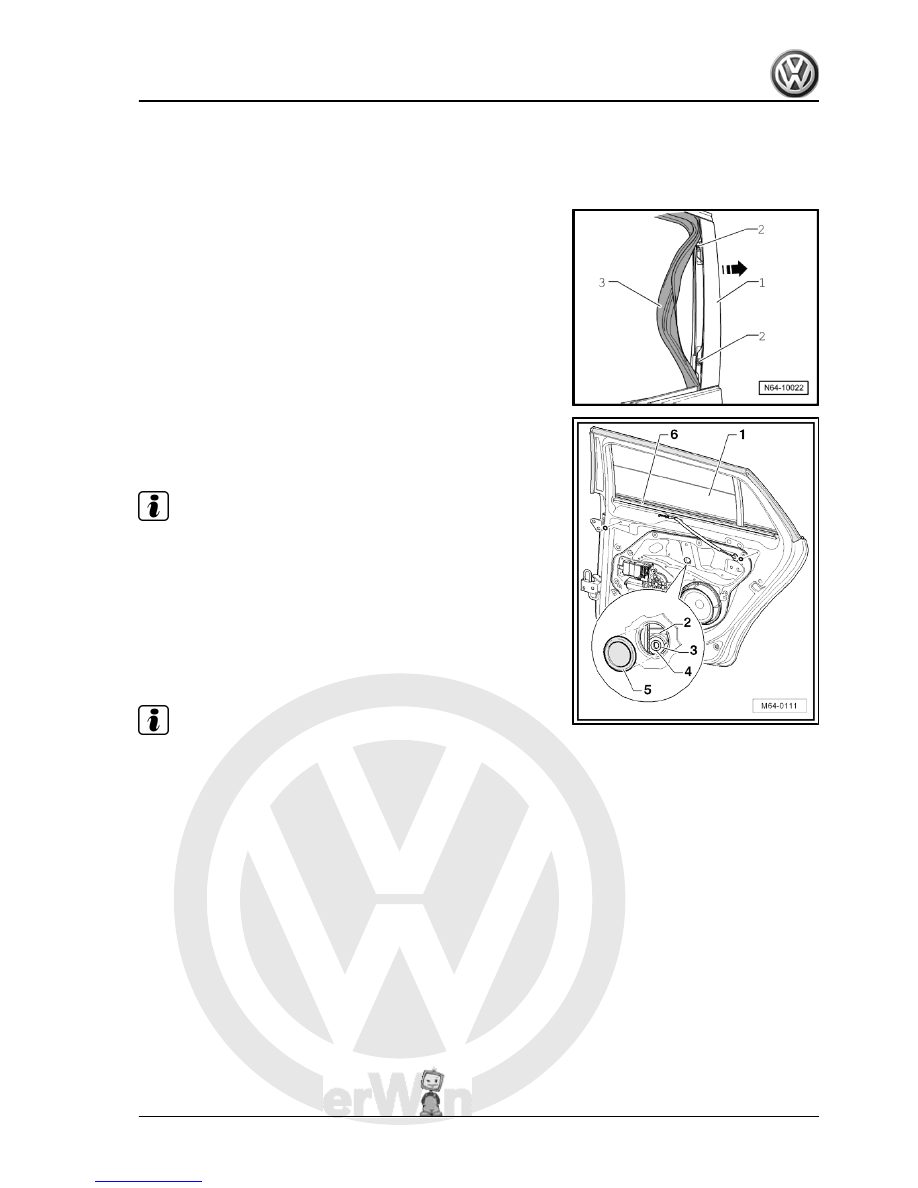

– Lower door window completely.
– Pull window channel -3- out of mounting.
– Remove screws -2- and pull trim -1- towards B-pillar

-direction of arrow-.

– Lever out cap -5-.
– Lift door window until spreader pin -3- and spreader plug -4-

in cut-out of window regulator is accessible.

Note

If the procedure cannot be carried out because there is a fault with

the electric window regulator, remove electric window motor to

slide window down.

– Screw a 5 mm bolt (approx. 70 mm long) into spreader pin

-3-.

– Pull bolt and spreader pin out of spreader plug -4-.
– Screw an 8 mm bolt (approx. 80 mm long) into spreader plug

-4-.

Note

Do not exert too great a pressure on the plug because otherwise

the plug will fall into the door.

– Pull spreader plug -4- out of clamping jaws -2- and therefore

out of door window.

– Pull window slot inner seal -6- off door inner panel.

4. Rear door window (Variant)

309



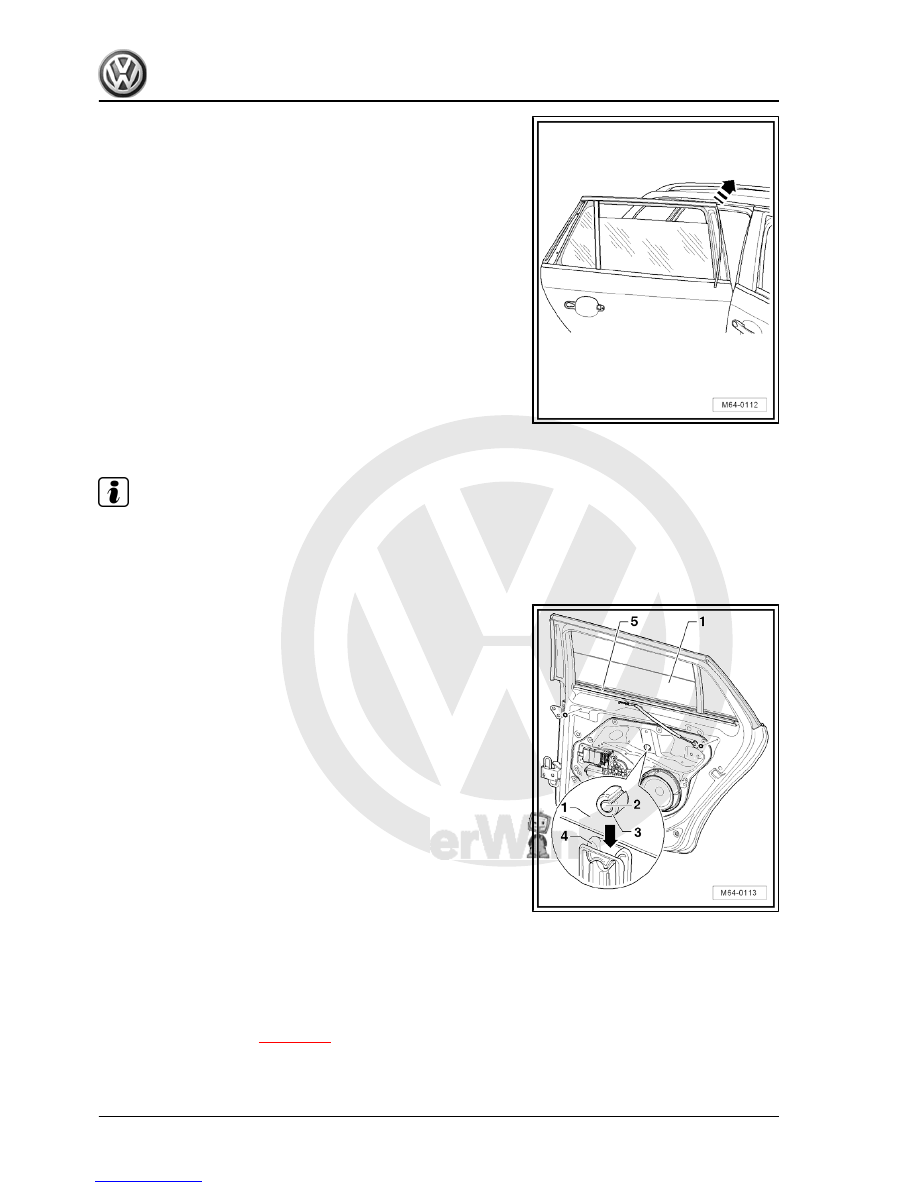

Installing

Note

When installing door window, always renew spreader plug and

spreader pin.

Before inserting spreader plug and spreader pin check washer

for damage.

– With door window -1- removed insert spreader plug -3- in mid‐

dle - centralised.

– Press spreader pin -2- flush into spreader plug -3-.
– Guide door window -1- into door and insert door window into

mounting of window regulator guide -4-.

– With light pressure from above -arrow-, engage window -1- in

mounting of window regulator guide -4-.

Further installation is performed in reverse order of removal.
Carry out functional test function before installing door trim.

4.4

Removing and installing window slot

outer seal

4.4.1

Removing

– Remove door window

⇒ page 309

 .

310



Installing

Install in reverse order of removal.

4.5

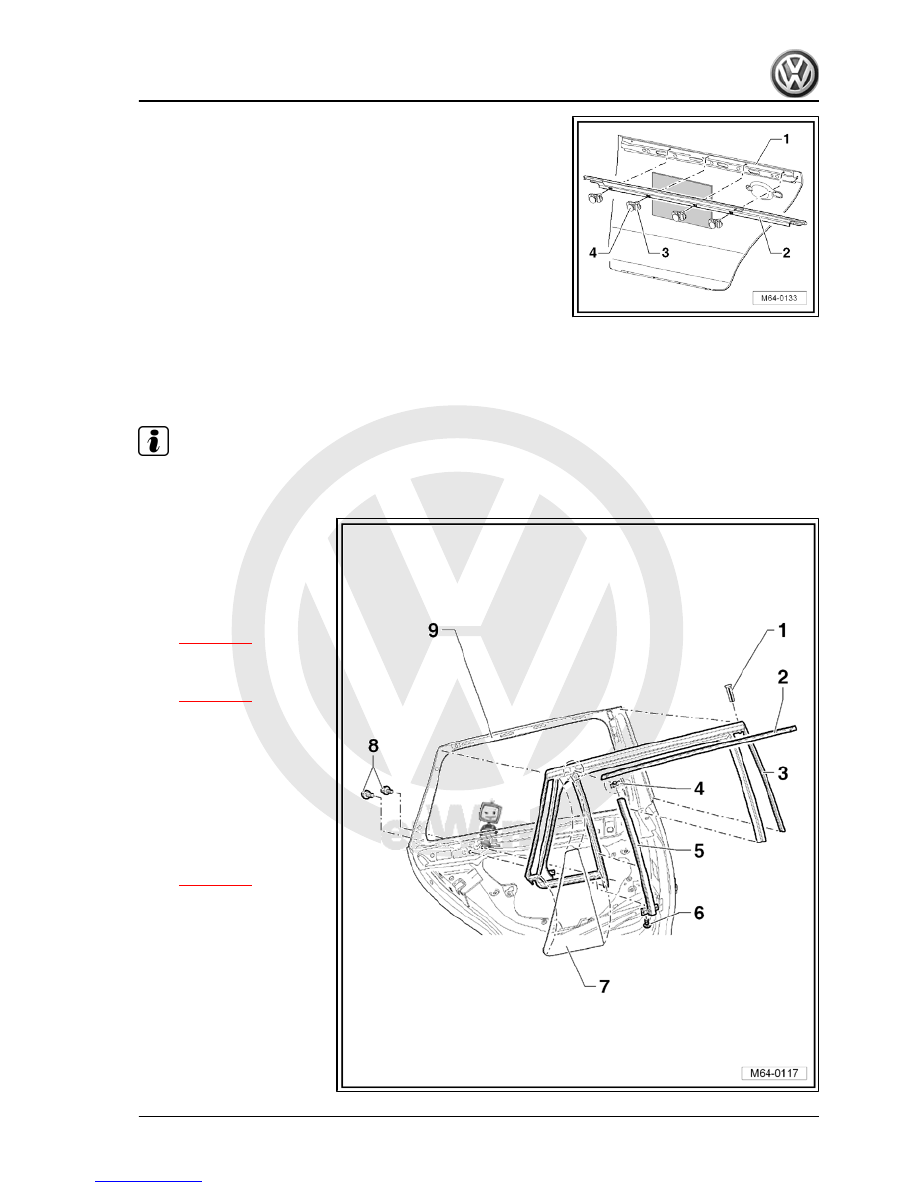

Assembly overview - door with fixed window with window channel

Note

The right side is shown. The left side is similar.

1 - Spreader rivet

❑ Only with window chan‐

nel trim strip

2 - Window channel trim strip

❑ Depends on equipment
❑ Removing and installing

⇒ page 316

3 - Window channel

❑ Removing and installing

⇒ page 312

4 - Clip

❑ Always renew when

making repairs

5 - Middle frame
6 - Bolt

❑ 4.5 Nm

7 - Fixed door window

❑ Removing and installing

⇒ page 312

8 - Bolt

❑ Qty. 2
❑ 5.5 Nm

9 - Window frame on door inner

part

4. Rear door window (Variant)

311



window with window channel

Note

The removal and installation sequence is only for the right door

fixed window with window channel. The removal and installation

of the left door fixed window with window channel is similar.

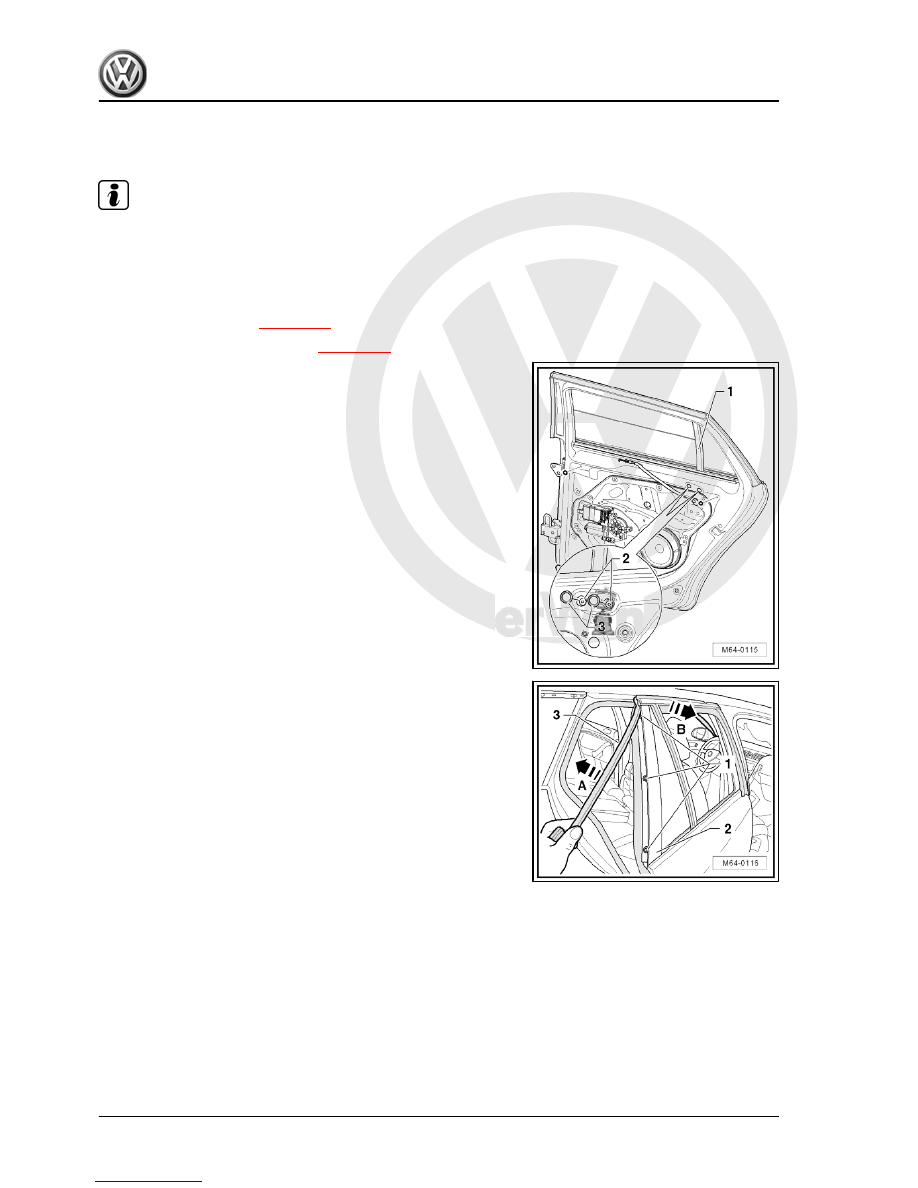

4.6.1

Removing

– Remove door window

⇒ page 309

 .

– Remove window slot outer seal

⇒ page 310

 .

– Lever out both caps -3-.
– Remove both bolts -2- from middle frame -1-.

– Pull window channel rubber -3- off trim -2- in direction of

-arrow A-.

– Remove bolts -1- and pull off trim -2- in direction of

-arrow B-.

Vehicles with window channel trim strip

312
