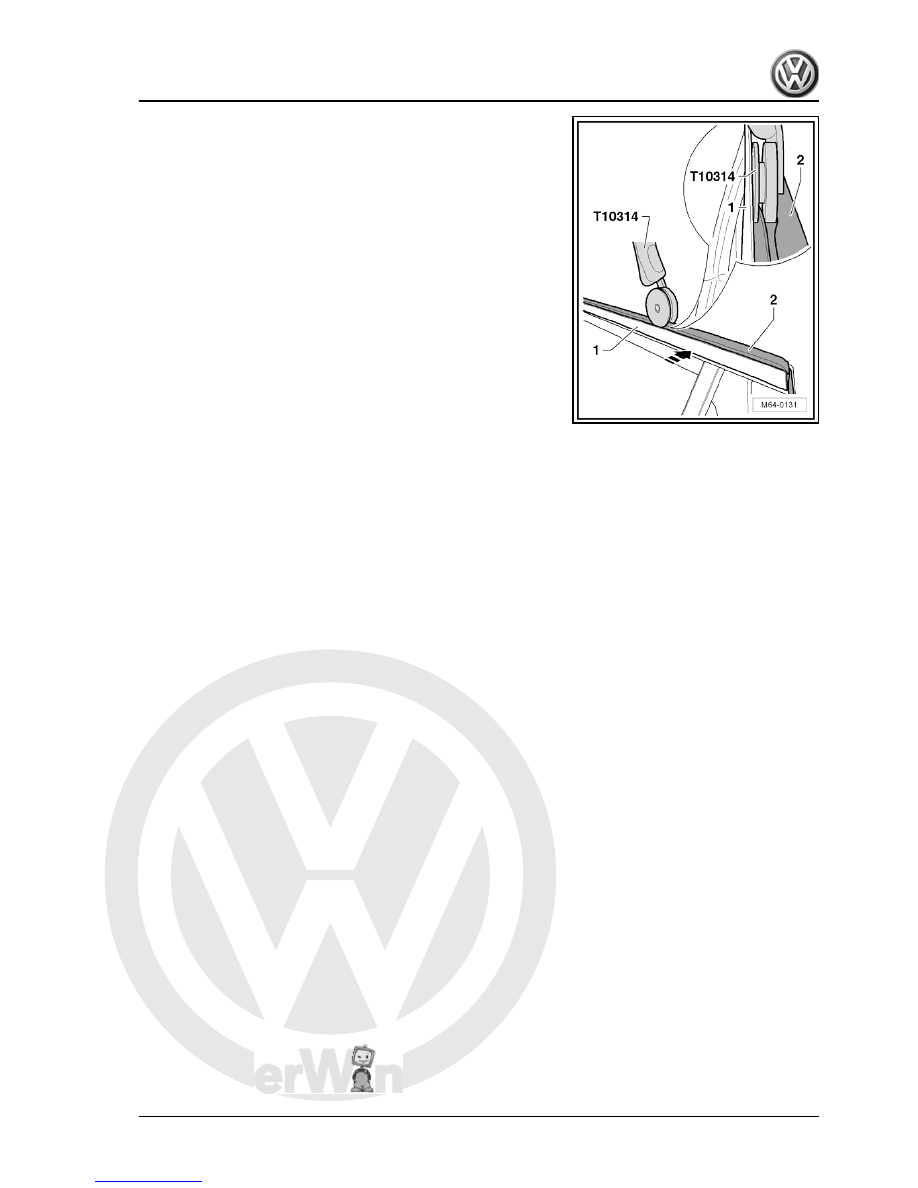

– Then press window channel -2- fully into mounting of trim strip

with roller -T 10314- .

Further installation is performed in reverse order of removal.

3. Rear door window (saloon)

301



Note

The right side is shown. The left side is similar.

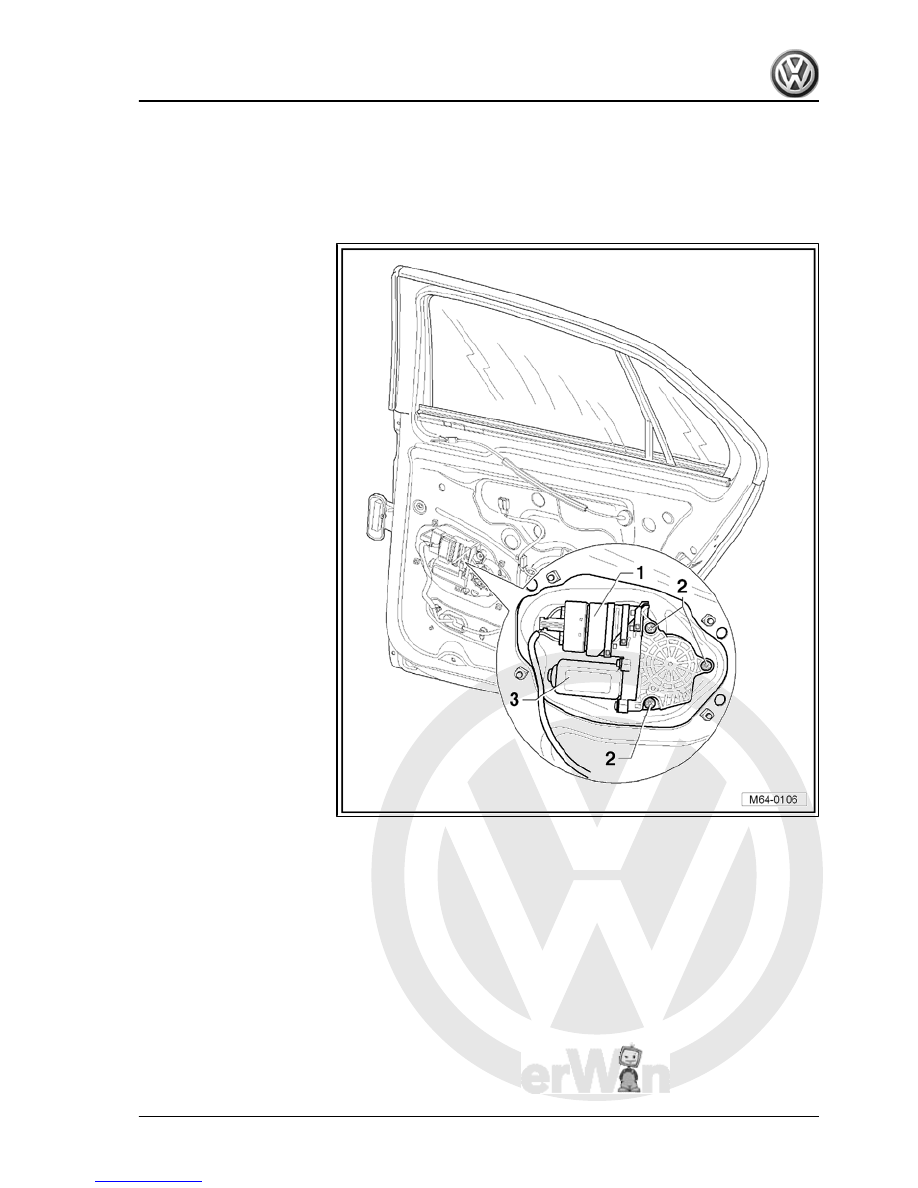

1 - Connector
2 - Bolt

❑ Qty. 3
❑ 3.5 Nm

3 - Window regulator motor

❑ Removing and installing

⇒ page 302

3.8

Removing and installing window regula‐

tor motor

Note

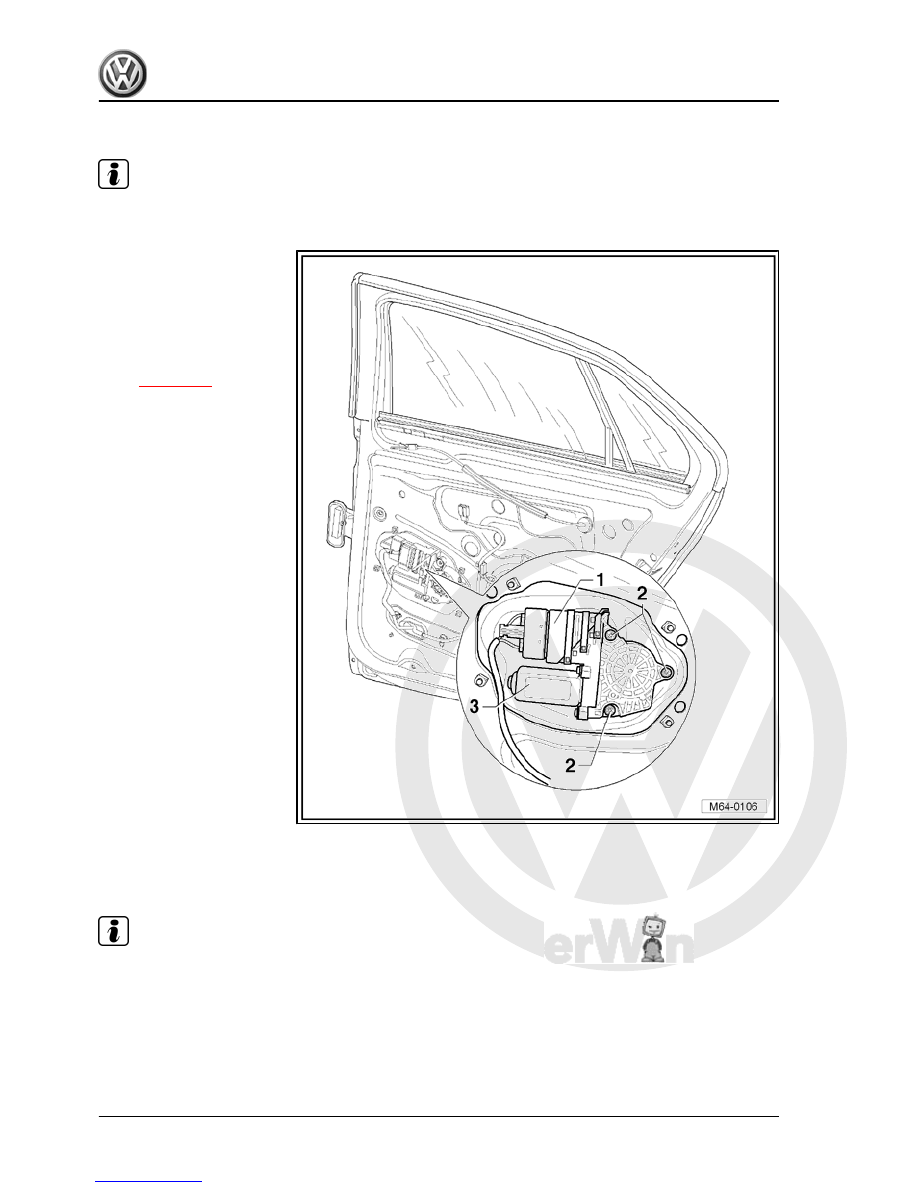

The removal and installation sequence is only for the right window

regulator motor. The removal and installation of the left window

regulator motor is similar.

3.8.1

Removing

70 ; Door trim .

302



3.8.2

Installing

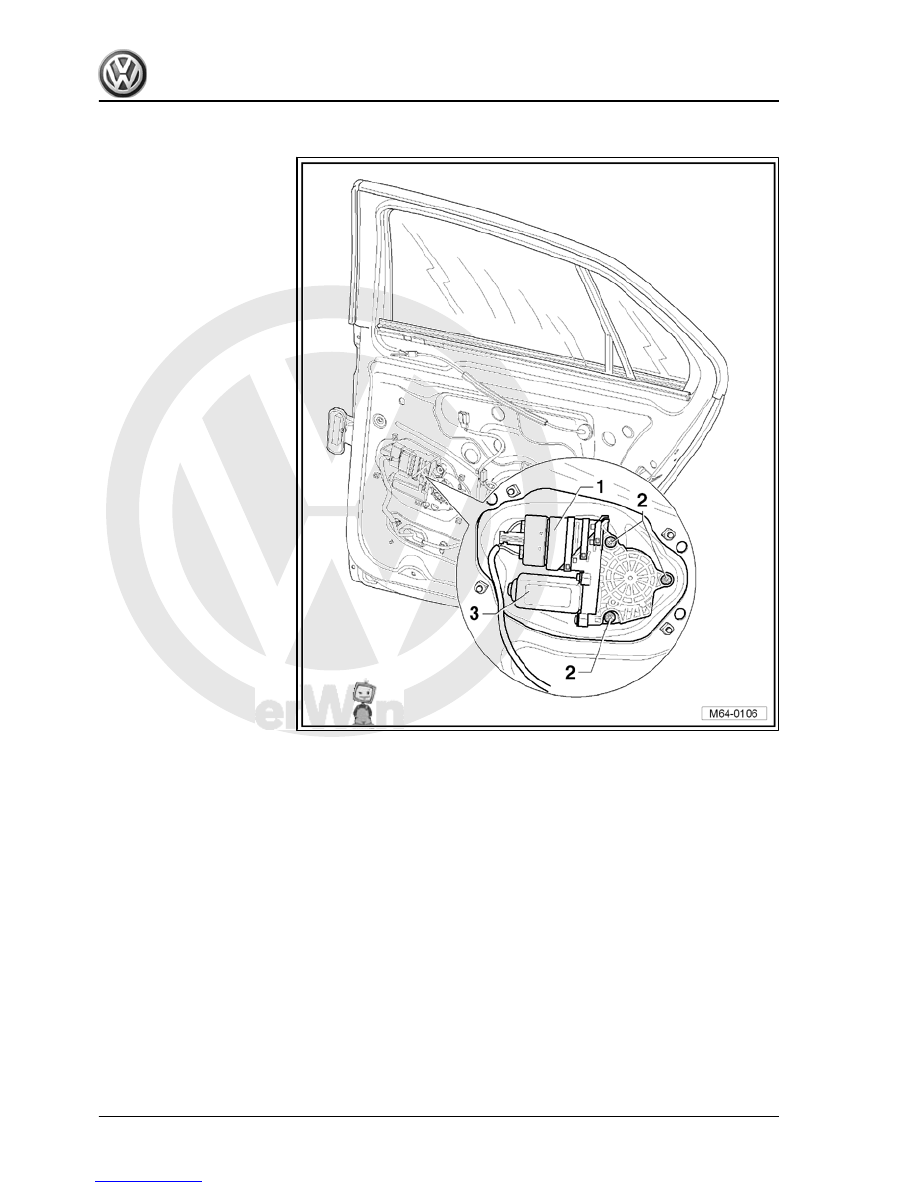

– Push window regulator motor -3- into place and reconnect

connector -1-.

– Move door window lightly up and down so that the splines be‐

tween motor and cable drum engage easier.

– Tighten bolts -2- window regulator motor.

Specified torque for bolts -2- 3.5 Nm

– Run window regulator twice in each direction to upper and

lower stops. This initiates and readies the window regulator

motor and activates the roll-back function.

3. Rear door window (saloon)
