Volkswagen Golf Variant / Jetta. Manual - part 75





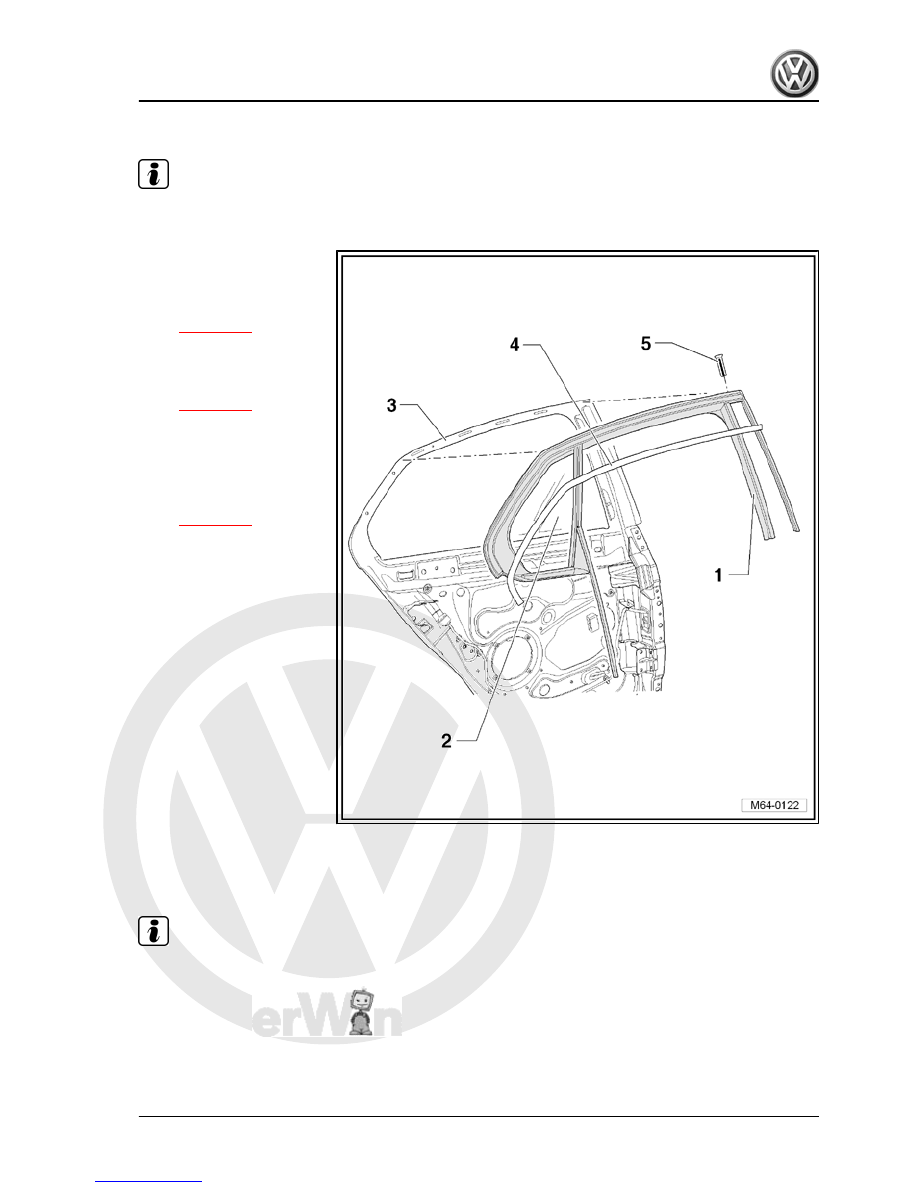

Note

The right side is shown. The left side is similar.

1 - Window channel

❑ Component part of fixed

door window

❑ Removing and installing

⇒ page 297

2 - Fixed door window

❑ Part of widow channel.
❑ Removing and installing

⇒ page 297

3 - Window frame on door inner

part
4 - Window channel trim strip

❑ Depends on equipment
❑ Removing and installing

⇒ page 300

5 - Spreader rivet

3.5

Removing and installing door with fixed

window with window channel

Note

The removal and installation sequence is only for the right door

fixed window with window channel. The removal and installa‐

tion of the left door fixed window with window channel is

similar.

When door outer panel has been removed the spreader pin

and spreader plug to remove door window are accessible from

exterior.

3. Rear door window (saloon)

297



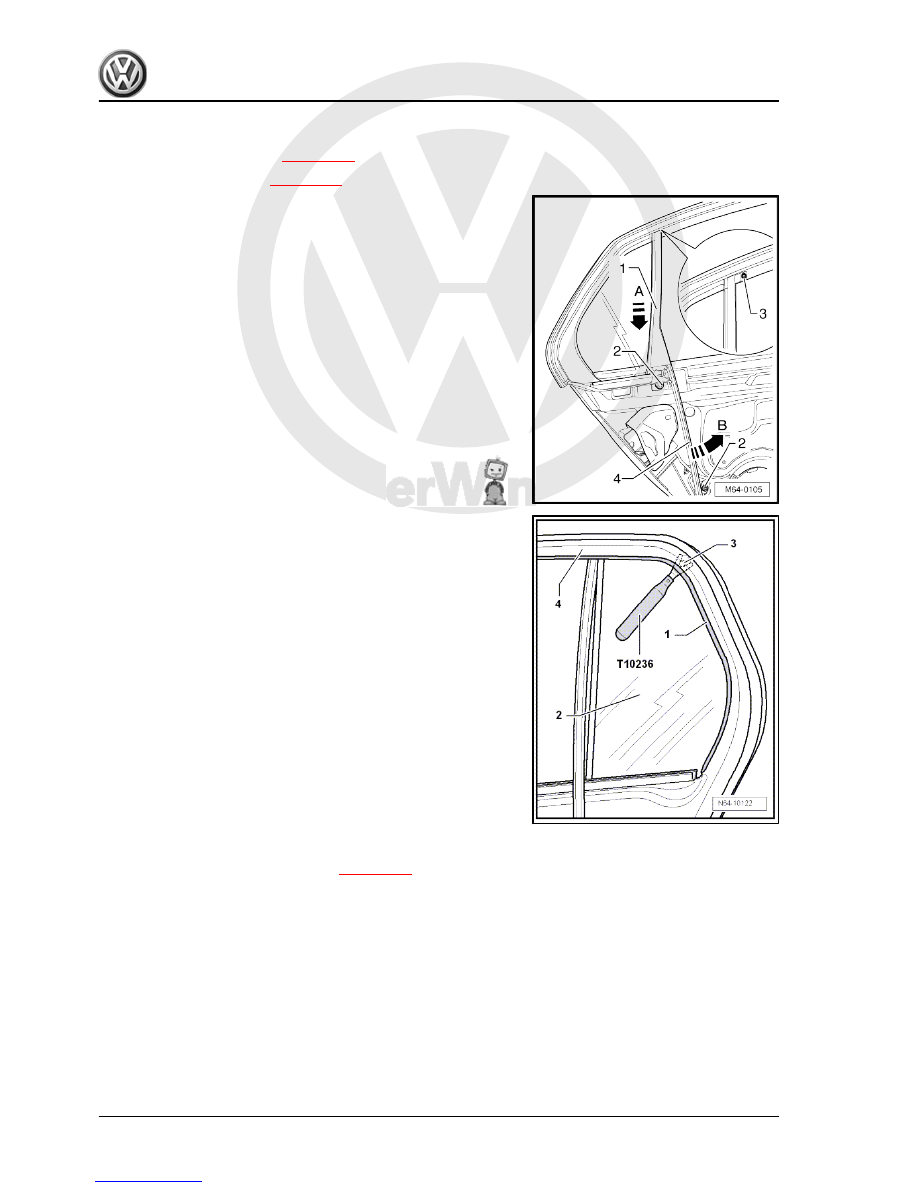

– Remove door outer panel

⇒ page 112

 .

– Removing door window

⇒ page 294

 .

– Pull window channel -4- out of middle frame -1- and guide

window channel inwards.

– Remove bolts -2- and -3- and slide middle frame -1- down‐

wards -arrow A-.

– Pull middle frame -4- off fixed door window seal -arrow B-.

– Release window channel -1- with fixed door window -2- on in‐

side and outside from window frame -4-.

– Using release tool -T10236- release locking lugs on guide pin

-3- in window frame -4-.

Vehicles with window channel trim strip
Remove window channel trim strip -4-

⇒ page 300

 .

All vehicles

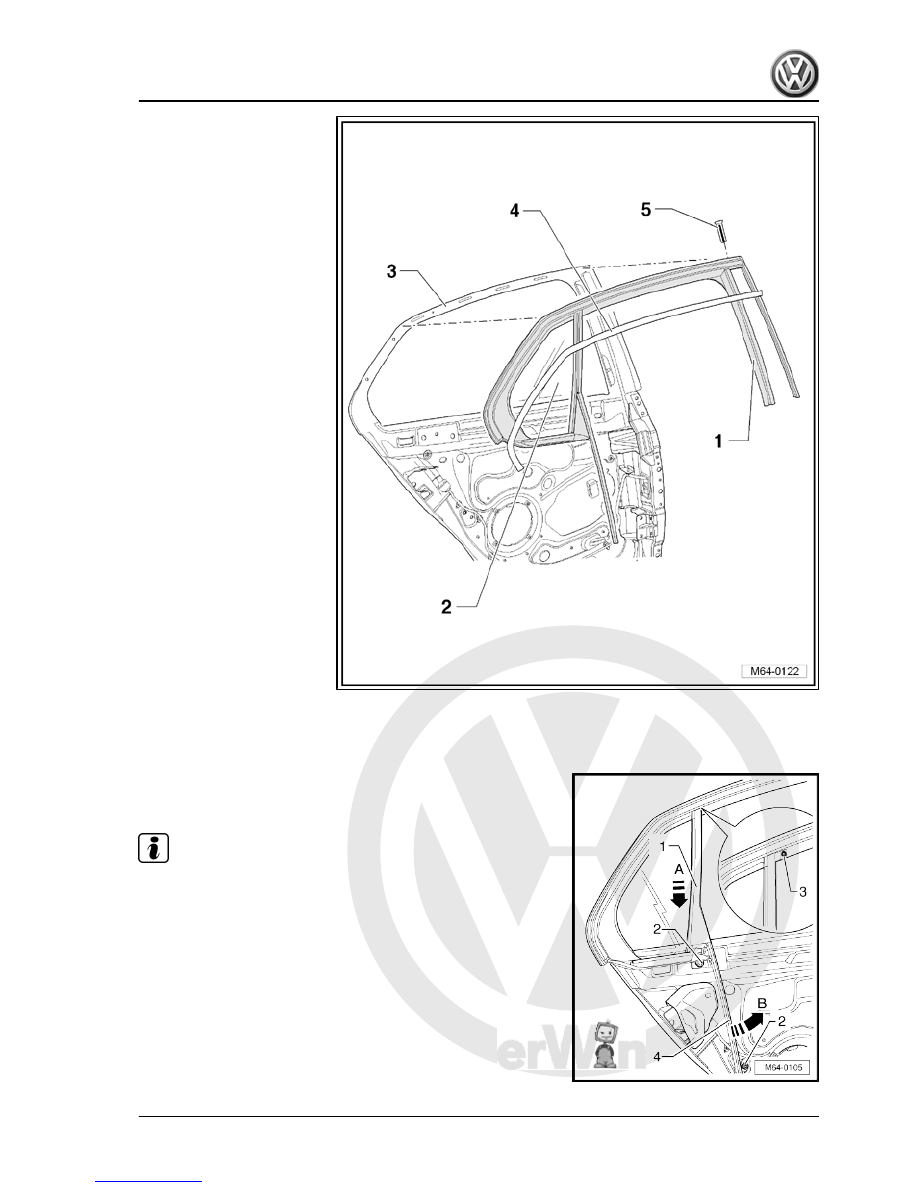

– Pull complete window channel -1- with fixed door window -2-

off window frame -3- in -direction of arrow-.

298



Install in reverse order of removal.
Specified torque for bolts -2- on middle frame: 5.5 Nm
Specified torque for bolts -3- on middle frame: 4.5 Nm

Note

When installing fixed door window with window channel ensure it

is seated uniformly (wind noise).

3. Rear door window (saloon)

299



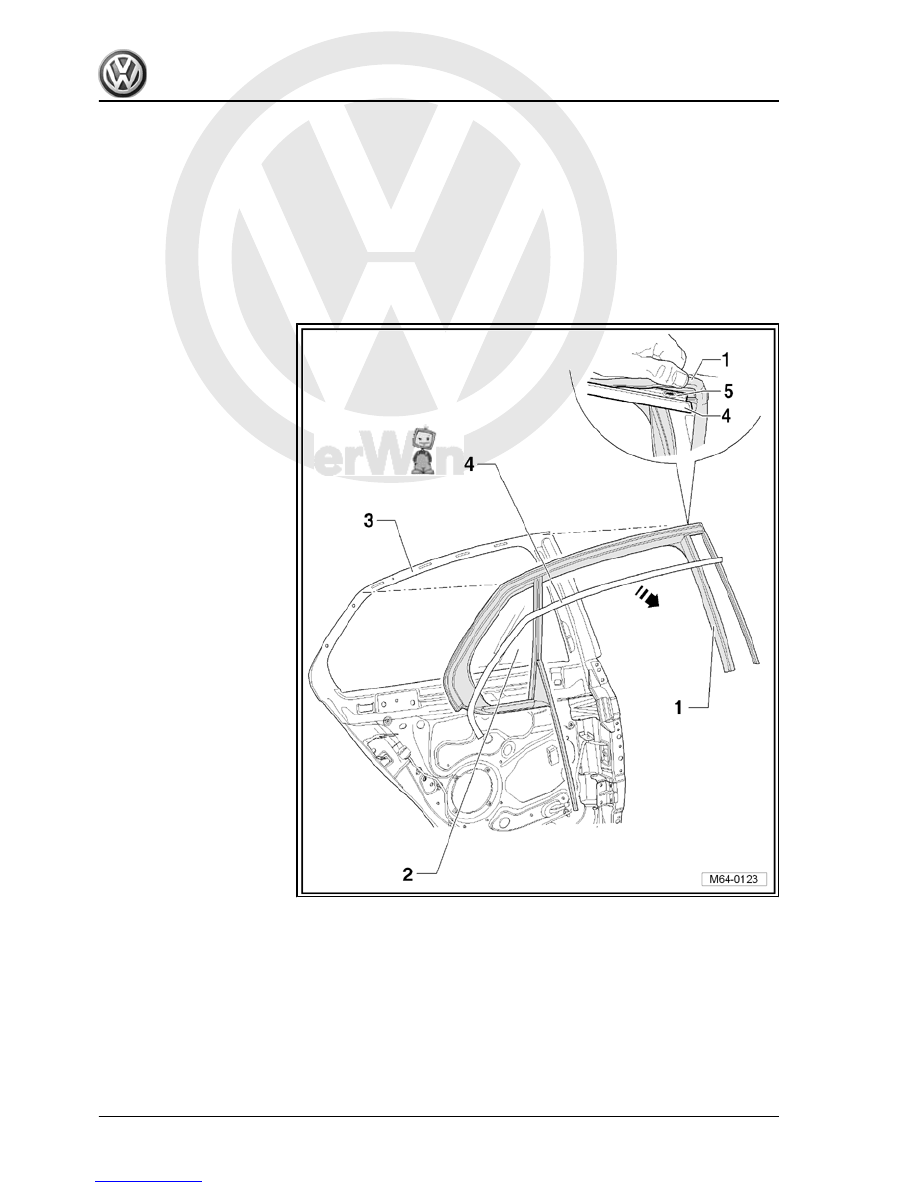

nel trim strip

3.6.1

Removing

– Push window channel -1- in top front area slightly to side.
– Remove spreader rivet -5-.
– Pull trim strip -4- out of window channel -1- in direction of

-arrow-.

3.6.2

Installing

– Spray window channel with soapy water.

300
