when installing.

2.9

Removing and installing window chan‐

nel trim strip

2.9.1

Removing

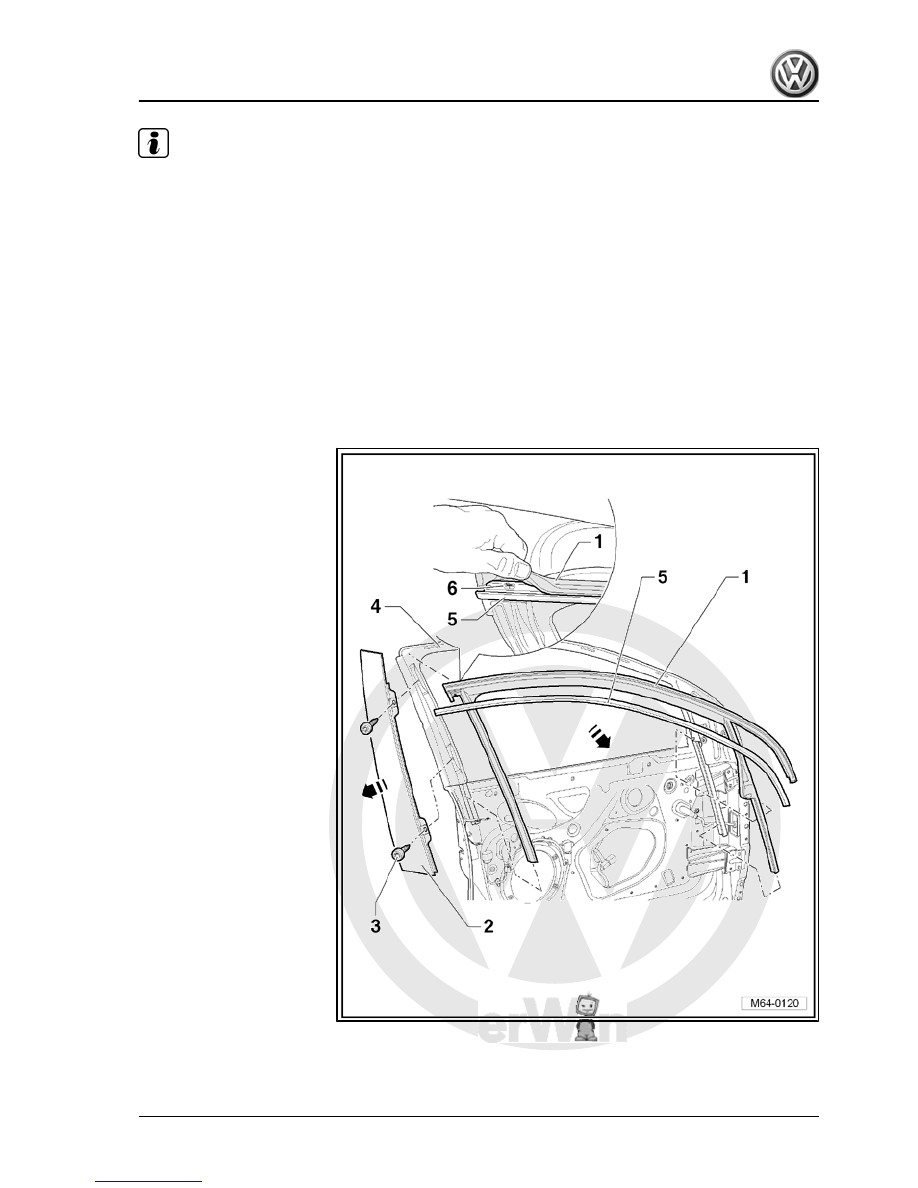

– Push window channel -1- in top rear area slightly to side.
– Remove spreader rivet -6- for window channel -1-.
– Pull trim strip -5- out of window channel -1- in direction of

-arrow-.

Trim -2- must not be removed.

2.9.2

Installing

– Spray window channel with soapy water.

2. Front door windows

289



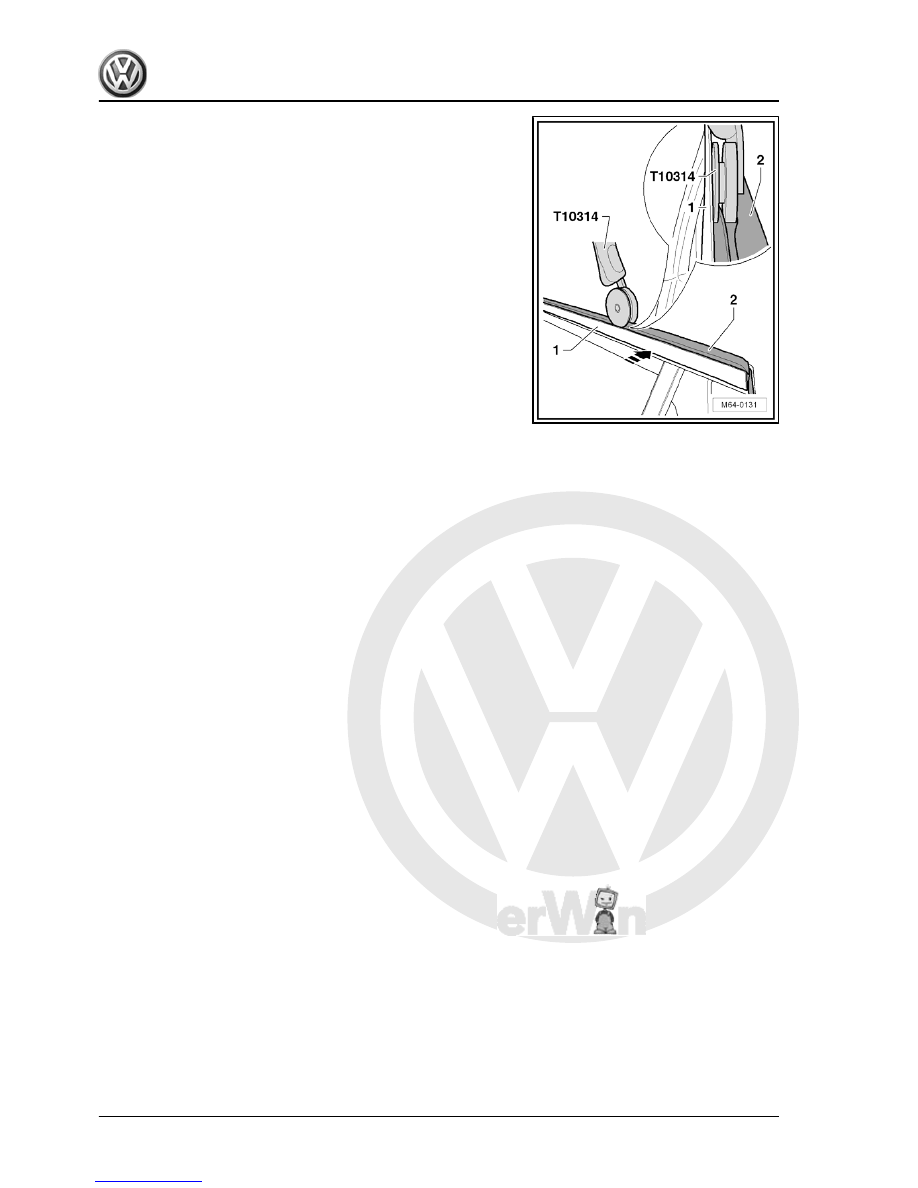

– Then press window channel -2- fully into mounting of trim strip

-1- with roller -T 10314- .

Further installation is performed in reverse order of removal.

290



Note

The right side is shown. The left side is similar.

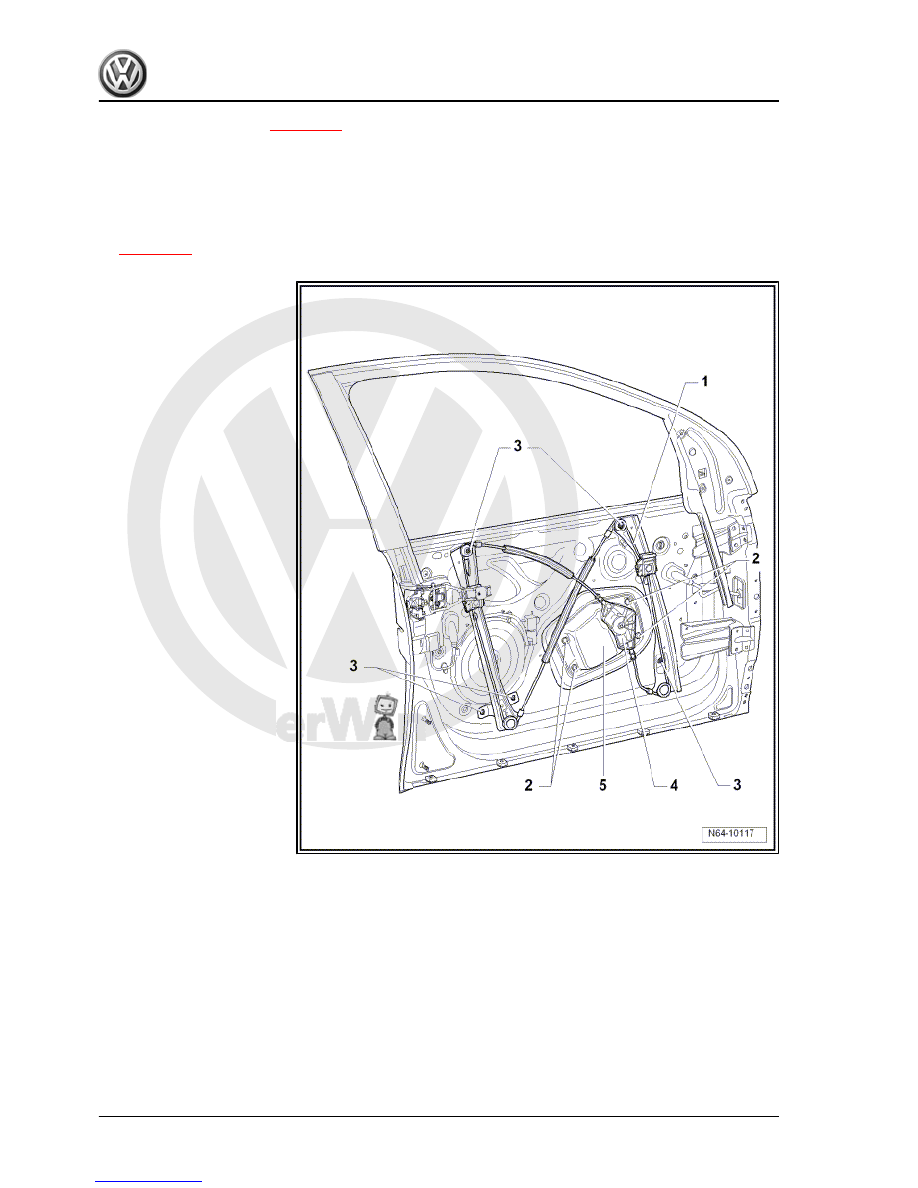

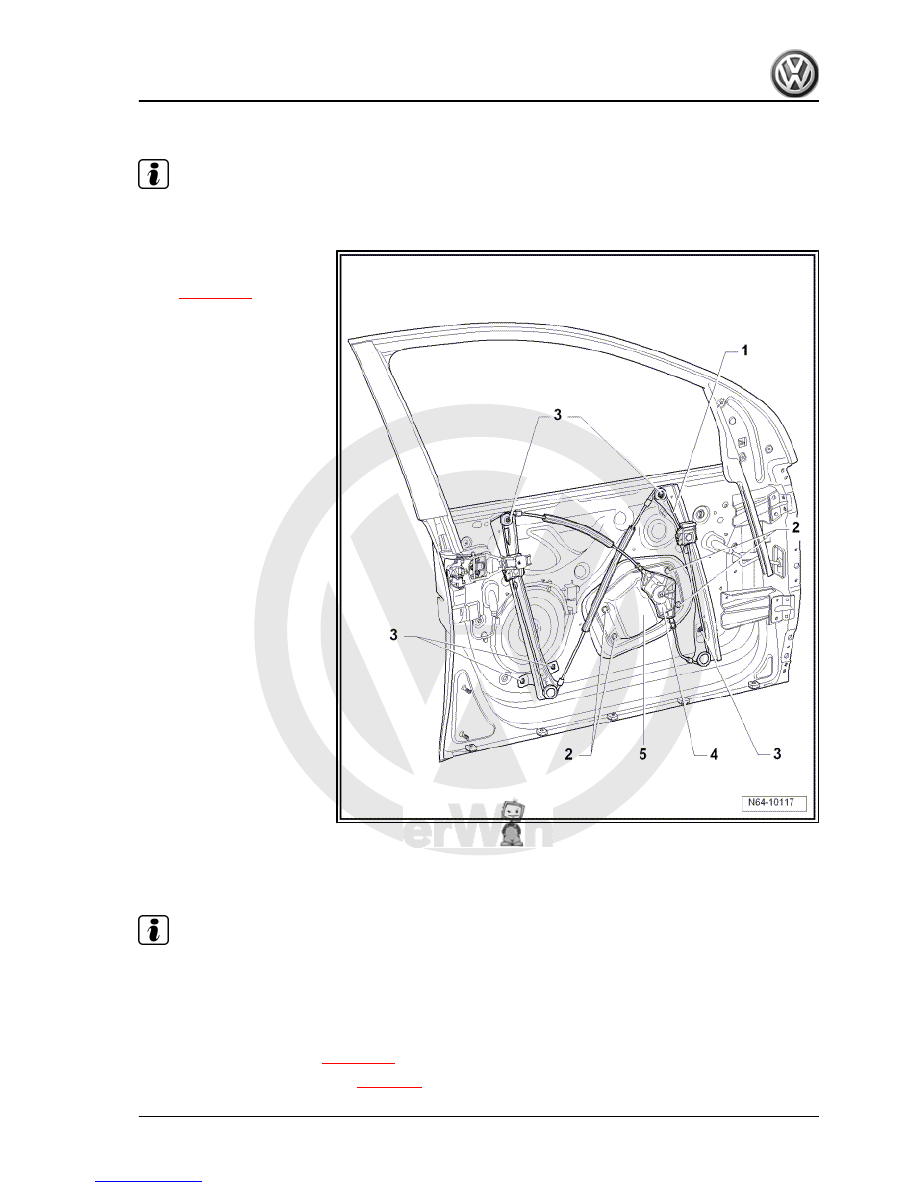

1 - Window regulator

❑ Removing and installing

⇒ page 291

2 - Bolt

❑ Qty. 4
❑ 8 Nm

3 - Bolt

❑ Qty. 5
❑ 8 Nm

4 - Drive
5 - Mounting plate

2.11

Removing and installing window regula‐

tor

Note

The removal and installation sequence is only for the right window

regulator. The removal and installation of the left window regulator

is similar.

2.11.1

Removing

– Remove door outer panel

⇒ page 112

 .

– Remove side impact protection

⇒ page 92

 .

2. Front door windows

291



 .

– Remove bolts -2- from mounting plate -5-.
– Remove bolts -3- for window regulator.
– Remove window regulator -1- with drive -4- and mounting

plate -5- for window regulator motor from inner part of door.

– Disconnect connections for window regulator motor

⇒ page 285

 .

2.11.2

Installing

Install in reverse order of removal.
Carry out functional check before installing door outer panel.
