– Removing front door trim ⇒  General body repairs, interior;

Rep. Gr.  70 ; Door trim .

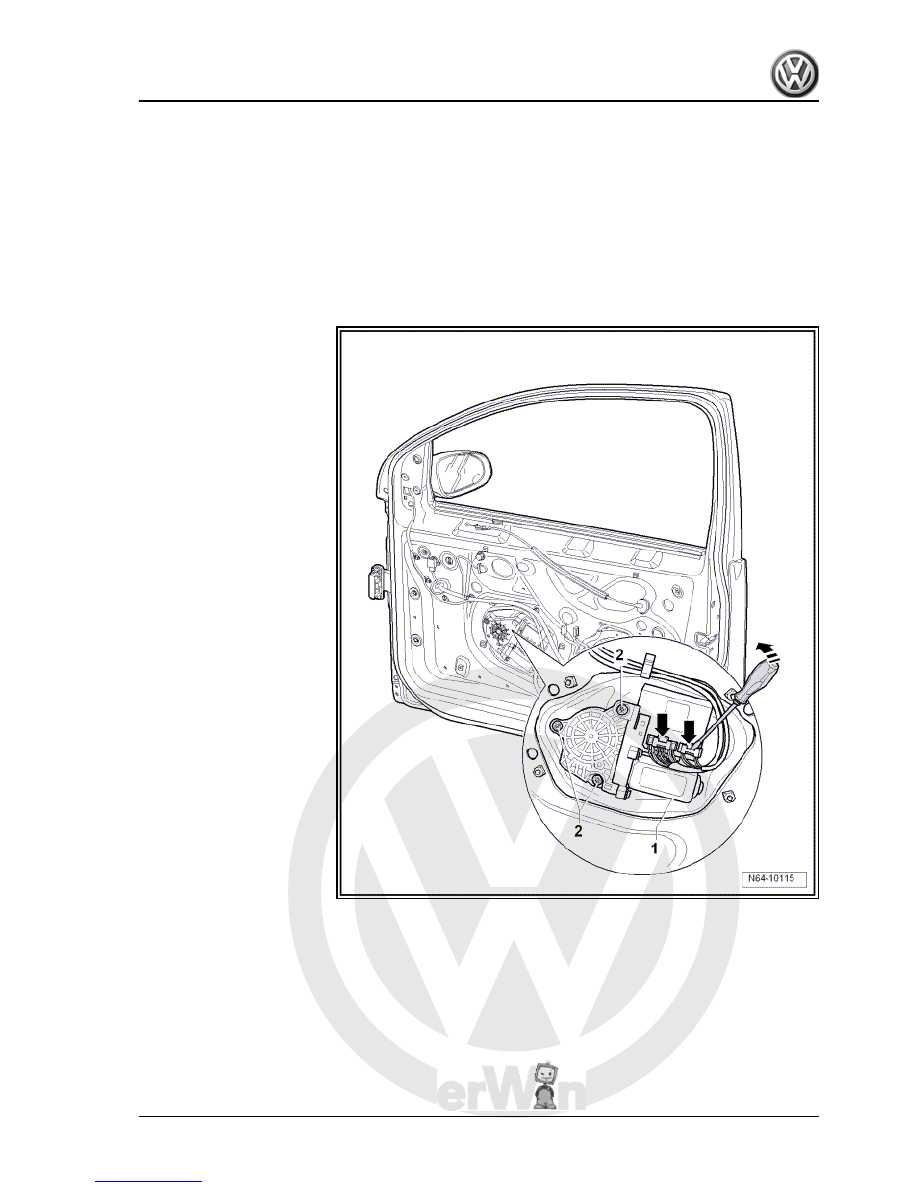

– Secure door window against sliding down with adhesive tape.
– Release connectors -arrows- using a screwdriver in

-direction of arrow-.

– Remove the three bolts -2-.
– Remove window regulator motor with control unit -1- from

mounting plate.

2.6.2

Installing

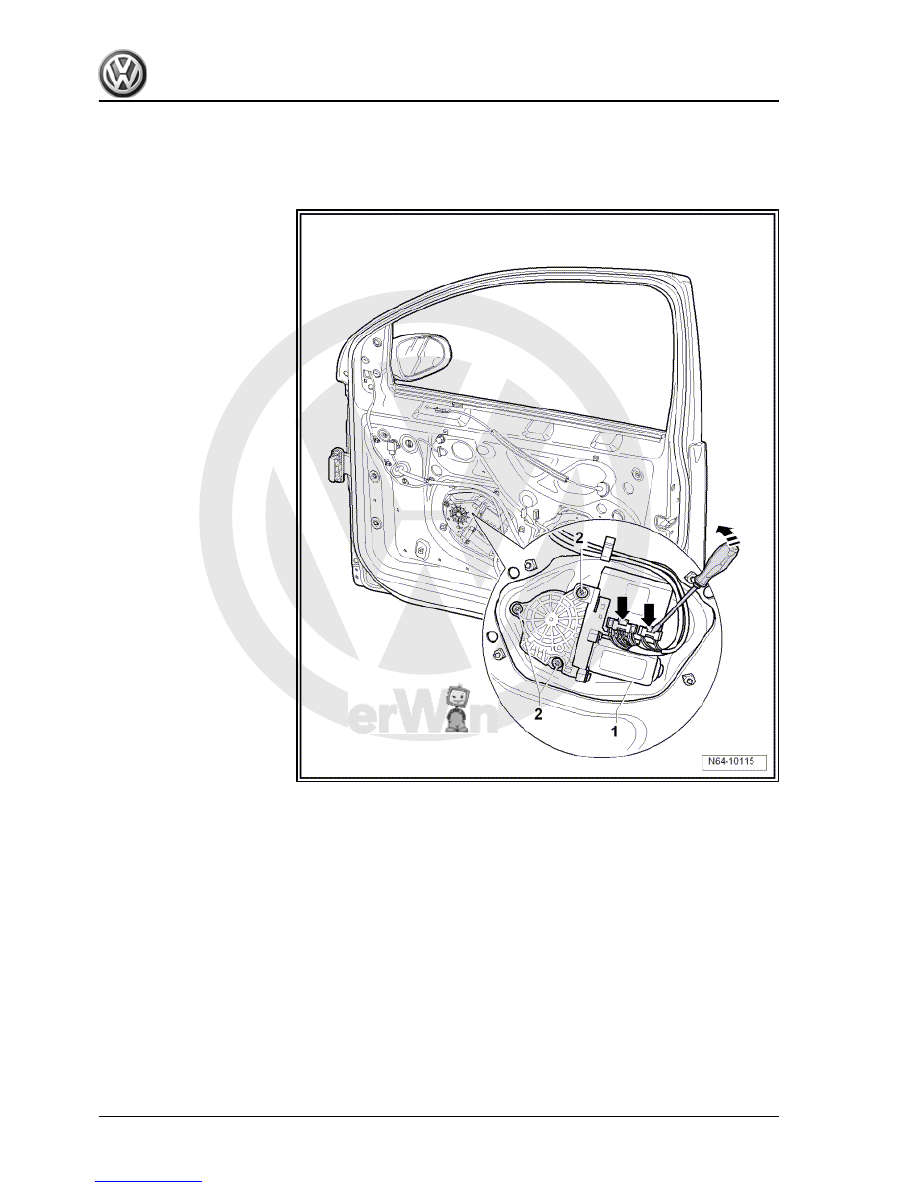

– Push window regulator motor -1- into place and reconnect

connector -arrows-.

– Move door window lightly up and down so that the splines be‐

tween motor and cable drum engage easier.

– Tighten bolts -2- window regulator motor.

Specified torque: 3.5 Nm

2. Front door windows

285



motor and activates the roll-back function.

Further installation is performed in reverse order of removal.

286

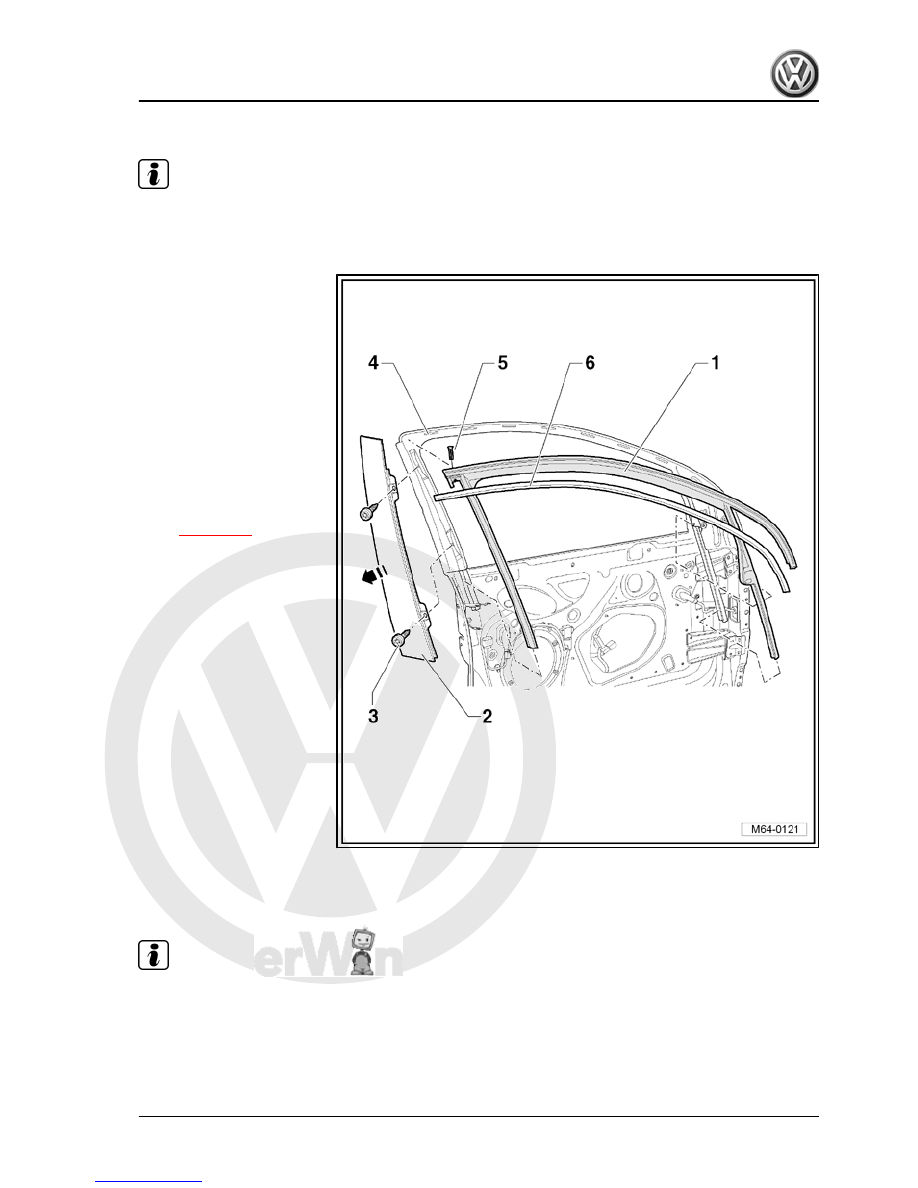

Note

The right side is shown. The left side is similar.

For a better representation the illustration is drawn without door outer panel.

1 - Window channel
2 - Trim
3 - Bolt

❑ Qty. 2
❑ 2 Nm

4 - Window frame on door inner

part
5 - Trim strip fasteners

❑ Spreader rivet or screw

6 - Window channel trim strip

❑ Depends on equipment
❑ Removing and installing

⇒ page 289

2.8

Removing and installing window chan‐

nel

Note

Removal and installation is described only for the right window

channel. The removal and installation of the left window chan‐

nel is similar.

For a better representation the removal and installation is

drawn without door outer panel.

2. Front door windows

287



– Removing front door trim ⇒  General body repairs, interior;

Rep. Gr.  70 ; Door trim .

– Remove exterior mirror

⇒ page 331

 .

– Removing door window

⇒ page 279

 .

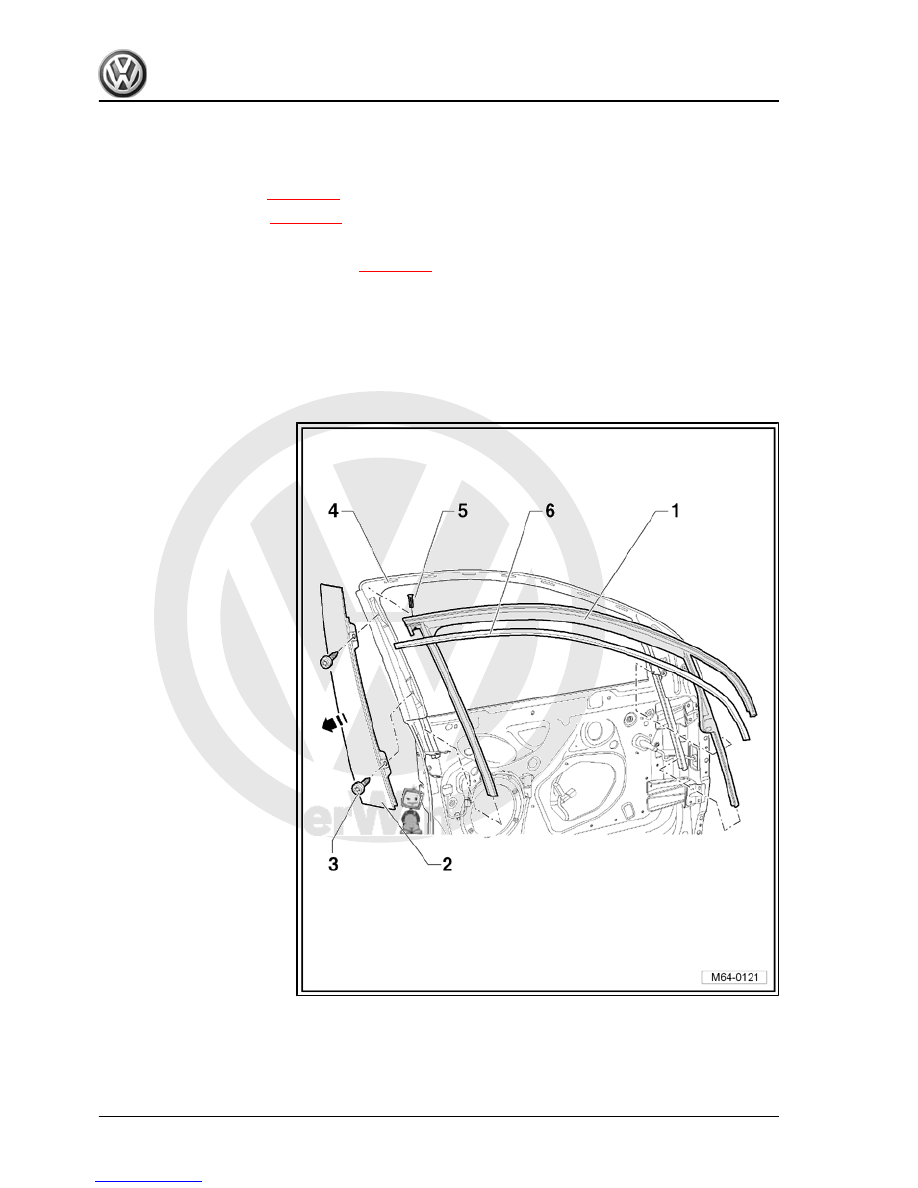

Vehicles with window channel trim strip
– Remove window channel trim strip -6-

⇒ page 289

 .

All vehicles
– Pull window channel -1- out of mounting.
– Remove bolts -3- (Qty. 2) and pull trim plate -2- off in direction

of B-pillar -direction of arrow-.

– Pull window channel -1- off all around window frame -4- and

remove upwards out of window slot.

2.8.2

Installing

Install in reverse order of removal.
