– Use of adhesive remover -D 002 000 10- as a cleaning solution

is recommended. Observe the appropriate safety precautions

when performing this work.

WARNING

When cleaning freshly installed glass from the inside in the ve‐

hicle, do not press glass outwards.

– First clean painted surface as much as possible using a dry

cloth. Remove residual excess with adhesive remover -D 002

000 10- .

– Cleaning plastic trim: allow adhesive sealant to cure (approx.

one hour) and then peel off.

1. Flush bonded windows

277



2.1

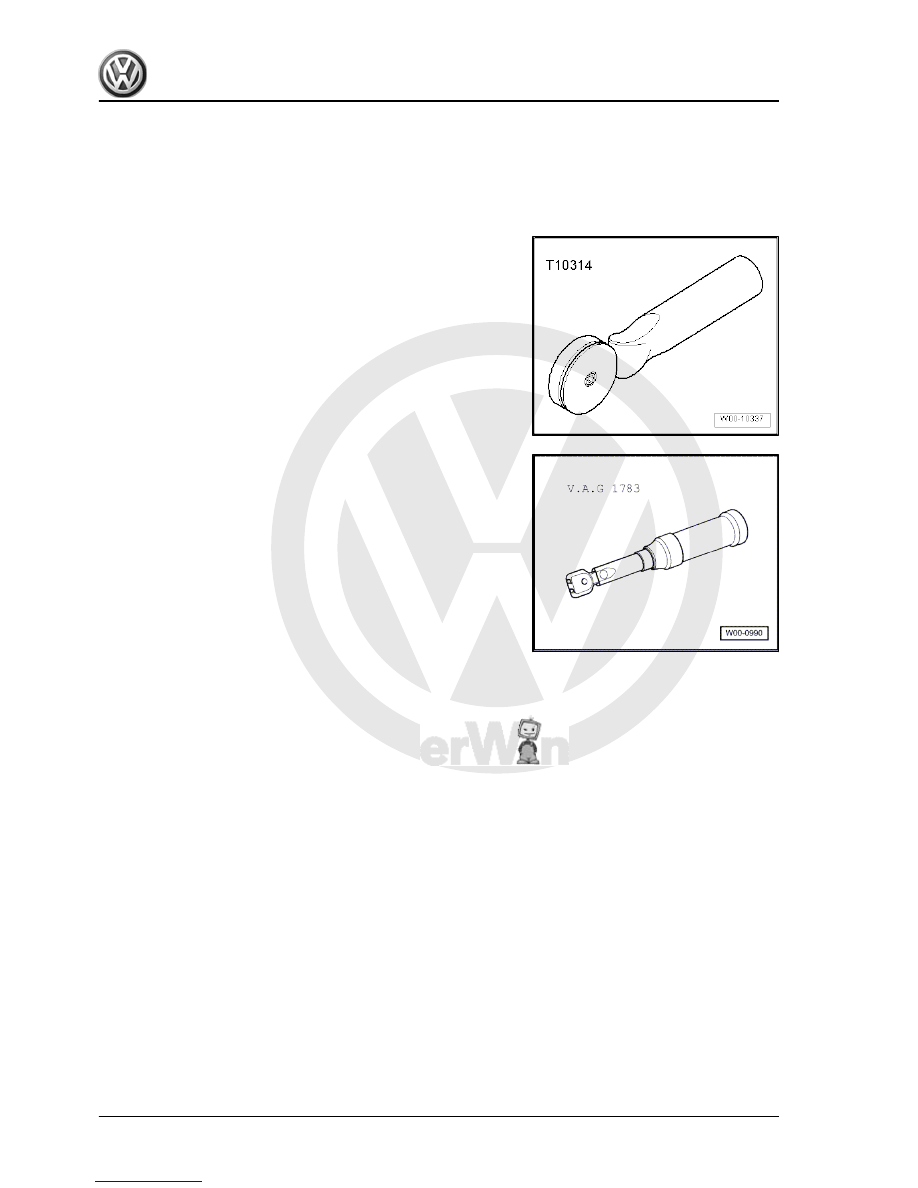

Tools

Special tools and workshop equipment required
♦ Roller -T10314-

♦ Torque wrench -V.A.G 1783-

278



Note

The right side is shown. The left side is similar.

The bolt -4- is accessible from interior and exterior. From exterior the bolt has a right-hand thread. This

means: from exterior the bolt is removed by turning it to left, from interior the bolt is removed by turning it to

right.

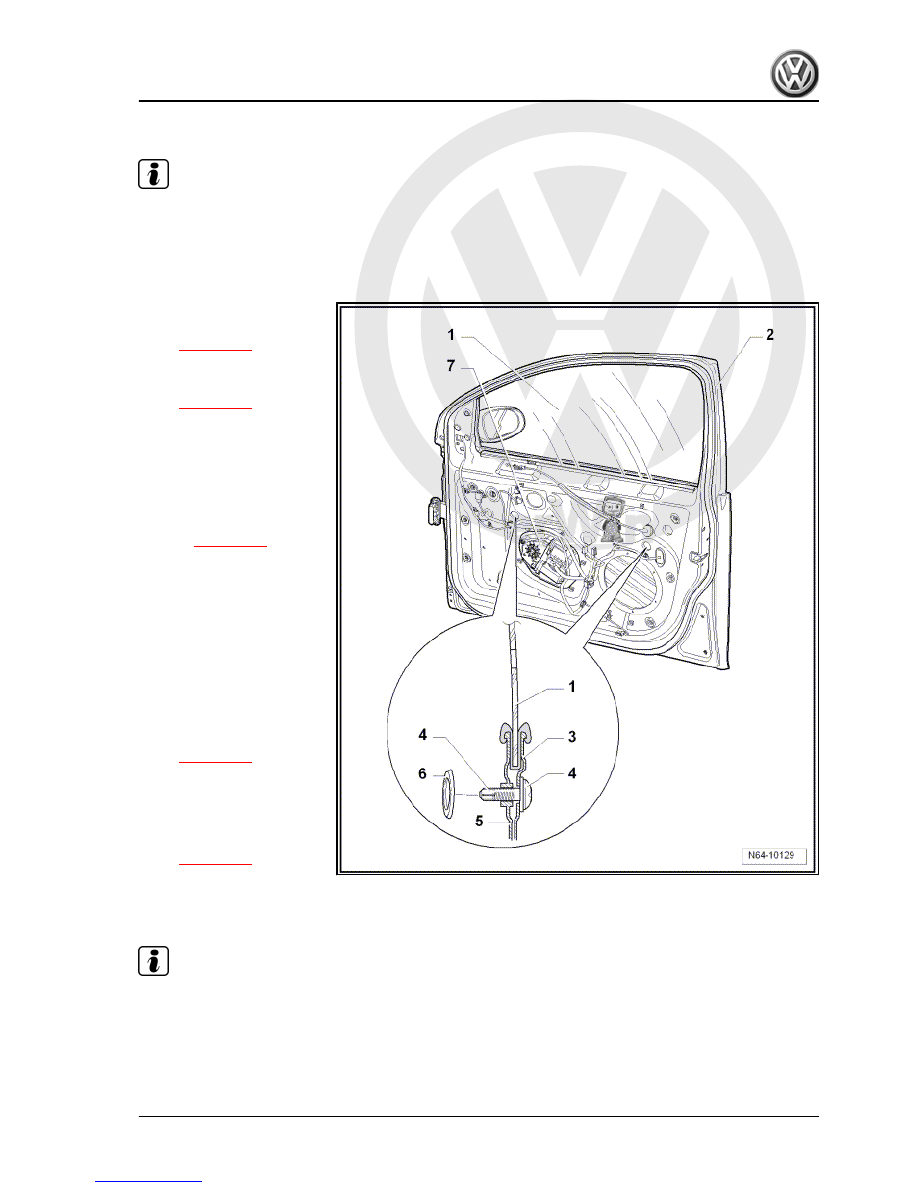

1 - Door window

❑ Removing and installing

⇒ page 279

2 - Window channel

❑ Removing and installing

⇒ page 287

3 - Mounting
4 - Bolt

❑ Accessible from exterior

(right-hand thread), re‐

move by turning anti-

clockwise (to remove:

remove door outer pan‐

el

⇒ page 112

 )

❑ Accessible from interior,

remove by turning

clockwise (to remove:

remove front door trim

⇒  General body repairs,

interior; Rep. Gr.  70 ;

Trims, insulation; Door

trims )

❑ Qty. 2
❑ 8 Nm

5 - Window regulator

❑ Removing and installing

⇒ page 291

6 - Cover

❑ Qty. 2

7 - Window regulator motor

❑ Removing and installing

⇒ page 284

2.3

Removing and installing door window

Note

Removal and installation is described only for the right door win‐

dow. Removal and installation of the left door window is done in

the same manner.

2. Front door windows

279



Note

The bolt -3- is accessible from interior and exterior. From exterior the bolt has a right-hand thread. This means:

from exterior the bolt is removed by turning it to left, from interior the bolt is removed by turning it to right.

– Removing front door trim ⇒  General body repairs, interior;

Rep. Gr.  70 ; Door trim .

– Lever out caps -4-.
– Lower door window -1- until clamping bolts -3- for mounting

-2- are accessible.

Note

If the work step cannot be carried out because there is a fault with the electric window motor, remove motor to

slide window down.

Caution

Remove bolt -3- from interior by turning it clockwise.

280
