Volkswagen Golf Variant / Jetta. Manual - part 68

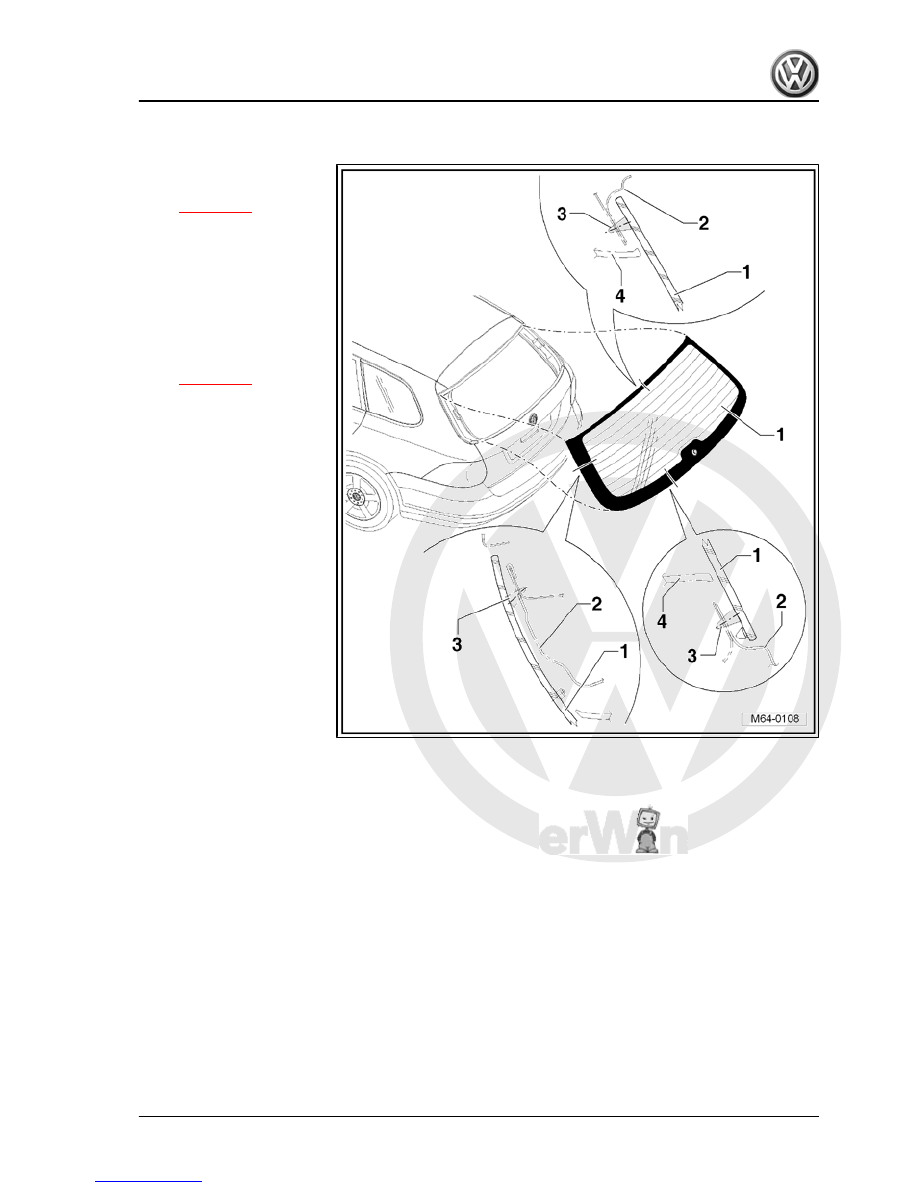

1 - Rear window

❑ Removing and installing

⇒ page 269

2 - Rear lid
3 - PUR adhesive sealant

❑ Cross section of bead:

width = 6.5 mm, height =

10 mm (including resid‐

ual material on window

glass and window

flange).

❑ Minimum curing period

⇒ page 276

4 - Rear lid trim

❑ Removing ⇒  General

body repairs, interior;

Rep. Gr.  70 ; Rear lid

trim

1.10

Removing and installing rear window

(Variant)

1.10.1

Removing undamaged rear window

– Remove rear lid trim ⇒  General body repairs, interior; Rep.

Gr.  70 ; Trim, insulation .

– Remove window frame trim ⇒  General body repairs, interior;

Rep. Gr.  70 ; Trim, insulation .

Window wash/wipe system .

1. Flush bonded windows

269

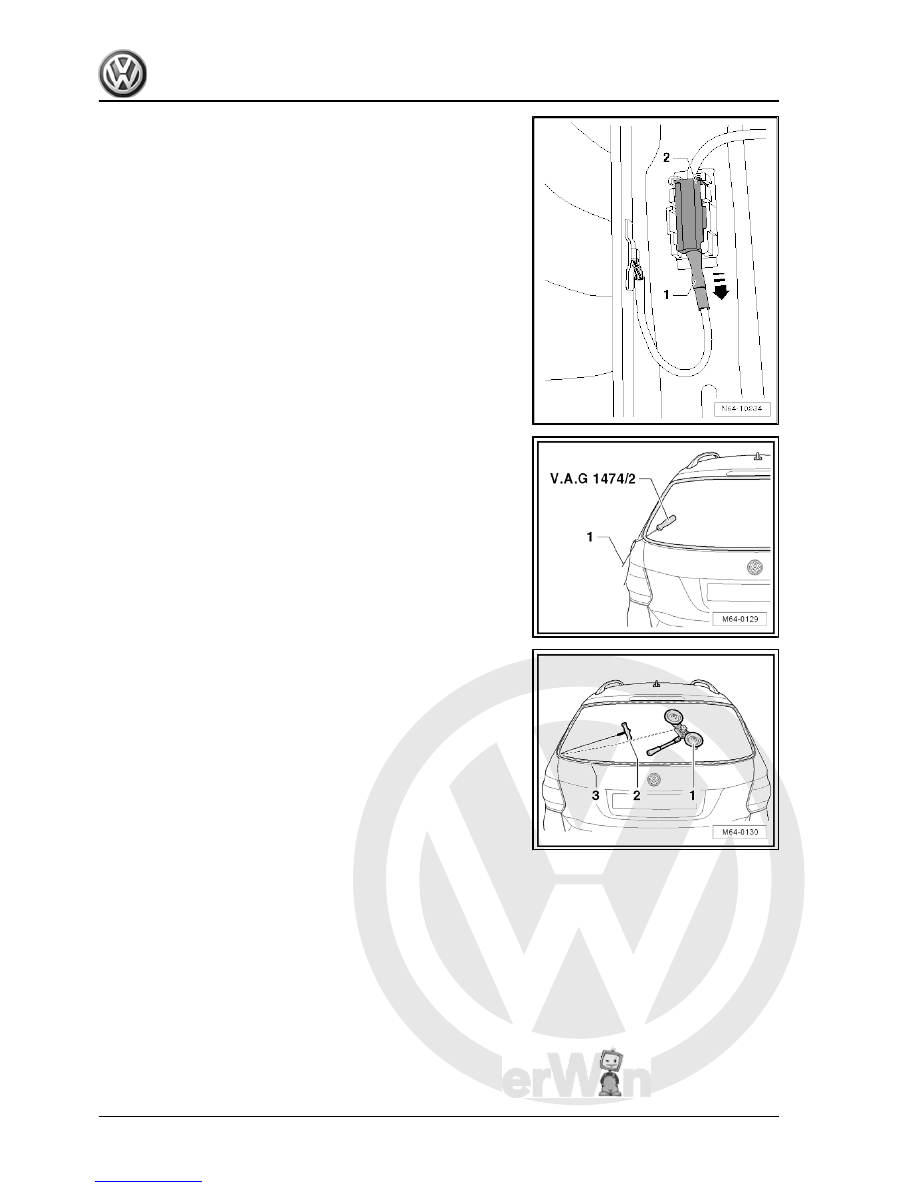

– Pull cutting cord -1- through adhesive sealing material at lower

radius of rear window and into inside of vehicle using awl -

V.A.G 1474/2- from removal kit for flush bonded windows -

V.A.G 1474 A- .

– Lay cutting cord -1- around rear window and pull second end

of cord inwards into interior.

– Secure one end of cord to pull handle -V.A.G 1351/1- -2- to

counterhold.

– Secure other end of cord to reel device -1-.
– Reposition reel device -1- as necessary and cut window free.
– Use plastic wedge to press cutting cord against window glass

while cutting in order to have clearance at window flange.

1.10.2

Removing broken rear window

– Protect body and interior from glass splinters.
– Remove pieces of glass up to adhesive sealing material.
– Remove rear lid trim ⇒  General body repairs, interior; Rep.

Gr.  70 ; Trim, insulation .

– Remove window frame trim ⇒  General body repairs, interior;

Rep. Gr.  70 ; Trim, insulation .

Window wash/wipe system .

– Disconnect connections for heated rear window.

270



– Cut through adhesive sealing material (with remains of win‐

dow) in window aperture using electric cutter -V.A.G 1561 A-

and blade -V.A.G 1561/10- (with stop roller).

WARNING

Always wear safety goggles and leather gloves.

1.10.3

Installing rear window

Preparing used undamaged window for glazing

⇒ page 274

Preparing new window for glazing

⇒ page 274

Preparing body flange for glazing

⇒ page 275

Installation instructions

⇒ page 276

 .

Minimum curing period

⇒ page 276

1.11

Assembly overview - side window (Variant)

1 - Side window

❑ Removing side window

⇒ page 272

❑ Installing side window

⇒ page 273

2 - Trim strip

❑ Integral part of side win‐

dow.

3 - Seal

❑ Integral part of side win‐

dow.

4 - Side panel
5 - PUR adhesive sealant

❑ Cross section of bead:

width = 6.5 mm, height =

10 mm (including pre‐

coating, residual materi‐

al on window glass and

window flange)

❑ Minimum curing period

⇒ page 276

6 - Retaining clip

❑ Integral part of side win‐

dow.

1. Flush bonded windows

271



(Variant)

Note

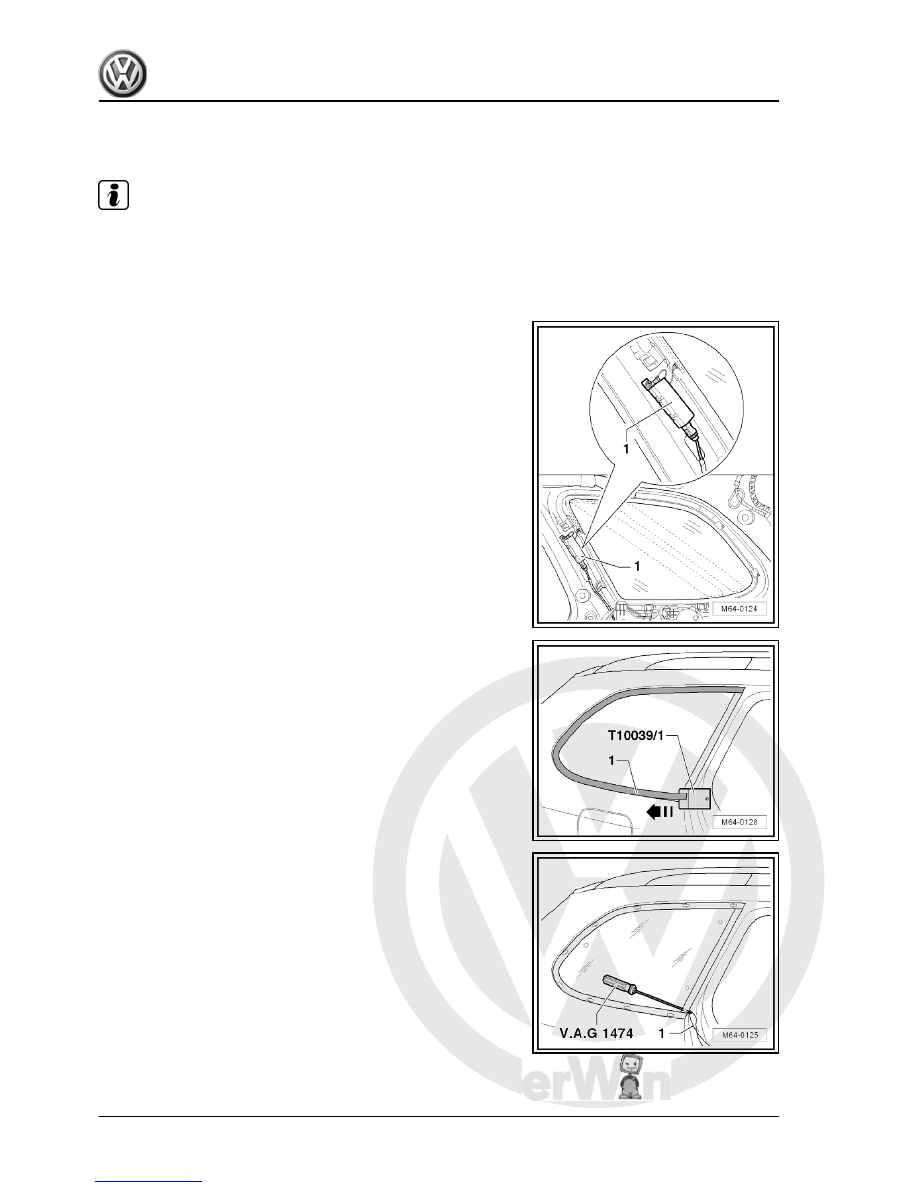

The removal and installation sequence is only for the right side

window. The removal and installation of the left side window is

similar.

– Remove C and D-pillar trim: ⇒  General body repairs, interior;

Rep. Gr.  70 ; Trims, insulation; Pillars and side trims .

– Depending on equipment, disconnect connector from impe‐

dance converter -1-.

Vehicles with side window trim

– Carefully insert wedge -T10039/1- in direction of -arrow- under

trim strip -1-.

– Remove trim strip -1-.
All vehicles

– Pull cutting cord -1- through adhesive sealing material at point

marked on illustration and into inside of vehicle using awl -

V.A.G 1474/2- from removal kit for flush bonded windows -

V.A.G 1474 A- .

272
