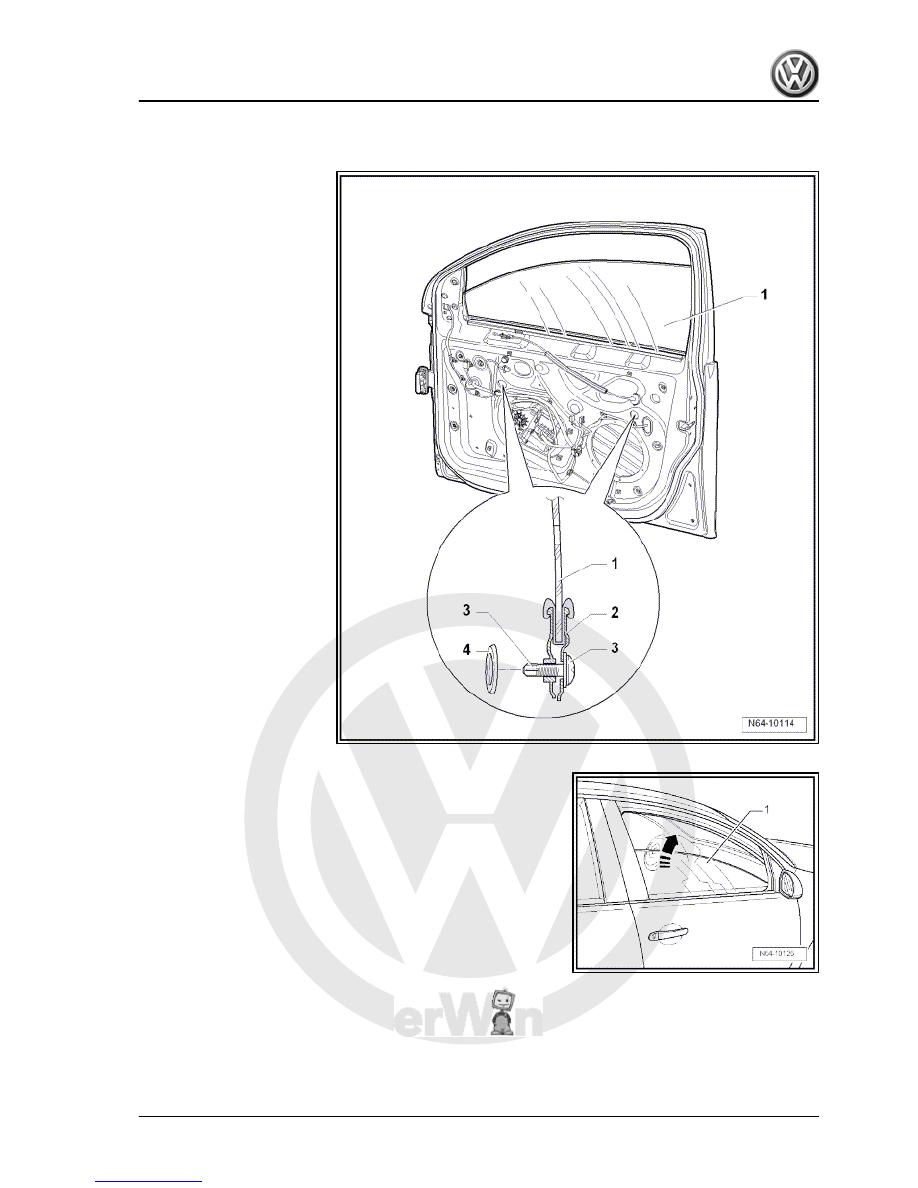

– Lift rear of door window -1- and swivel out of door forwards, in

direction of -arrow-.

2. Front door windows

281



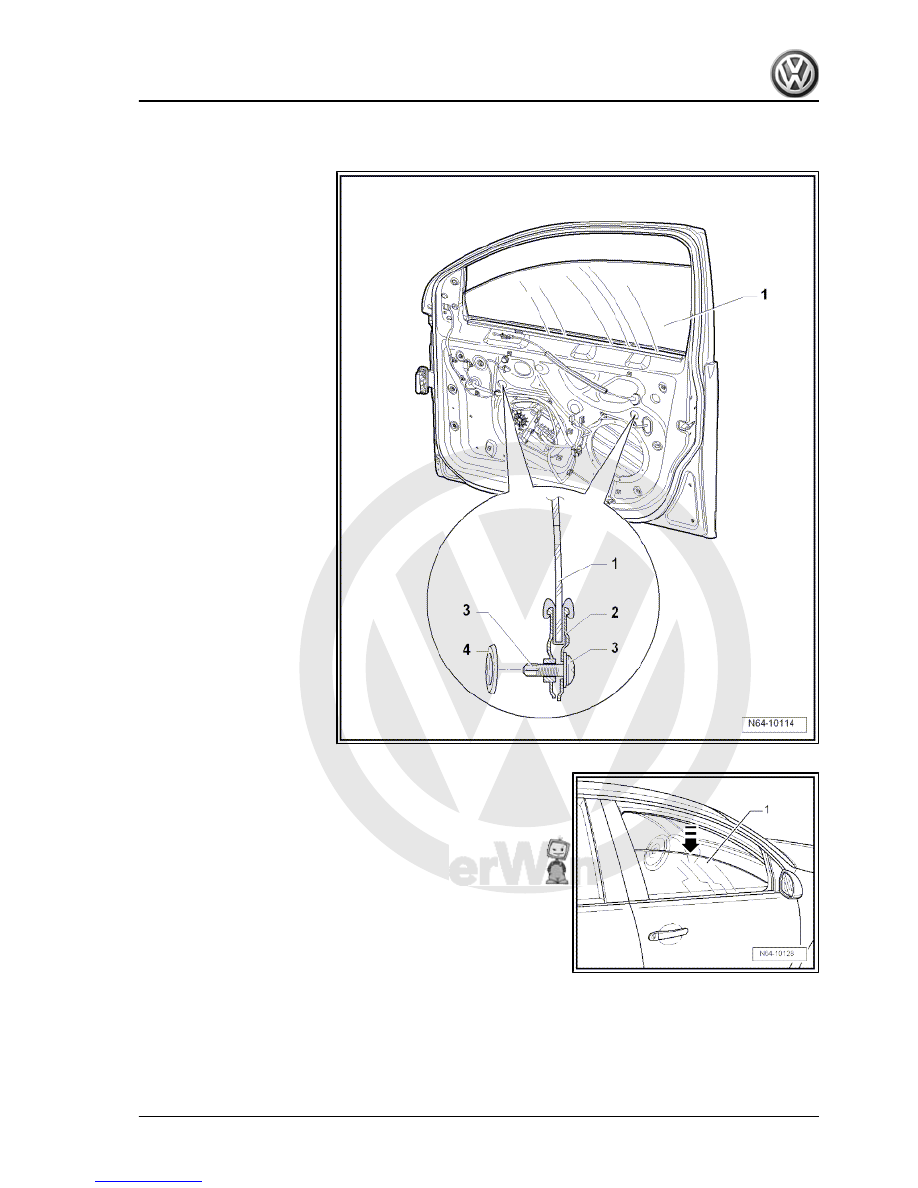

– Insert door window -1- in door in -direction of arrow-.
Ensure that door window -1- is properly located in window chan‐

nels.
– The bolt can now be tightened by turning to left.

Specified torque for bolt: 8 Nm.

Further installation is performed in reverse order of removal.
Then test for proper function.

2.4

Adjusting door window

– Removing front door trim ⇒  General body repairs, interior;

Rep. Gr.  70 ; Door trim .

– Lever out caps -4-.
– Lower door window -1- until clamping bolts -3- for mounting

-2- are accessible.

Caution

Remove bolt -3- from interior by turning it clockwise.

282



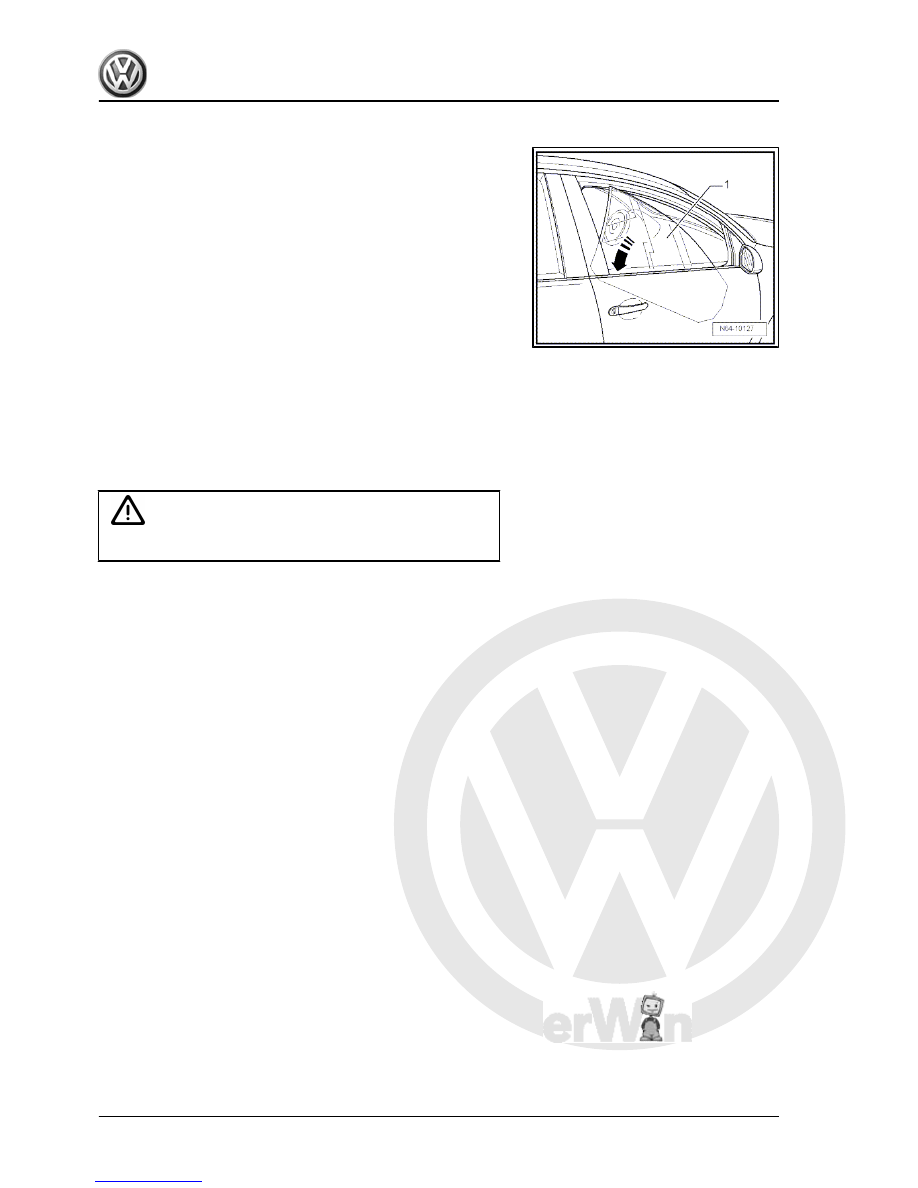

– Applying light pressure press door window -1- in clamping

jaws in -direction of arrow- and align door window tension free

at rear window channel.

When doing so, ensure that door window -1- is positioned parallel

to window channel.
– Tighten clamping jaws by turning bolts anti-clockwise from in‐

terior.
Specified torque for bolt: 8 Nm.

Then test for proper function.
Further installation is performed in reverse order of removal.

2. Front door windows

283



Note

The right side is shown. The left side is similar.

1 - Window regulator motor

❑ Removing and installing

⇒ page 284

2 - Bolt

❑ Qty. 3
❑ 3.5 Nm

2.6

Removing and installing window regula‐

tor motor

Note

The removal and installation sequence is only for the right

window regulator motor. The removal and installation of the

left window regulator motor is similar.

The window regulator motor can also be removed with mount‐

ing plate when door outer panel is removed.

284
