Volkswagen Golf Variant / Jetta. Manual - part 80





Note

The right side is shown. The left side is similar.

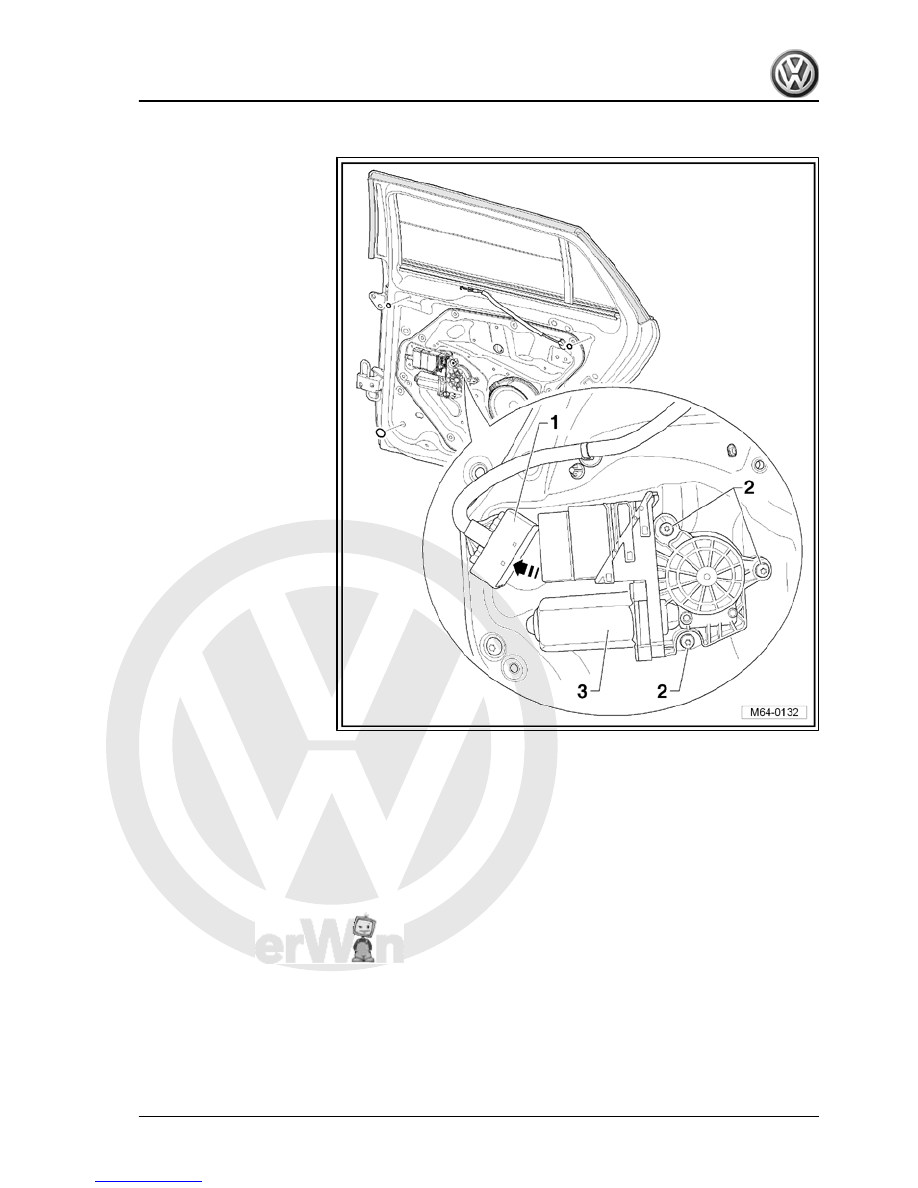

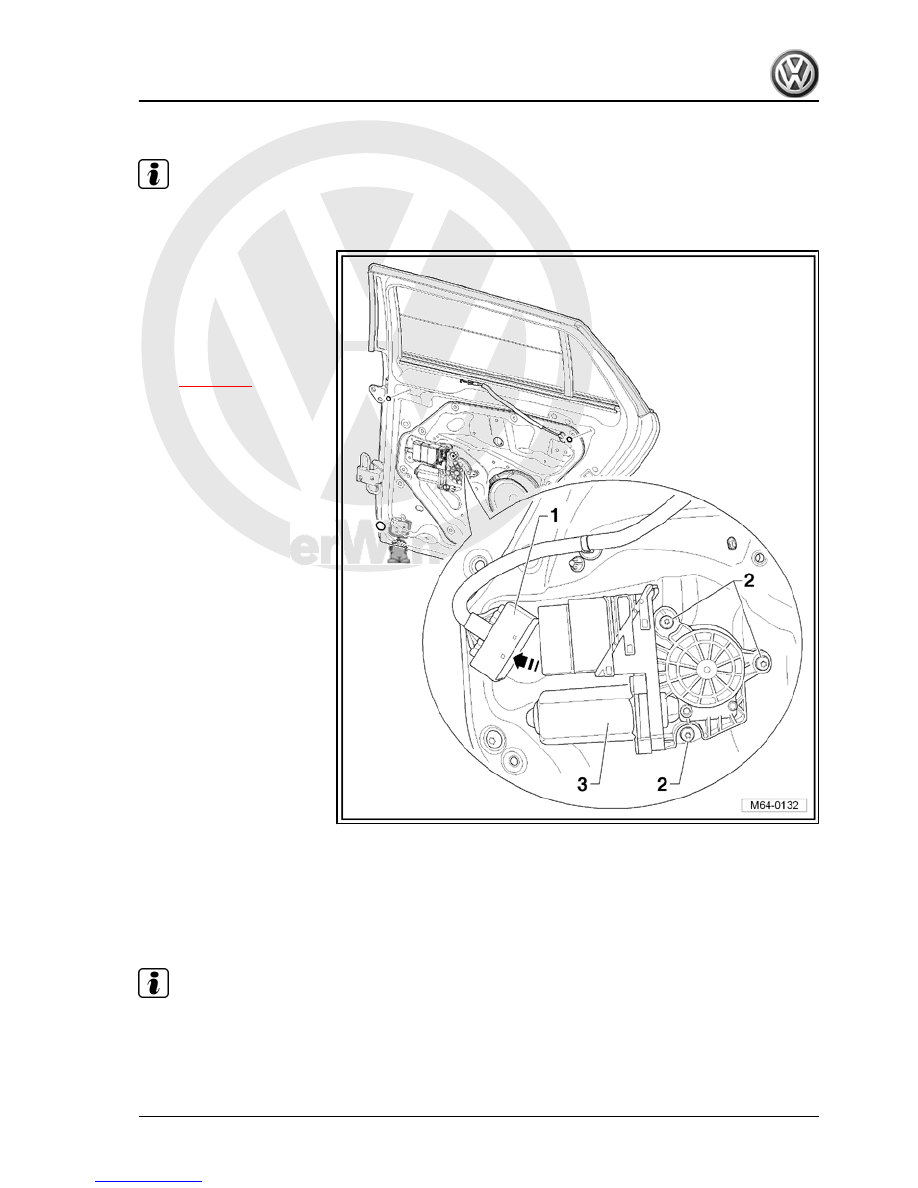

1 - Connector
2 - Bolt

❑ Qty. 3
❑ 3.5 Nm

3 - Window regulator motor

❑ Removing and installing

⇒ page 317

4.9

Removing and installing window regula‐

tor motor

4.9.1

Removing

Note

The removal and installation sequence is only for the right window regulator motor. The removal and installation

of the left window regulator motor is similar.

70 ; Door trim .

4. Rear door window (Variant)

317

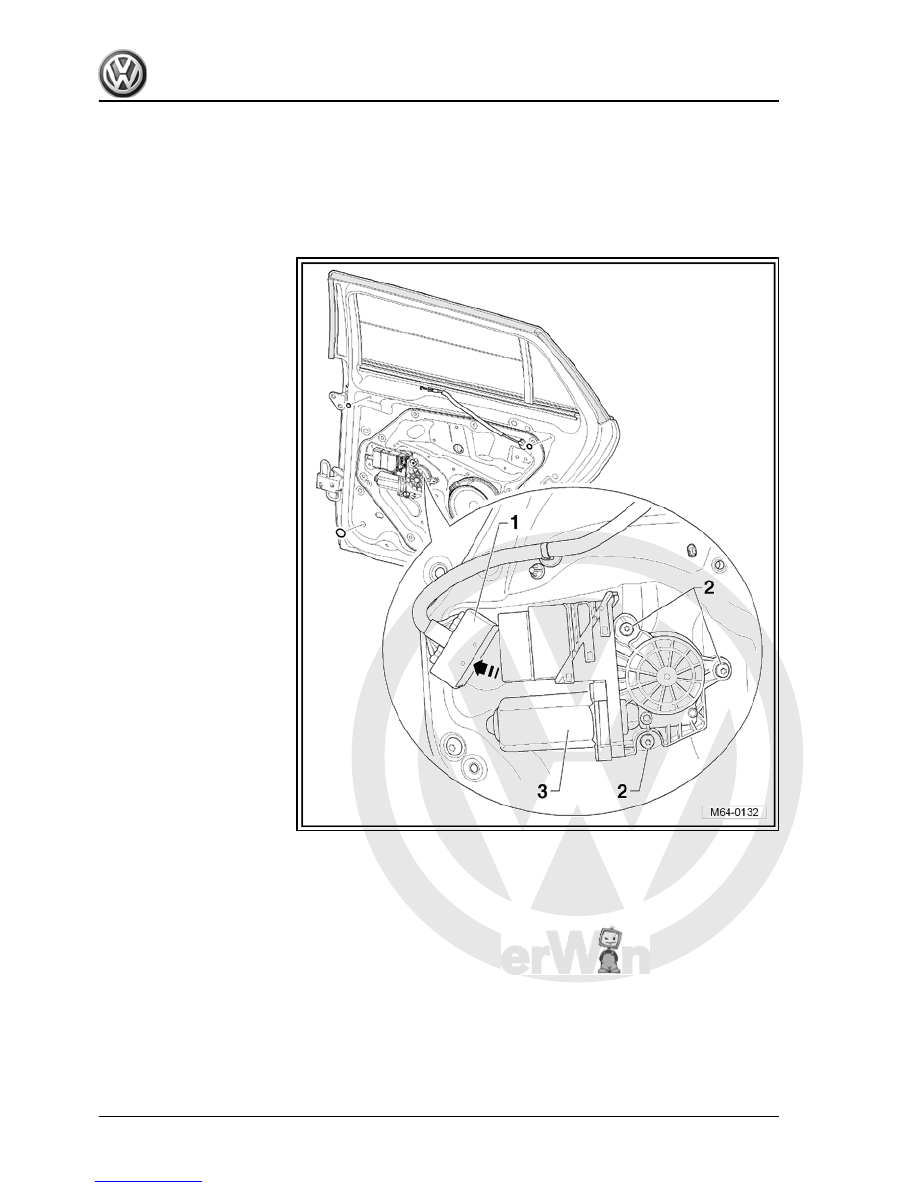

– Remove the three bolts -2-.
– Remove window regulator motor with control unit -3- from as‐

sembly carrier.

4.9.2

Installing

– Install window regulator motor with control unit -3-.
– Move door window lightly up and down so that the splines be‐

tween motor and cable drum engage easier.

– Tighten bolts -2- for window regulator motor (3.5 Nm).
– Reconnect connector -1- to window regulator motor with con‐

trol unit -3- (in opposite direction of -arrow-).

– Run window regulator twice in each direction to upper and

lower stops. This initiates and readies the window regulator

motor and activates the roll-back function.

318



4. Rear door window (Variant)

319



Wheel housing liner

1.1

Tools

Special tools and workshop equipment required

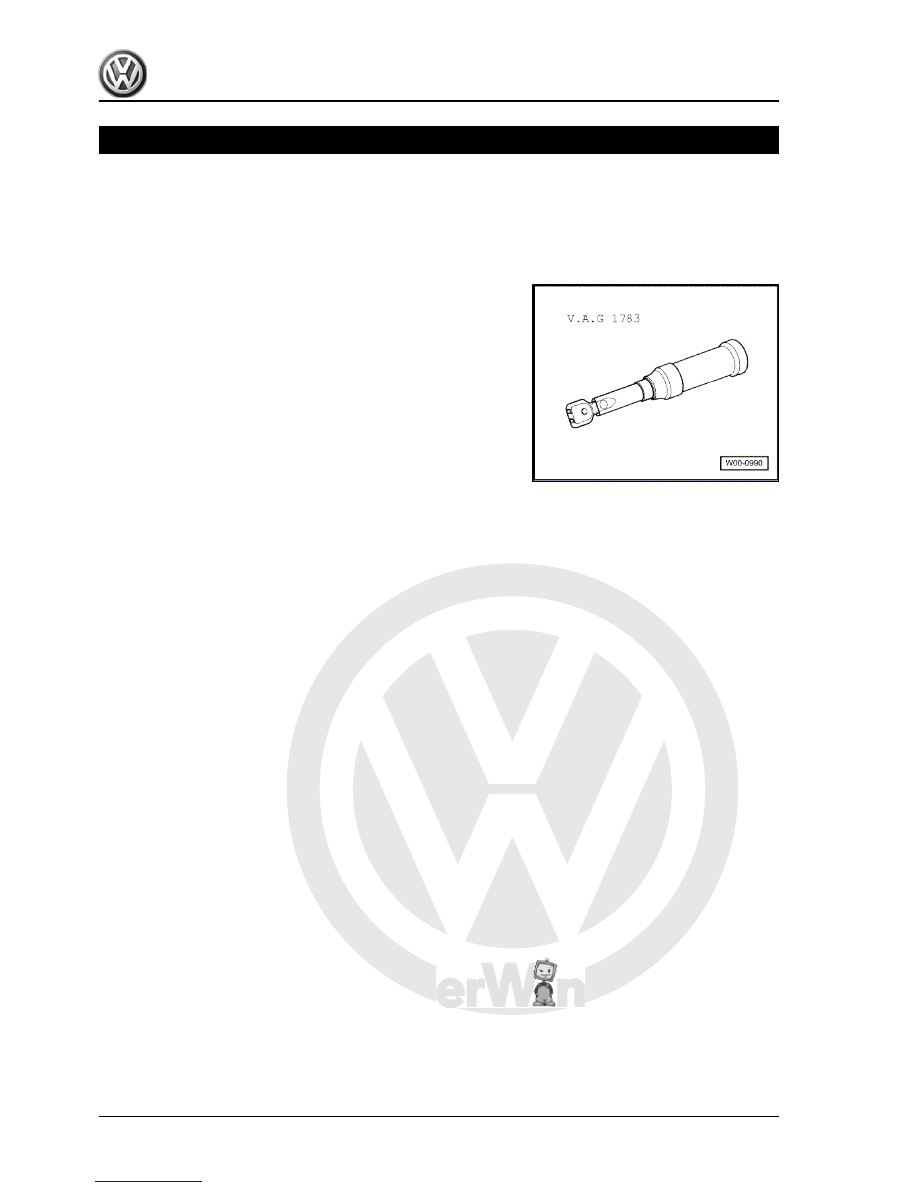

♦ Torque wrench -V.A.G 1783-
