3.1

Tools

Special tools and workshop equipment required

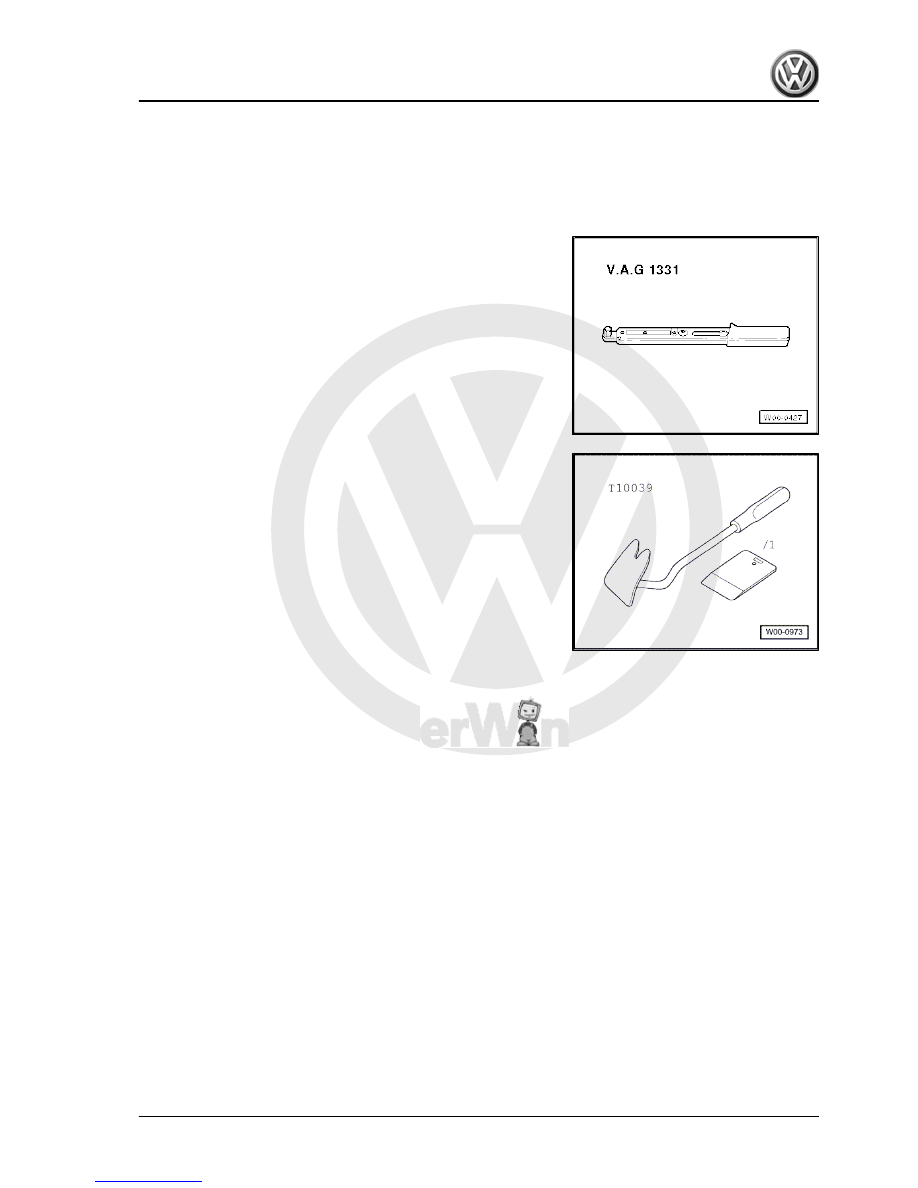

♦ Torque wrench 5…50 Nm -V.A.G 1331-

♦ Plastic wedge -T10039/1-

3. Roof railing

333



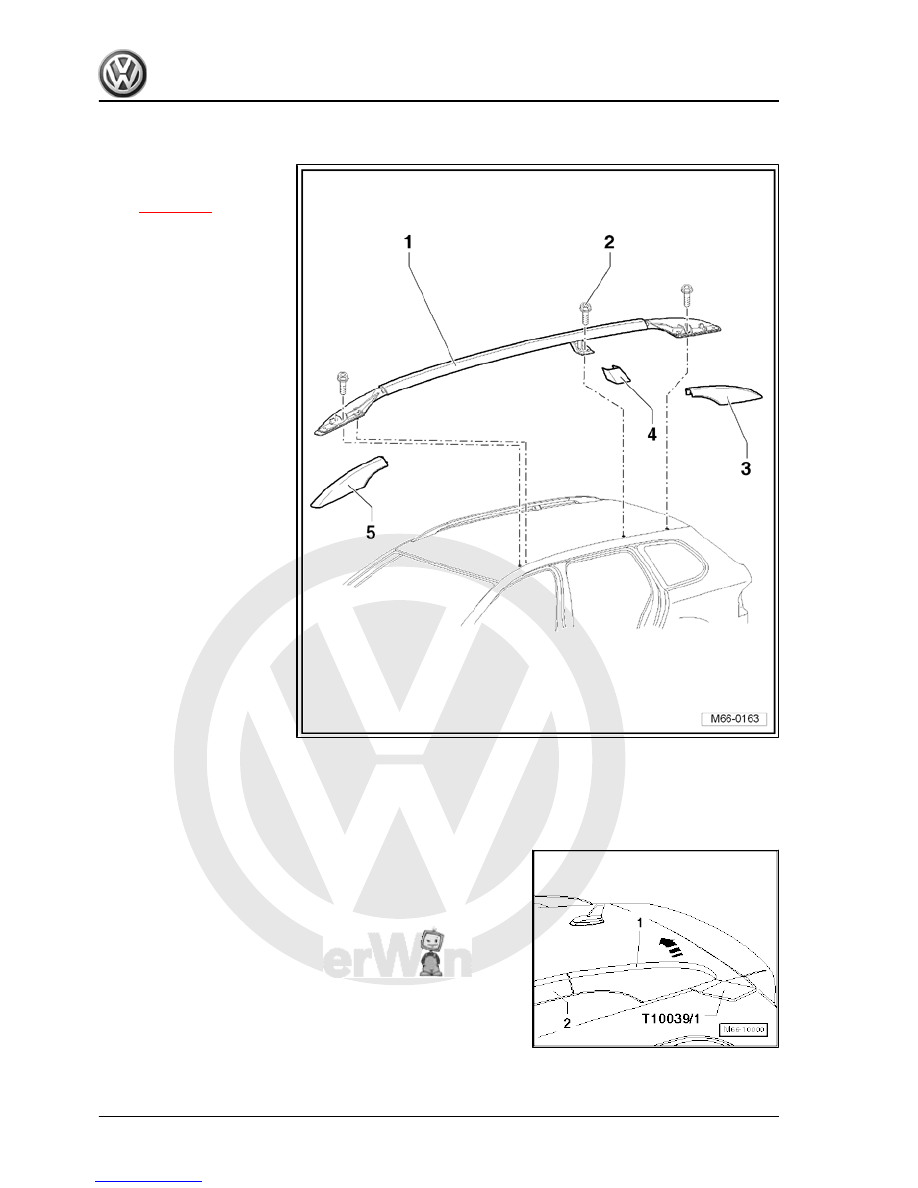

1 - Roof railing

❑ Removing and installing

⇒ page 334

2 - Bolt

❑ Qty. 3 on each side
❑ 20 Nm

3 - Roof railing rear cover
4 - Roof railing middle cover
5 - Roof railing front cover

3.3

Removing and installing roof railing

3.3.1

Removing

– Using wedge -T10039/1- , lever out front and rear roof railing

covers -1- in direction of -arrow-.

334

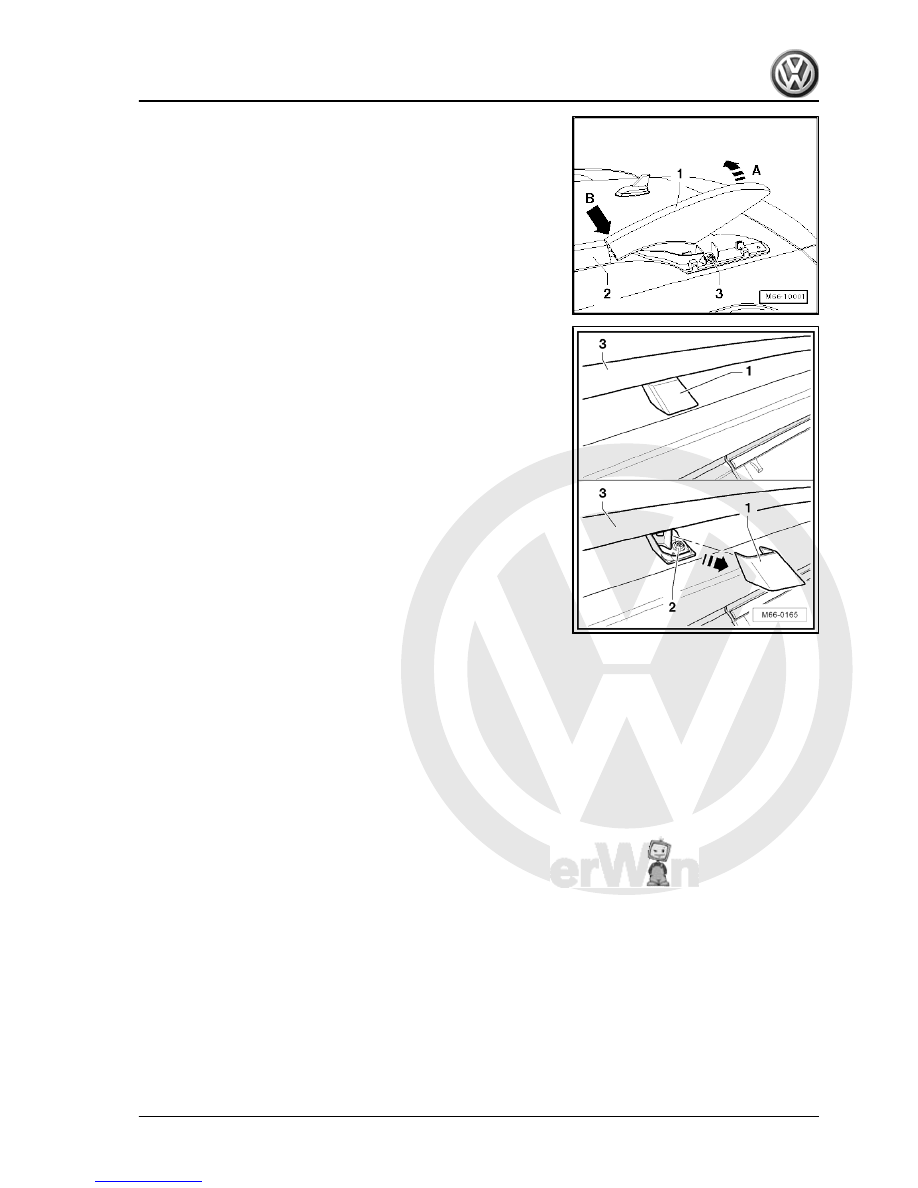

– Pull out cover for roof railing -1-.
– Remove bolt -3- from front and rear roof railing mounting -2-

(20 Nm).

– Pull middle cover -1- off roof railing -3- in direction of -arrow-.
– Remove bolt -2- from middle roof railing mounting -3- (20 Nm).

3.3.2

Installing

Install in reverse order of removal.
Check roof railing covers for damage and replace as necessary.

3. Roof railing

335



4.1

Tools

Special tools and workshop equipment required

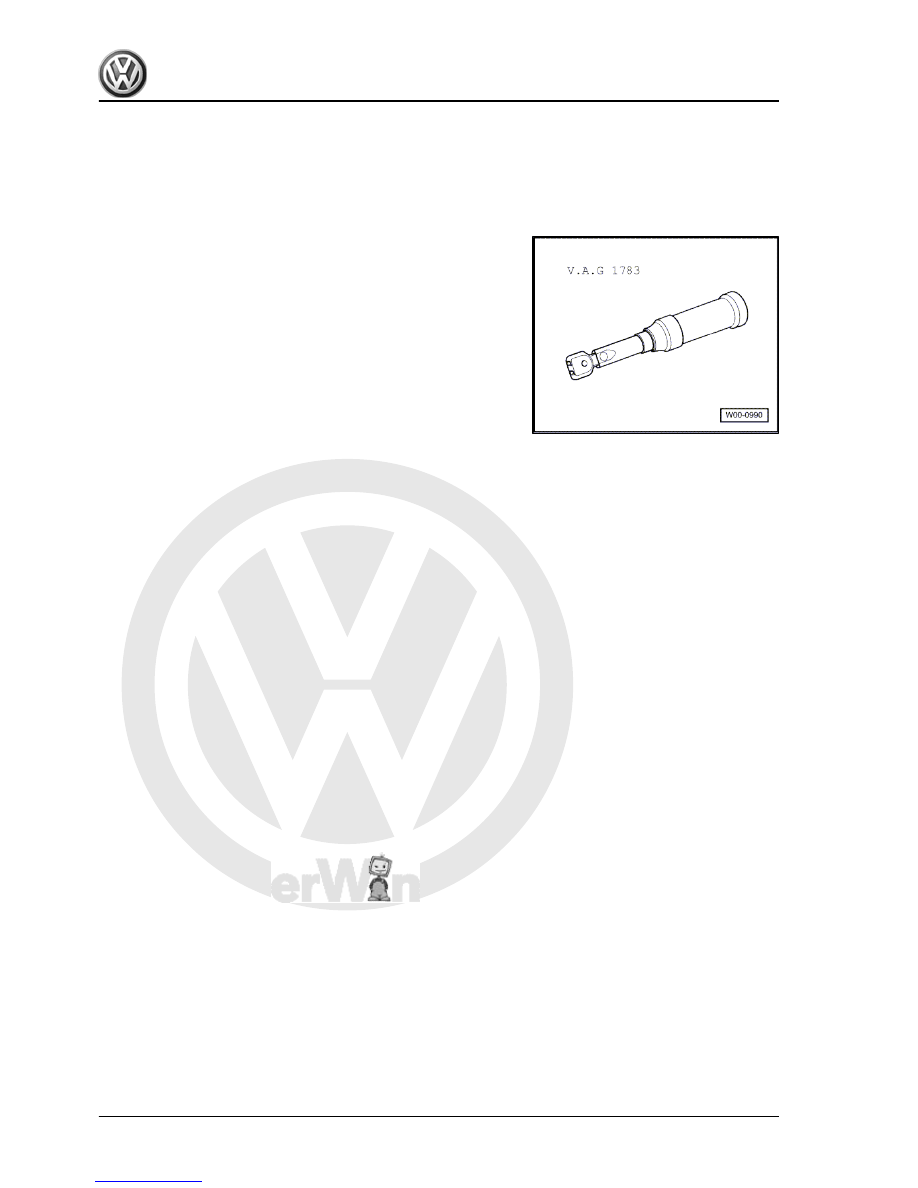

♦ Torque wrench -V.A.G 1783-
