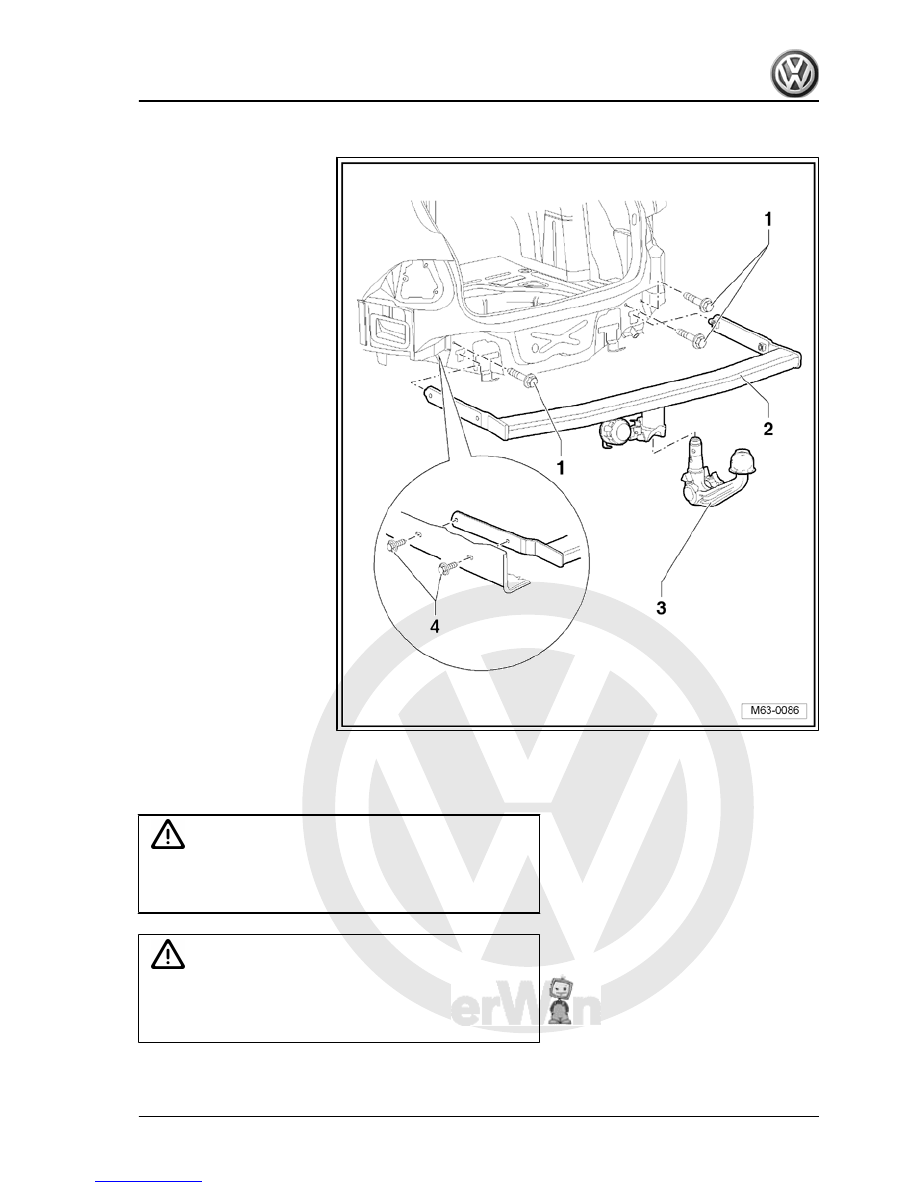

Installing

Install in reverse order of removal.

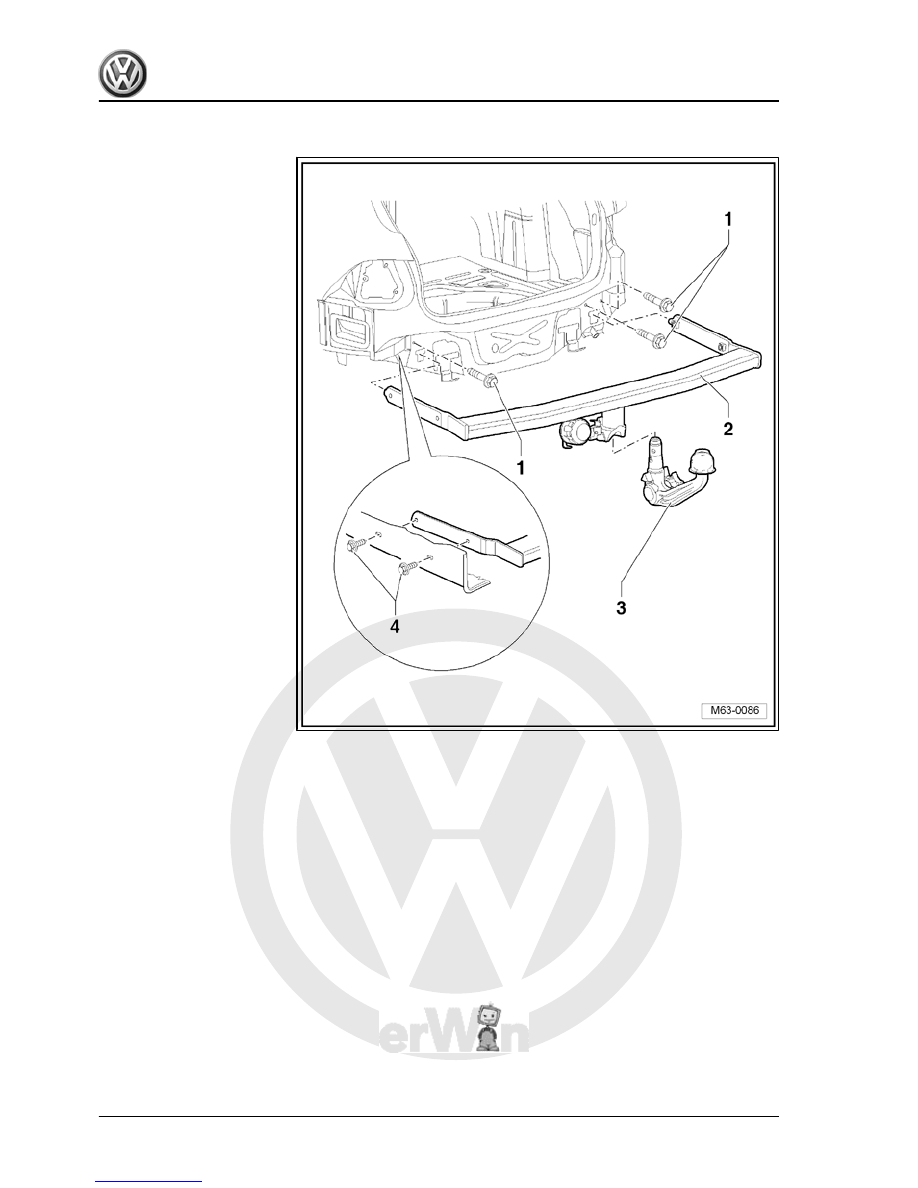

DANGER!

The bolts -1- function as plugs and seal the passenger com‐

partment against exhaust fumes, and must without exception

be installed.

WARNING

Bolts -4- must always be renewed after being removed.
Contact surfaces between towing bracket and body must be

free of grease and cavity sealant.

Specified torques
Bolt -1-: 20 Nm

5. Rear bumper (Variant)

257



258



Flush bonded windows

1.1

Tools

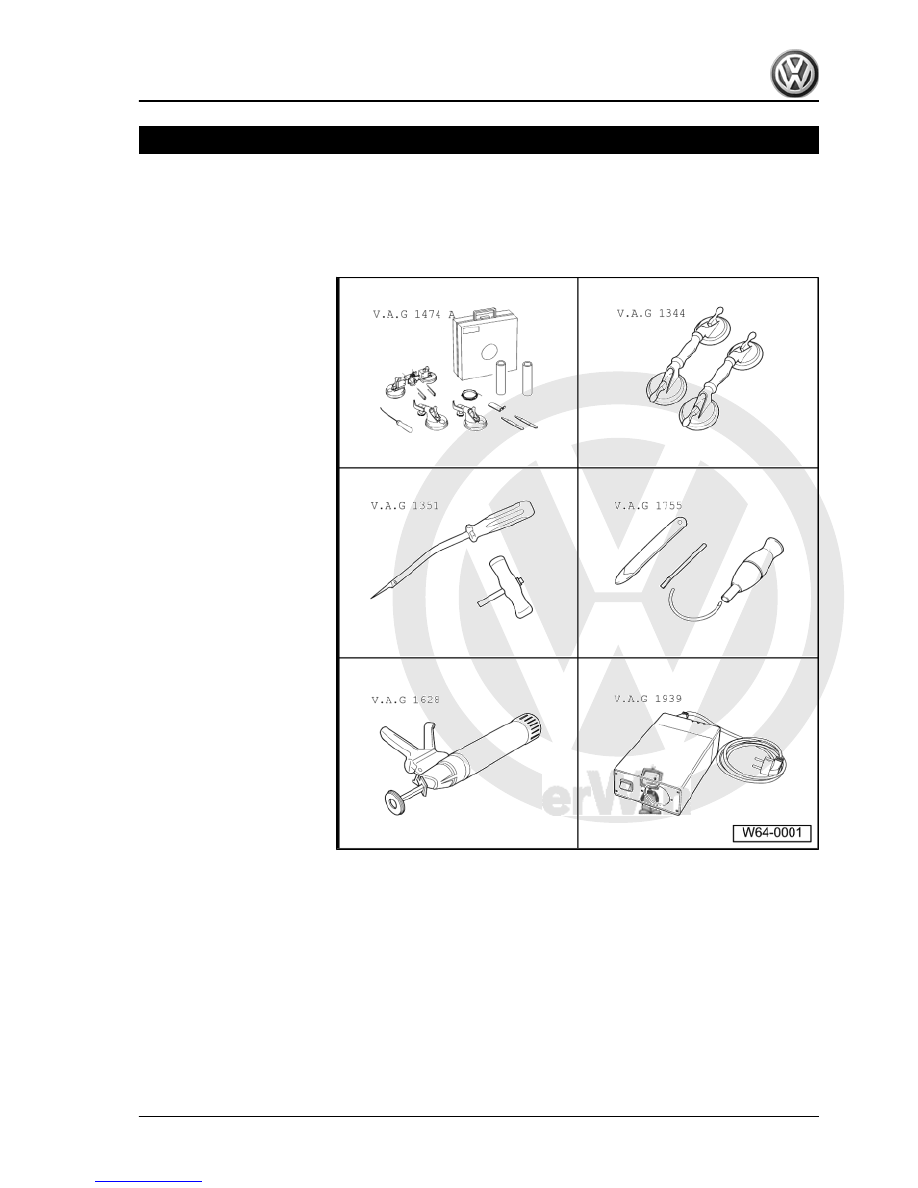

Special tools and workshop

equipment required
♦ Removal kit for flush bon‐

ded windows -

V.A.G 1474 A-

♦ Suction lifter -V.A.G 1344-
♦ Cutting tool -V.A.G 1351-
♦ Windscreen removal kit -

V.A.G 1755-

♦ Cartridge gun -V.A.G 1628-
♦ Cartridge heater -

V.A.G 1939 A-

1. Flush bonded windows

259

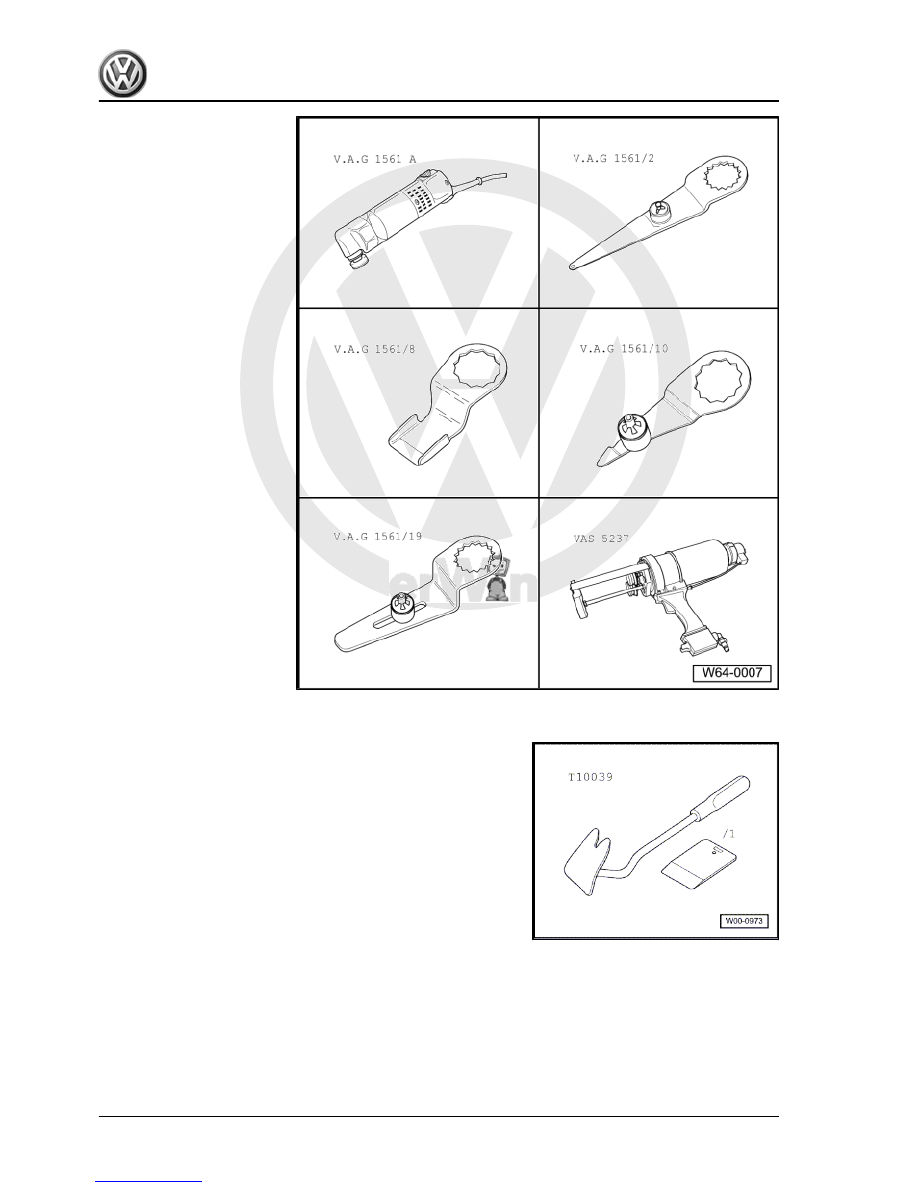

♦ Cutting blade -

V.A.G 1561/2-

♦ Scraping blade -

V.A.G 1561/8-

♦ Cutter (offset) -

V.A.G 1561/10-

♦ Cutting blade -

V.A.G 1561/19-

♦ Double cartridge gun -

VAS 5237-

Special tools and workshop equipment required
♦ Removal wedge -T10039/1-

1.2

Materials

♦ 2K glass adhesive

-DA 004 600 A2-

7)



8)

♦ 1K glass adhesive

-DH 009 100 03-

9)



10)

♦ Activator

-D 181 801 A1-

11)

♦ Glass primer/paint primer

-D 009 200 02-

11)
