Volkswagen Golf Variant / Jetta. Manual - part 64

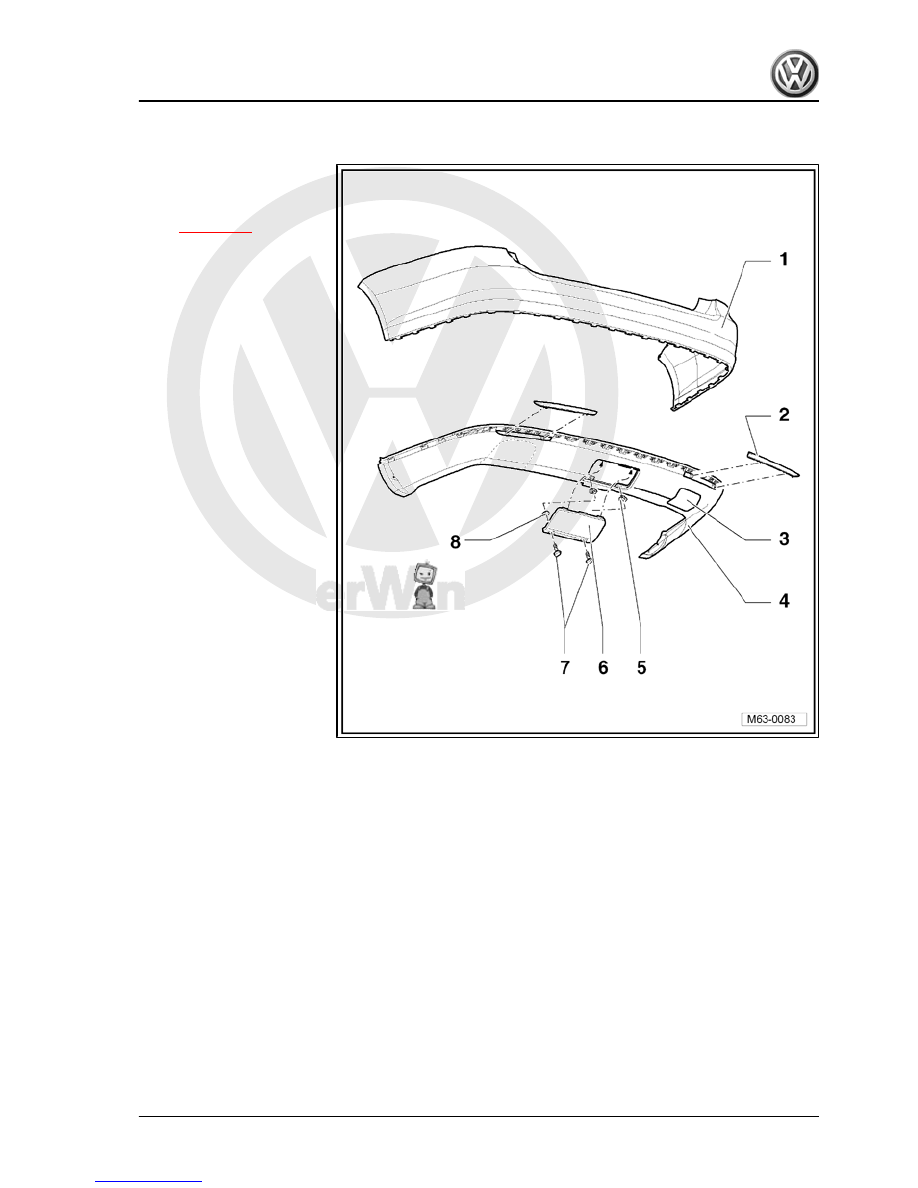

1 - Bumper cover

❑ Material PP/EPDM
❑ Removing and installing

⇒ page 250

2 - Reflector

❑ Engaged in bumper

cover

3 - Towing eye cap

❑ Engaged in bumper

cover

4 - Spoiler

❑ Material PC/ABS
❑ Engaged in bumper

cover

❑ Can only be removed

when bumper cover is

removed

5 - Spring clip

❑ Qty. 2
❑ Only with towing bracket

6 - Cover

❑ Only with towing bracket

7 - Bolt

❑ Qty. 2
❑ Only with towing bracket

8 - Retaining disc

❑ Qty. 2
❑ Only with towing bracket

5. Rear bumper (Variant)

253

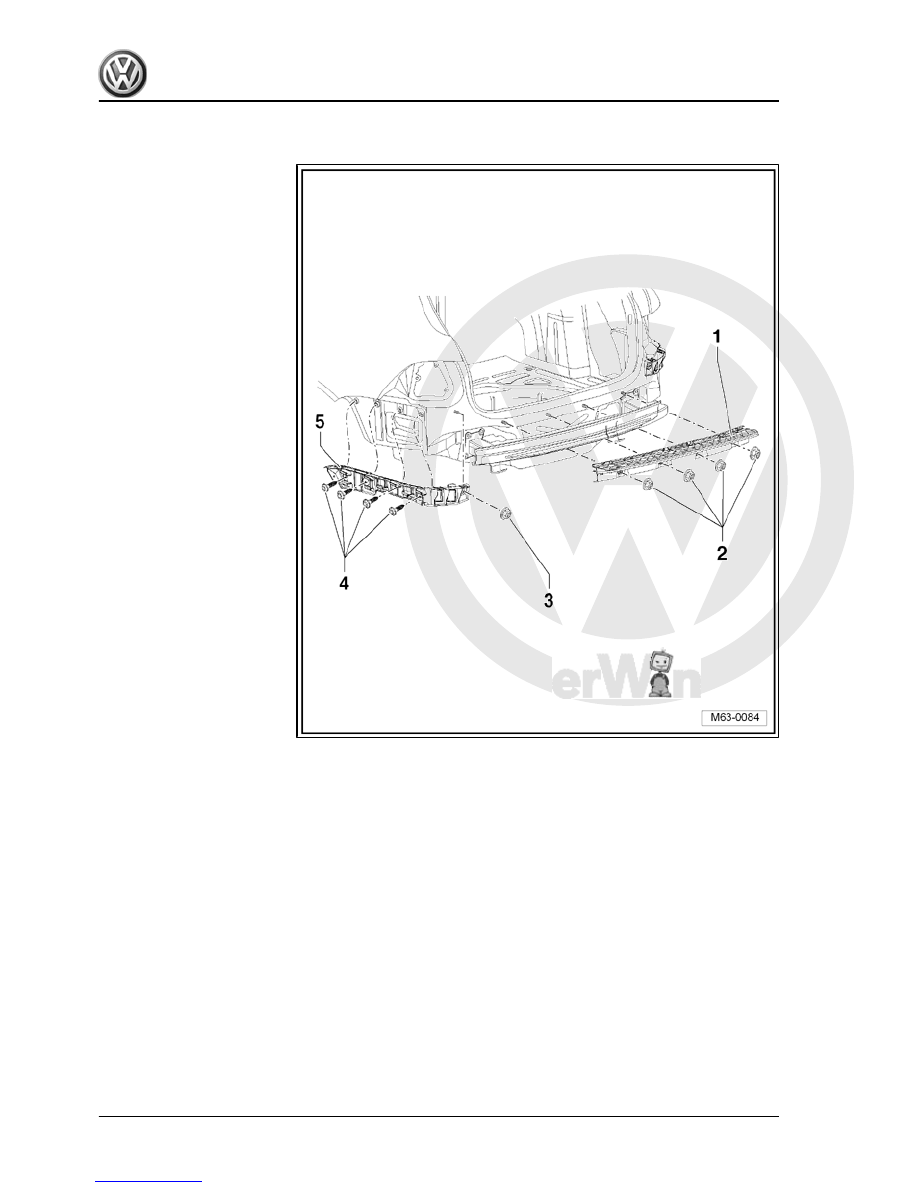

1 - Securing strip
2 - Nut

❑ Qty. 4
❑ 2 Nm

3 - Nut

❑ Qty. 1 on each side
❑ 2 Nm

4 - Bolt

❑ Qty. 4 on each side
❑ 2 Nm

5 - Guide bracket

❑ Left and right

254

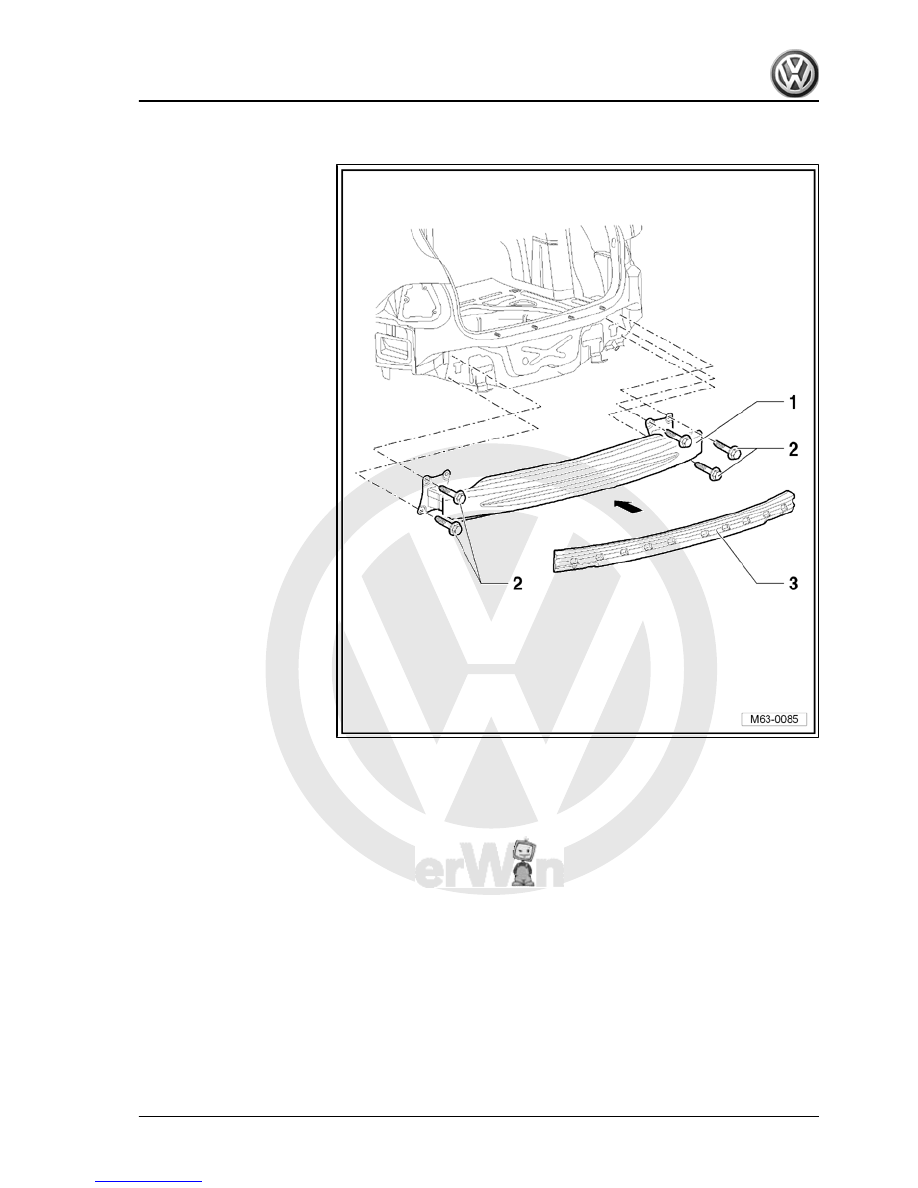

1 - Bumper carrier
2 - Bolt

❑ Qty. 5
❑ 20 Nm

3 - Foam element

❑ USA versions only

5. Rear bumper (Variant)

255



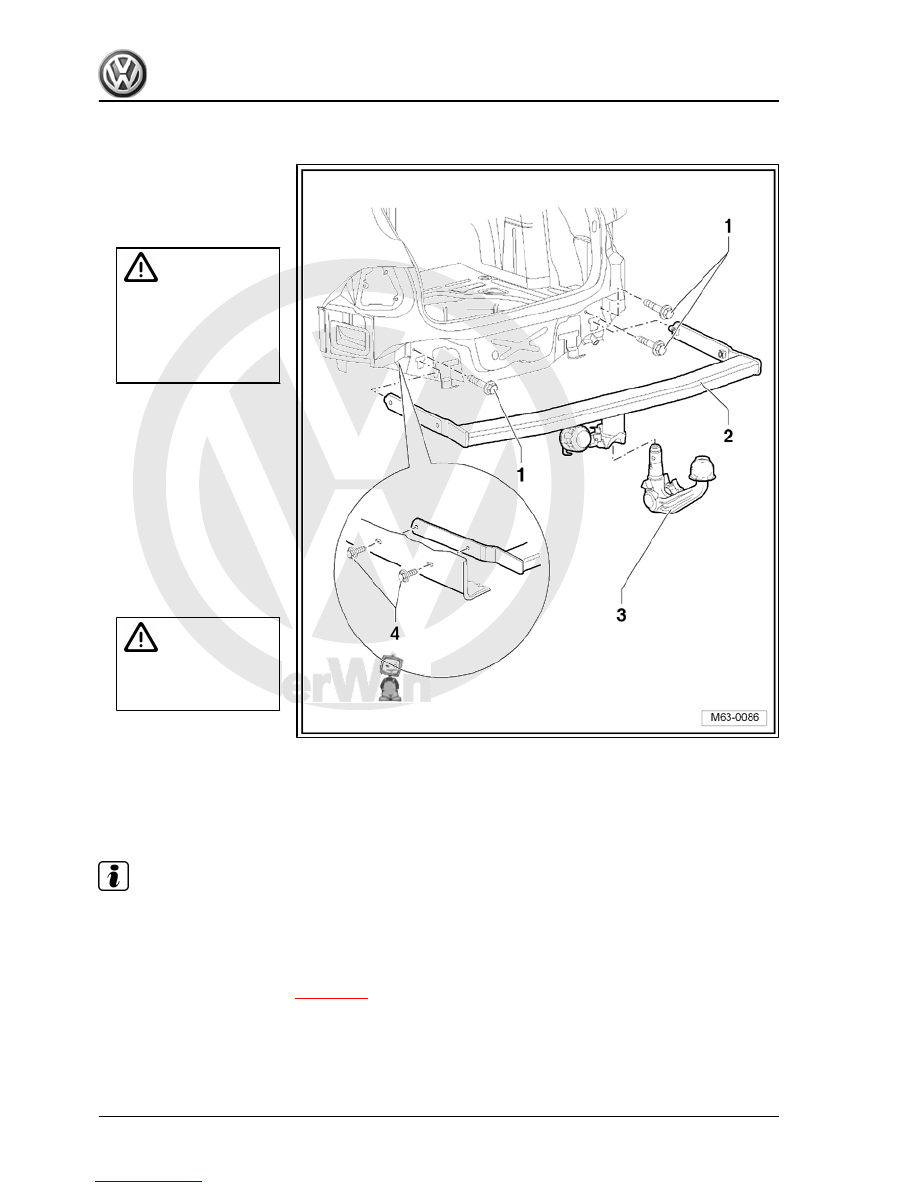

1 - Bolt

❑ Sealing plugs
❑ Qty. 3
❑ Specified torque: 20 Nm

DANGER!

The bolts -1- function as

plugs and seal the pas‐

senger

compartment

against  exhaust  fumes,

and must without excep‐

tion be installed.

2 - Towing bracket

❑ Illustration shows tow‐

ing bracket with remov‐

able ball head -2-

3 - Ball coupling

❑ Removable ball hitch is

housed in fold-out lug‐

gage compartment floor

4 - Bolt

❑ Qty. 2 on each side
❑ Specified torque: 50 Nm

+ turn 90° + 30° further

WARNING

Bolts -4- must always be

renewed  after  being  re‐

moved.

5.9

Removing and installing towing bracket

5.9.1

Removing

Note

The specified torques refer only to factory-installed towing brackets.

Request torque specifications for other towing brackets from the manufacturers.

Information on electrics can be found in ⇒  Electrical system; Rep. Gr.  94 .

– Remove rear bumper cover

⇒ page 250

 .

– Remove rear silencer ⇒  Exhaust system; Rep. Gr.  26 ; Si‐

lencer with mountings .

– Remove heat shield.

256
