Volkswagen Golf Variant / Jetta. Manual - part 62

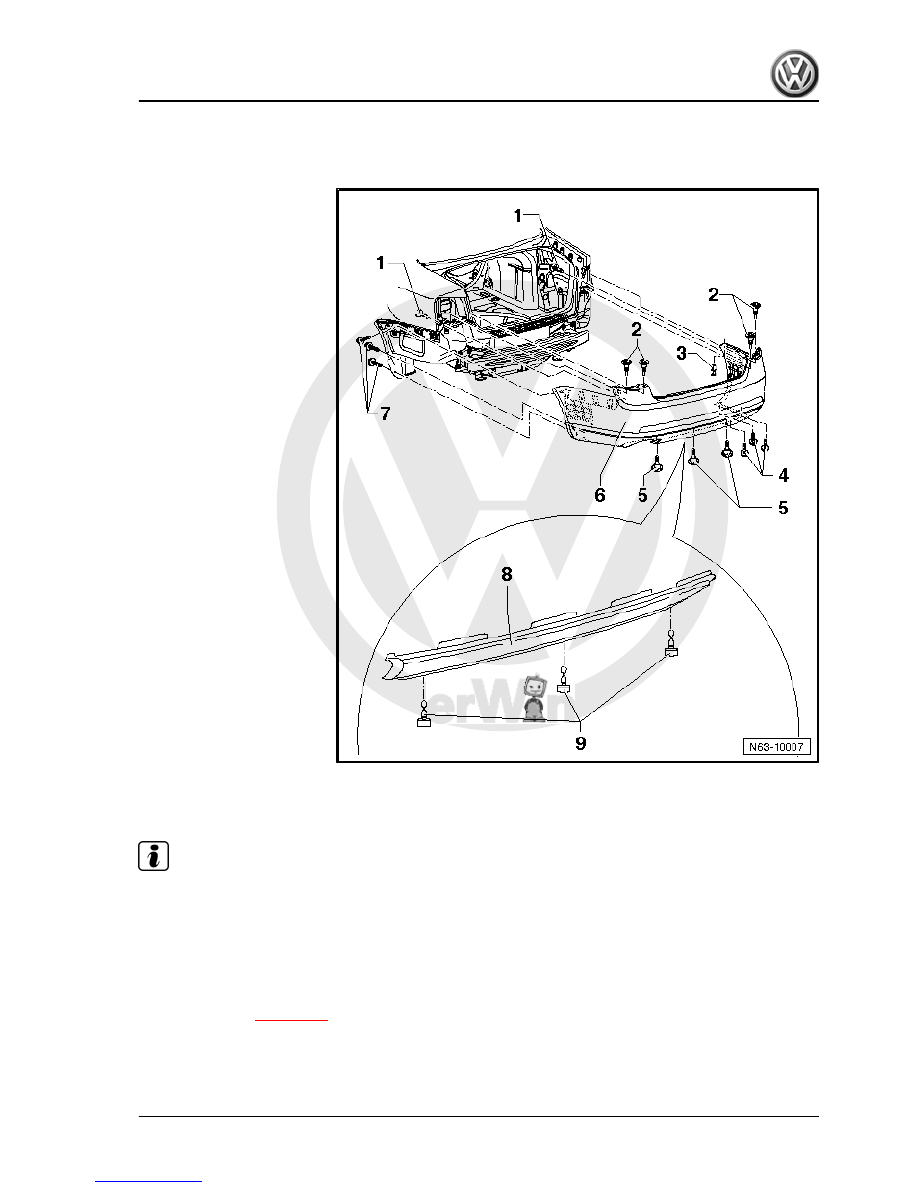

Installing

– With the help of a second mechanic, guide rear bumper cover

parallel into left and right guides.

Note

Ensure when fitting the rear bumper cover that it runs parallel along the left and right guide profiles.

– Install left and right spreader rivets -3-.
Ensure that joints are parallel and specified dimensions are main‐

Body - rear
– Start bolts -1, 2, 4, 5 and 7- and tighten these to the relevant

torque settings

⇒ page 243

– Install diffuser -8- and lock quick-release screws -9-.
Further installation is performed in reverse order of removal.

245

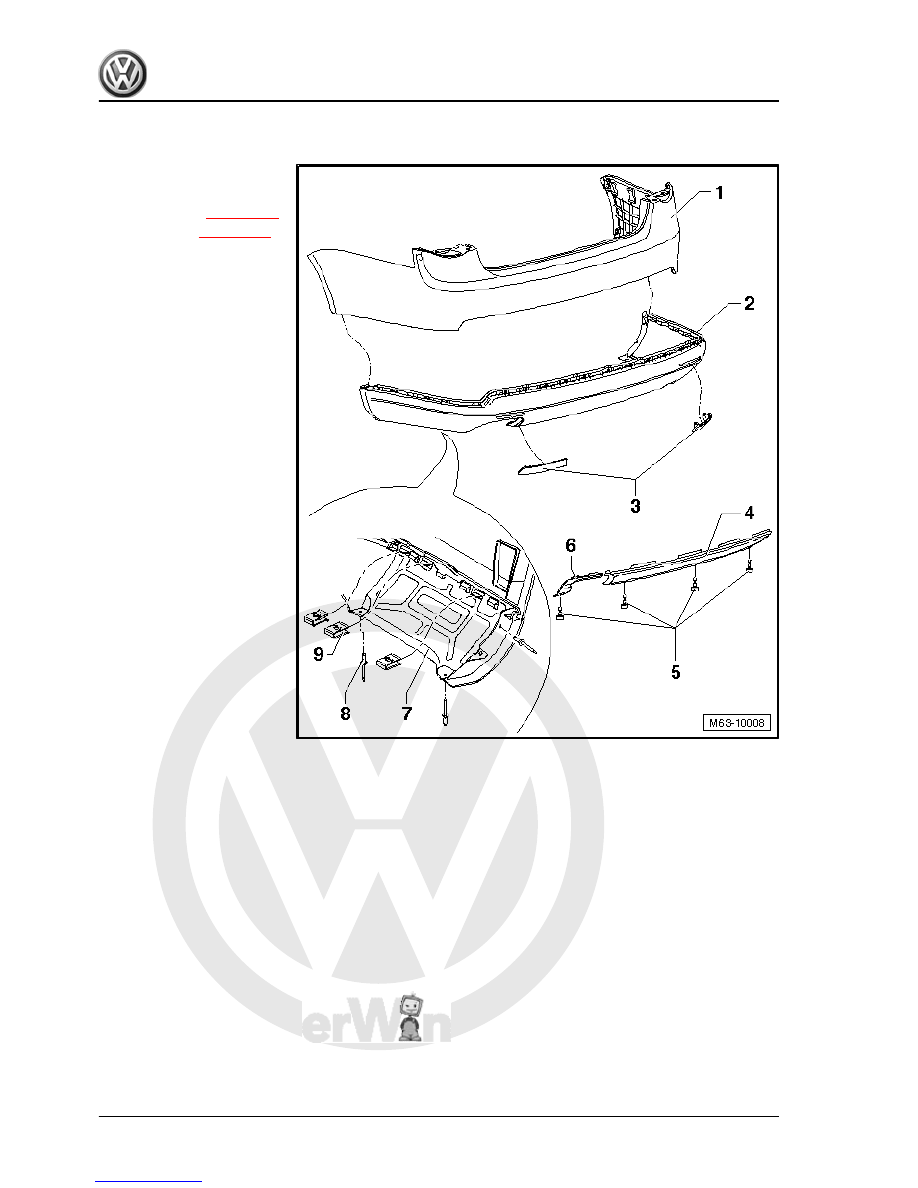

1 - Rear bumper cover

❑ Material PP/EPDM
❑ Removing

⇒ page 244

❑ Installing

⇒ page 245

2 - Spoiler

❑ Engaged in rear bumper

cover -1-

❑ Can only be removed

when rear bumper cover

is removed

3 - Reflector

❑ Left and right
❑ Engaged in spoiler

4 - Diffuser
5 - Quick-release screw

❑ Qty. 4.

6 - Left diffuser
7 - Heat shield
8 - Pop rivet

❑ Qty. 3.
❑ Insert with pop rivet pli‐

ers -VAS 5072-

9 - Clip

❑ Qty. 3.

246

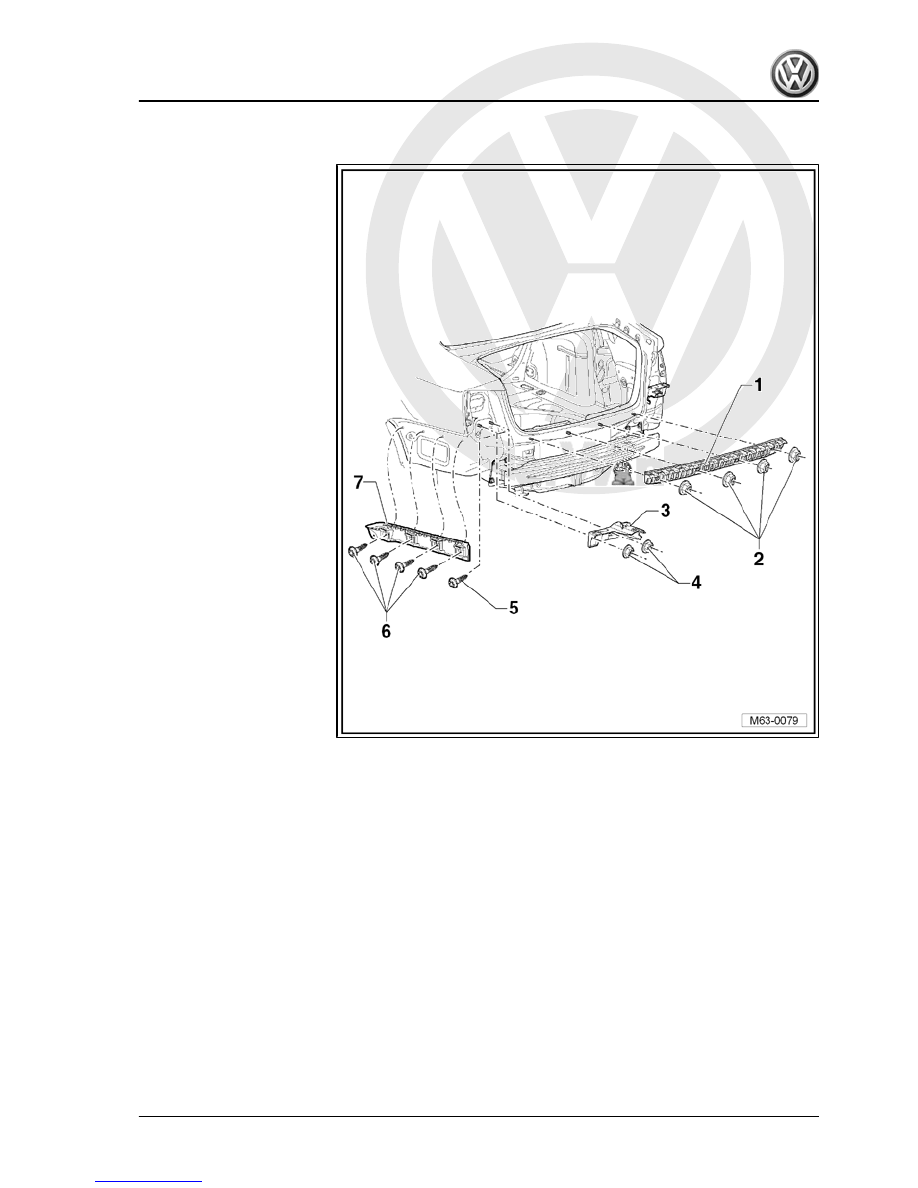

1 - Securing strip
2 - Hexagon nut

❑ Qty. 4.
❑ Specified torque: 2 Nm

3 - Guide

❑ Left and right

4 - Hexagon nut

❑ Qty. 2 on each side
❑ Specified torque: 2 Nm

5 - Bolt

❑ Qty. 1 on each side
❑ Specified torque: 2 Nm

6 - Bolt

❑ Qty. 4 on each side
❑ Specified torque: 2 Nm

7 - Guide bracket

❑ Left and right

247

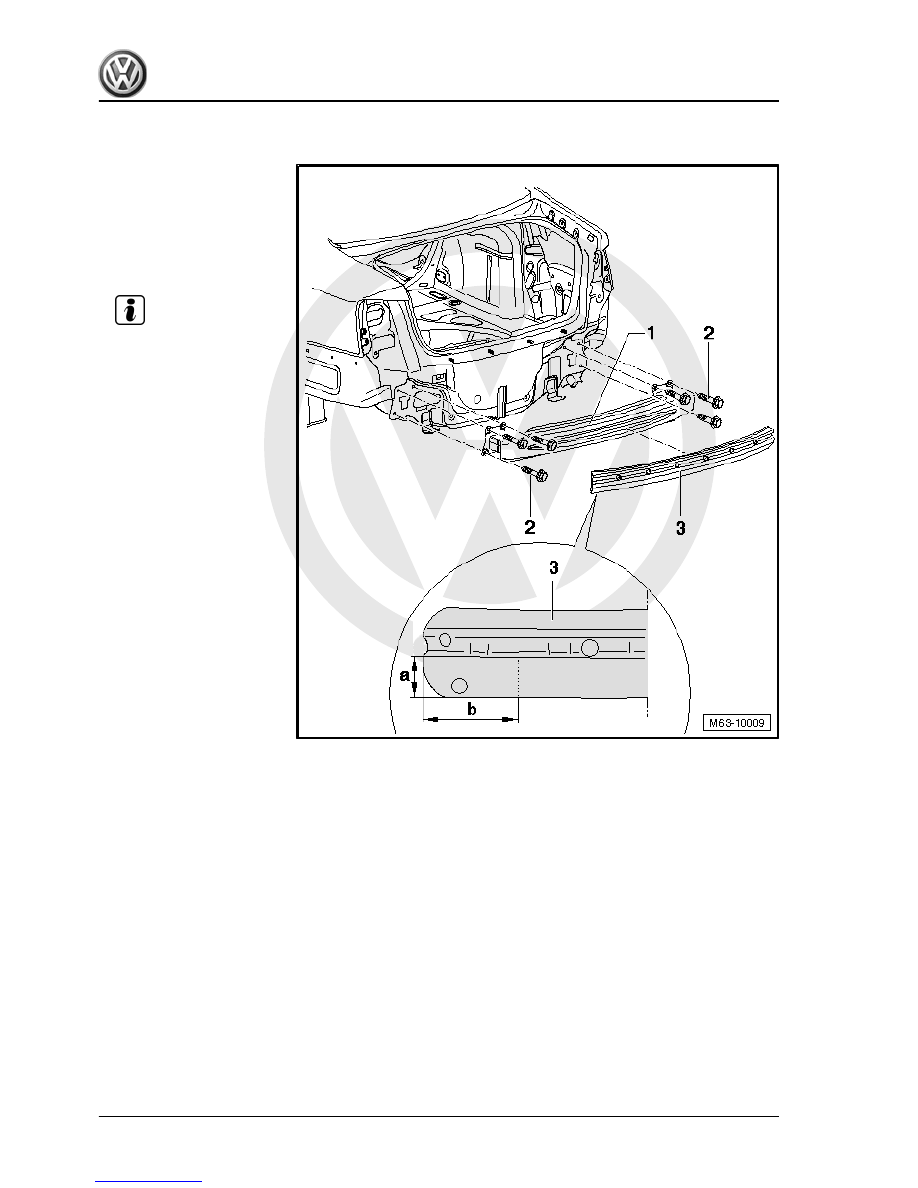

1 - Rear bumper carrier
2 - Bolt

❑ Qty. 3 on each side
❑ Specified torque: 20 Nm

3 - Foam element

❑ Self-adhesive

Note

248
