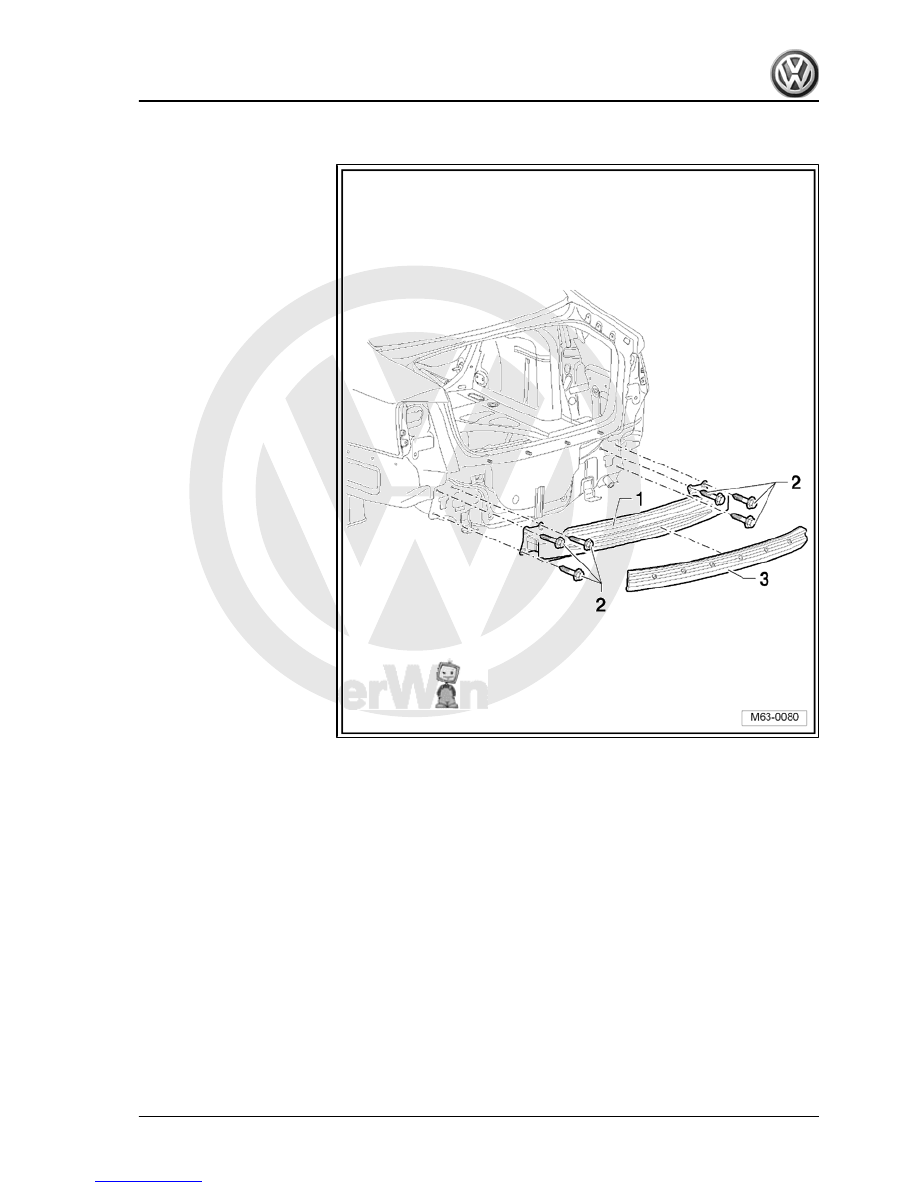

1 - Bumper carrier
2 - Bolt

❑ Qty. 3 on each side
❑ 20 Nm

3 - Foam element

❑ Self-adhesive

3. Rear bumper (saloon)

241



4.1

Rear bumper cover, saloon

4.1.1

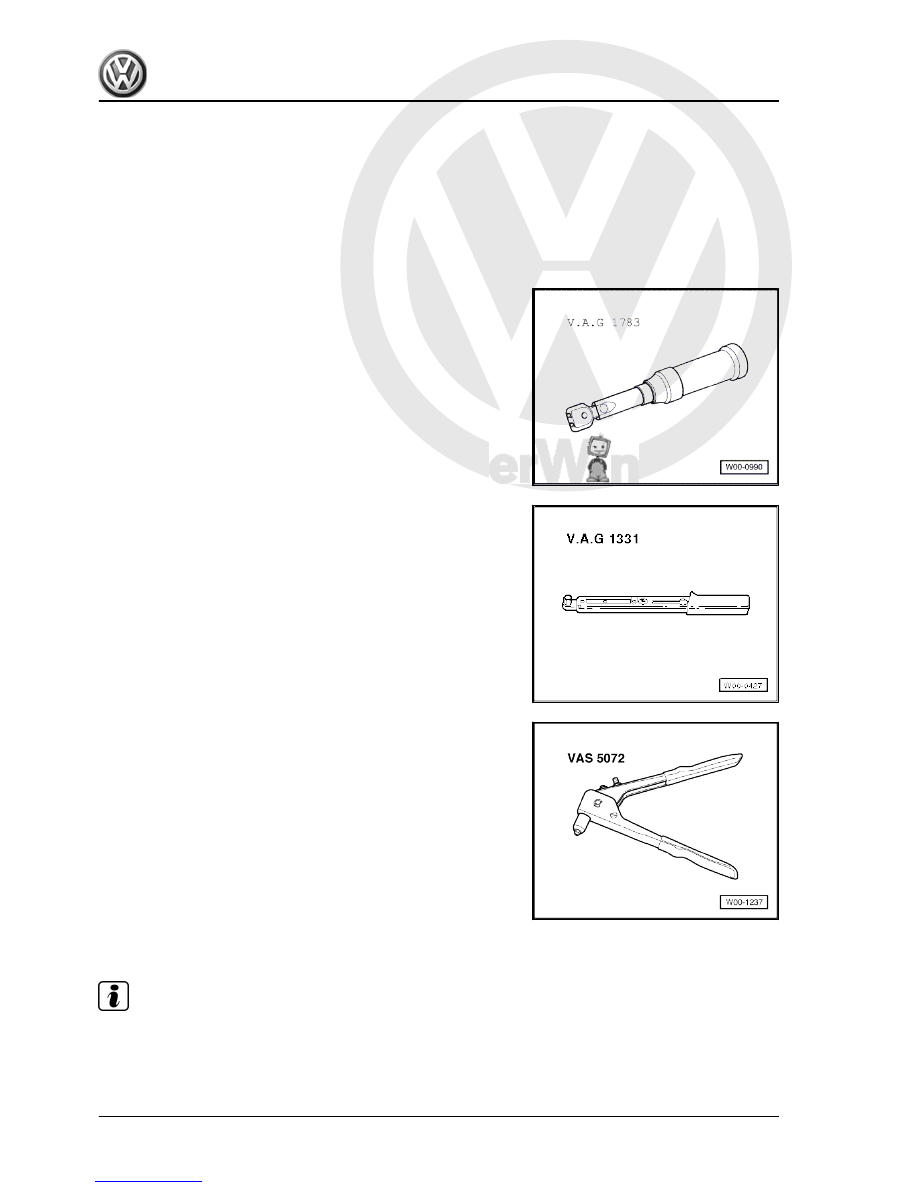

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

♦ Torque wrench -V.A.G 1331-

♦ Pop rivet pliers -VAS 5072-

4.1.2

Repairing rear bumper cover

Note

If bumper cover is damaged, determine whether plastic can be

repaired before renewing bumper.

Description under: ⇒ General Information; Body Repairs, General

Body Repairs ; Plastic repair procedures

242



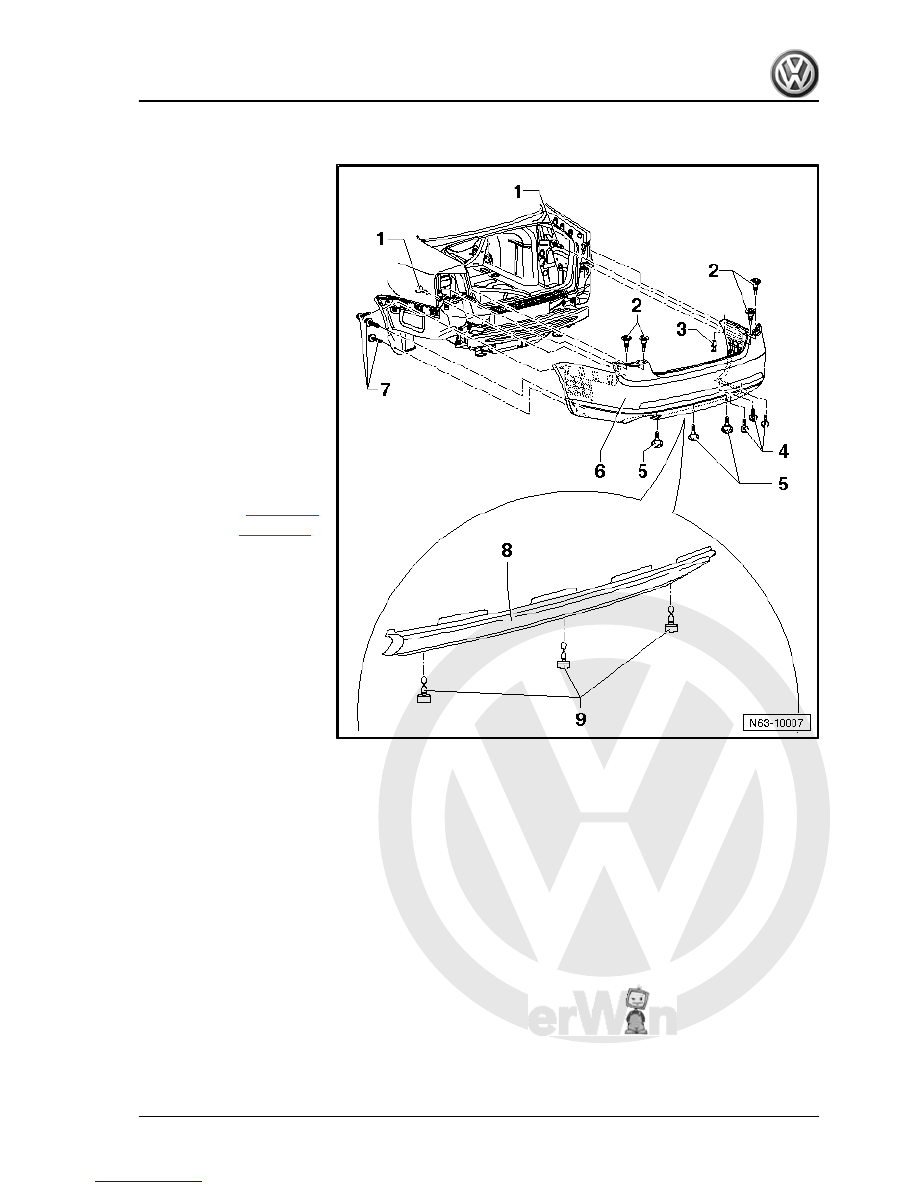

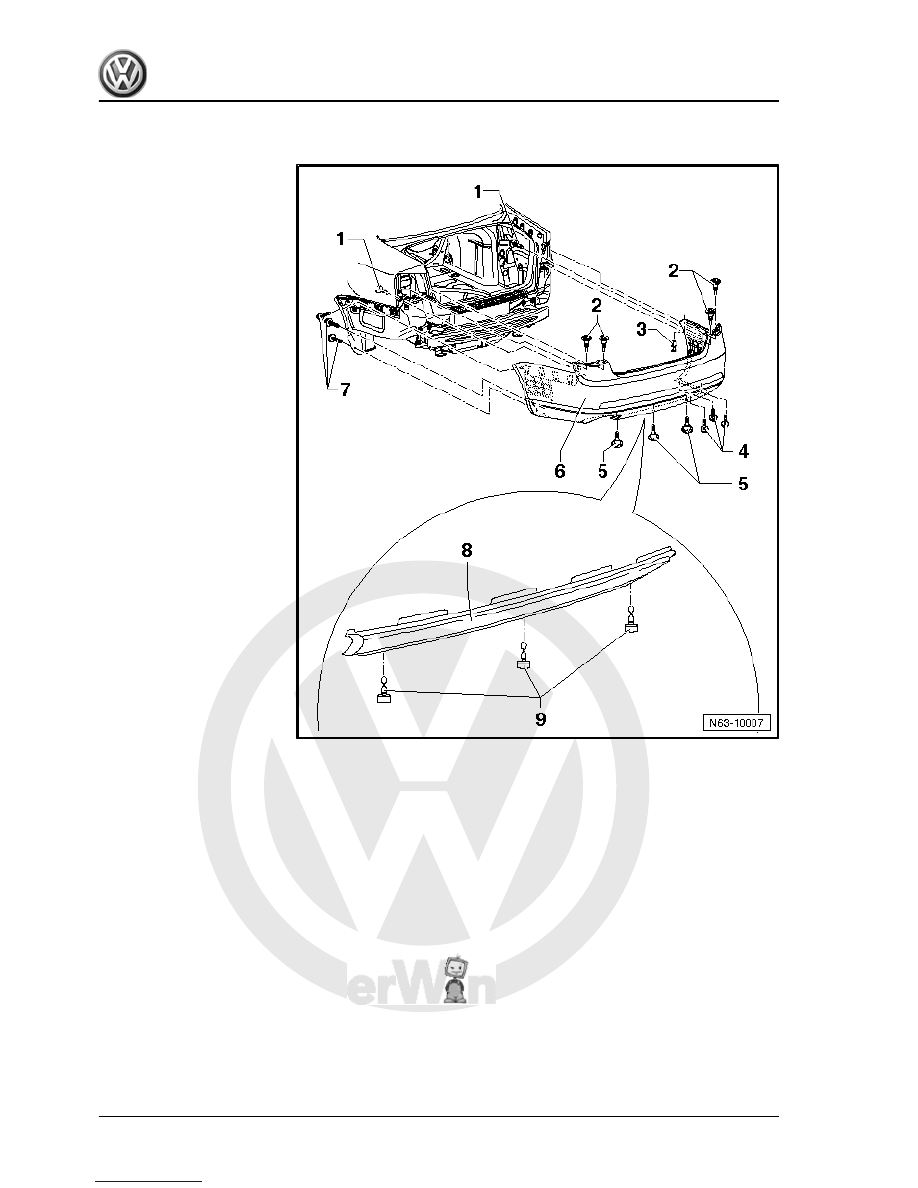

1 - Bolt

❑ Left and right
❑ Specified torque: 8 Nm

2 - Bolt

❑ Specified torque: 5 Nm

3 - Spreader rivet

❑ Left and right

4 - Bolt

❑ Qty. 3.
❑ Only on right side
❑ Specified torque: 2 Nm

5 - Bolt

❑ Qty. 3.
❑ Specified torque: 5 Nm

6 - Rear bumper cover

❑ Material PP/EPDM
❑ Removing

⇒ page 244

❑ Installing

⇒ page 245

7 - Bolt

❑ Qty. 3 on each side
❑ Specified torque: 2 Nm

8 - Diffuser
9 - Quick-release screw

❑ Qty. 3.

243



– Remove luggage compartment side trim ⇒  General body re‐

pairs, interior; Rep. Gr.  70 ; Trims; Luggage and load com‐

partment .

– Remove tail lights in left and right side panels ⇒  Electrical

system; Rep. Gr.  94 ; Tail lights .

– Release quick-release screw -9- and remove diffuser -8- from

spoiler.

– Remove bolts -7- on left and right in area of wheel housing

liner.

– Lever out spreader rivet -3- on left and right using a screw‐

driver.

– From below, remove bolts -4- and -5-.
– Remove bolts -2- on left and right from above.
– Remove bolt -1- on left and right in luggage compartment.
Further dismantling requires the assistance of a second person.
– With the help of a second mechanic, pull rear bumper cover

-6- parallel out of guide profiles.
