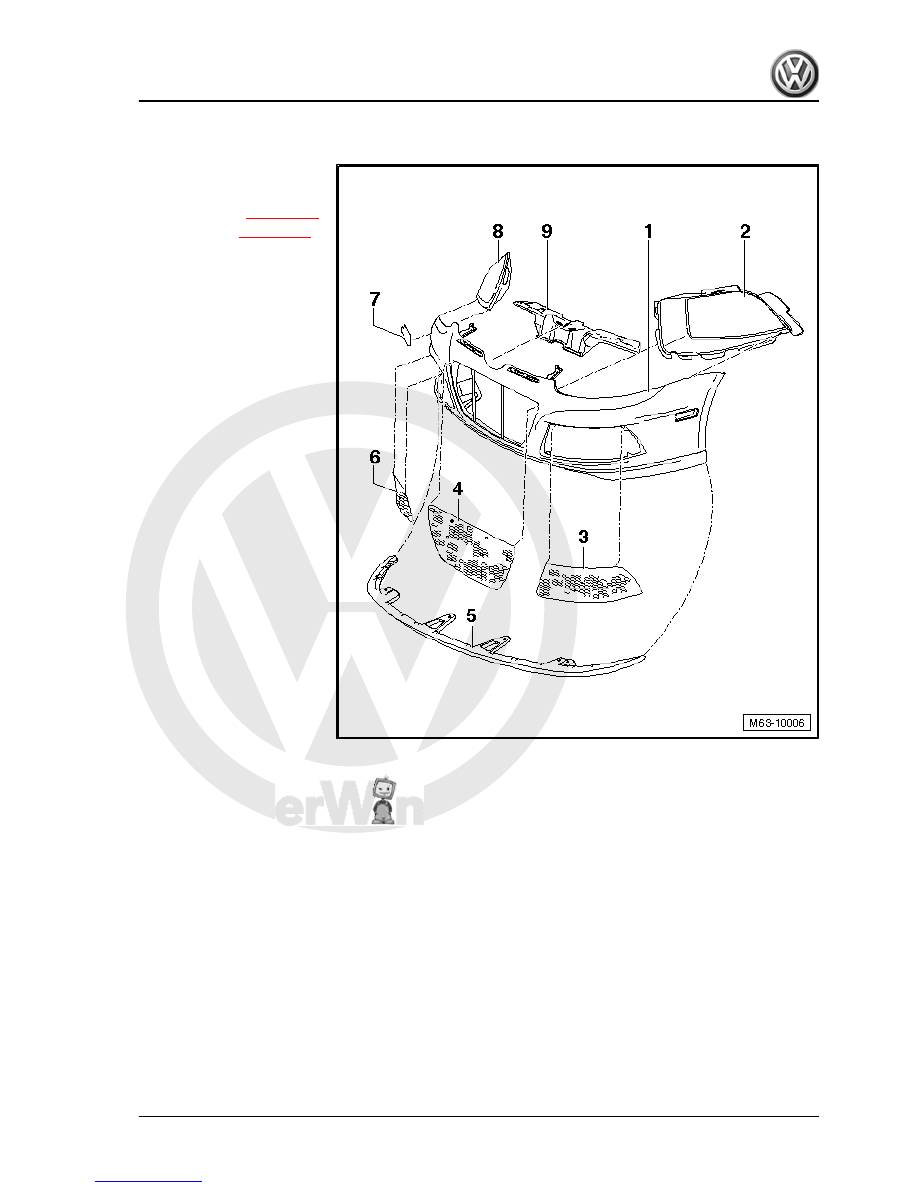

1 - Front bumper cover

❑ Material PUR/MF 17
❑ Removing

⇒ page 231

❑ Installing

⇒ page 232

2 - End plate

❑ Left
❑ Clipped on the inside

with 4 panel clips.

❑ Only remove when

bumper cover -1- is re‐

moved

3 - Air intake grille

❑ Left
❑ Secured with four bolts

from the outside.

❑ Specified torque: 2 Nm

4 - Centre air intake grille

❑ Clipped on the inside

with 19 panel clips.

❑ Only remove when

bumper cover -1- is re‐

moved

5 - Spoiler attachment

❑ Only remove when

bumper cover -1- is re‐

moved

6 - Air intake grille

❑ Right
❑ Secured with four bolts

from the outside.

❑ Specified torque: 2 Nm

7 - Towing eye cap

❑ Engaged in front bumper cover -1-

8 - End plate

❑ Right
❑ Clipped on the inside with 4 panel clips.
❑ Only remove when bumper cover -1- is removed

9 - Adapter

❑ Secured to the middle of the front bumper -1- with four bolts from above and four blind rivets from below.
❑ Specified torque for the 4 bolts (2 Nm).

233



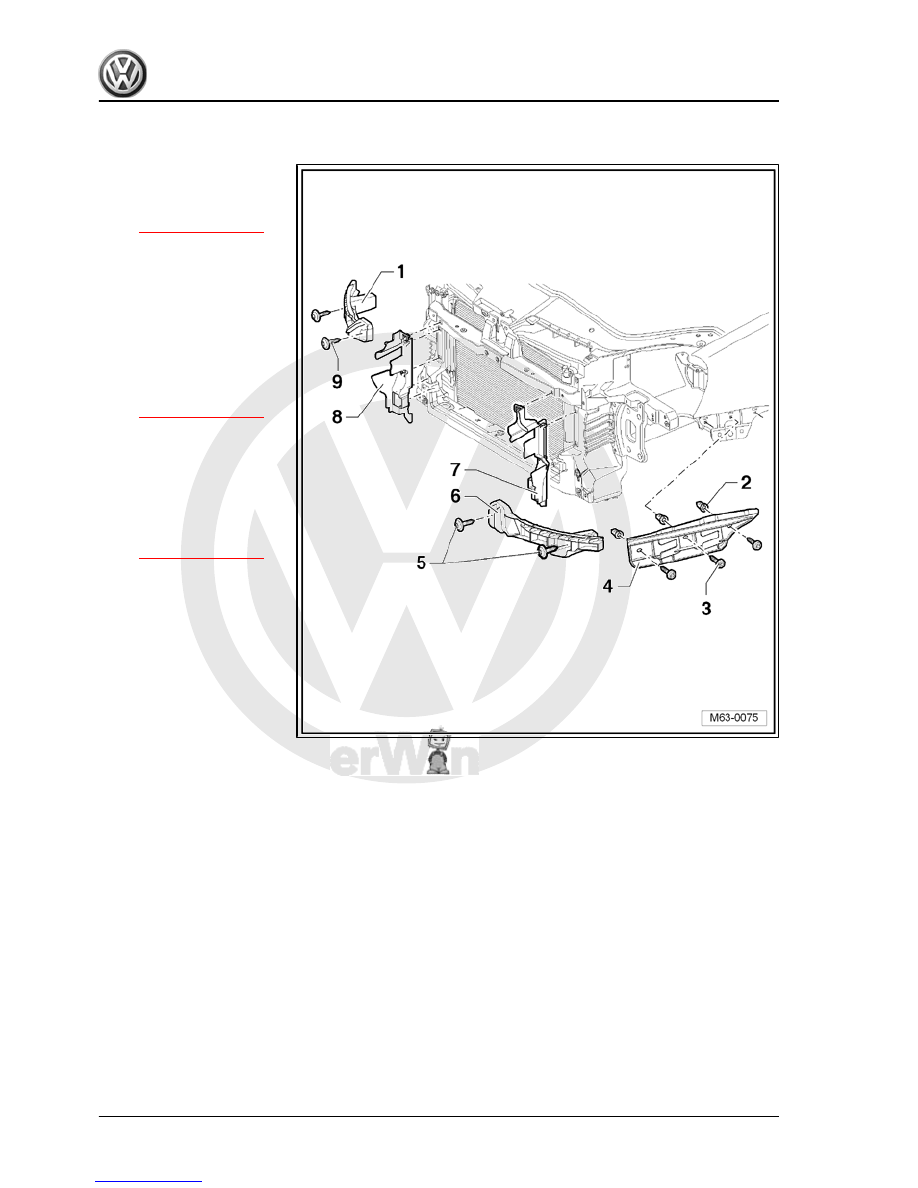

1 - Right guide

❑ Bolted to bumper carrier
❑ To remove, unbolt bolts

⇒ Item 9 (page 234)

 .

2 - Expanding nut

❑ Qty. 3 on each side

3 - Bolt

❑ Qty. 3 on each side
❑ Specified torque: 2 Nm

4 - Guide bracket

❑ Left and right
❑ To remove, unbolt bolts

⇒ Item 3 (page 234)

5 - Bolt

❑ Qty. 2.
❑ Specified torque: 2 Nm

6 - Left guide

❑ Bolted to bumper carrier
❑ To remove, unbolt bolts

⇒ Item 5 (page 234)

 .

7 - Left air duct

❑ Fastened to lock carrier.

8 - Right air duct

❑ Fastened to lock carrier.

9 - Bolt

❑ Qty. 2.
❑ Specified torque: 2 Nm

234

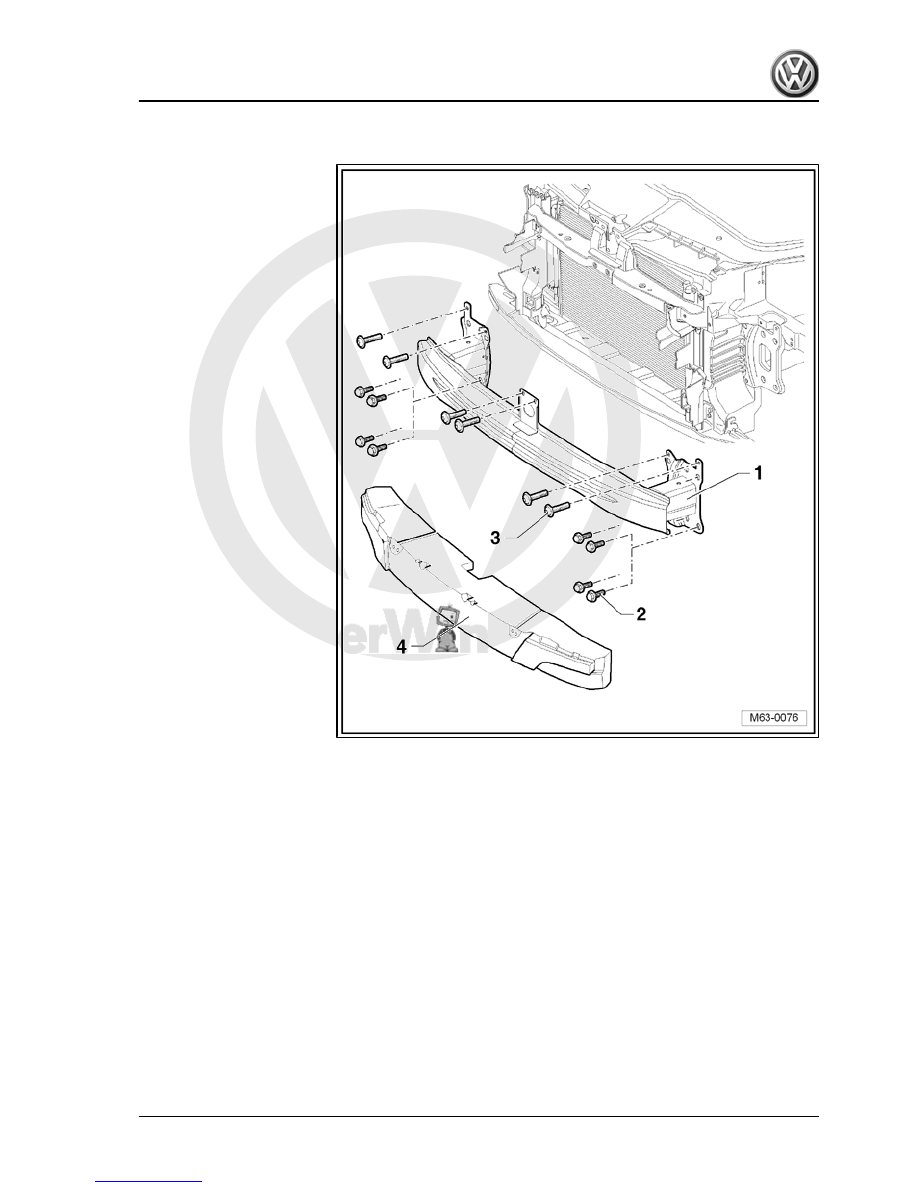

1 - Front bumper carrier
2 - Bolt

❑ Qty. 4 on each side
❑ Specified torque: 60 Nm

3 - Bolt

❑ Qty. 6.
❑ Specified torque: 8 Nm

4 - Foam element

❑ Self-adhesive

235



3.1

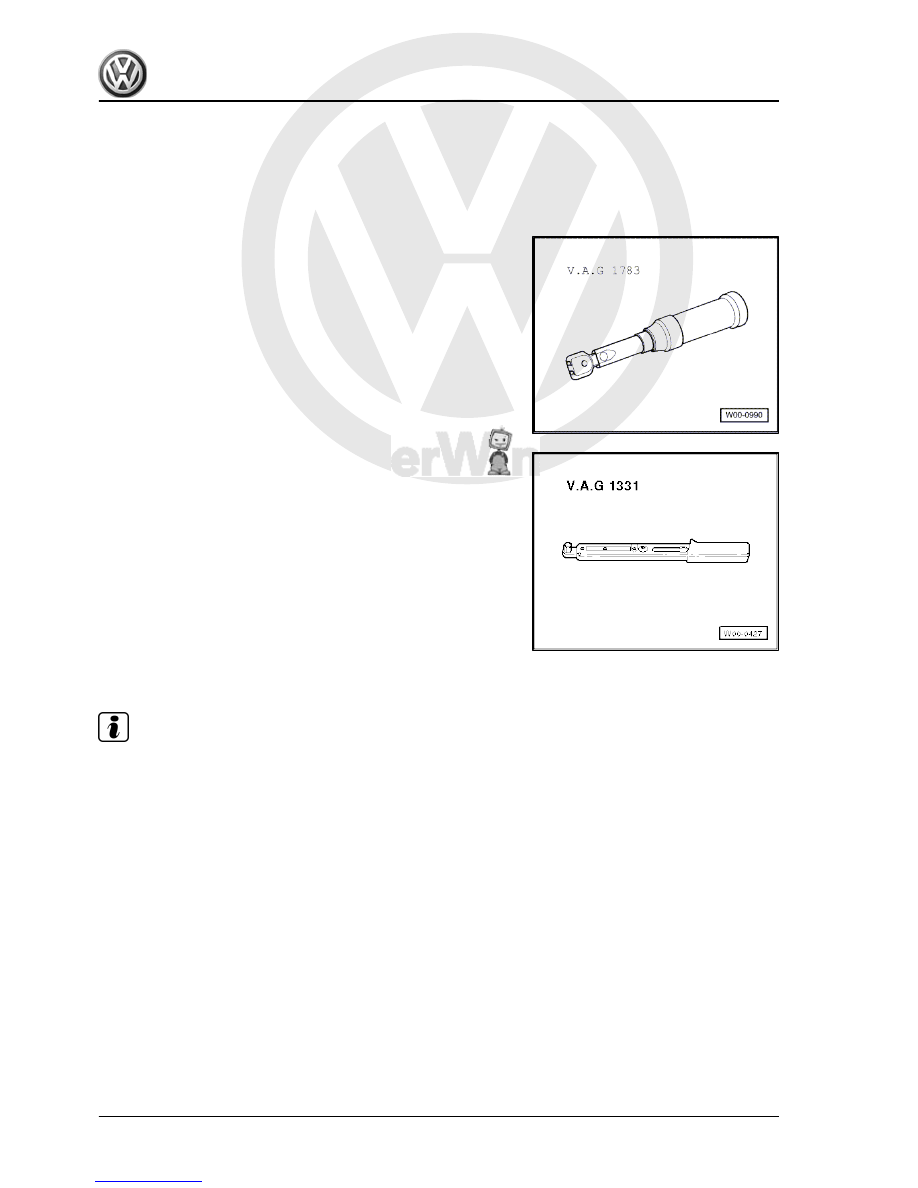

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

♦ Torque wrench -V.A.G 1331-

3.2

Repairing bumper cover

Note

If bumper cover is damaged, determine whether plastic can be

repaired before renewing bumper.

Description under: ⇒ General Information; Body Repairs, General

Body Repairs ; Plastic repair procedures

236
