No regular maintenance is usually required for the panorama

sliding roof.
If cleaning is necessary because it is heavily soiled, use cleaner

-D 009 401 04- .

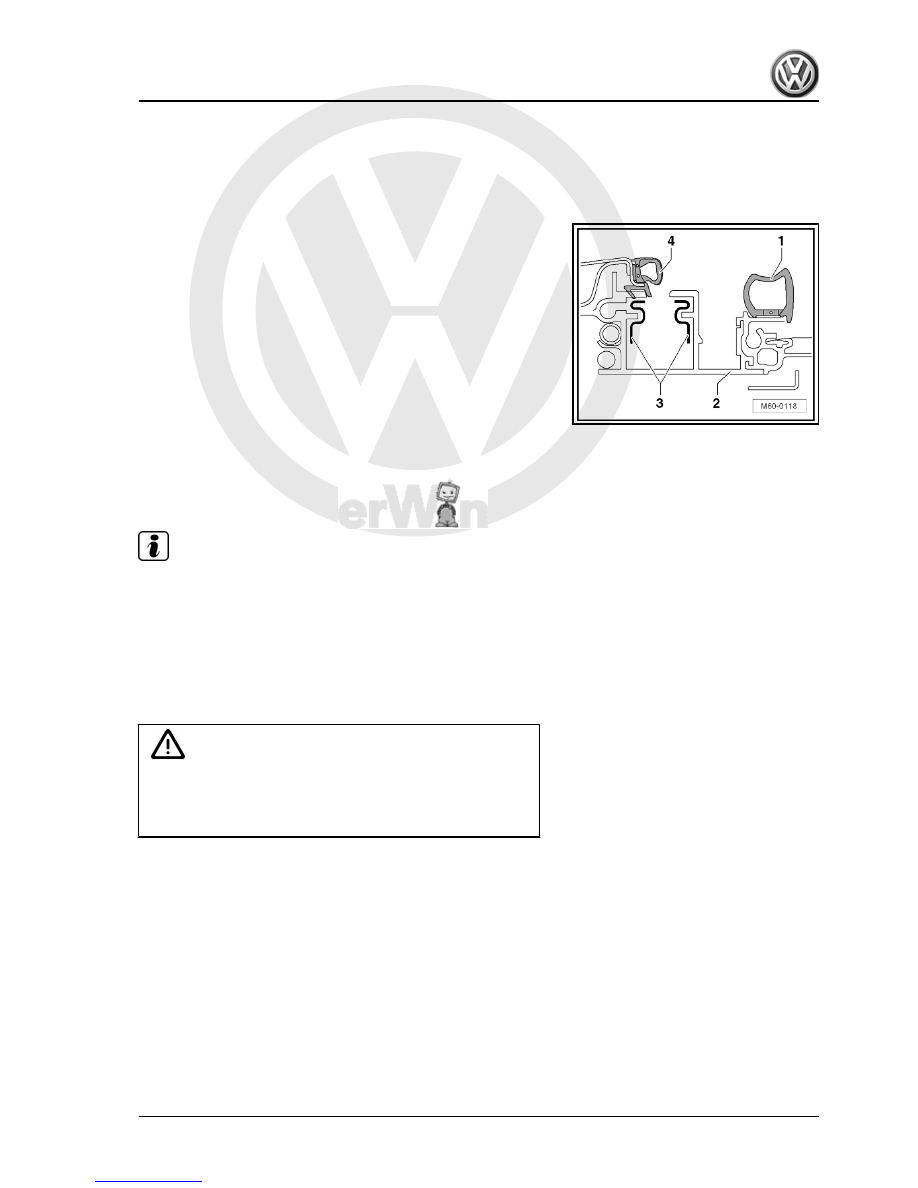

Guide areas -3- of guide rail -2- must then be greased again with

lithium grease -G 052 147 A2- .
Inner seal -1- and outer seal -4- have a solid film lubricant coating

and must not be greased.
Do not grease cables and motor plate.

2.24

Operating without current

2.24.1

Glass panel

Note

In the event of power failure, front glass panel near to sliding

sunroof motor can be moved by hand using a commercially

available hexagon key.

Front glass panel must only be moved until its front edge is

flush with front edge of rear glass panel. If glass panel is

moved further backwards, mechanism cables may hook off.

– Removing lights and front operating unit ⇒  Electrical system;

Rep. Gr.  96 ; Lights and switches in roof trim .

WARNING

On some models, a ribbon cable is bonded to the light cut-out

web.  For  the  emergency  key,  carefully  detach  ribbon  cable

from web and push it to side. Ensure that ribbon cable is not

damaged when doing this.

2. Panorama sliding sunroof (Arvin-Meritor)

217



in web -1-.

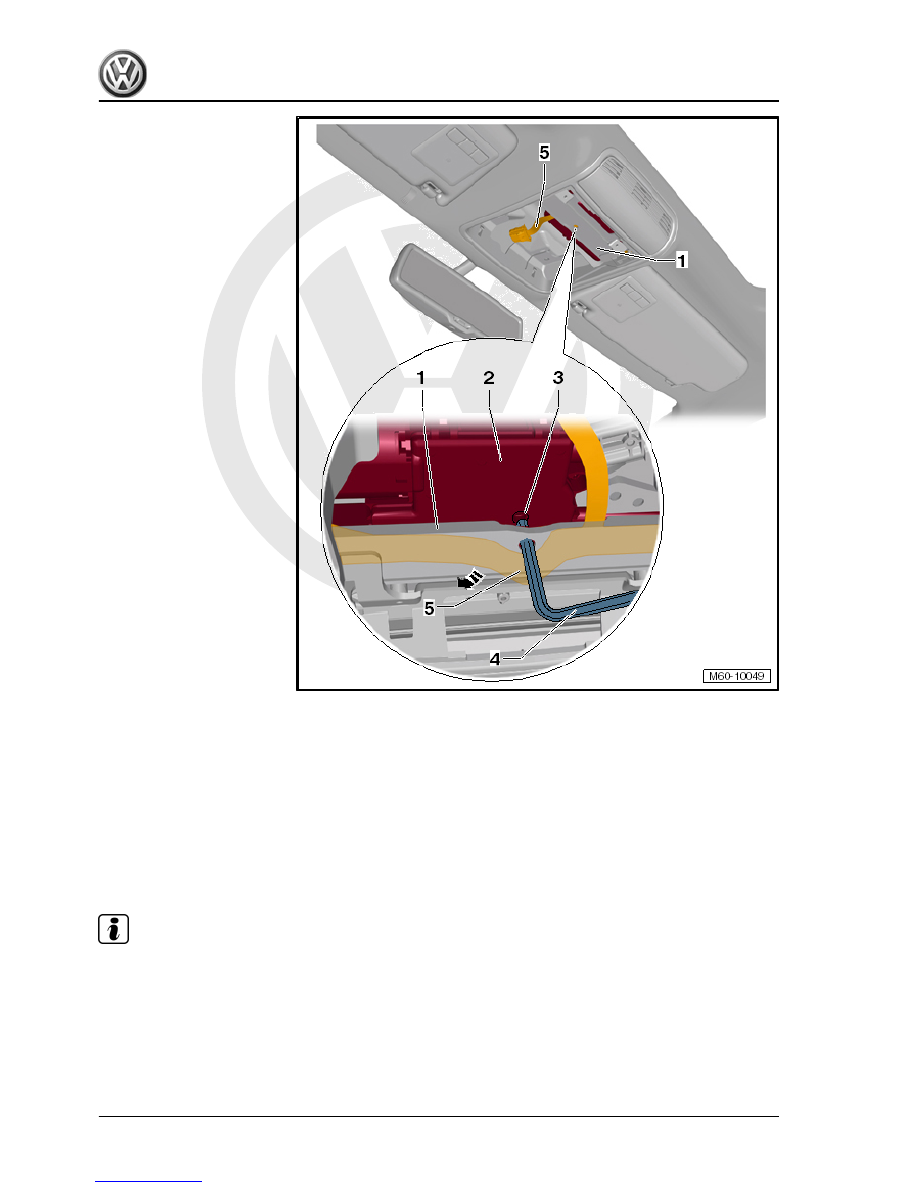

– Guide hexagon key -4- through hole in web -1- into bolt -3- of

sliding sunroof motor -2-.

When turning by hand, greater force is necessary since motor is

not uncoupled from drive.

2.24.2

Sun blind

Note

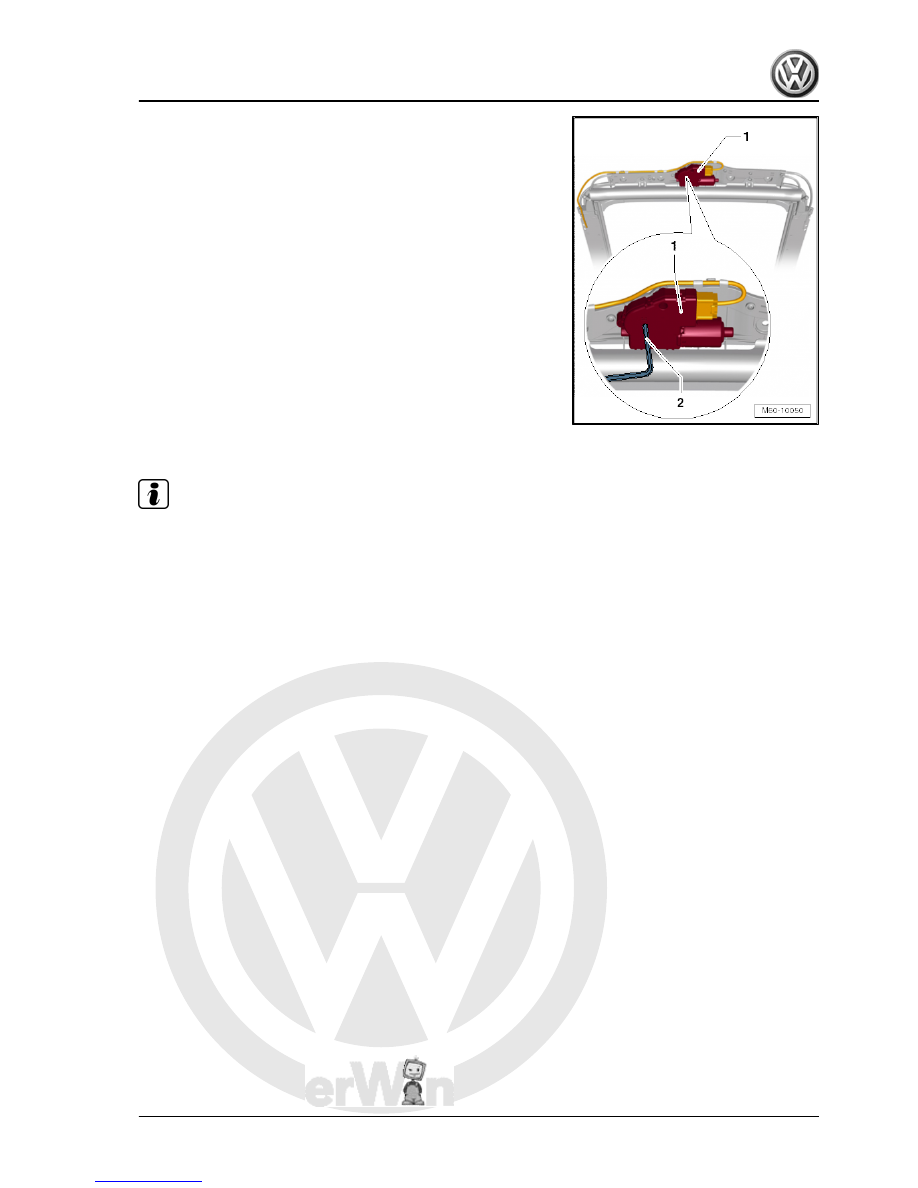

In the event of power failure, sun blind can be moved by hand on

sun blind motor using a commercially available hexagon key.

– Remove moulded headliner ⇒  General body repairs, interior;

Rep. Gr.  70 ; Roof trims .

218



2.25

Cleaning water drain hoses

Note

For cleaning, a locally manufactured tool made from a speedom‐

eter inner cable, approx. 2300 mm long is recommended.

2. Panorama sliding sunroof (Arvin-Meritor)

219



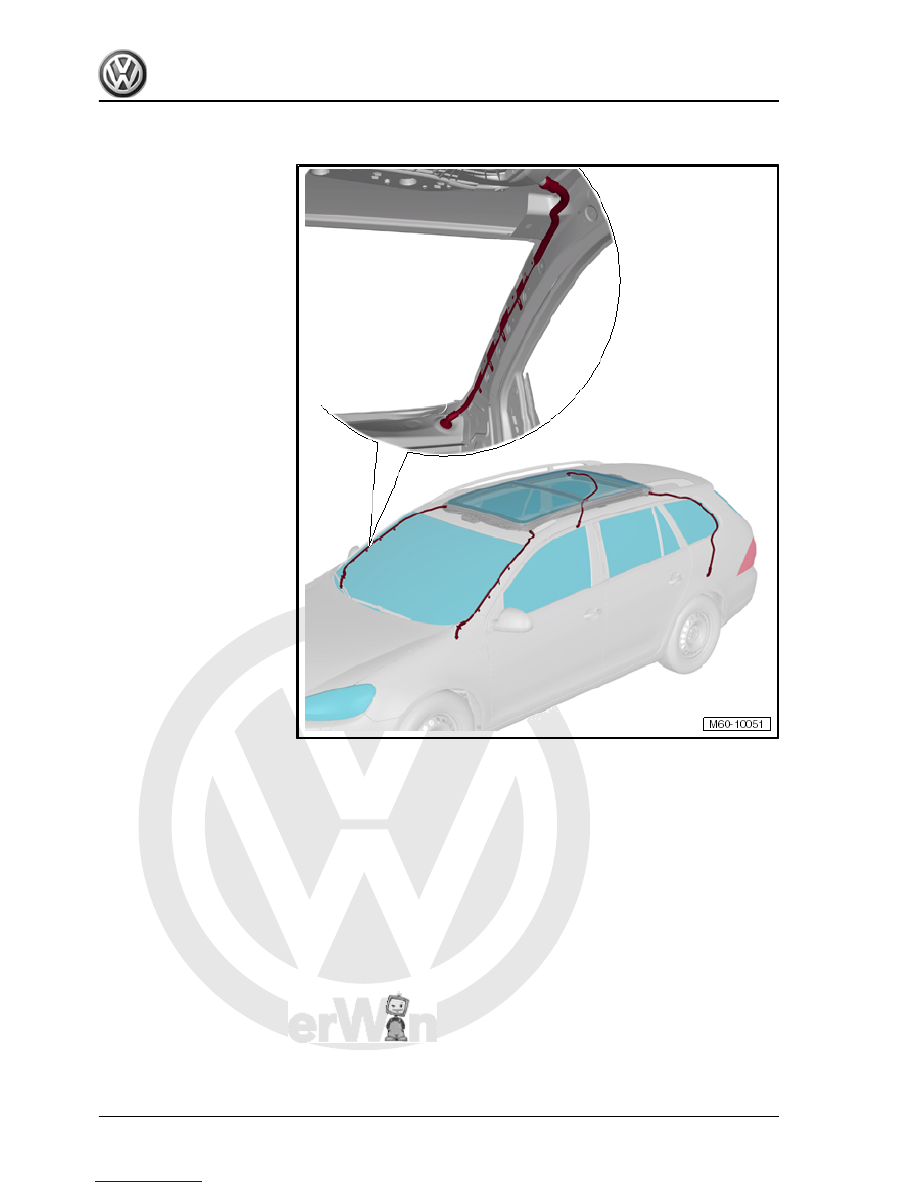

The front water drain hoses run through the A-pillars and end at

the bulkhead cross member. Cleaning is done from panorama

sliding roof cut-out.

220
