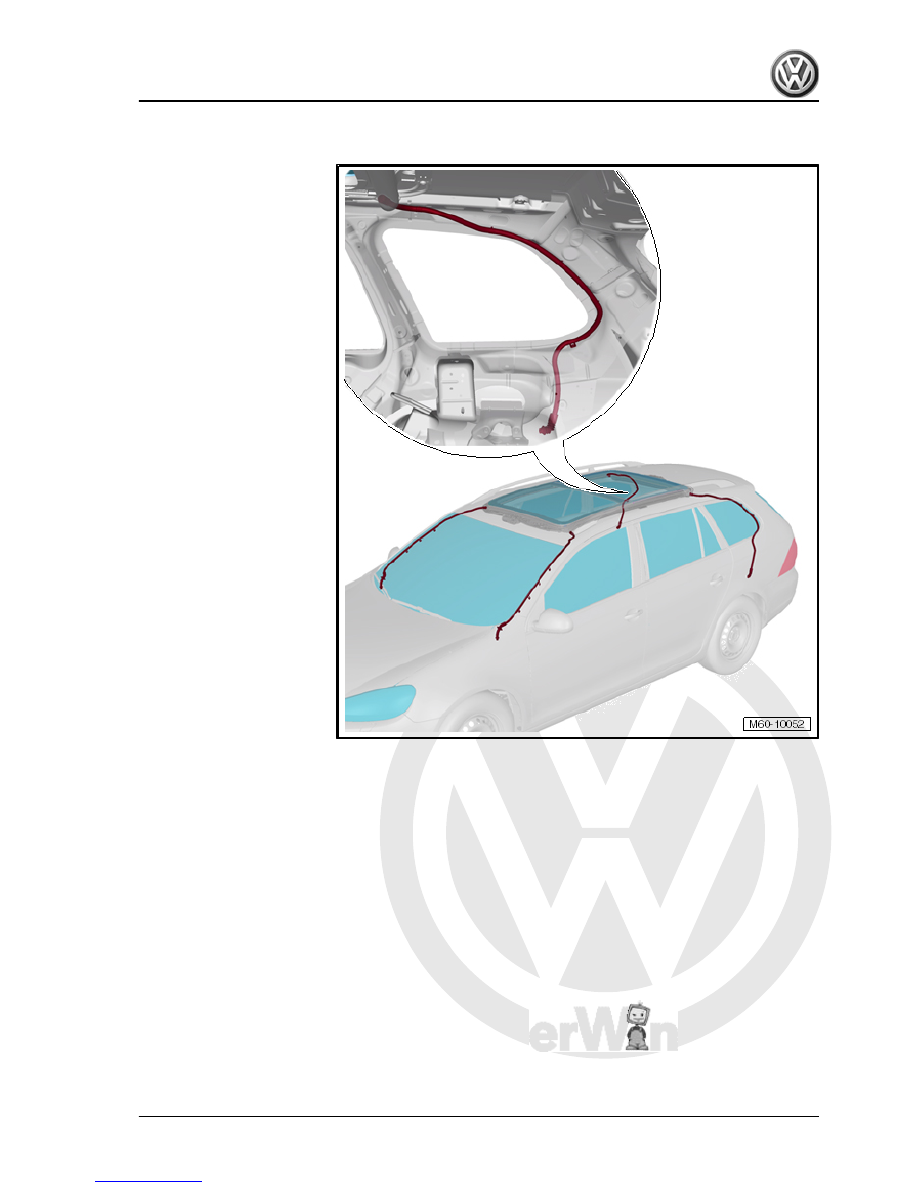

The rear water drain hoses run through the D-pillars and end in

the rear wheel housings. Cleaning is done from the wheel hous‐

ing. The wheel housing liner must be removed.

2. Panorama sliding sunroof (Arvin-Meritor)

221



Front bumper

1.1

Tools

Special tools and workshop equipment required

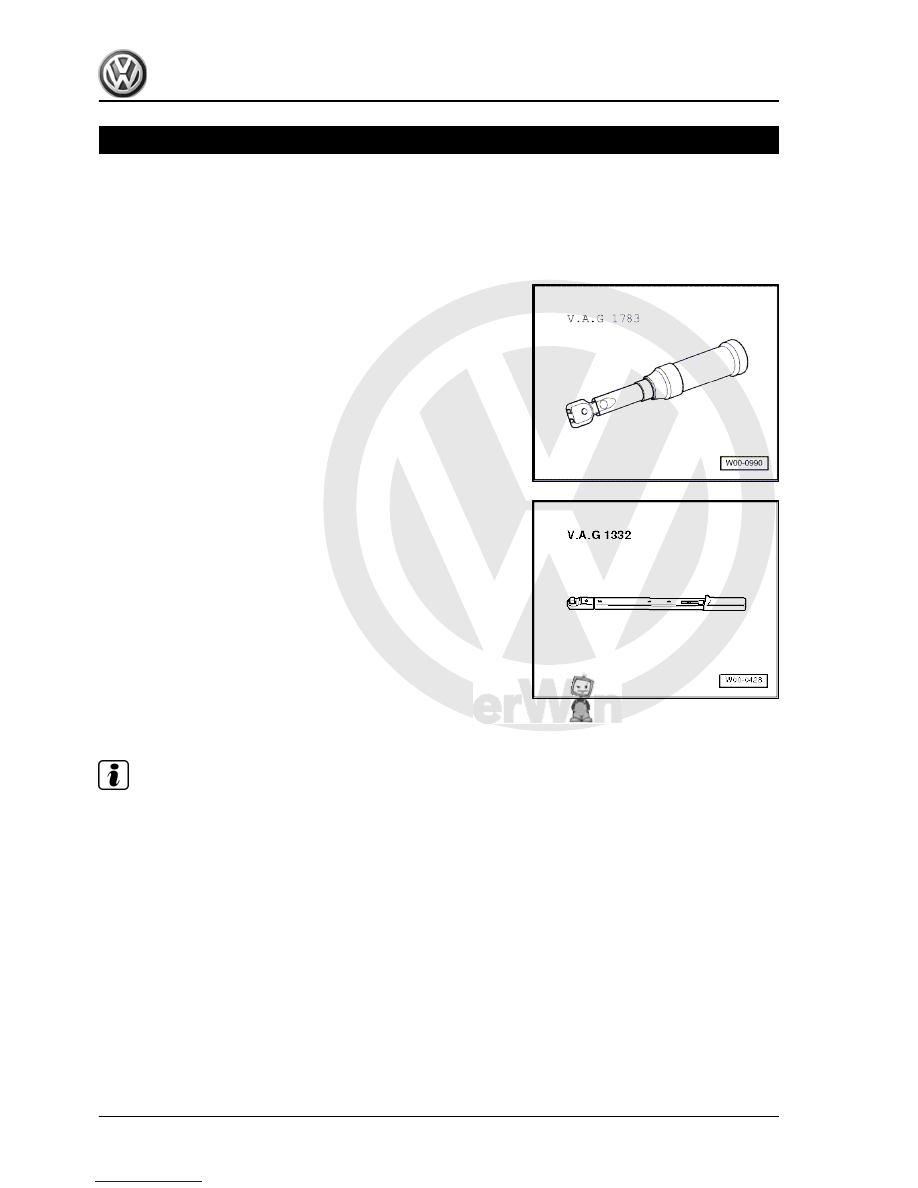

♦ Torque wrench -V.A.G 1783-

♦ Torque wrench -V.A.G 1332-

1.2

Repairing bumper cover

Note

If bumper cover is damaged, determine whether plastic can be

repaired before renewing bumper.

Description under: ⇒ General Information; Body Repairs, General

Body Repairs ; Plastic repair procedures

222

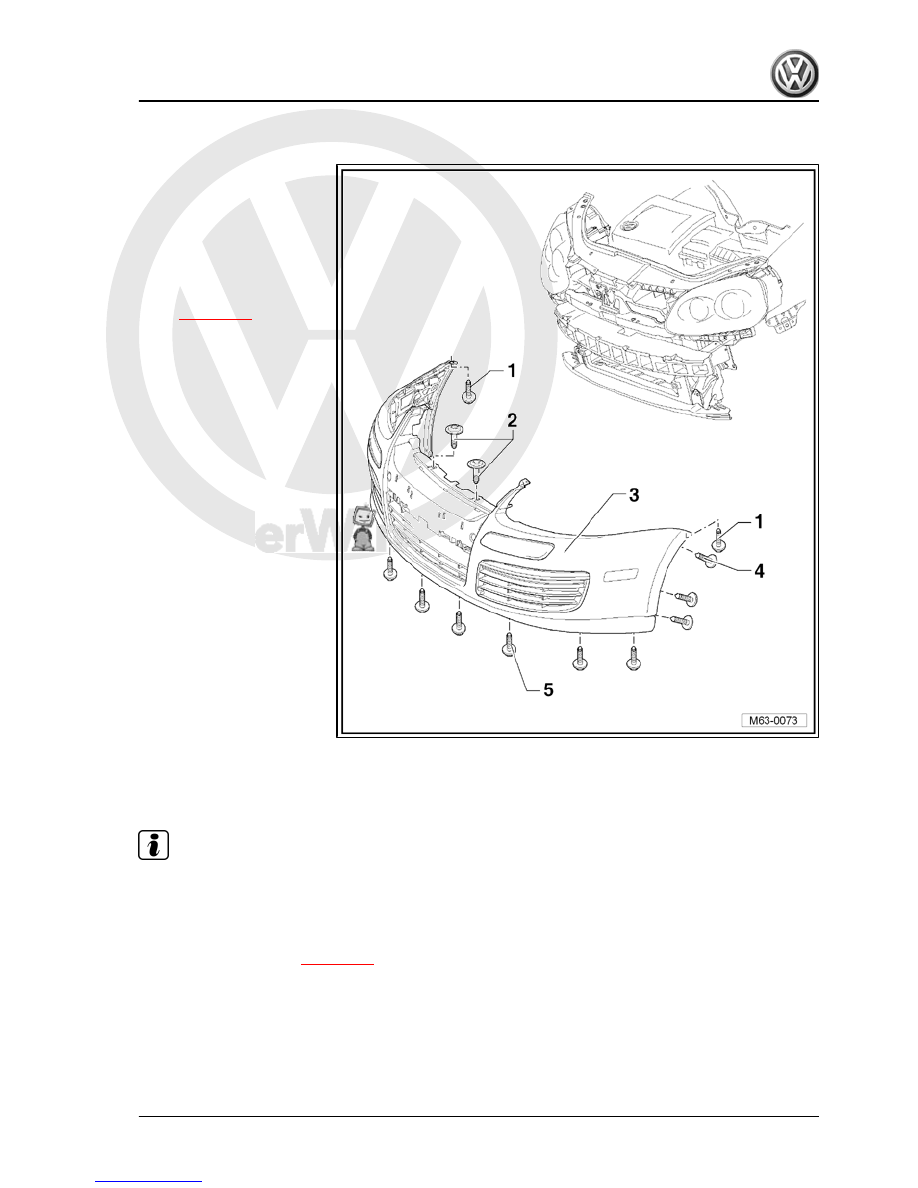

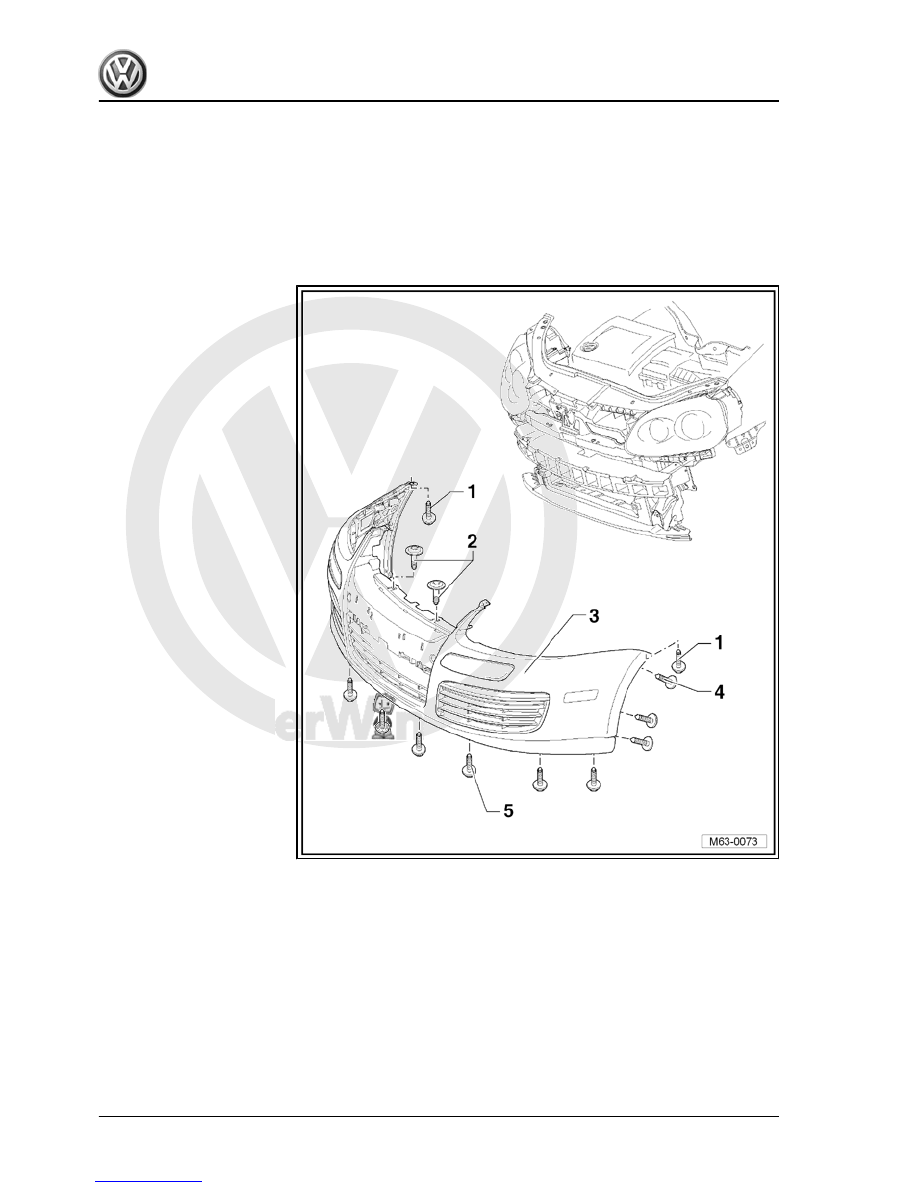

1 - Bolt

❑ 2 Nm

2 - Bolt

❑ 3.5 Nm

3 - Cover

❑ Material PP/EPDM
❑ Removing and installing

⇒ page 223

4 - Bolt

❑ Qty. 3 on each side
❑ 2 Nm

5 - Bolt

❑ Qty. 8
❑ 2 Nm

1.4

Removing and installing front bumper

cover

Note

The removal and installation procedures may have to be modified

slightly depending on variations in equipment.

1.4.1

Removing

– Remove radiator grille

⇒ page 337

 .

– Vehicles with headlight washer system, pull washer jet with

cover cap up out of bumper cover onto stop and unclip cover

cap.

– Remove bolts -2-.
– Remove bolts -5- from below.

1. Front bumper

223



Further dismantling requires the assistance of a second mechan‐

ic.
– Pull bumper cover -3- parallel out of guide profiles with help of

a second mechanic.

– Disconnect all electrical connections from electrical compo‐

nents and separate hoses.

1.4.2

Installing

Install in reverse order of removal.
Ensure parallelism and gap dimensions are maintained ⇒ Body

Repairs; Rep. Gr.  00 ; Body dimensions .

224
