Volkswagen Golf Variant / Jetta. Manual - part 54





2. Panorama sliding sunroof (Arvin-Meritor)

213

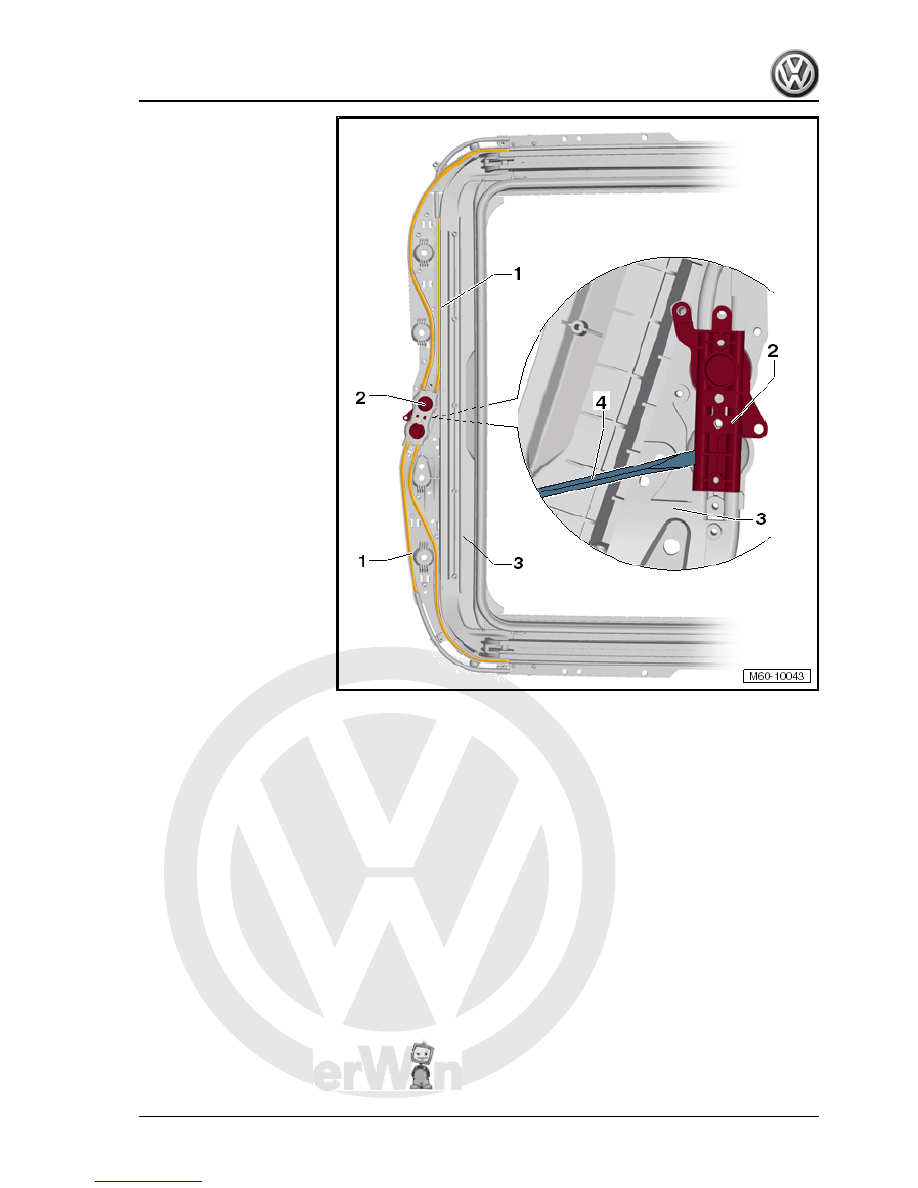

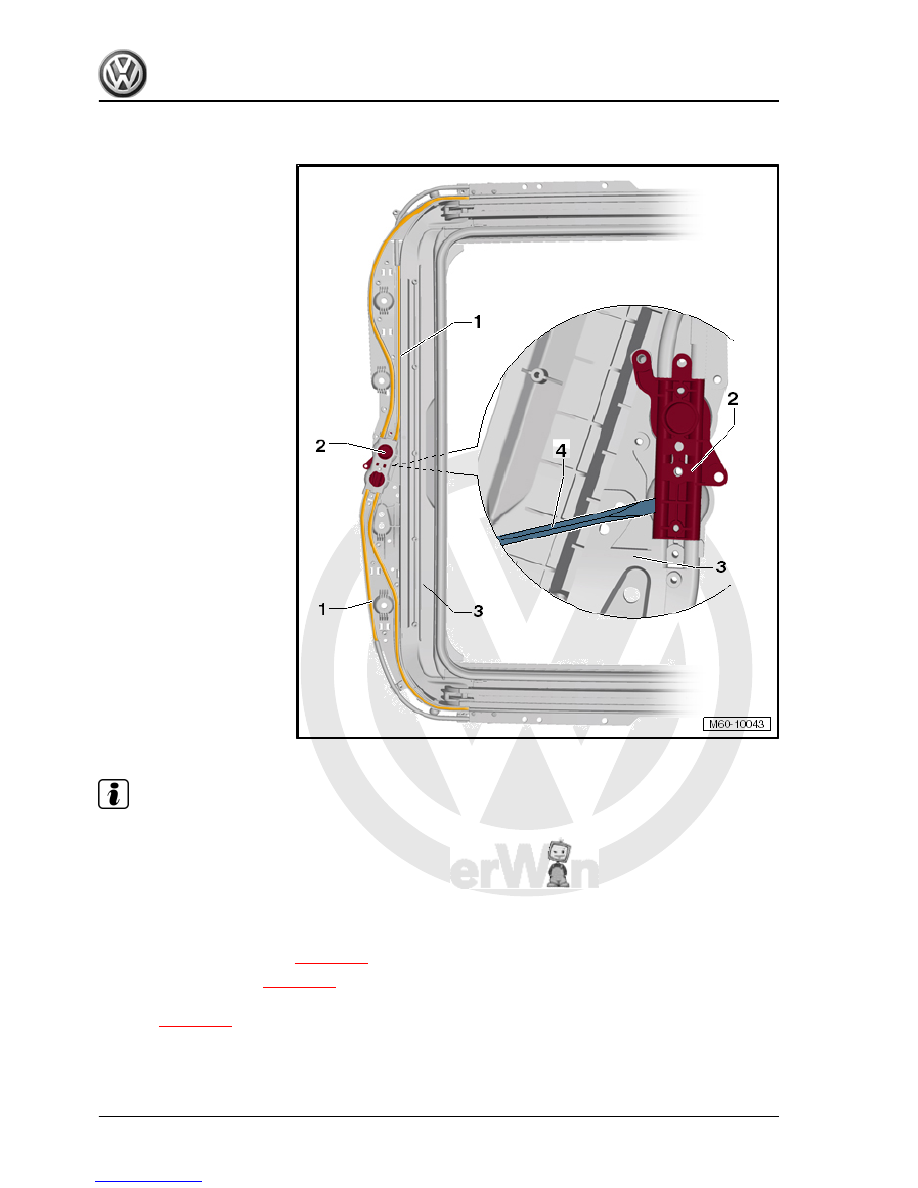

Note

Insert motor plate -2- into front part -3-.

Do not grease motor plate and cables -1-.

Further installation is performed in reverse order of removal.
Specified torques
Bolt for cable cover: 2 Nm
– Install sliding sunroof motor

⇒ page 196

 .

– Install assembly frame

⇒ page 208

 .

– On completion of work, establish reference points of sun blind

motor

⇒ page 183

 .

214



nism and front glass panel cable

2.22.1

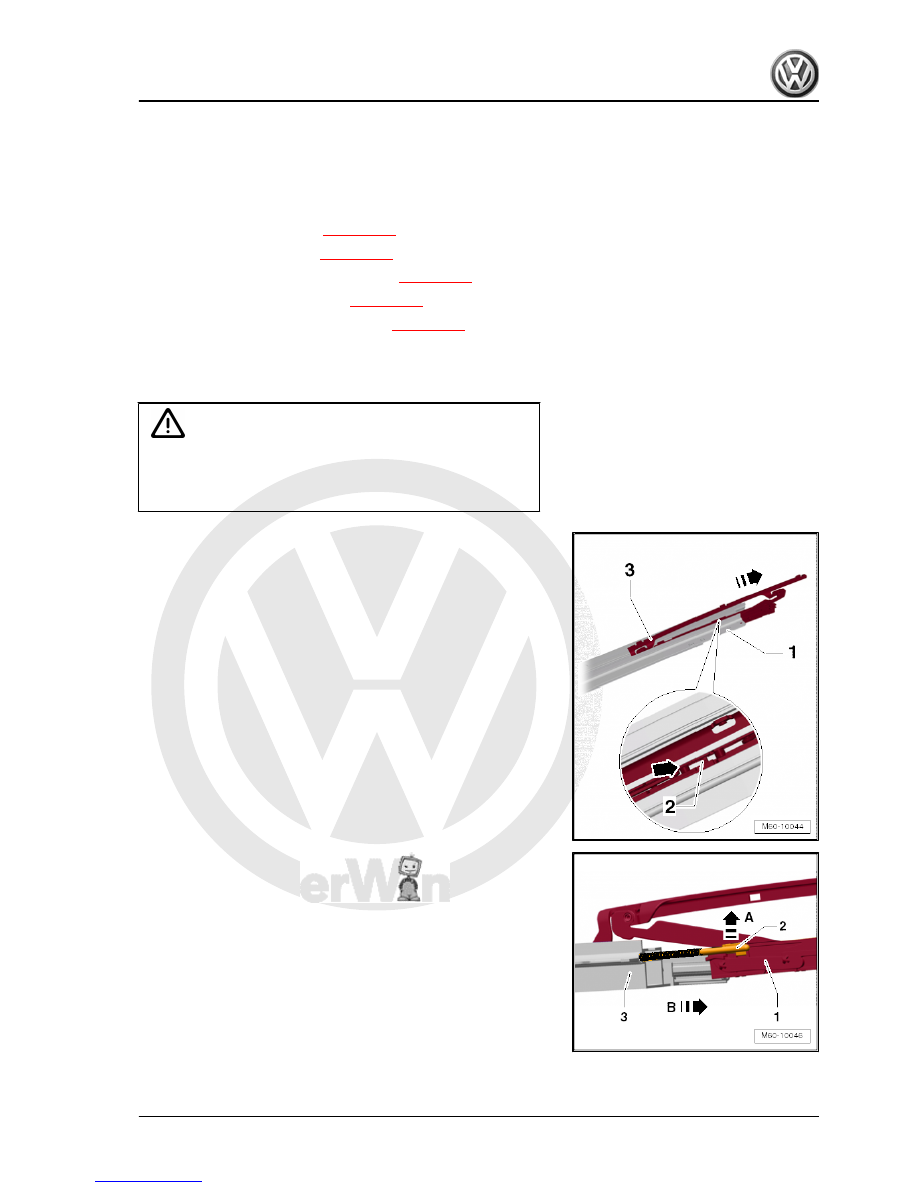

Removing

– Remove front glass panel

⇒ page 185

 .

– Remove rear glass panel

⇒ page 187

 .

– Remove assembly frame from vehicle

⇒ page 207

 .

– Remove sliding sunroof motor

⇒ page 196

 .

– Remove rear part of assembly frame

⇒ page 209

 .

After removal of rear part, tilting mechanism can be slid out back‐

wards.
To do this, proceed as follows:

Caution

Observe position of cables before removal to avoid any error

when installing.
Do not pull or push tilting mechanism guide plate.

– Push glass panel tilting mechanism only on areas -arrow- of

slider -2-, not on guide plate -3-.

Tilting mechanism tilts when moving.
– Using appropriate screwdriver, push tilting mechanism back‐

wards to end of guide rail -1-.

– Unhook cable -2- out of slider -1- -arrow A-.
– Pull slider -1- out of guide rail -3- -arrow B-.
– Pull cable -2- out of guide rail -3-.

2. Panorama sliding sunroof (Arvin-Meritor)

215



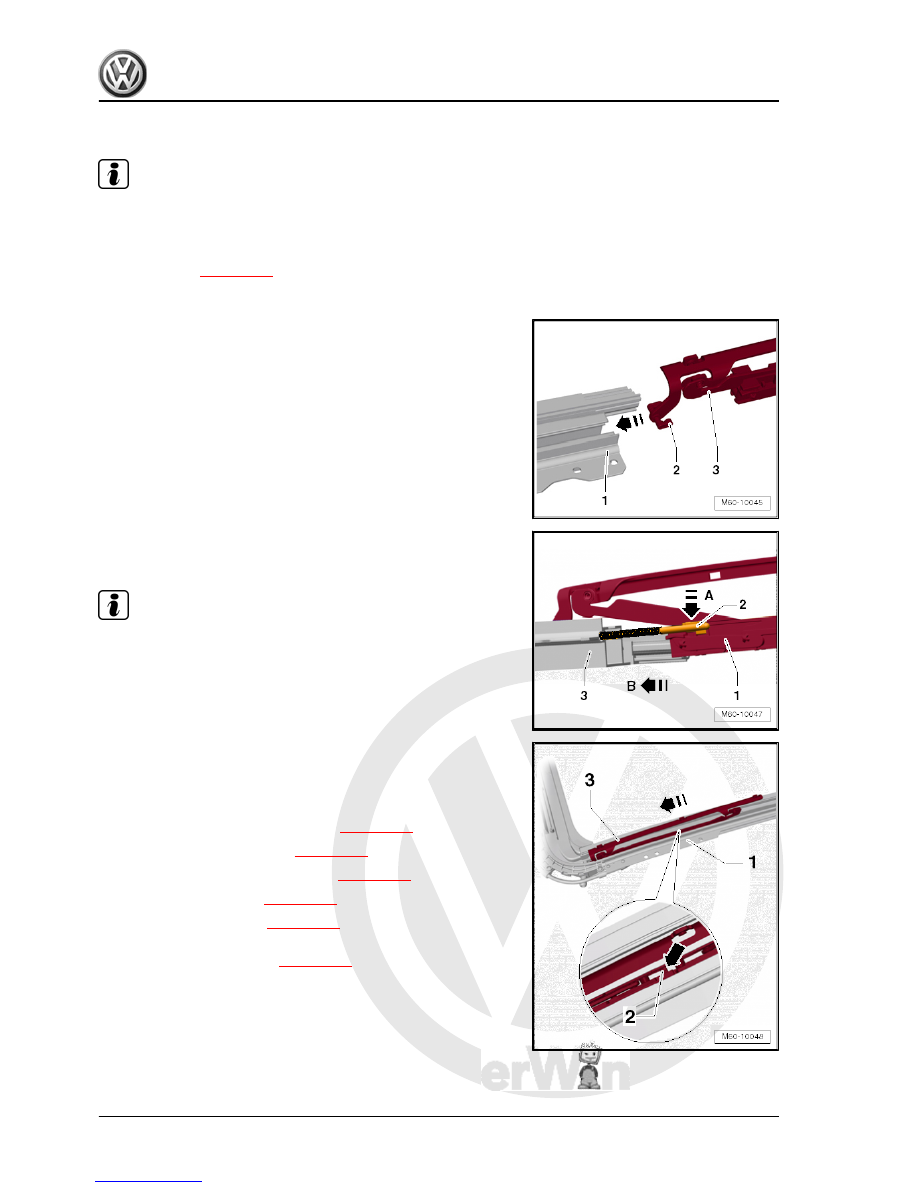

Note

Guide rails must only be cleaned if heavily soiled.

To do this, use cleaner -D 009 401 04- .

Then grease guide rail in guide areas with lithium grease -G

052 147 A2-

⇒ page 217

 .

Do not grease cables.

– Slide tilting mechanism -3- into guide rail -1-.
– Ensure that slides -2- face towards rear when slid into guide

rail -1-.

– Push cable -2- into guide rail -3- -arrow B-.
– Hook cable -2- into slider -1- -arrow A-.

Note

Do not pull or push tilting mechanism guide plate.

– Push tilting mechanism on -arrow- areas of slider -2- not on

guide plate -3-.

– Pull tilting mechanism fully forwards on both sides until it is

completely lowered.

– Install rear part on assembly frame

⇒ page 211

 .

– Install sliding sunroof motor

⇒ page 198

 .

– Install assembly frame into vehicle

⇒ page 208

 .

– Install rear glass panel

⇒ page 187

 .

– Install front glass panel

⇒ page 185

 .

– On completion of work, establish reference points of all drives

for panorama sliding roof

⇒ page 183

 .

216
