Volkswagen Golf Variant / Jetta. Manual - part 52

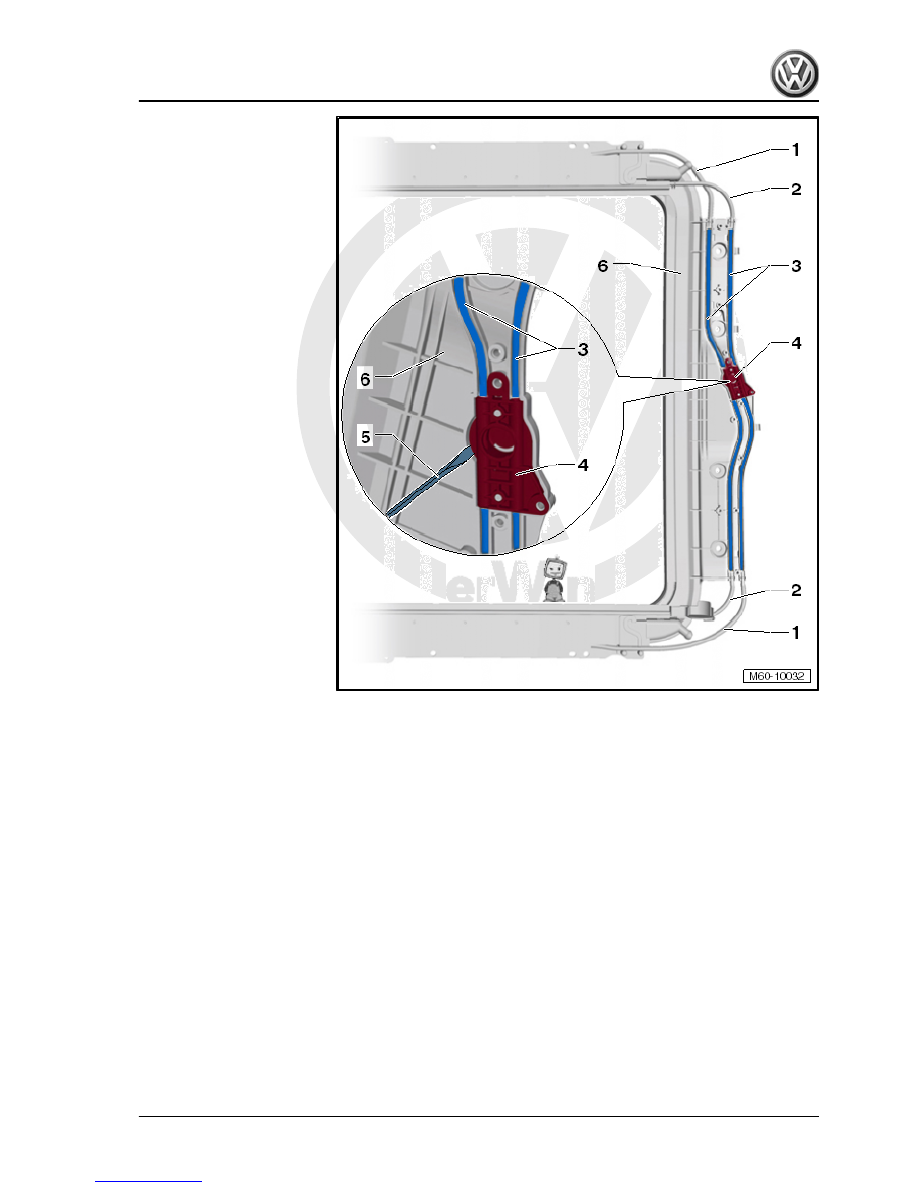

– Using an appropriate screwdriver -5-, lever motor plate -5- out

of rear part -6-.

2. Panorama sliding sunroof (Arvin-Meritor)

205

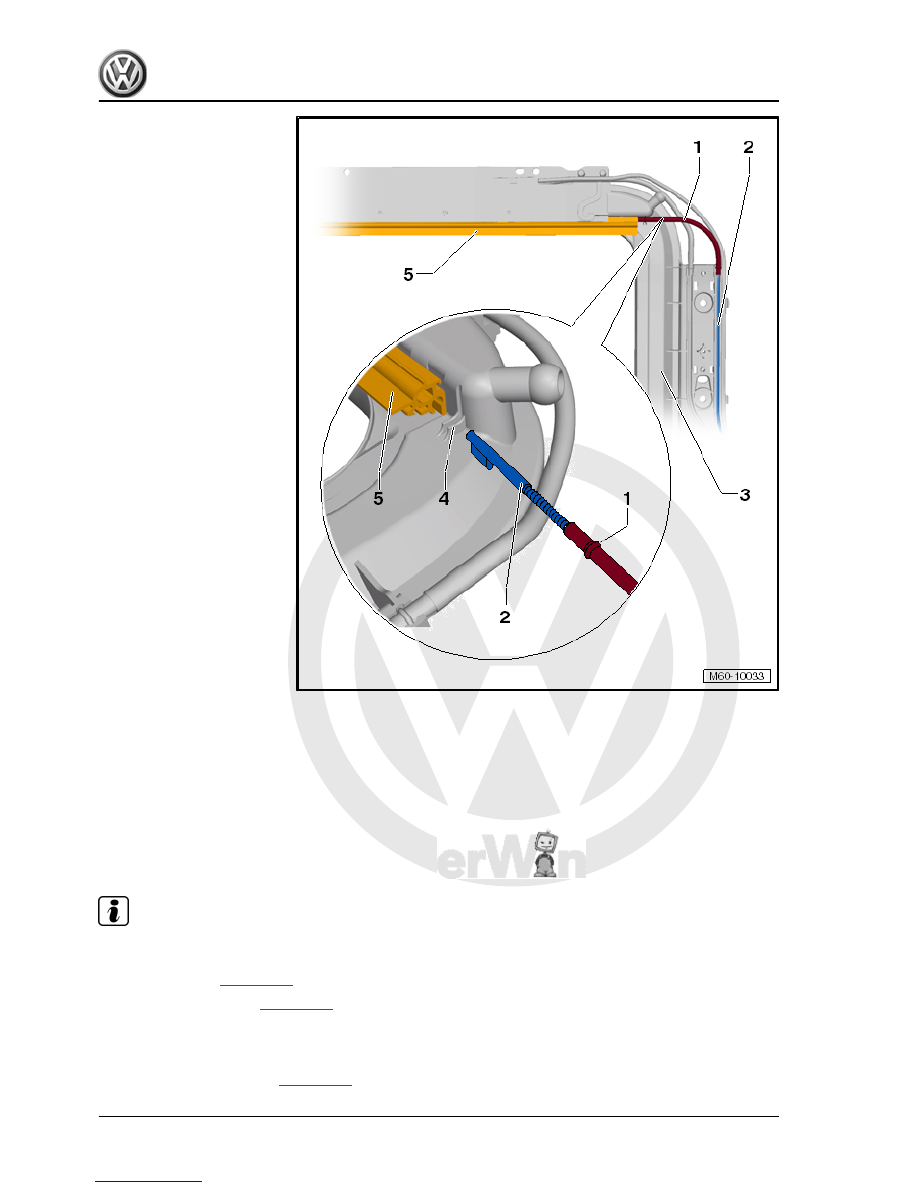

– Remove cable -2- from sun blind rail -5-.

2.18.2

Installing

Install in reverse order of removal.
Specified torques
Bolt for cable cover: 2 Nm

Note

Do not grease motor plate and sun blind cables.

– Install sun blind

⇒ page 201

 .

– Install sun blind motor

⇒ page 199

 .

– Install moulded headliner ⇒  General body repairs, interior;

Rep. Gr.  70 ; Roof trims .

– On completion of work, establish reference points of all drives

for panorama sliding roof

⇒ page 183

 .

206



frame

2.19.1

Removing

Note

A second mechanic is required for removing and installing as‐

sembly frame.

– Remove moulded headliner ⇒  General body repairs, interior;

Rep. Gr.  70 ; Roof trims .

Vehicles with net partition:
– Remove net partition mounting ⇒  General body repairs, inte‐

rior; Rep. Gr.  68 ; Net partition .

All vehicles:
– Remove grab handle mounting (roof) ⇒  General body repairs,

interior; Rep. Gr.  68 ; Grab handles .

2. Panorama sliding sunroof (Arvin-Meritor)

207

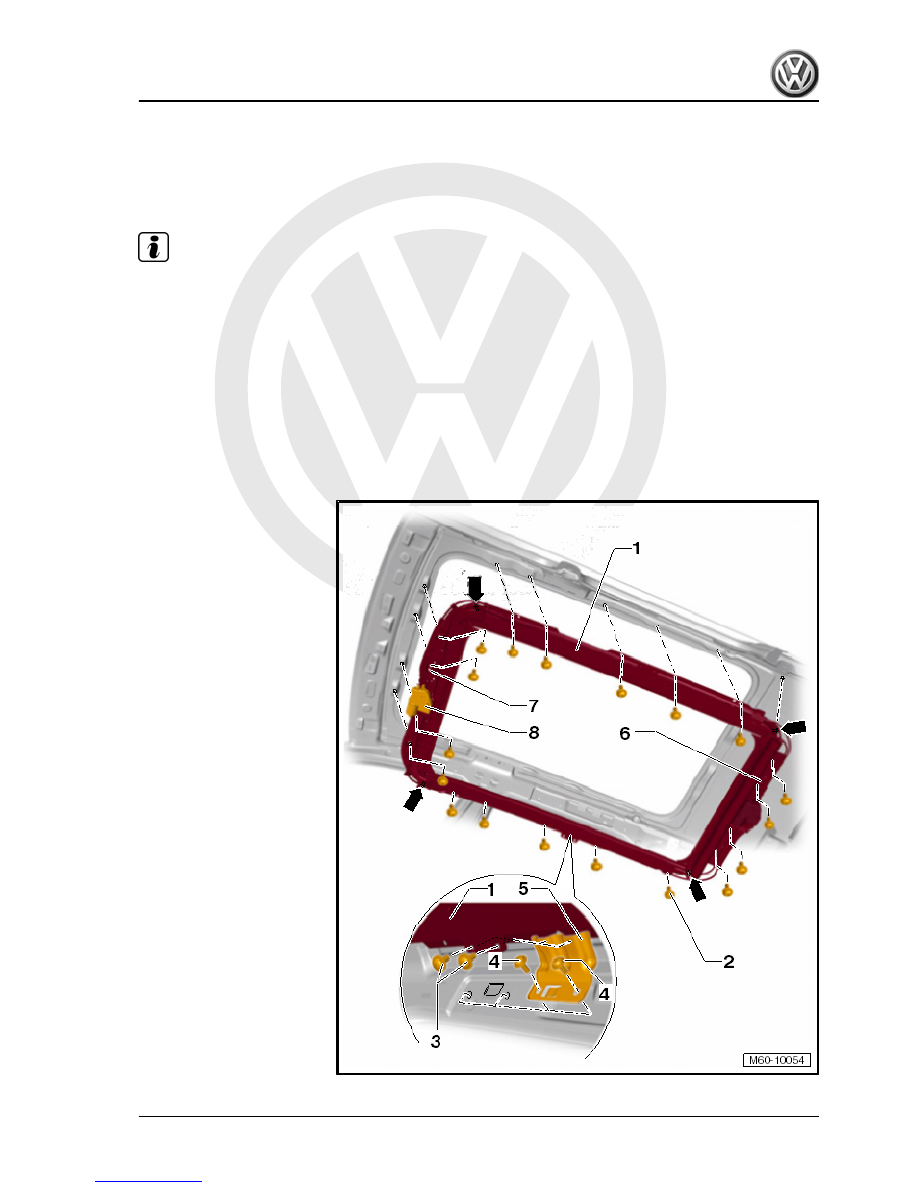

– Disconnect connector to wiring harness of sliding sunroof mo‐

tor -8-.

– Unscrew bolts -3- and -4- of on console -5- and remove left

and right consoles.

– Unscrew bolts -2- on assembly frame -1- and remove assem‐

bly frame from vehicle with the help of at least one mechanic.

2.19.2

Installing

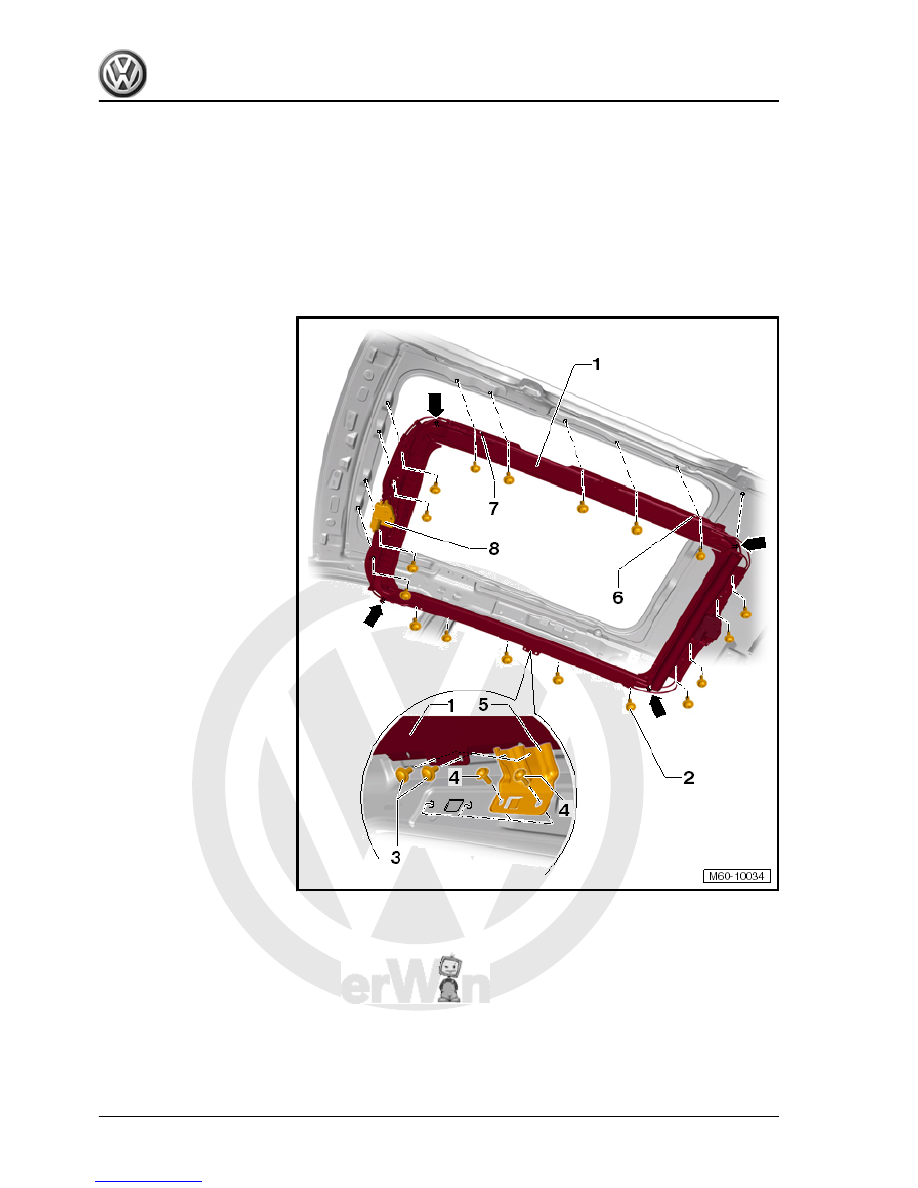

– Lift assembly frame -1- into vehicle with the help of at least a

second mechanic.

– When screwing, align assembly frame using 2 cylindrical pins

(shank end of drill ∅ 10mm) in elongated holes -6- and -7-.

– Screw bolts -2- in, but do not tighten.
– Tighten bolts -3-, specified torque: 8 Nm.
– Tighten bolts -4-, specified torque: 4.5 Nm.

208
