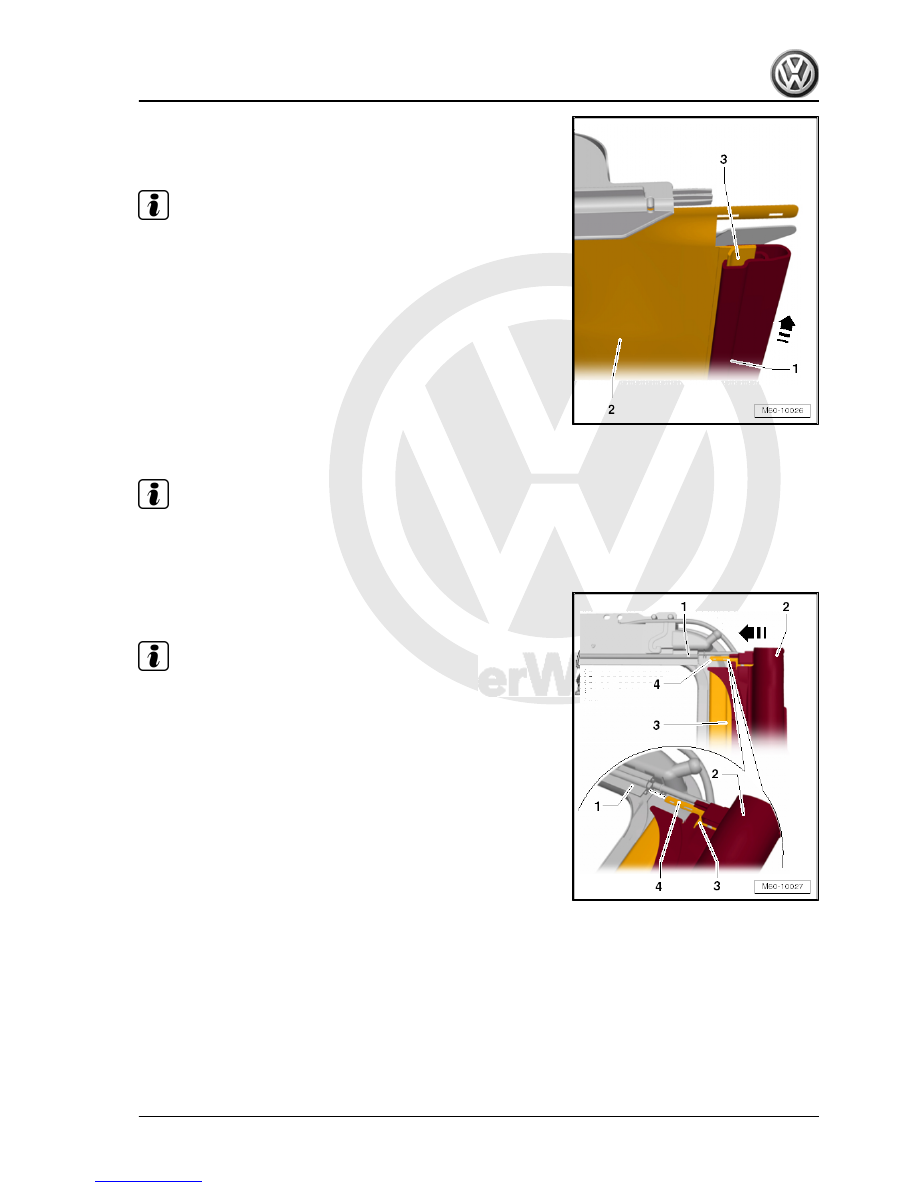

– Carefully slide sun blind cross strut -1- on beading -3-.

Note

Ensure that sun blind fabric -2- is not damaged.

2.16.2

Installing

Note

Sun blind cross strut must be fitted before installation of sun

blind housing.

Do not grease sun blind slide and sun blind cables.

– Push sun blind housing -2- with sun blind steel strap -4- in

direction of -arrow- into sun blind rail -1-.

Note

Ensure that sun blind fabric -3- is not damaged.

2. Panorama sliding sunroof (Arvin-Meritor)

201



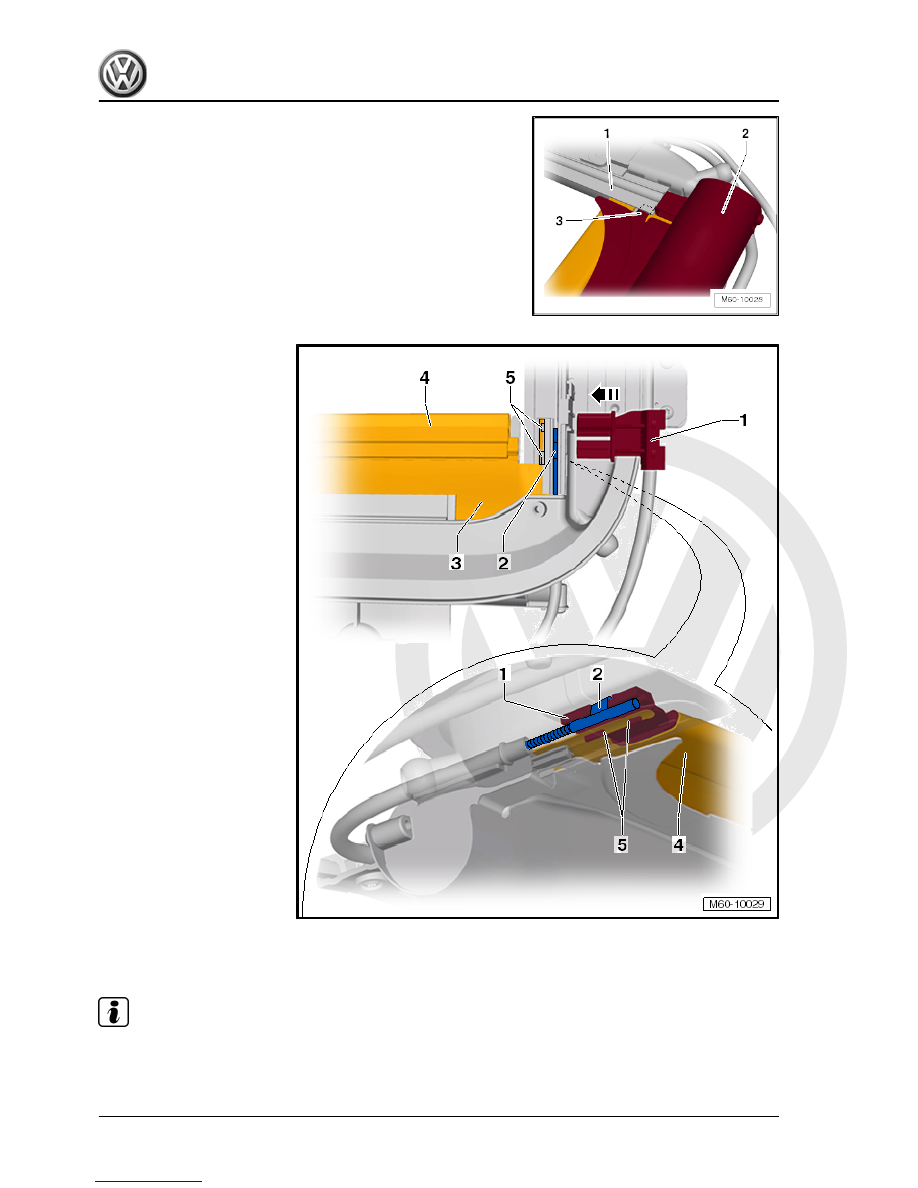

– Push sun blind slide -1- in direction of -arrow- into sun blind

cross strut -4-.

Note

Ensure that sun blind slide -1- engages into cut-out of sun blind steel strip -5- and into follower of sun blind

cable -2-.

Further installation is performed in reverse order of removal.

202



After installation, sun blind synchronism and ease of operation

should be checked. To do this, move by hand sun blind drive on

motor using a commercially available hexagon key and avoid

wrinkling and deformation of sun blind fabric.

– Install moulded headliner ⇒  General body repairs, interior;

Rep. Gr.  70 ; Roof trims .

– Install rear glass panel

⇒ page 187

 .

– On completion of work, establish reference points of sun blind

motor

⇒ page 183

 .

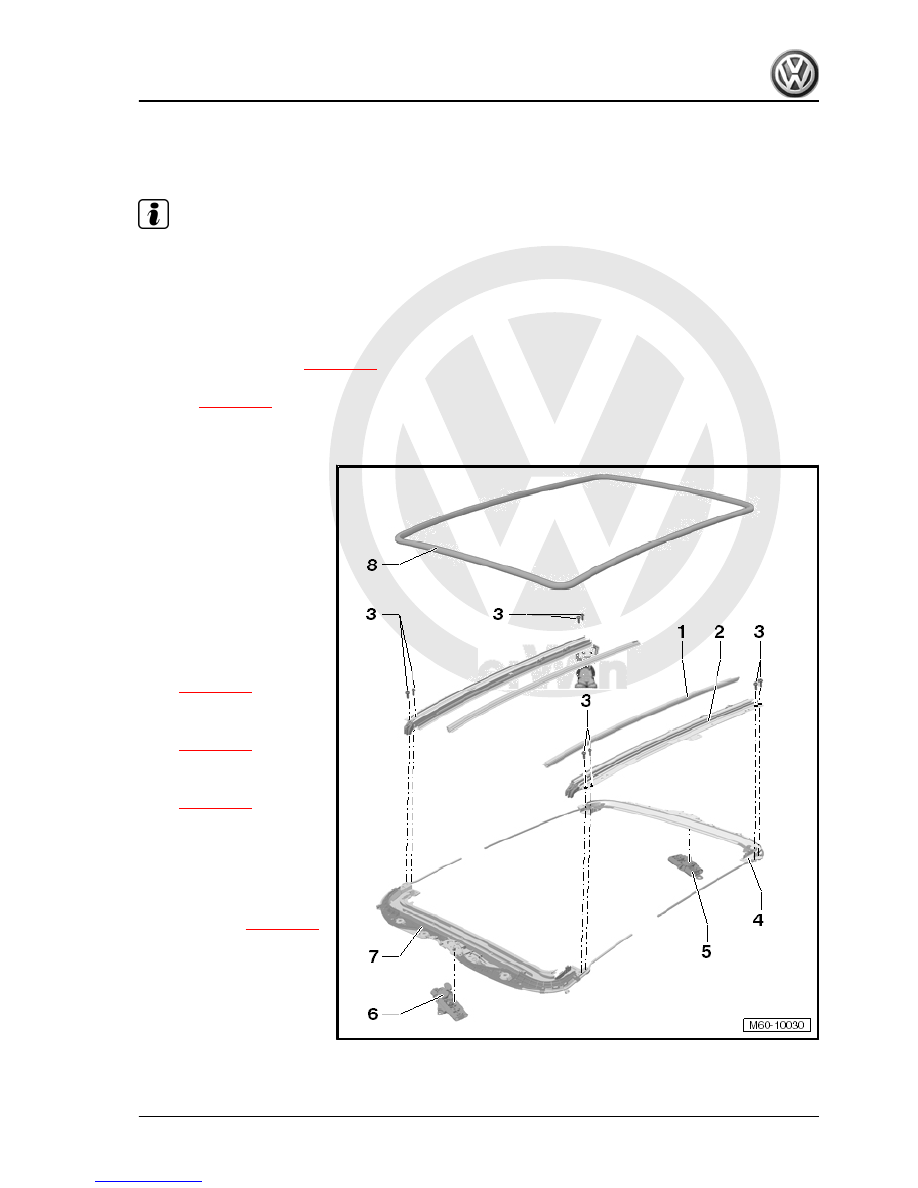

2.17

Assembly overview - assembly frame

1 - Sun blind rail

❑ Cannot be renewed in‐

dividually

2 - Guide rail

❑ Cannot be renewed in‐

dividually

❑ Attached to front part

3 - Bolt

❑ 2 Nm

4 - Rear part

❑ Removing and installing

⇒ page 209

5 - Rear motor plate

❑ Removing and installing

⇒ page 204

6 - Front motor plate

❑ Removing and installing

⇒ page 215

7 - Front part

❑ Cannot be renewed in‐

dividually

❑ Attached to guide rail

8 - Inner seal

❑ Renewing

⇒ page 193

2. Panorama sliding sunroof (Arvin-Meritor)

203



sun blind cable

2.18.1

Removing

– Remove moulded headliner ⇒  General body repairs, interior;

Rep. Gr.  70 ; Roof trims .

– Remove sun blind motor

⇒ page 198

 .

– Remove sun blind

⇒ page 199

 .

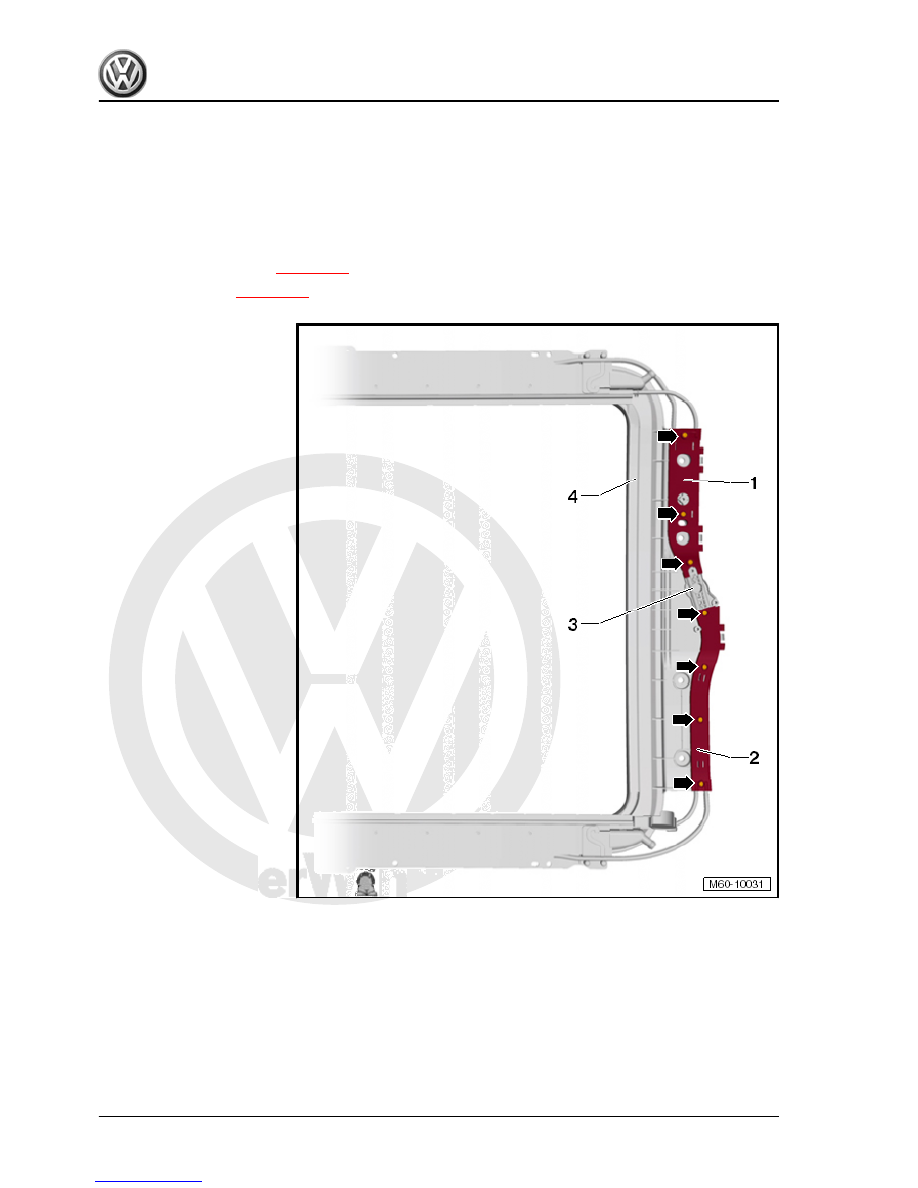

– Remove bolts -arrows- of cable covers -1- and -2-.
– Remove cable covers -1- and -2-.
Motor plate -3- remains on rear part -4-.
