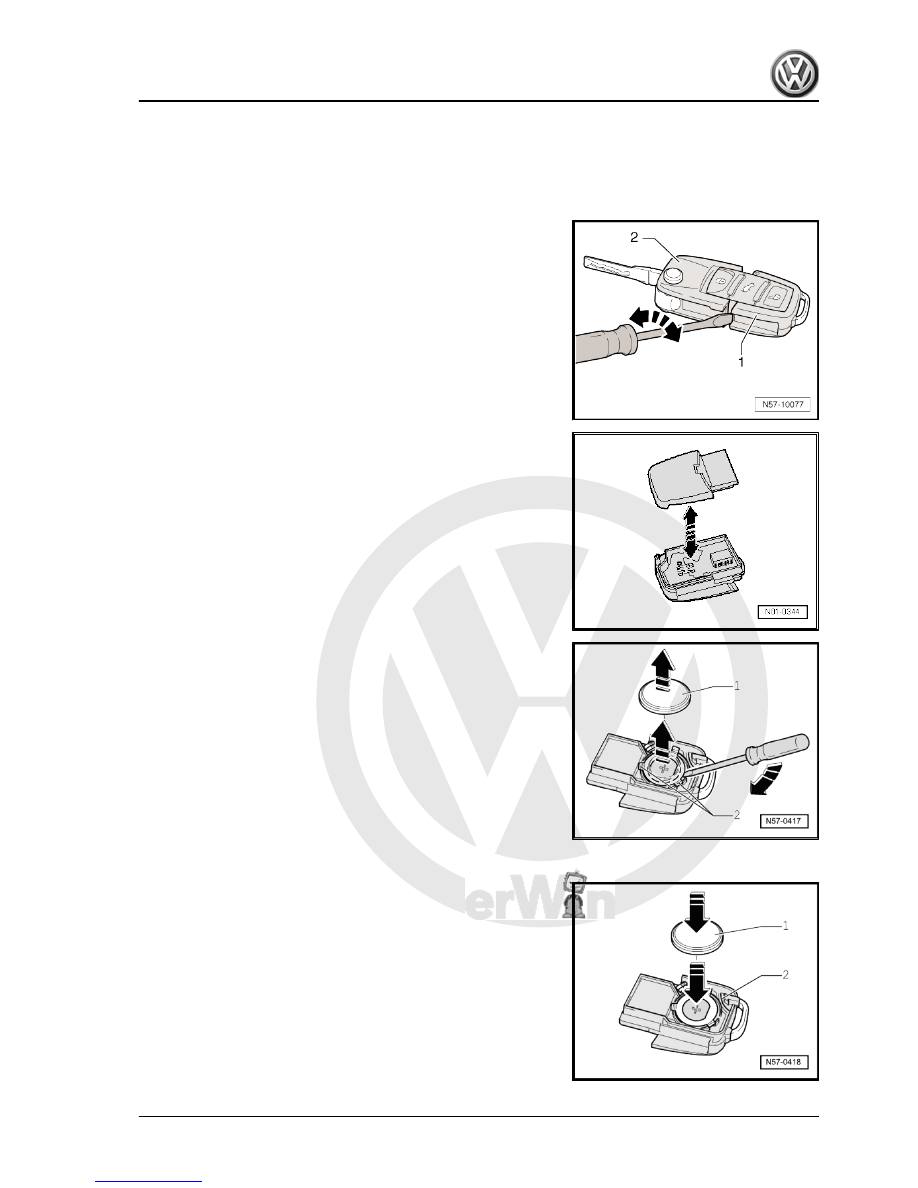

ing key with remote control

2.4.1

Removing

– Insert a screwdriver in slot between transmitter unit -1- and key

-2-.

– Twist screwdriver in -direction of arrow- to separate transmitter

unit from key.

– Press upper part of transmitter unit and lower part of transmit‐

ter unit apart in direction of -arrow-.

– Unclip battery -1- from retainers -2- with a screwdriver in di‐

rection of -arrow-.

2.4.2

Installing

Note polarity and correct position when installing battery.
– Place battery -1- in transmitter unit -2- with positive terminal

downwards (positive terminal is marked on housing).

– Engage battery in lower part of transmitter unit by pressing

down lightly.

– Fit upper part of transmitter unit and lower part of transmitter

unit together (do not damage seal).

– Then clip transmitter unit to key.

2. Central locking

101



Rear door (saloon)

1.1

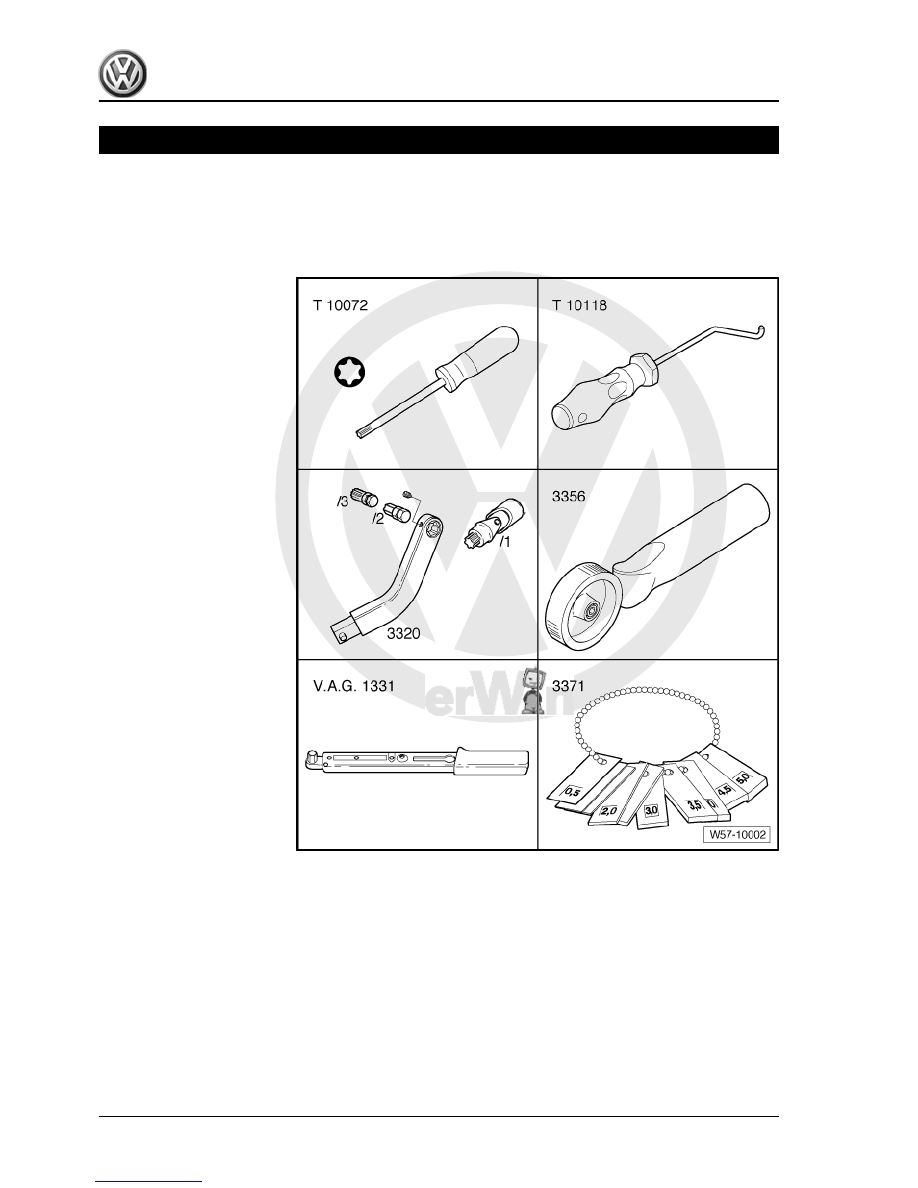

Tools

Special tools and workshop

equipment required
♦ Socket -T10072-
♦ Assembly tool -T10118-
♦ Door alignment tool -3320-

with -3320/1- , -3320/2- and

-3320/3-

♦ Roller for door insulation

foil -3356-

♦ Torque wrench -V.A.G

1331-

♦ Setting gauge -3371-

102

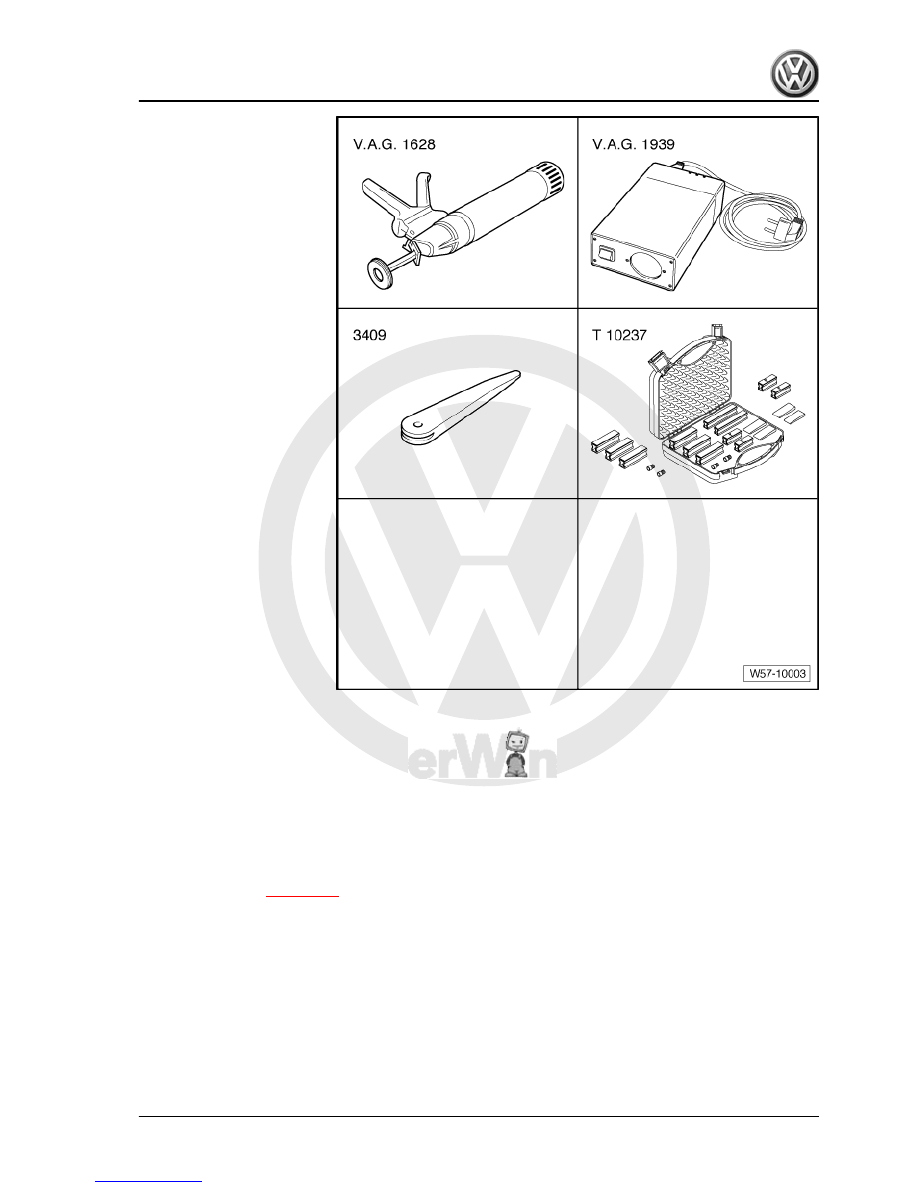

♦ Removal wedge -3409-
♦ Assembly tool set -T10237-

1.2

Materials

♦ 1K or 2K glass adhesive

-DH 009 100 01-

4)



5)

 or -DA

004 600 A2-

4)

♦ Glass primer/paint primer

-D 009 200 02-

6)

♦ Cleaning solution

-D 009 401 04-

6)

♦ Primer applicator

-D 009 500 25-

6)

4) Observe curing period

⇒ page 121

5) Heat according to manufacturer's instructions, using cartridge heater -V.A.G

1939 A- .
6) Materials are stored in box -D 004 700- .

1.3

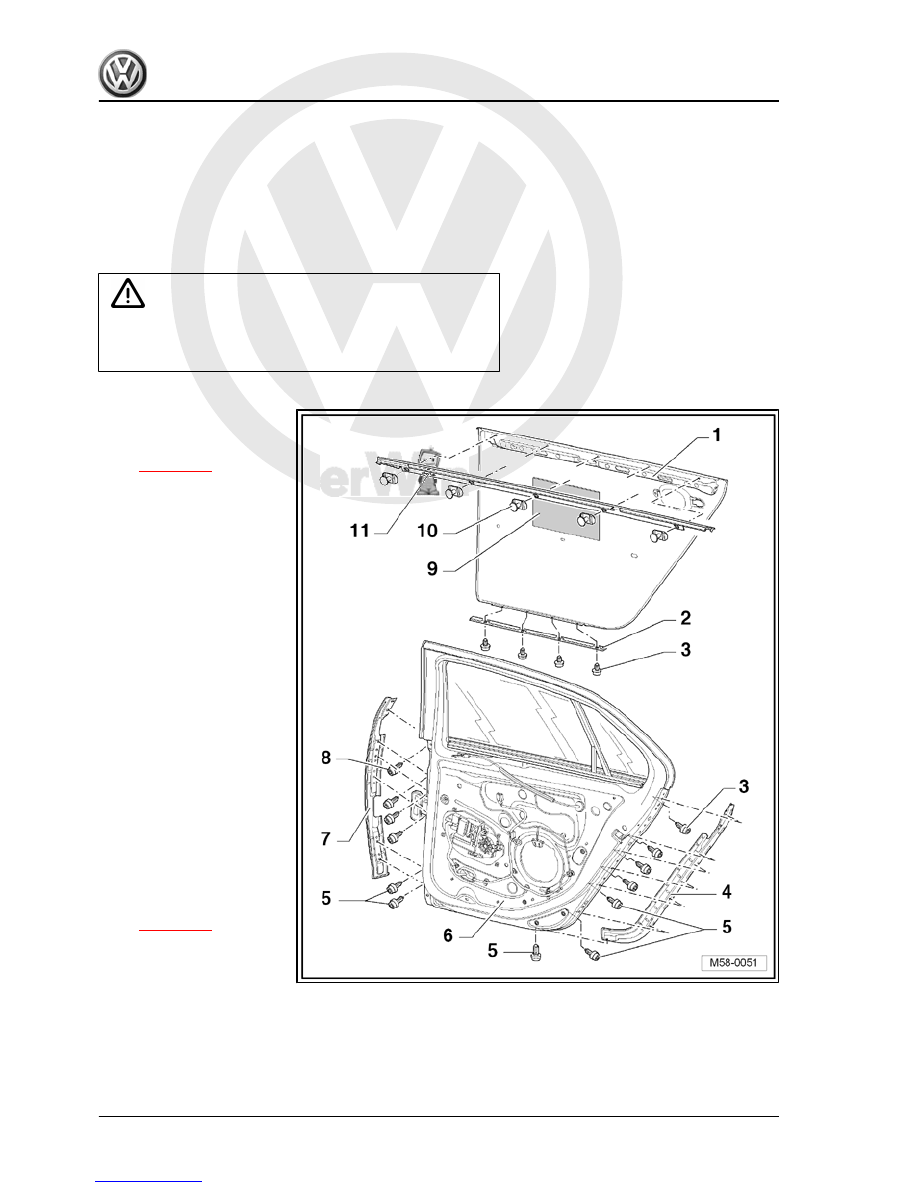

Assembly overview - door assembly

A new door concept has been introduced with Jetta 2005 ▸, Bora

2005 ▸.
The door consists of an inner part -6- and an outer panel -1-.
The parts are joined by the front -7- and rear -4- retaining rail.

1. Rear door (saloon)

103



known assembly carrier. Loudspeaker, window regulator, window

regulator motor, wiring, window channel, exterior mirror and door

lock are mounted on the inner part of the door.
The outer panel -1- of the door is additionally bolted to the lower

edge of the inner part. The window slot outer seal, insulation and

exterior door handle are mounted on the outer panel of the door.

Caution

Bolts of different types are used to secure outer panel of door.

If these are fitted in the wrong positions, the outer panel for the

door will be damaged.

1 - Door outer panel

❑ Removing and installing

door outer panel

⇒ page 112

2 - Edge protection

❑ Between door outer

panel and door inner

part.

3 - Bolt

❑ Feature: bolt with poin‐

ted end and thinner

washer.

❑ Qty. 4 on lower edge
❑ Qty. 1 in rear section of

door shoulder

❑ 10 Nm

4 - Rear retaining rail

❑ Adhesive: -DH 009 100

03-

5 - Bolt

❑ Feature: bolt with no

pointed end and thicker

washer.

❑ Qty. 11 on both retaining

rails

❑ 14 Nm

6 - Door inner part

❑ Assembly overview

⇒ page 123

7 - Front retaining rail

❑ Adhesive: -DH 009 100

03-

8 - Bolt

❑ Feature: bolt with pointed end and thicker washer
❑ Qty. 1 in area of front section of door shoulder
❑ 10 Nm

104
