1. Front door

97



2.1

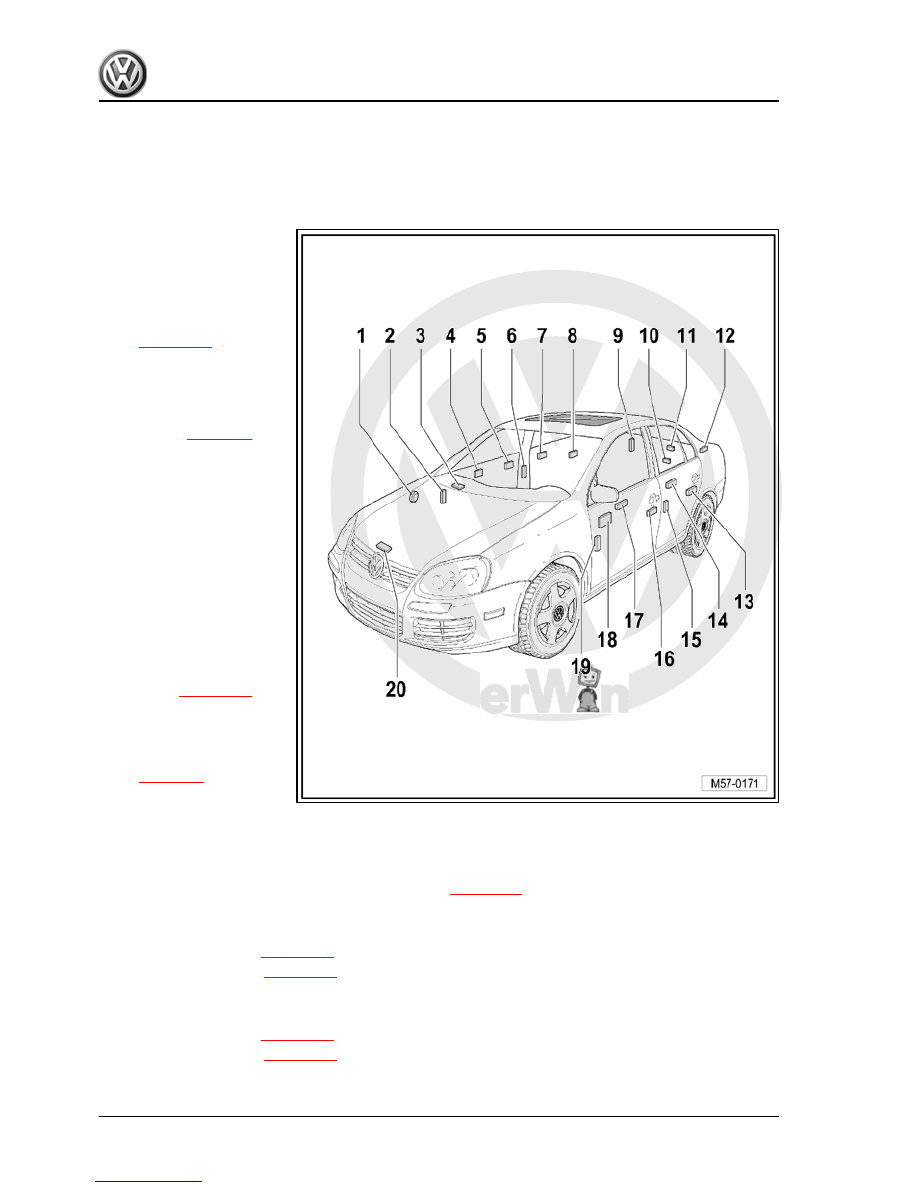

Fitting location overview - central locking components

1 - Anti-theft alarm horn

❑ Location: under rear

section of wheel hous‐

ing liner in front right

wheel housing (remov‐

ing rear section of wheel

housing liner

⇒ page 321

 )

2 - Coupling station

❑ Location: right A-pillar
❑ To disconnect connec‐

tor, release bellows at

A-pillar

⇒ page 68

3 - Convenience system cen‐

tral control unit -J393-

❑ Location: under dash

panel and behind glove

compartment on front

passenger side (remov‐

ing glove compartment

⇒  General body repairs,

interior; Rep. Gr.  68 ;

Compartments, covers

and trims )

4 - Door control unit -J387-

❑ Integrated in window

regulator motor (remov‐

ing window regulator

motor

⇒ page 285

 )

5 - Door lock

❑ Door lock is secured on

inner part of door (re‐

moving door lock

⇒ page 90

 )

❑ Electric central locking

is integrated into door

lock

6 - Coupling station

❑ Location: right B-pillar.
❑ To disconnect connector, release boot on B-pillar

⇒ page 107

 .

7 - Rear right door control unit -J389-

❑ Integrated in window regulator motor
❑ Removing (saloon)

⇒ page 302

❑ Removing (Variant)

⇒ page 317

8 - Door lock

❑ Electric central locking is integrated into door lock
❑ Removing (saloon)

⇒ page 129

❑ Removing (Variant)

⇒ page 155

98



⇒ page 54

❑ Removing (Variant)

⇒ page 58

10 - Lock for rear lid

❑ Location: bolted to rear lid
❑ Removing (saloon)

⇒ page 36

❑ Removing (Variant)

⇒ page 48

11 - Rear lid handle release button -E234-

❑ Not installed on all vehicles
❑ Integrated in rear handle of rear lid (removing handle on saloon)

⇒ page 36

 )

❑ Removing (Variant)

⇒ page 47

12 - Coupling station, rear lid

❑ Location, saloon: behind luggage compartment side trim on left (removing luggage compartment side

trim on left ⇒  General body repairs, interior; Rep. Gr.  70 ; Load area and luggage compartment trim .

❑ Location, Variant: on rear of moulded headliner (lowering moulded headliner ⇒  General body repairs,

interior; Rep. Gr.  70 ; Roof trims )

13 - Door lock

❑ Electric central locking is integrated into door lock
❑ Removing (saloon)

⇒ page 129

❑ Removing (Variant)

⇒ page 155

14 - Rear left door control unit -J388-

❑ Integrated in window regulator motor
❑ Removing (saloon)

⇒ page 302

❑ Removing (Variant)

⇒ page 317

15 - Coupling station

❑ Fitting location: left B-pillar
❑ To disconnect connector, release boot on B-pillar

⇒ page 107

 .

16 - Door lock

❑ Door lock is secured on inner part of door (removing door lock

⇒ page 90

 )

❑ Electric central locking is integrated into door lock

17 - Central switch for window regulators

bulbs, switches - interior

18 - Door control unit -J386-

❑ Integrated in window regulator motor (removing window regulator motor

⇒ page 285

 )

19 - Coupling station

❑ Fitting location: left A-pillar
❑ To disconnect connector, release bellows at A-pillar

⇒ page 68

20 - Bonnet contact switch -F266-

❑ Anti-theft alarm system contact switch
❑ Cannot be replaced as an individual item
❑ Location: on bonnet lock (removing bonnet lock

⇒ page 23

 )

2. Central locking

99



Keys with remote control are adapted using the vehicle diagnosis,

testing and information system -VAS 5051- .
– Select “guided fault finding” in vehicle diagnostic, testing and

information system -VAS 5051- .

– Using the

GoTo

 key, select “Function/component selection”

and the following menu items in succession:

♦ Body (Repair group 01; 27; 50 - 97)
♦ Internal/external installations (Repair group 01; from 55 77)
♦ 01 - Self-diagnosis
♦ 46 - Convenience system central module
♦ Functions
♦ Adaption

2.3

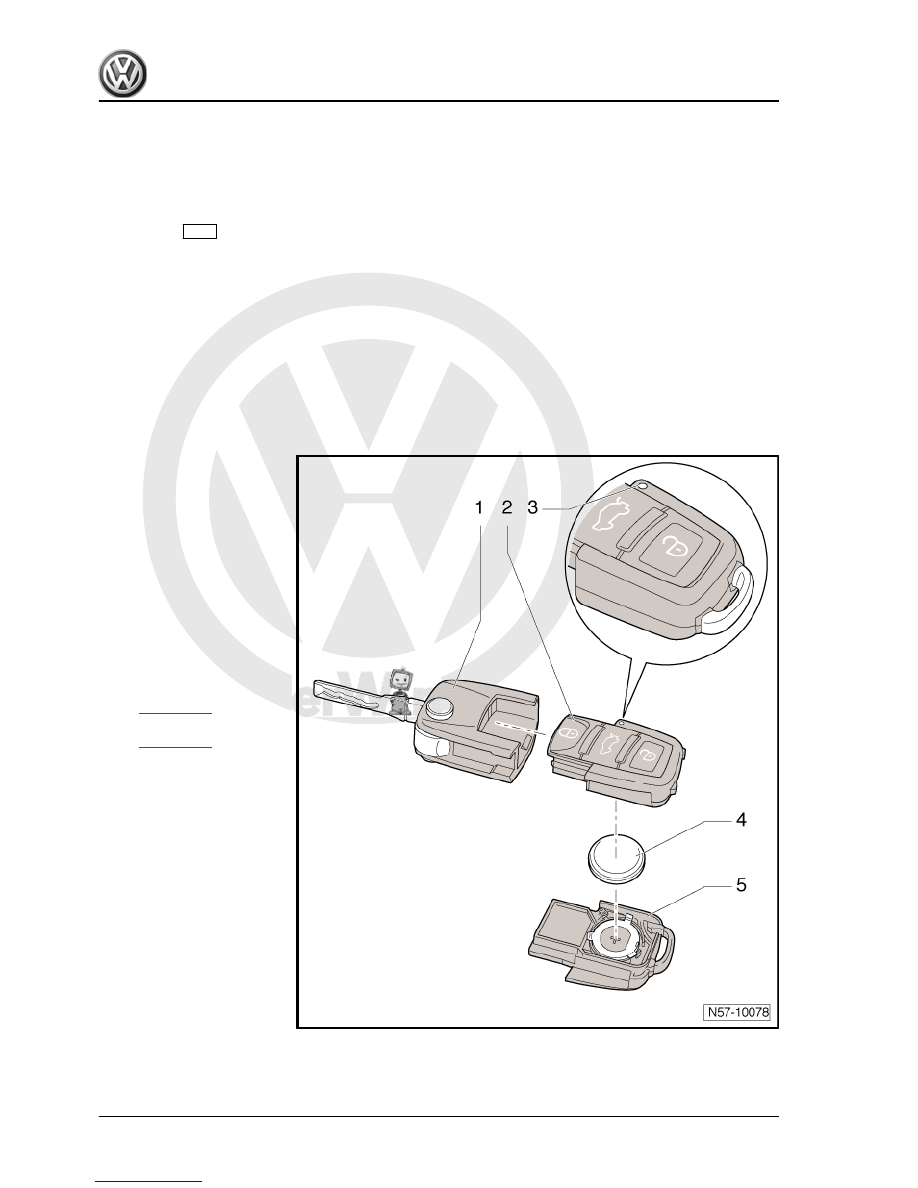

Assembly overview - battery for folding key with remote control

1 - Key with variable code

transponder
2 - Upper part of transmitter

unit
3 - LED

❑ LED must flash when re‐

mote control is operated

❑ If LED does not flash

during remote control

operation, the battery is

dead and must be re‐

newed.

4 - Battery

❑ Removing battery

⇒ page 101

❑ Installing battery

⇒ page 101

5 - Lower part of transmitter

unit

100
