Note

Removal and installation are described only for the right bearing

bracket. The removal and installation of the left bearing bracket

is similar.

1.17.1

Removing

– Remove housing

⇒ page 86

 .

– Remove door handle

⇒ page 86

 .

– Remove door outer panel

⇒ page 112

 .

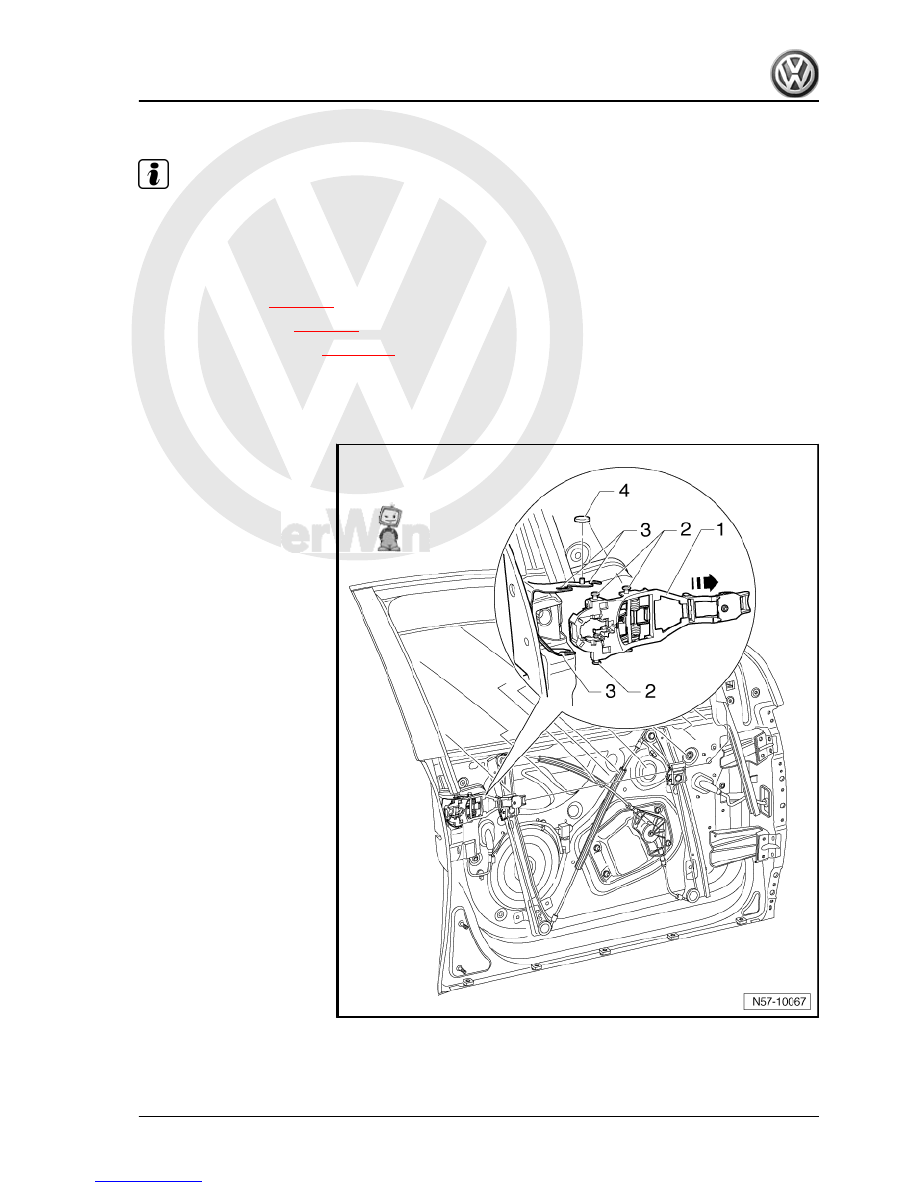

– Pull retaining rubber -4- upwards off guide pins.
– Pull bearing bracket -1- in direction of -arrow- with guide pins

-2- out of mountings -3-.

1. Front door

89



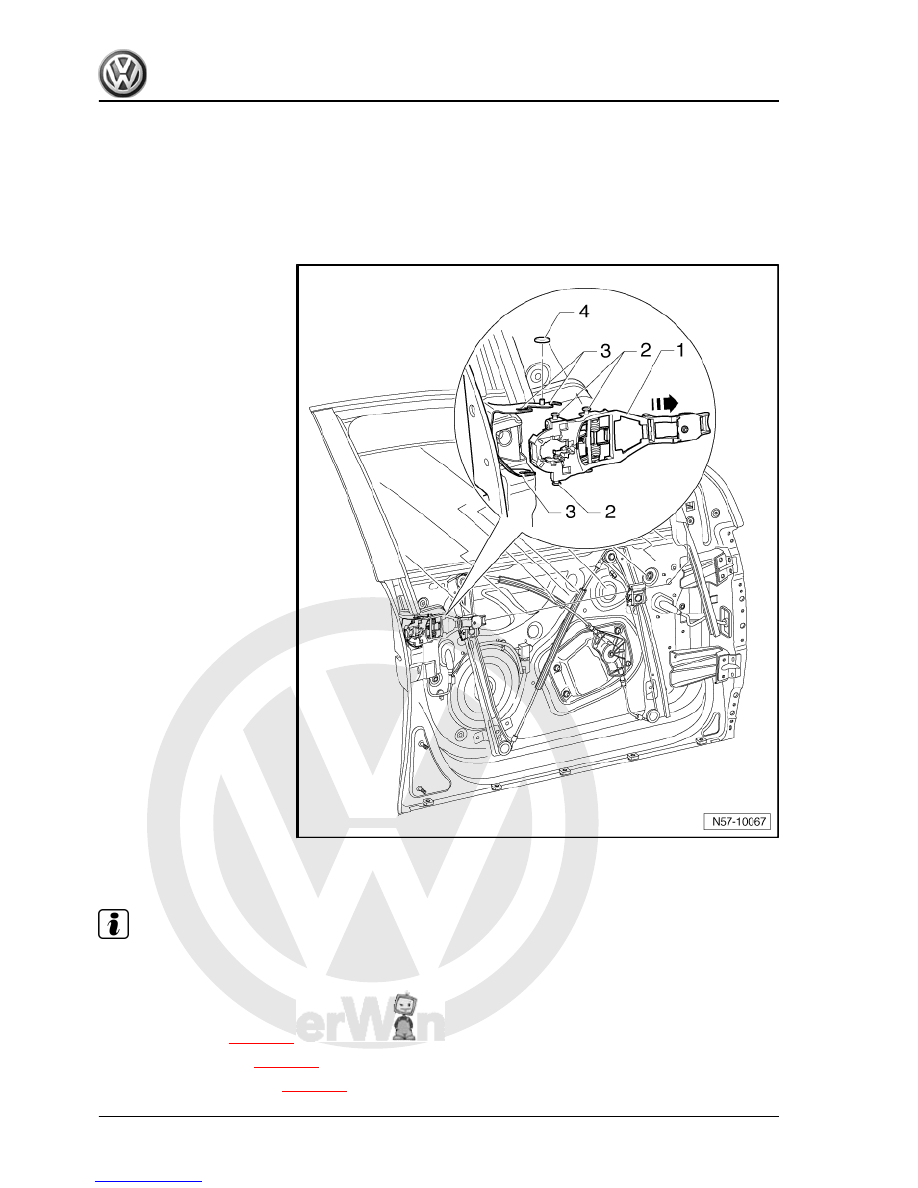

– Push bearing bracket -1- with guide pins -2- in mountings

-3-.

– Secure retaining rubber -4- to guide pins and securing bolts

on bearing plate mounting.

Further installation is performed in reverse order of removal.

1.18

Removing and installing door lock

Note

The removal and installation sequence is only for the right door

lock. The removal and installation of the left door lock is similar.

1.18.1

Removing

– Remove housing

⇒ page 86

 .

– Remove door handle

⇒ page 86

 .

– Remove door outer panel

⇒ page 73

 .

90



 .

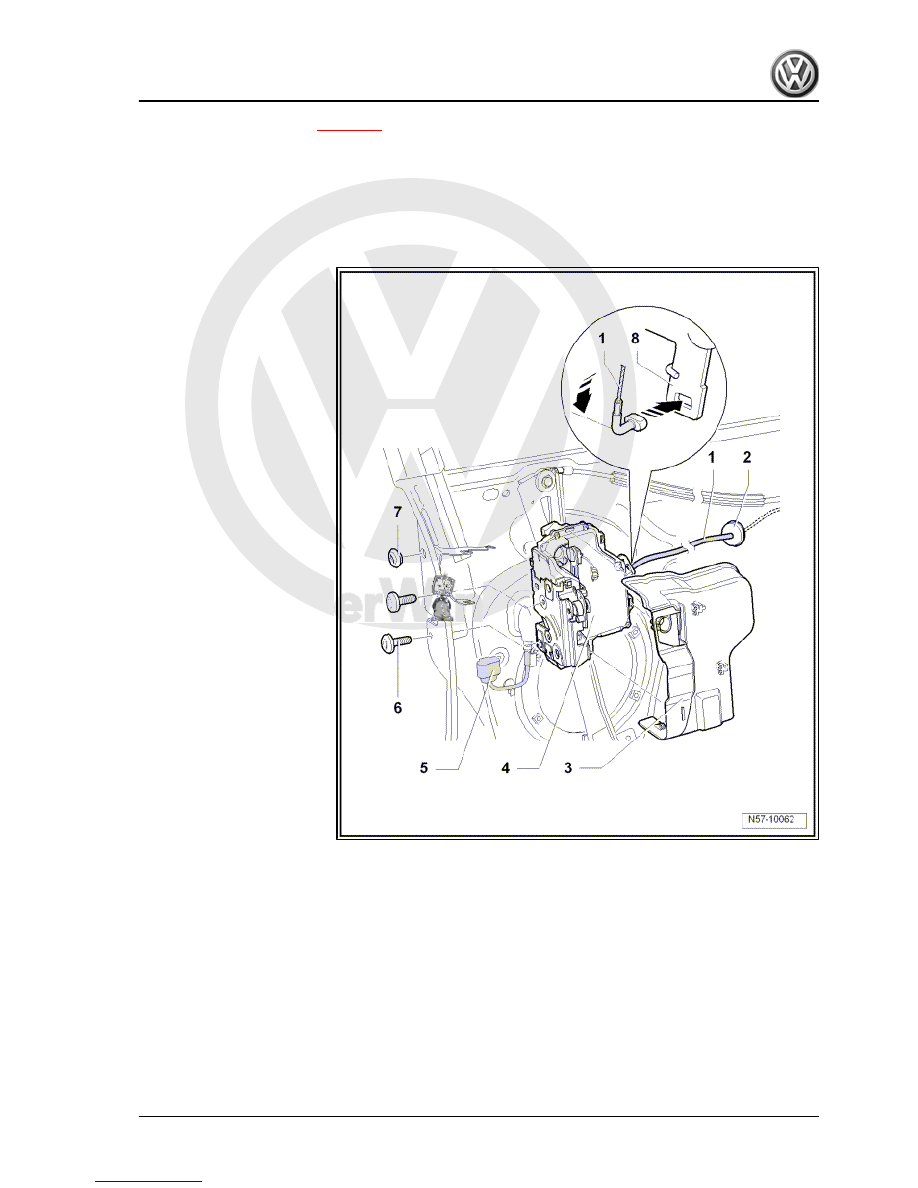

– Disconnect connector -5-.
– Remove bolts -6-.
– Release cable -1- from relay lever -8- and remove door lock

-4-.

Cover -3- is not supplied with door lock.

1.18.2

Installing

Install in reverse order of removal.
Specified torque for bolts: 18 Nm.
Then always check function while door is still open, as an incor‐

rectly fitted and adjusted Bowden cable cannot open the door.

1. Front door

91



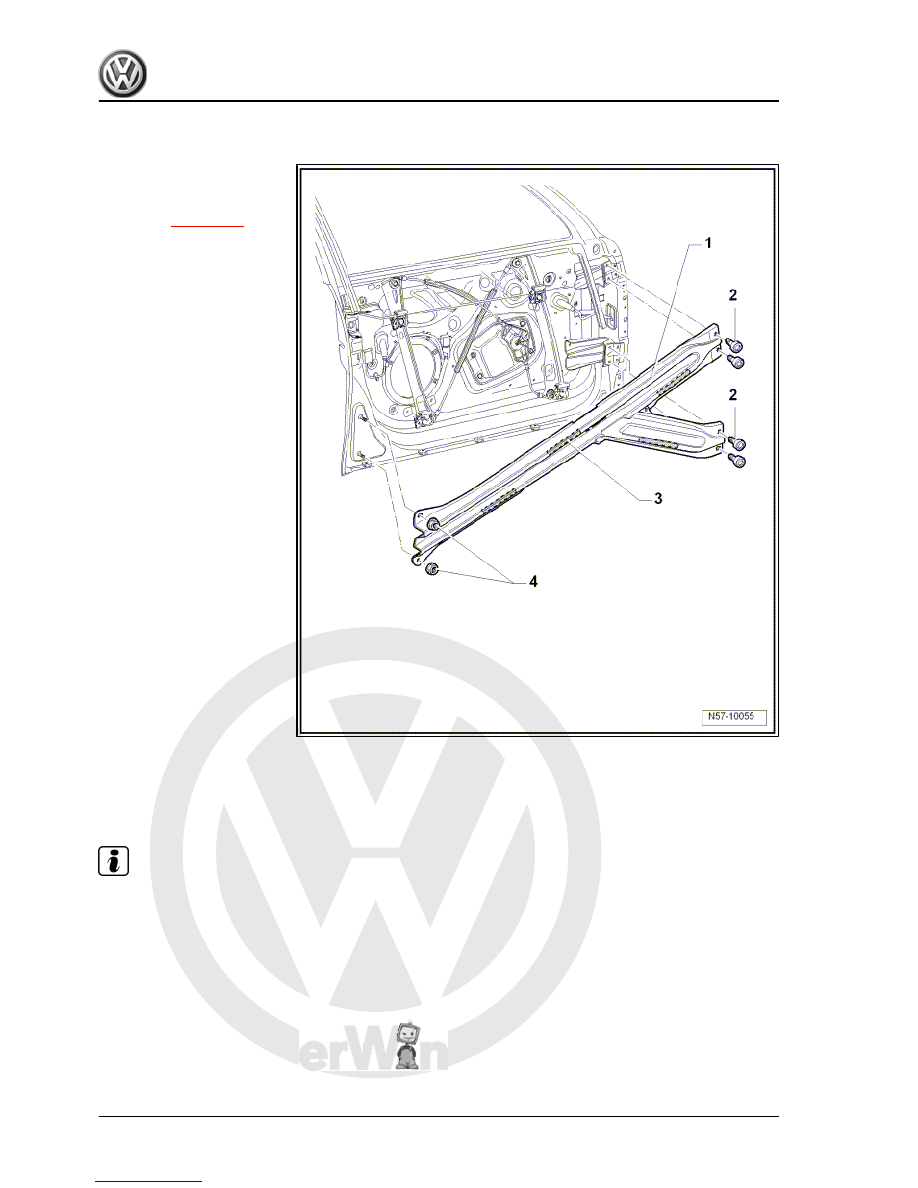

1 - Side impact protection

❑ To remove and install,

remove outer panel for

door

⇒ page 112

2 - Bolt

❑ Qty. 4
❑ 20 Nm

3 - Insulation
4 - Nut

❑ Qty. 2
❑ 20 Nm

1.20

Door inner seal

During production, a sealant is applied to the door inner seals,

which are then placed on the door flange and rolled on.

Note

When seals are removed, the sealant will spread to the inside

of the seal and the flanks will be bent out slightly. If the seal is

then refitted, a tight seal is not guaranteed.

Therefore each seal which is removed completely should be

replaced by a so-called “tap-on” seal.

If a seal has been partially removed, squeeze sides of seal

together before refitting.

92
