Volkswagen Golf Variant / Jetta. Manual - part 22





Note

Only the left side is shown. The right side is similar.

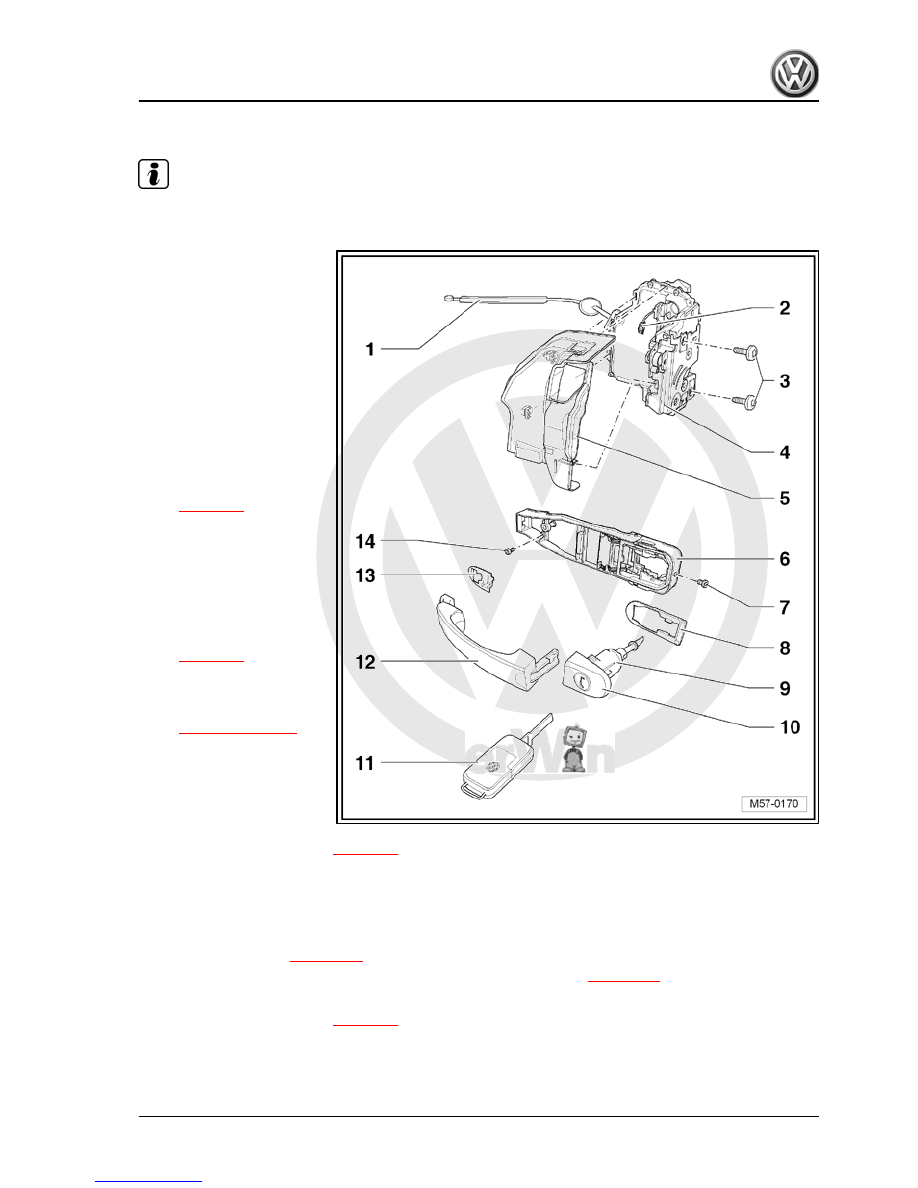

1 - Cable

❑ To lock release from in‐

terior door handle.

2 - Cable

❑ To release lock from

door exterior handle.

3 - Bolt

❑ Qty. 2
❑ To secure lock to door

inner part.

❑ 18 Nm

4 - Door lock

❑ Removing and installing

⇒ page 90

5 - Cover

❑ Not supplied with door

lock.

❑ Secured on door lock

with locking lugs

6 - Bearing bracket

❑ Removing and installing

⇒ page 89

7 - Torx bolt

❑ To secure lock cylinder

housing or housing

⇒ Item 9 (page 85)

8 - Base
9 - Lock cylinder housing

❑ Only on driver side.
❑ Passenger side is instal‐

led in a housing.

❑ Removing and installing

⇒ page 86

10 - Cover

❑ For lock cylinder housing
❑ Secured to lock cylinder housing with three locking lugs

11 - Key

❑ Changing battery

⇒ page 100

 .

❑ Adapting new or additional key to remote control and immobilizer

⇒ page 100

 .

12 - Door handle with base

❑ Removing and installing

⇒ page 86

13 - Base

❑ Part of door handle.

1. Front door

85



1.15

Removing and installing housing

Note

The removal and installation sequence is only for the right hous‐

ing. The removal and installation of the right lock cylinder is

similar.

1.15.1

Removing

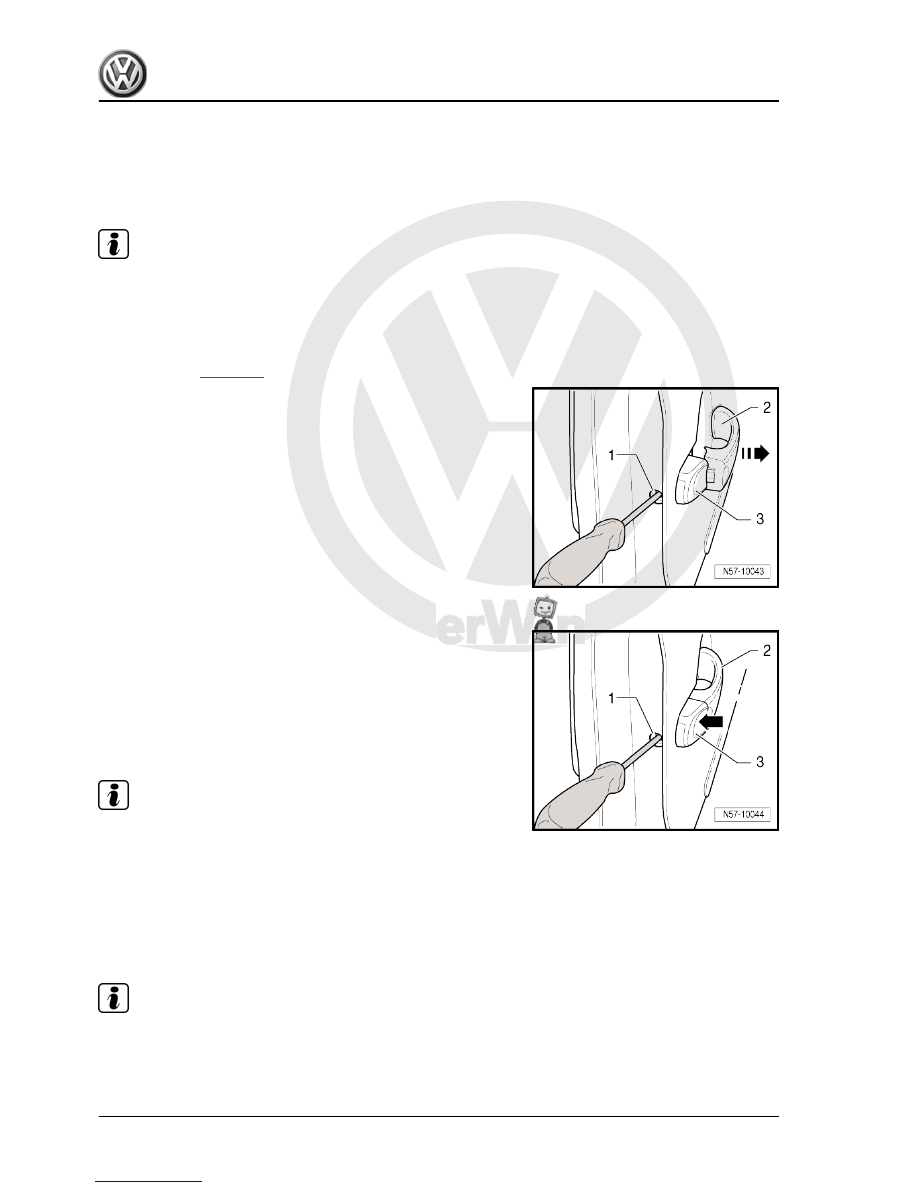

– Prise cover (

⇒ page 73

 Fig. N57-10065, item 2) off front door.

– Lever out caps in front of bolts -1-.
– Pull door handle -2- in direction of -arrow- and unbolt bolt -1-

onto stop using socket wrench -T10072- .

– Pull out housing -3-.

1.15.2

Installing

– Fit housing -3- in door handle -2- bearing bracket at right an‐

gles -arrow-.

Door handle -2- must rest only lightly against door panel.
– Now tighten bolt -1- in bearing bracket using socket wrench -

T10072- .

The door handle -2- locates in the housing -3- with a well audible

click.

Note

During installation, housing must be pressed against door panel.

The door handle just rests lightly against the door panel.

Further installation is performed in reverse order of removal.
Then always check function while door is still open, as an incor‐

rectly fitted and adjusted Bowden cable cannot open the door.

1.16

Removing and installing door handle

Note

The removal and installation sequence is only for the right door

handle. The removal and installation of the left door handle is

similar.

86



– Remove housing

⇒ page 86

 .

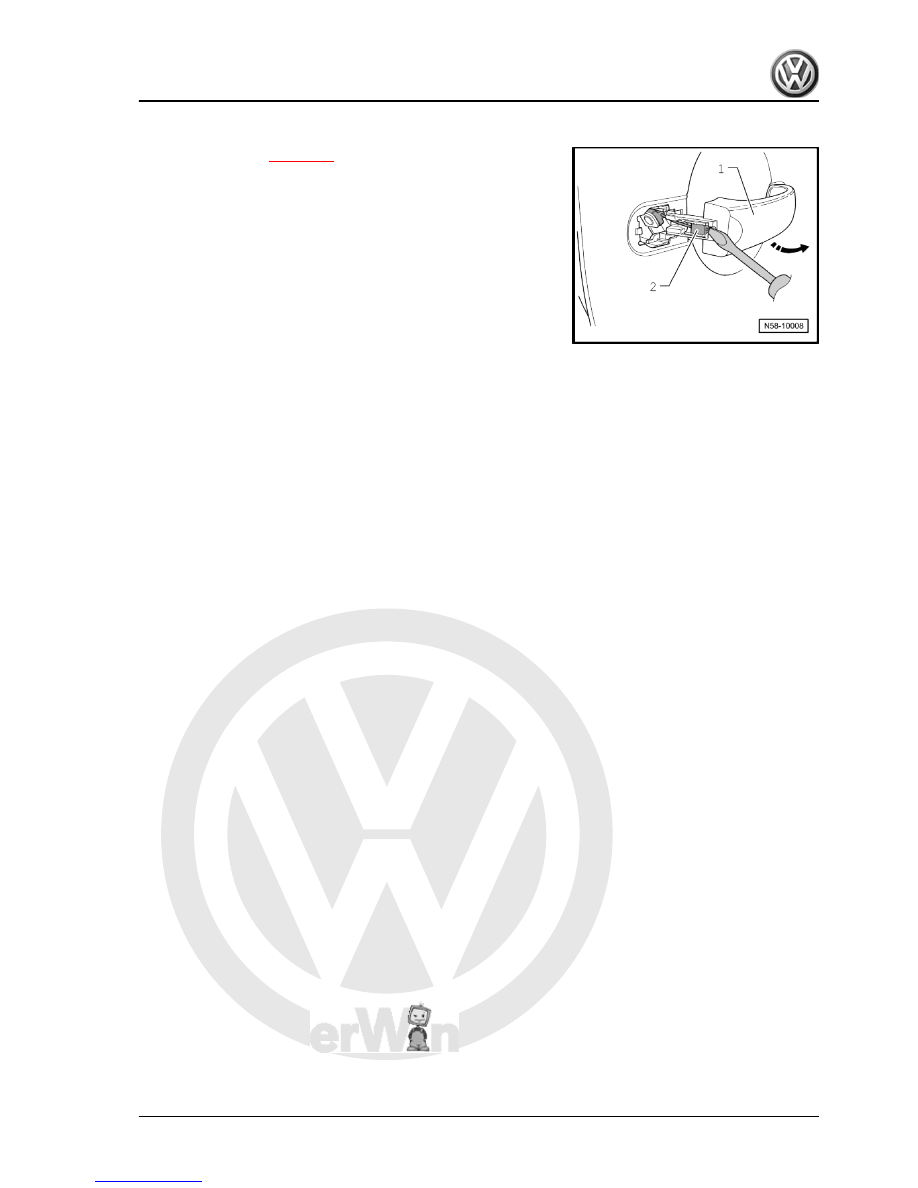

– Lever clip -2- out of door handle -1-.
– Swivel door handle -1- out of door -arrow-.

1.16.2

Installing

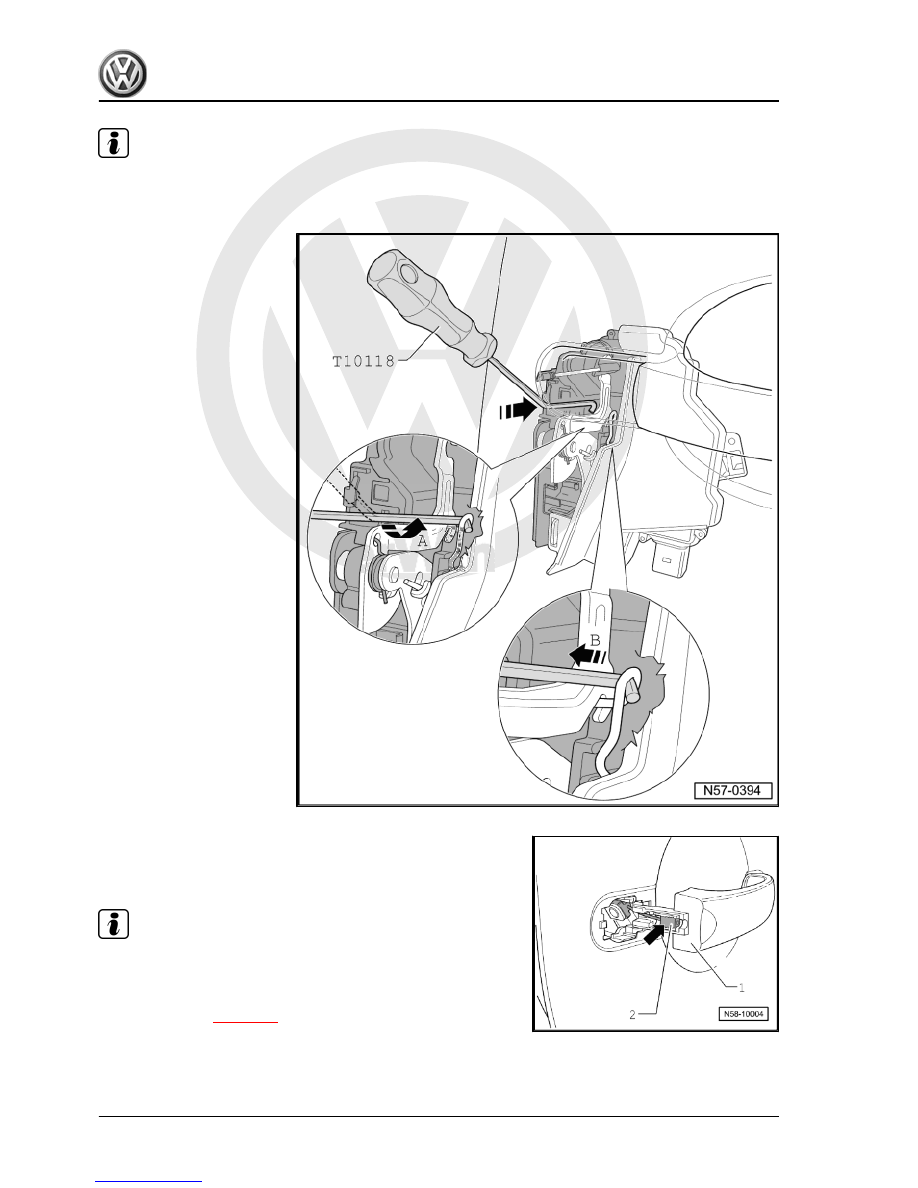

– Guide assembly tool -T10118- into door through opening in

door outer panel.

– Use a hand torch to illuminate inside of door for improved vis‐

ibility.

– Hook assembly tool -T10118- in spring -arrow A-.
– Hook spring onto door lock by pulling assembly tool -T10118-

-arrow B-.

The release lever is now secured.

1. Front door

87



cable to the door handle later.

– Swivel door handle -1- into door.
– Pull clip -2- in the panel opening and engage clip in door han‐

dle -1- -arrow-.

Note

Press door handle -1- against door panel when assembling.

Clip -2- must engage audibly in door handle -1-.

– Install housing

⇒ page 86

 .

Then always check function while door is still open, as an incor‐

rectly fitted and adjusted Bowden cable cannot open the door.

88
