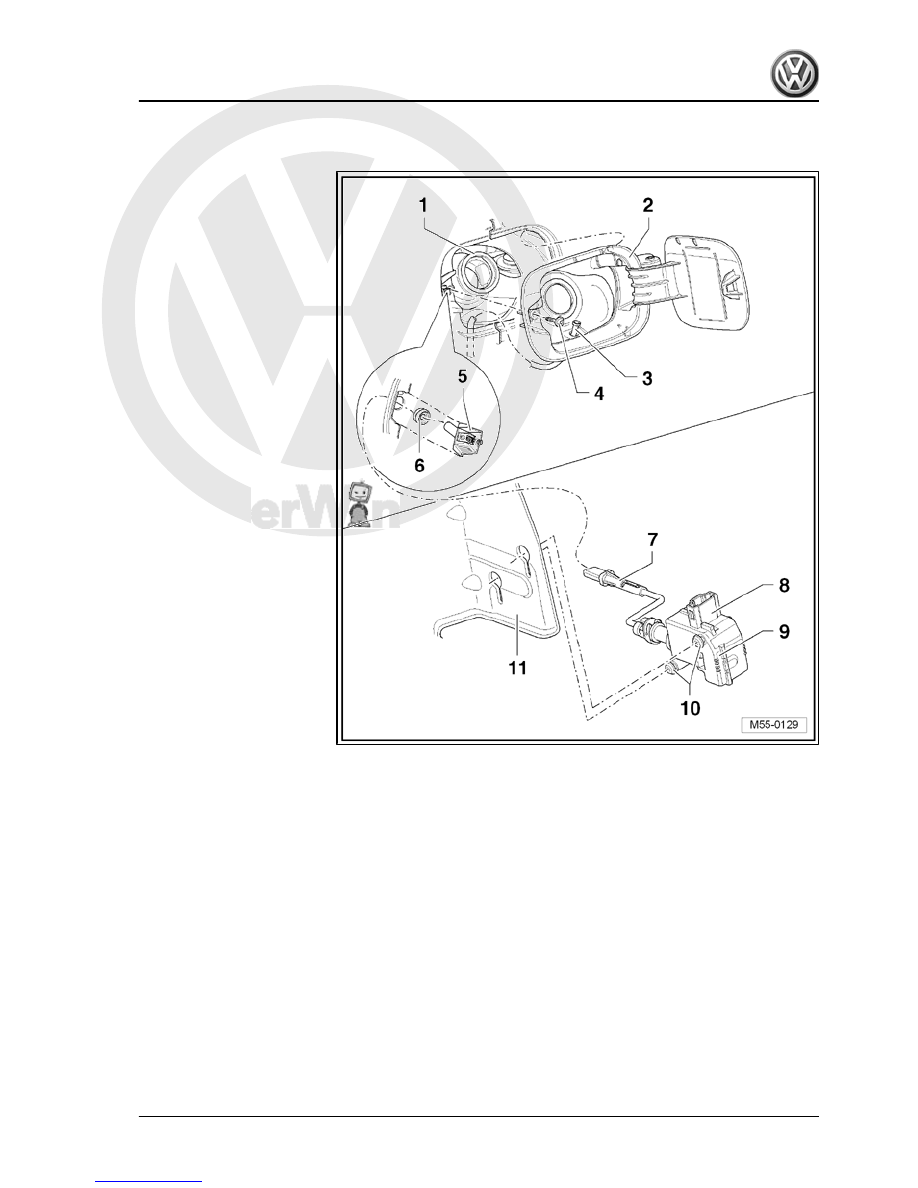

4.3.2

Installing

Install in reverse order of removal.
– Perform functional check of release components.

4. Fuel tank flap unit (saloon)

57



5.1

Assembly overview - tank flap unit

1 - Fuel filler neck
2 - Tank flap unit

❑ Removing and installing

⇒ page 58

3 - Water drain hose
4 - Bolt

❑ 1.5 Nm

5 - Tank filler flap locking motor

-V155-

❑ Removing and installing

⇒ page 60

6 - Wiring harness

❑ For tank filler flap lock‐

ing motor -V155-

5.2

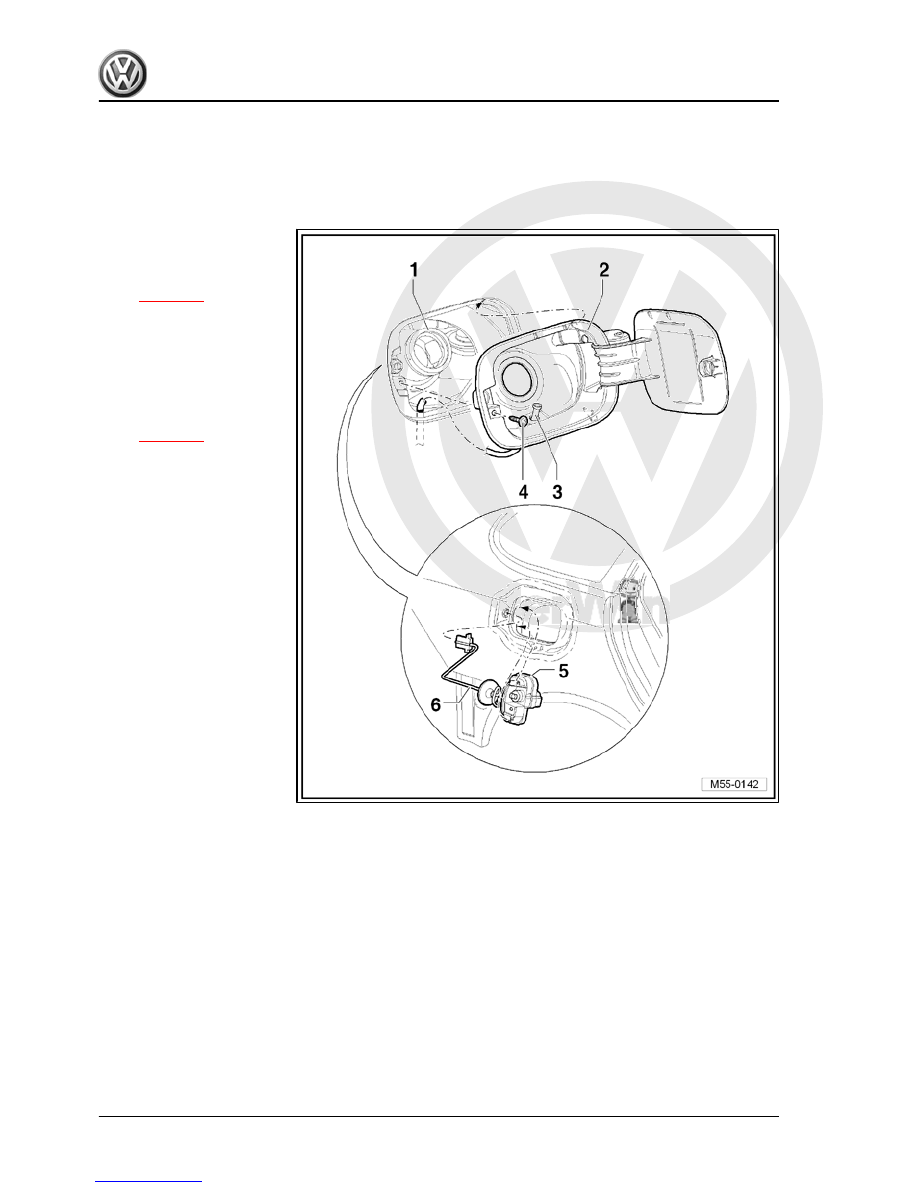

Removing and installing tank flap unit

5.2.1

Removing

– Open fuel tank flap.
– Remove tank cap.
– Remove bolt -4-.
– Pull rubber part of tank flap unit -2- off fuel tank filler neck

-1-.

– Pull tank flap unit -2- with drain hose -3- to rear and swing fuel

tank flap unit out of side panel.

58



– Feed drain hose -3- through aperture in tank flap unit -2- and

pull drain hose through as far as possible.

– Guide drain hose into side panel.
– With hinge side leading, guide tank flap unit -2- into side panel.
– Then swivel tank flap unit completely onto side panel.
Make sure that tank flap unit -2- locking devices engage correctly

in side panel at top and bottom.
– Pull rubber part of tank flap unit over filler neck and tighten bolt

-4-.
Specified torque for bolt -4-: 1.5 Nm

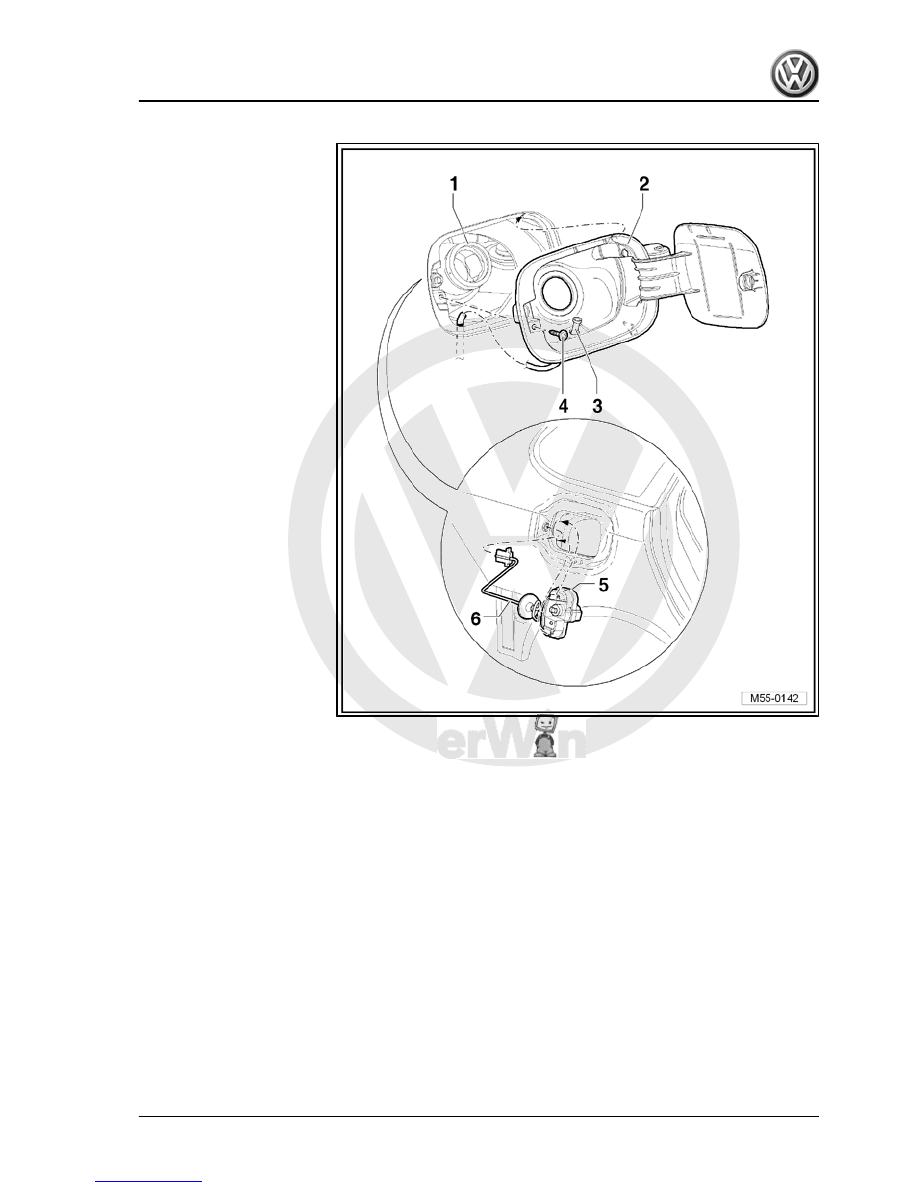

5. Fuel tank flap unit (Variant)

59



Removing and installing tank filler flap

locking motor -V155-

5.3.1

Removing

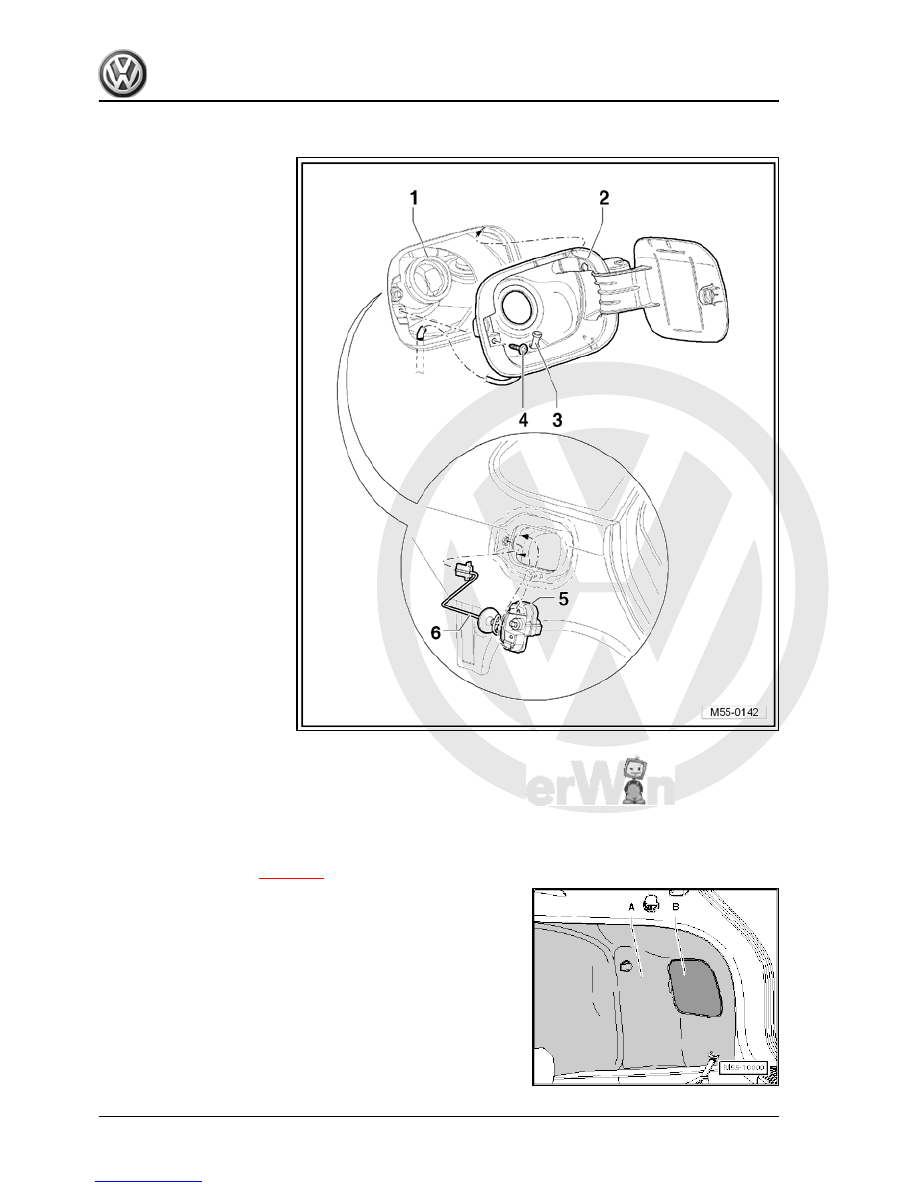

– Remove tank flap unit

⇒ page 58

 .

– Unclip service cover -B- from side panel -A-.

60
