Volkswagen Golf Variant / Jetta. Manual - part 13





aperture in rear lid trim.

3.9.2

Installing

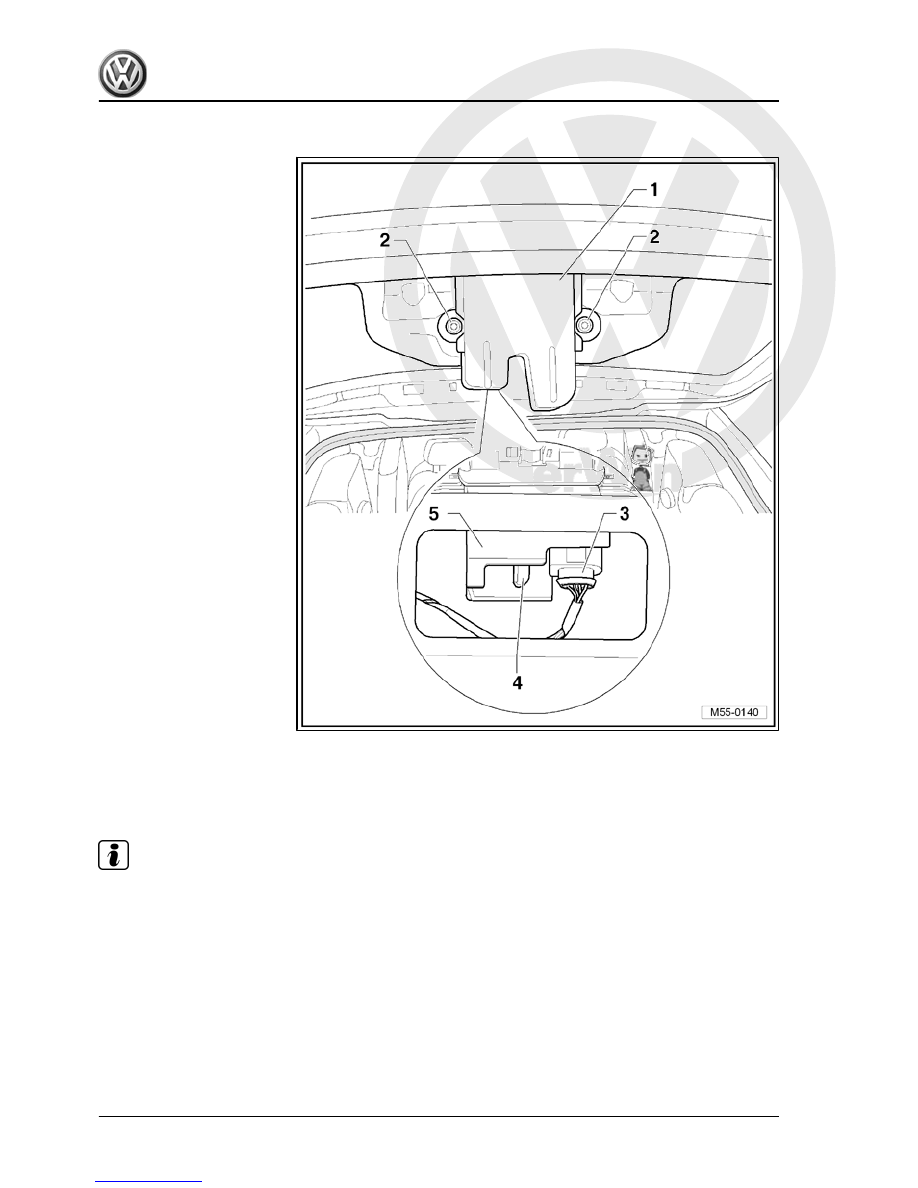

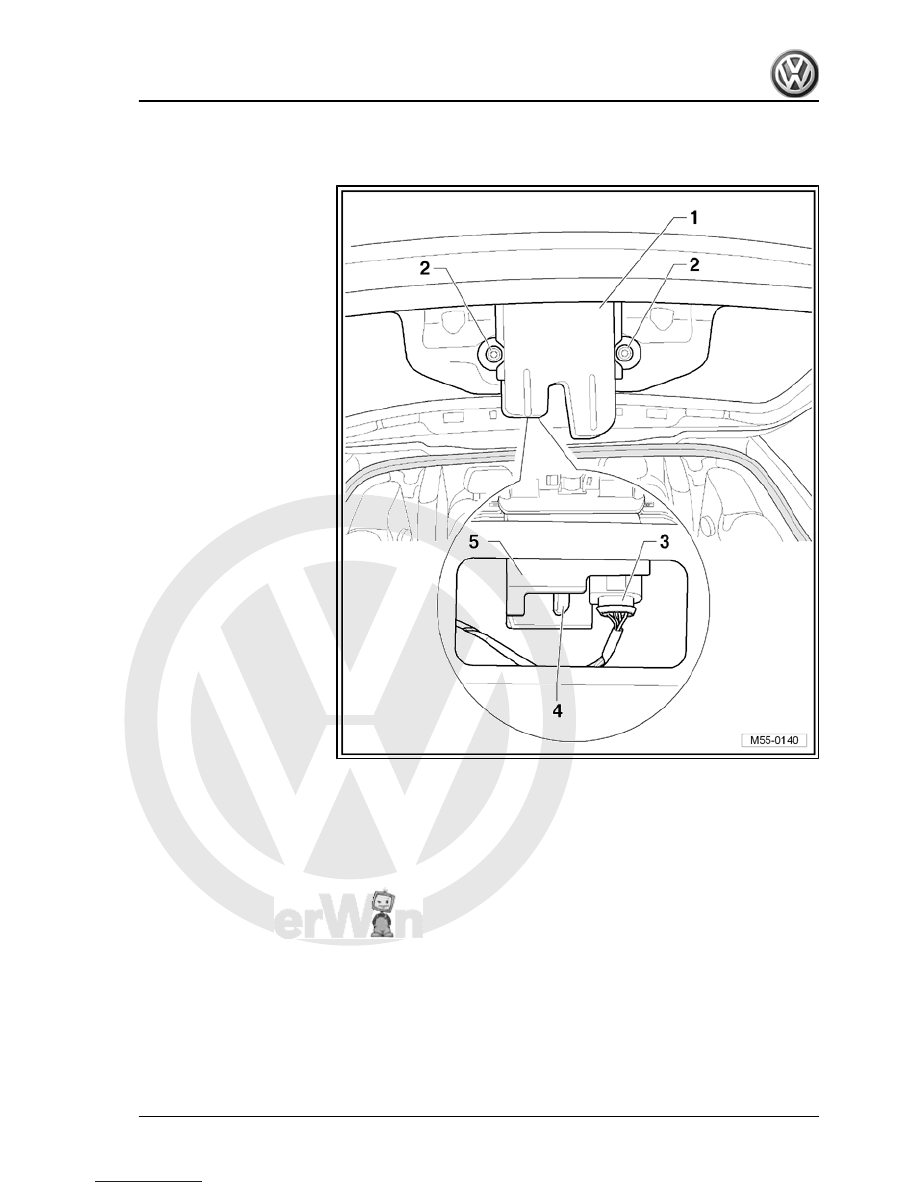

– Reconnect connector -3- on back of lock.
– Insert lock -1- into rear lid and tighten bolts -2-, specified tor‐

que: 24 Nm.

70 ; Trim, insulation .

3. Rear lid (Variant)

49



Rear lid seal

During production a sealant is applied to the rear lid seals, the

seal is then placed on the body flange and rolled on.

Note

When seals are removed, the sealant will spread to the inside

of the seal and the flanks will be bent out slightly. If the seal is

then refitted, a leak-free tight seal is not guaranteed.

Therefore each seal which is removed completely should be

replaced by a so-called “tap-on” seal.

If a seal has been partially removed, squeeze the sides to‐

gether before installing.

50



3.11.1

Removing

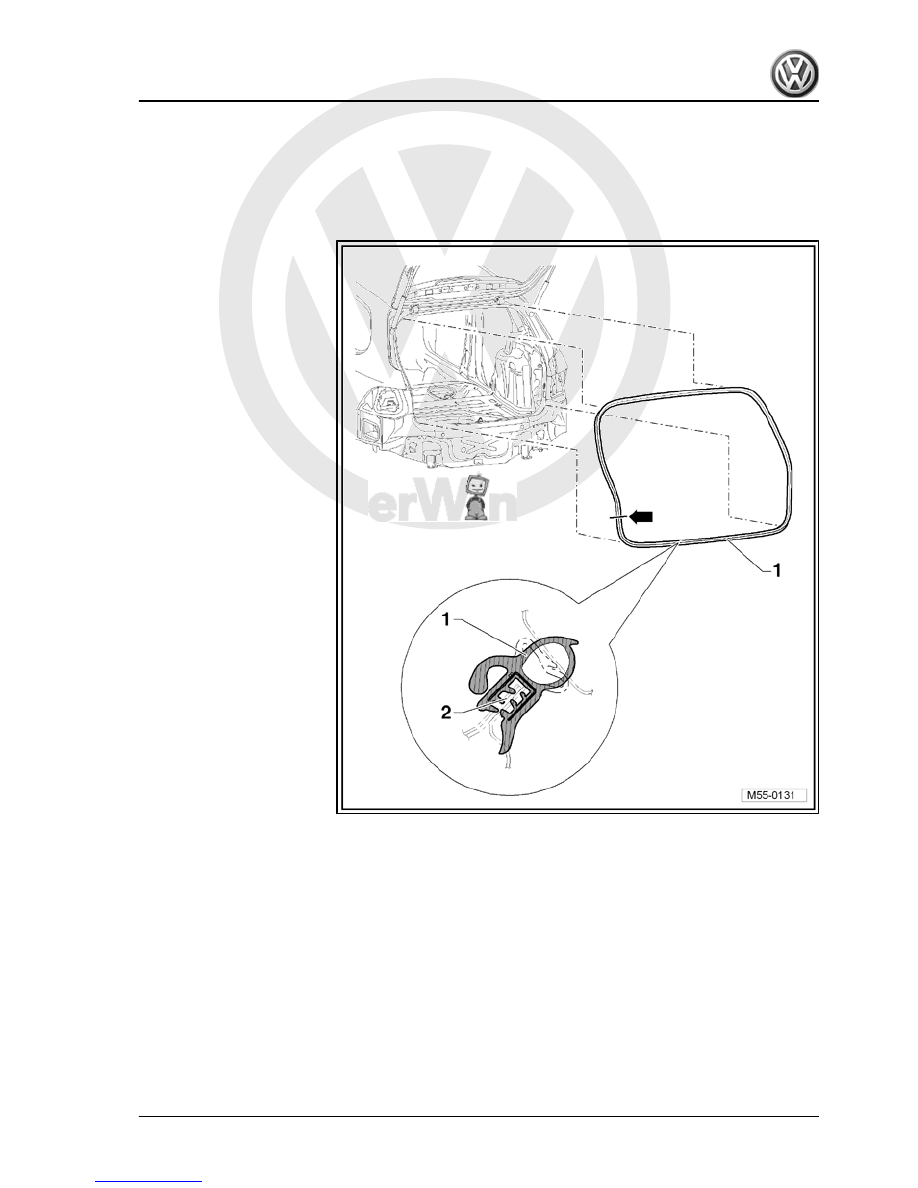

– Pull rear lid seal -1- off body flange -2-.

3.11.2

Installing

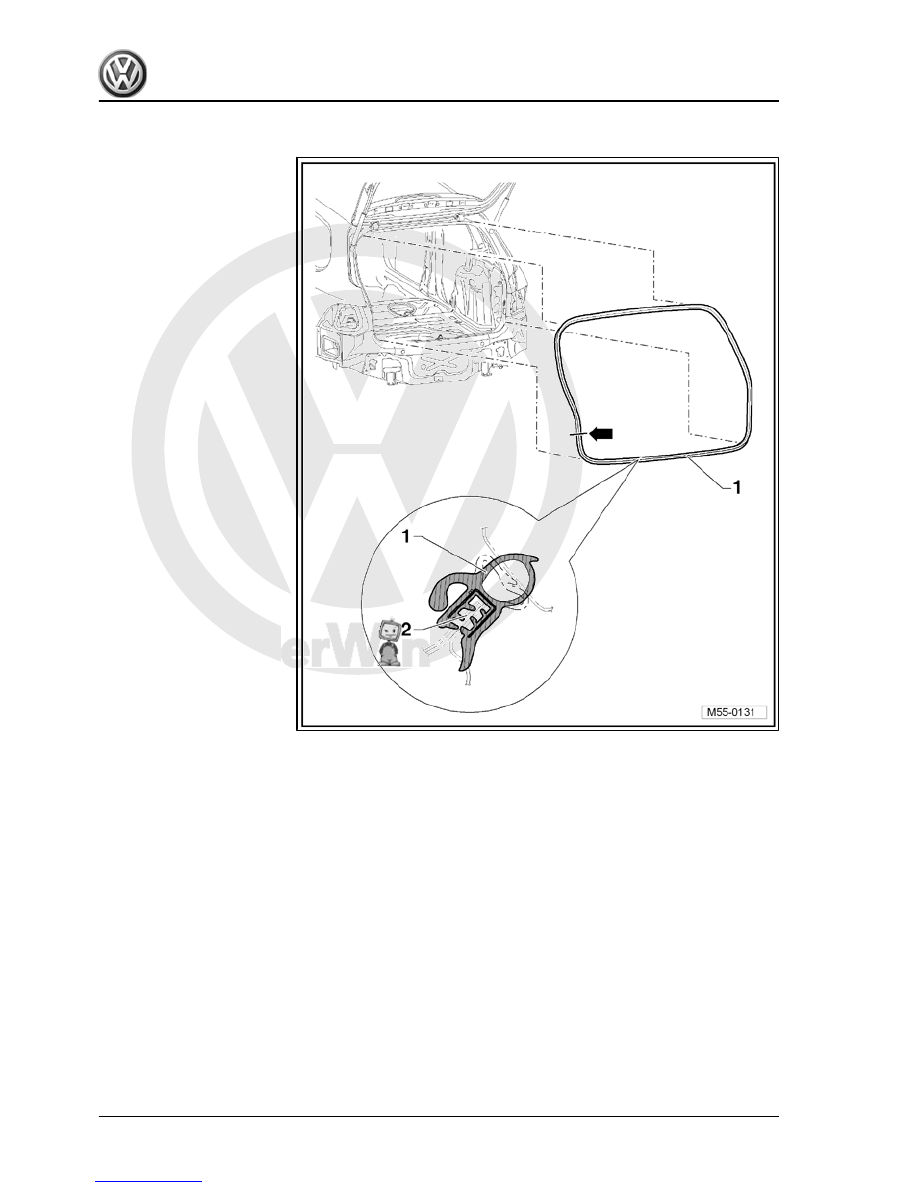

– Align rear lid seal -1- so that vulcanised point -arrow- faces

centre of left tail light.

3. Rear lid (Variant)

51



52
