Volkswagen Golf Variant / Jetta. Manual - part 11





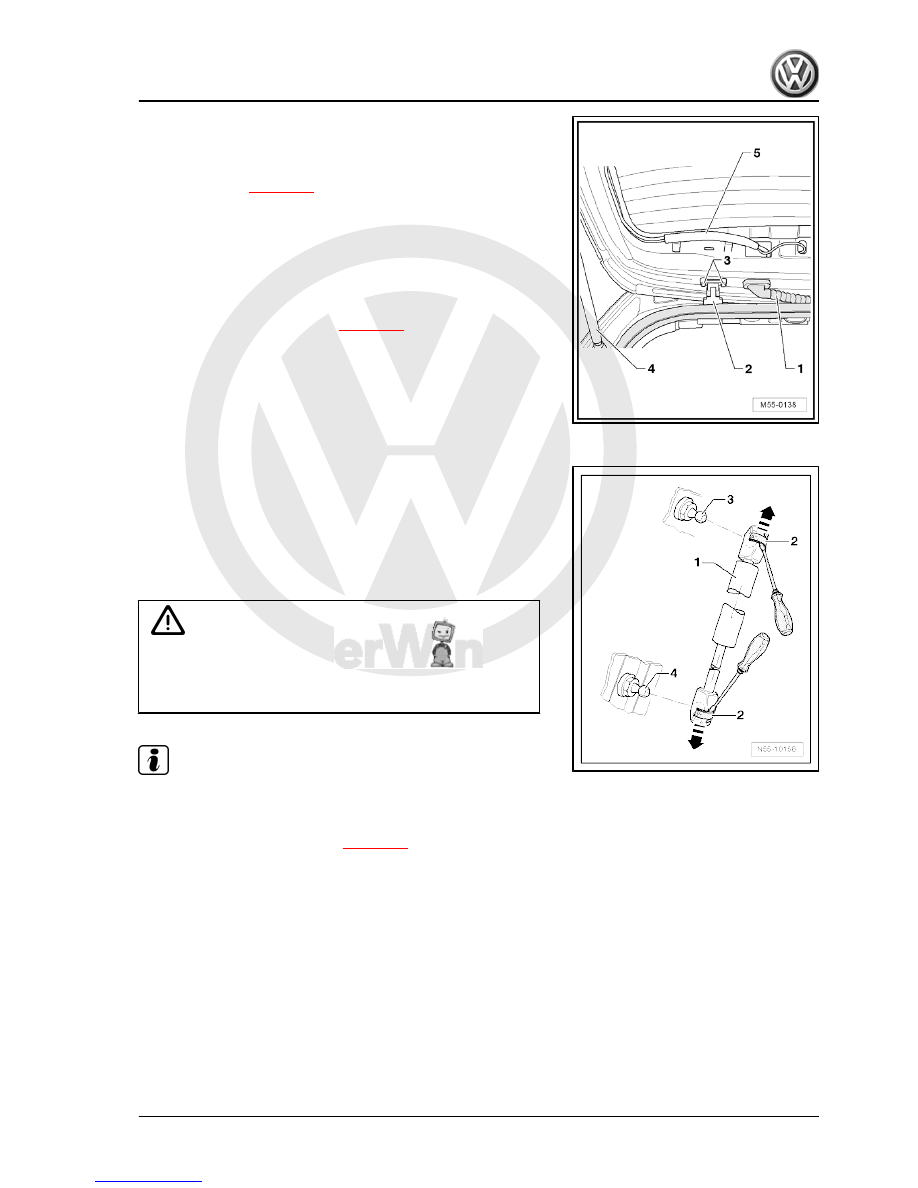

– Adjust rear lid

⇒ page 44

 and tighten bolts -3-, specified tor‐

que: 10 Nm.

70 ; Rear lid trim .

– Install rear lid window frame trim ⇒  General body repairs, in‐

terior; Rep. Gr.  70 ; Rear lid trim .

– Check adjustment of rear lid

⇒ page 44

 .

3.4

Removing and installing gas strut

– Open rear lid and support it.
– Position a small screwdriver beneath spring clip -2-.
– Raise spring clip -2- until it can be moved over ball socket in

direction of -arrow-.

– Pull gas strut -1- off ball-head pins -3- and -4-.
After removing gas strut -1-, slide spring clip -2- back immediately.

WARNING

Proceed with care if gas strut is reused. Spring clip must not

be levered completely out of ball socket, as it will otherwise be

damaged. Gas strut will spring out of mounting, causing dam‐

age or injury to operator.

Note

Ball sockets -3- and -4- are screwed into rear lid or body, specified

torque: 20 Nm.

– Releasing gas from gas strut

⇒ page 42

3. Rear lid (Variant)

41



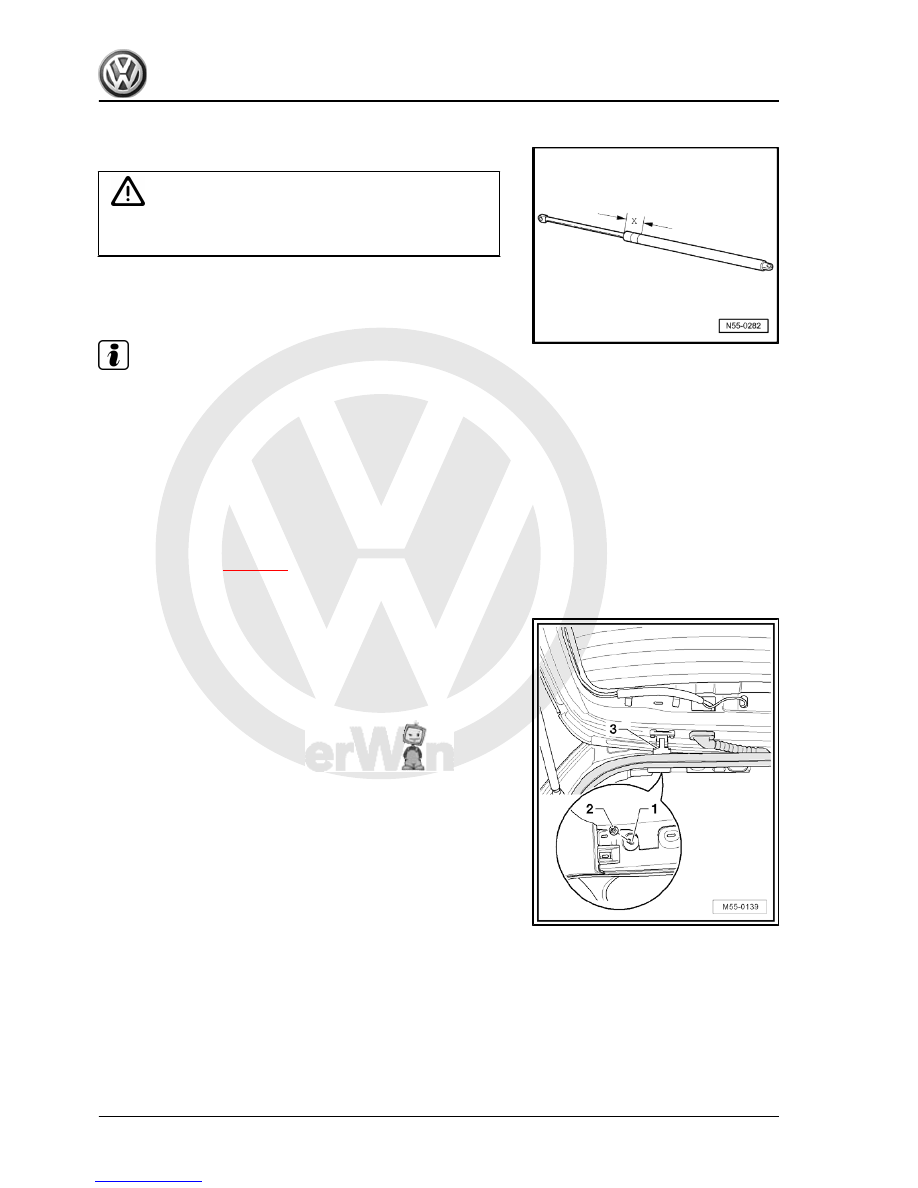

– Clamp gas strut in vice in area marked -x- = 50 mm.

WARNING

Clamp gas strut only within area -x-; otherwise danger of ac‐

cident!

– Saw through cylinder of gas strut within first third of cylinder's

overall length using piston rod end of cylinder as reference

point.

Note

Wear eye protection when sawing.

Cover area of saw cut with a cloth.

Dispose of oil and cloth via existing disposal channels.

3.6

Removing and installing rear lid hinge

3.6.1

Removing

– Remove rear lid

⇒ page 40

 .

– Remove end strip for moulded headliner ⇒  General body re‐

pairs, interior; Rep. Gr.  70 ; Trim, insulation .

– Unscrew nuts -2- from studs -1-.
– Remove hinge -3- from exterior.

42



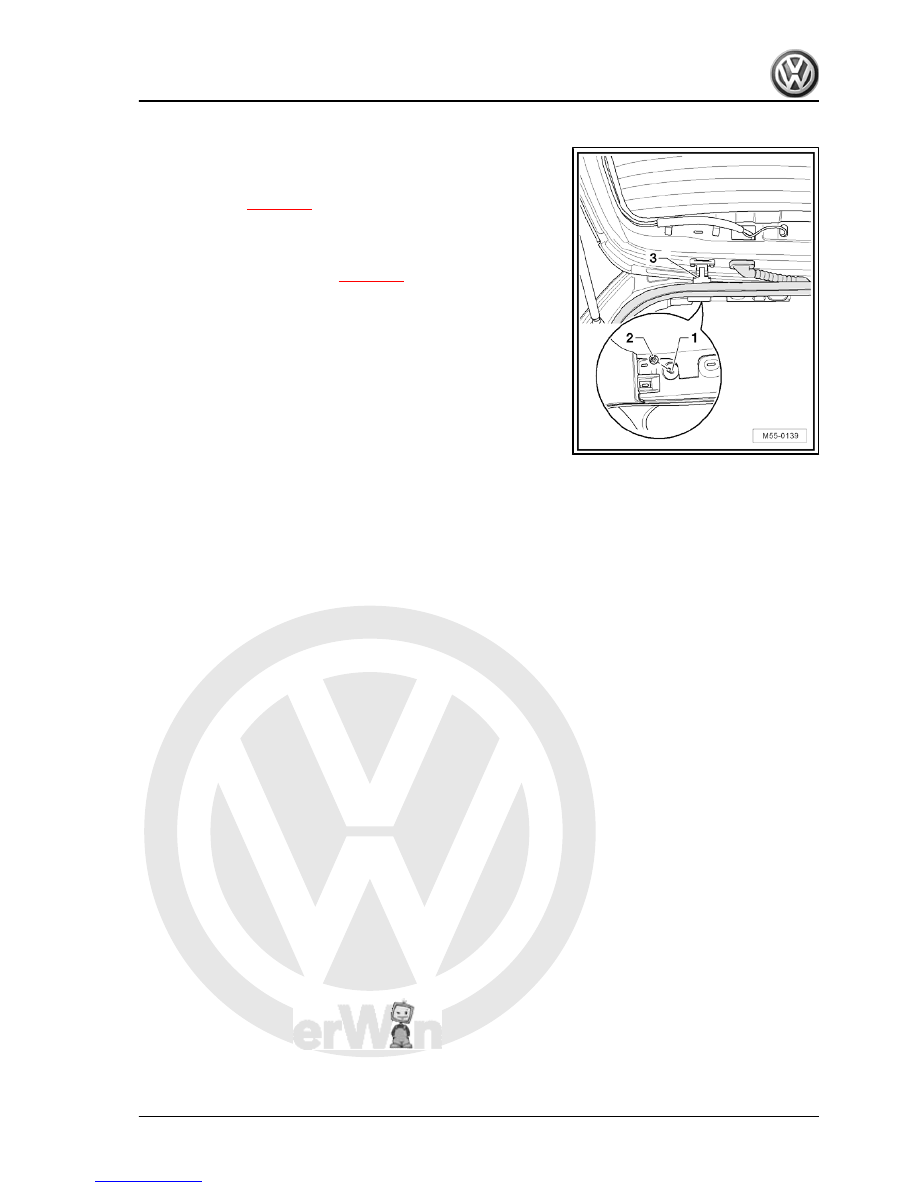

– Position hinge -3- in vehicle.
– Screw nuts -2- onto studs -1-.
– Install rear lid

⇒ page 40

 .

– Align hinge to rear lid.
– Specified torque for nuts -2-: 24 Nm
– Check adjustment of rear lid

⇒ page 44

 .

Further installation is performed in reverse order of removal.

3. Rear lid (Variant)

43



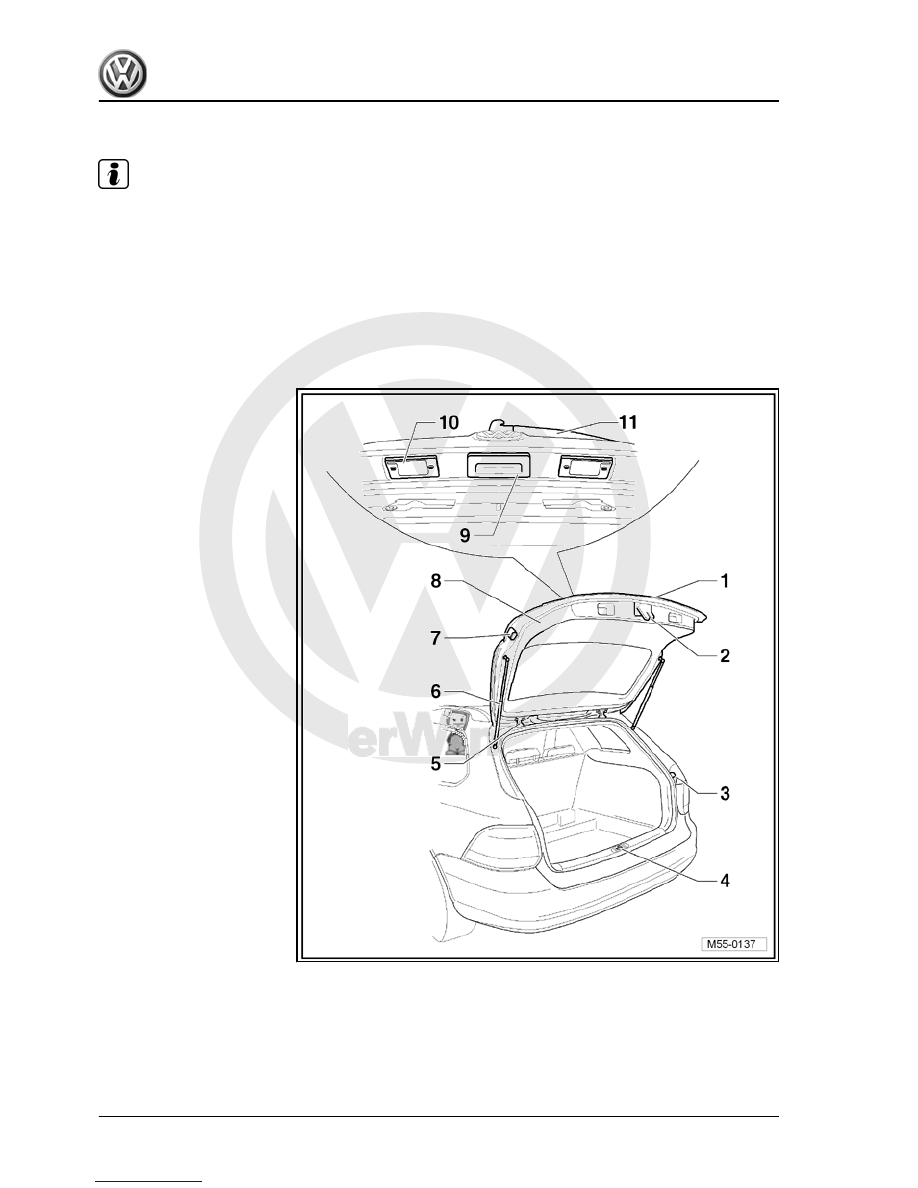

Note

Vehicle must be on the ground to carry out rear lid adjustment.

The rear lid lock -2- is bolted directly to the rear lid -1-. It does not have elongated holes, so it cannot be

adjusted.

The stop buffers -3- on the left and right are not a means of adjustment. Their purpose is to stabilise and

dampen the rear lid -1-.

The rear lid is adjusted correctly if the gaps/shut lines are even all around, the door is not too deep or does

not stand proud and all contours align when the rear lid is closed.

The rear lid must engage in the striker pin -4- without excessive force.

The rear lid adjustment is described step by step below.
Use setting gauge -3371- ⇒ Body Repairs; Rep. Gr.  00 ; Tech‐

nical data; Body gap dimensions to check or adjust the gap

dimensions.

44
