Volkswagen Golf Variant / Jetta. Manual - part 10





Installing

Install in reverse order of removal.
Specified torque for hexagon nuts: 8 Nm
Before closing rear lid, check function of lid release components.

2.13

Rear lid seal

During production, a sealant is applied to the rear lid seals, the

seal is then placed on the rear lid flange and rolled on.

Note

When seals are removed, the sealant will spread to the inside

of the seal and the flanks will be bent out slightly. If the seal is

then refitted, a leak-free tight seal is not guaranteed.

Therefore each seal which is removed completely should be

replaced by a so-called “tap-on” seal.

If a seal has been partially removed, squeeze sides of seal

together before refitting.

2. Rear lid (saloon)

37



2.14.1

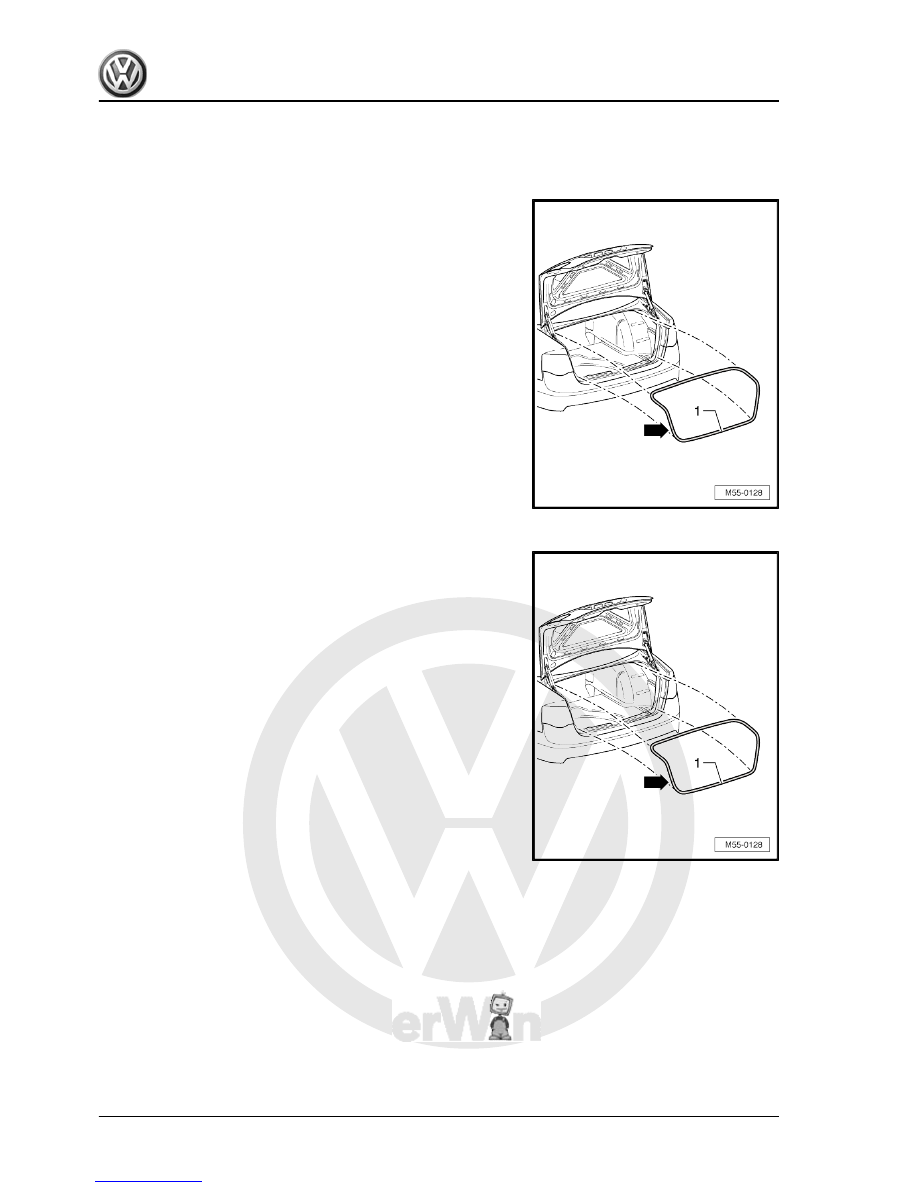

Removing

– Pull rear lid seal -1- off body flange.

2.14.2

Installing

– Align rear lid seal -1- so that the vulcanised point -arrow- is

located to the middle of the left tail light cluster.

38



3.1

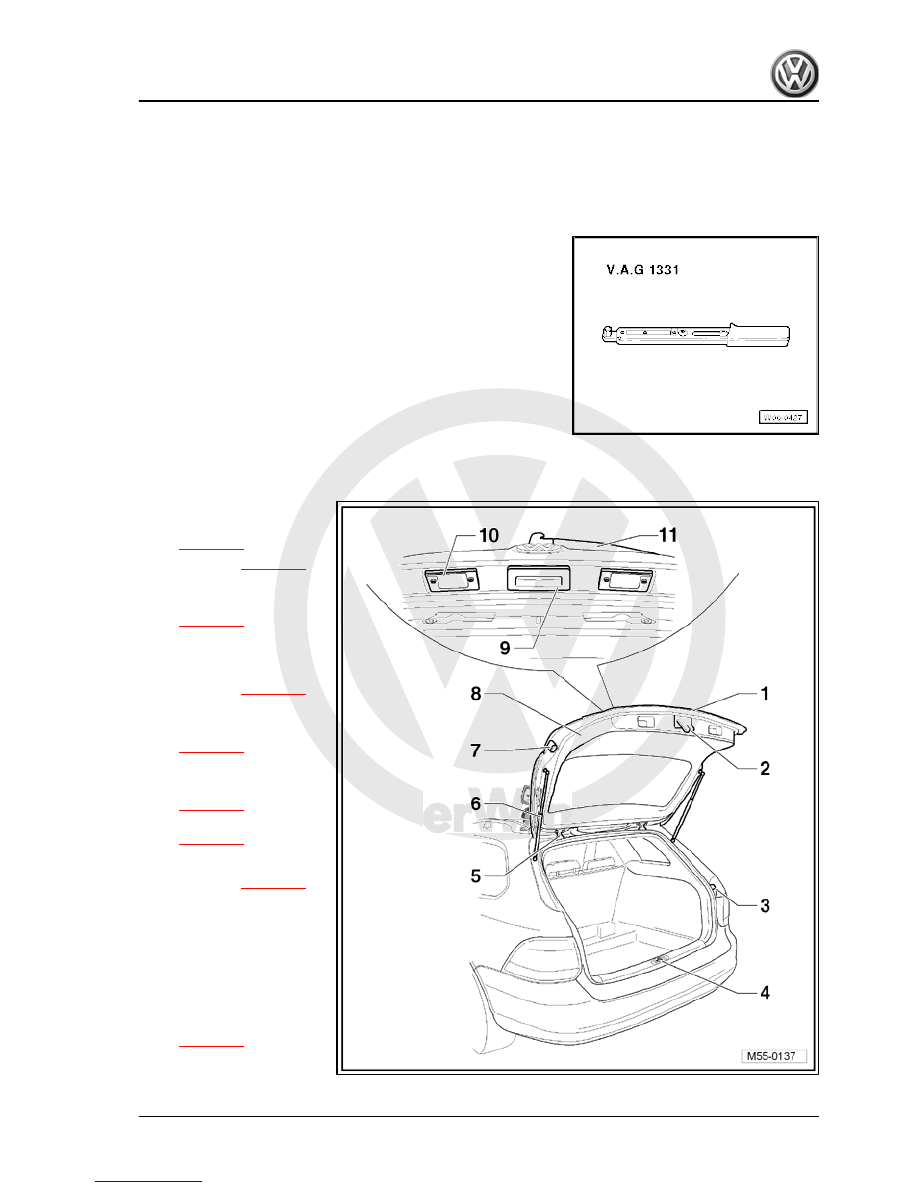

Tools

Special tools and workshop equipment required
♦ Torque wrench 5…50 Nm -V.A.G 1331-

3.2

Assembly overview - rear lid

1 - Rear lid

❑ Removing and installing

⇒ page 40

❑ Adjusting

⇒ page 44

2 - Lid lock

❑ Removing and installing

⇒ page 48

3 - Stop
4 - Striker pin

❑ Adjusting

⇒ page 45

5 - Hinge

❑ Removing and installing

⇒ page 42

6 - Gas strut

❑ Removing and installing

⇒ page 41

❑ Releasing gas

⇒ page 42

7 - Adjustment buffer

❑ Adjusting

⇒ page 46

8 - Rear lid trim

❑ Removing and installing

⇒  General body repairs,

interior; Rep. Gr.  70 ;

Removing and installing

rear lid trim

9 - Button to release rear lid

❑ Removing and installing

⇒ page 47

3. Rear lid (Variant)

39



⇒  Electrical system; Rep. Gr.  94 ; Lights, bulbs, switches - exterior

11 - Rear window wiper

❑ Removing and installing ⇒  Electrical system; Rep. Gr.  92 ; Window washer/wiper system

3.3

Removing and installing rear lid

3.3.1

Removing

– Remove rear lid trim ⇒  General body repairs, interior; Rep.

Gr.  70 ; Rear lid trim .

– Remove rear lid window frame trim ⇒  General body repairs,

interior; Rep. Gr.  70 ; Rear lid trim .

– Disconnect all connections in rear lid.
– Release bellows -1- and guide electrical wiring -5- through

opening in rear lid.

– Loosen bolts -3- on hinge -2- (do not remove).
Further dismantling requires the assistance of a second mechan‐

ic.
– Remove gas strut -4-

⇒ page 41

 .

– Remove bolts -3-.
– Remove rear lid from hinge.

3.3.2

Installing

Further installation is possible only with the help of a second me‐

chanic.
– Position rear lid carefully on hinges.

40
