Volkswagen Golf Variant / Jetta. Manual - part 14

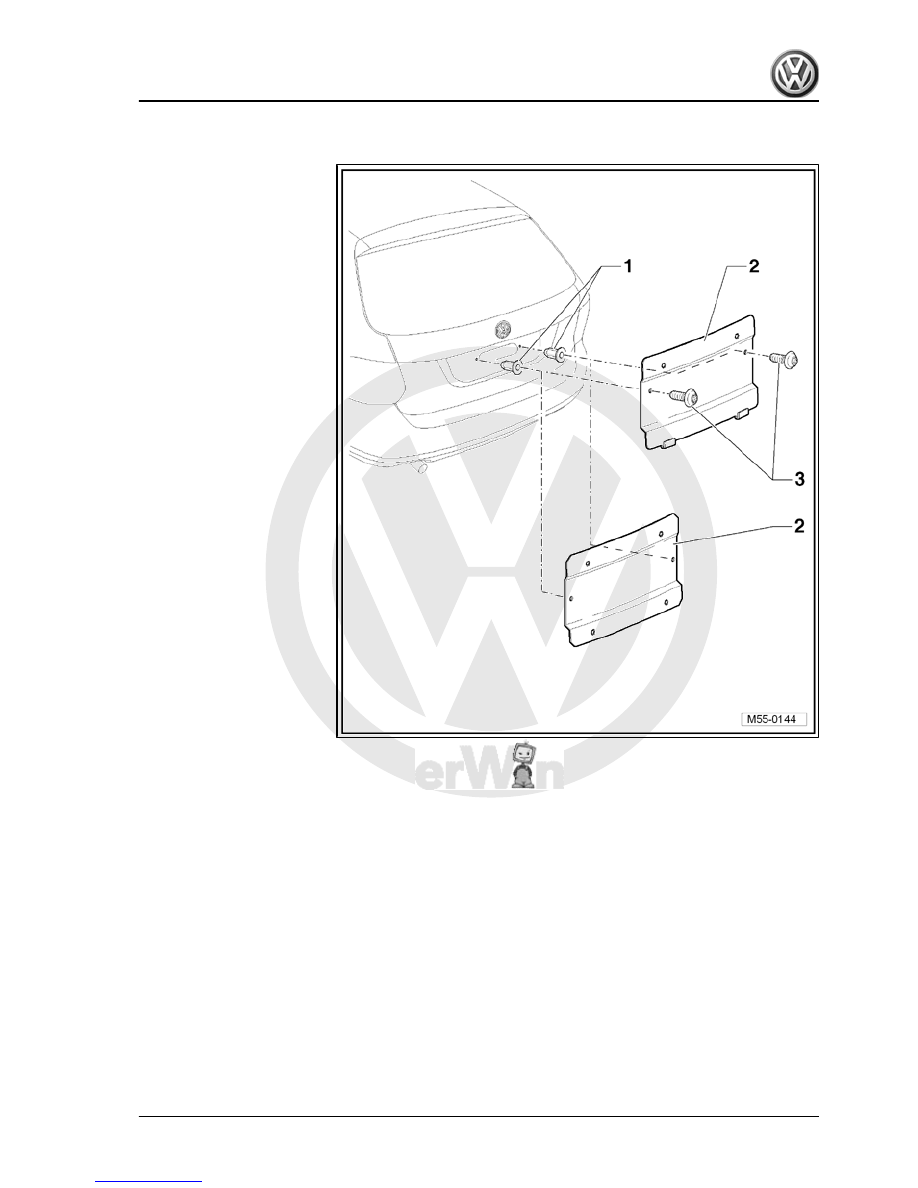

1 - Pop rivet nut

❑ Qty. 2

2 - Registration plate carrier

❑ Assignment ⇒  Parts

catalogue“ETKA”

3 - Bolt

❑ Qty. 2
❑ 4 Nm

3. Rear lid (Variant)

53



4.1

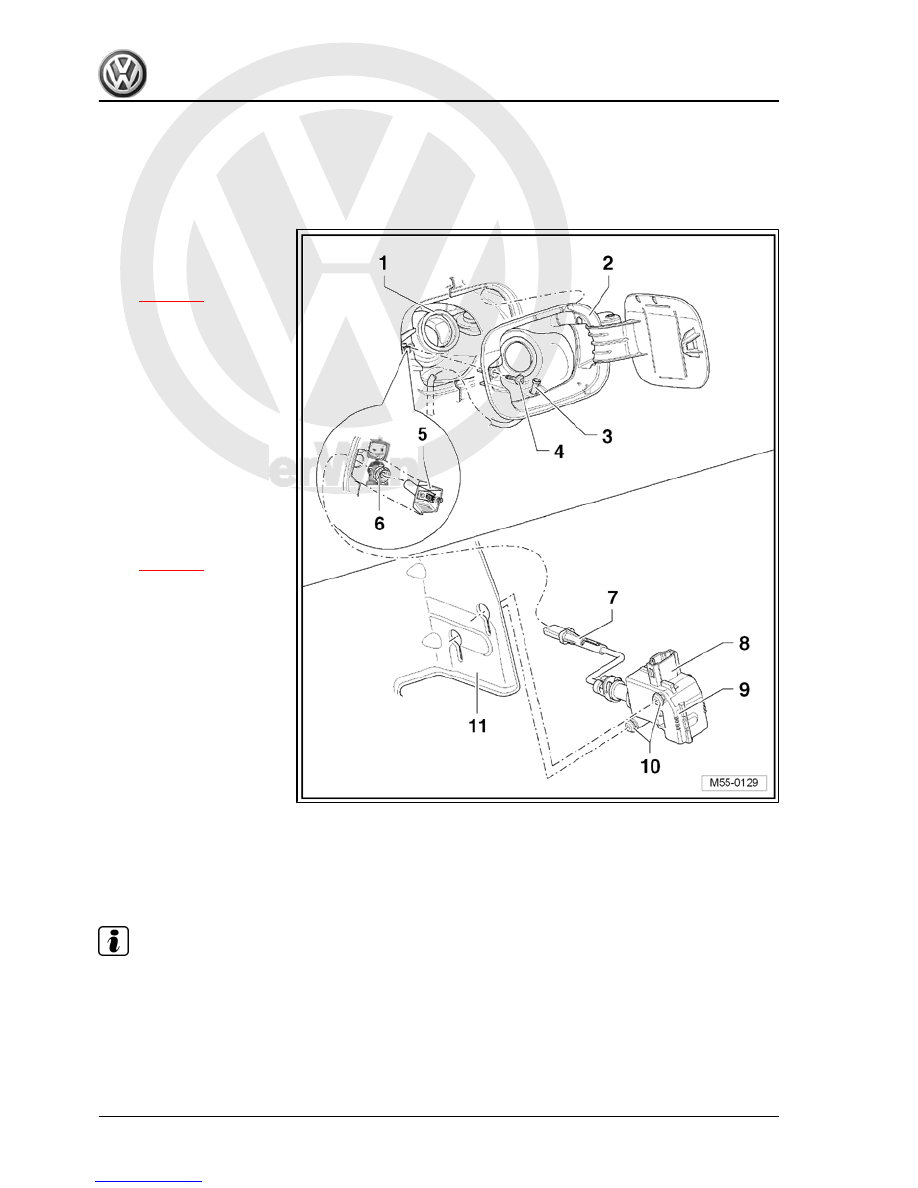

Assembly overview - tank flap unit

1 - Fuel filler neck
2 - Tank flap unit

❑ Removing and installing

⇒ page 54

3 - Water drain hose
4 - Bolt

❑ 1.5 Nm

5 - Assembly part
6 - Seal
7 - Release rod
8 - Connector

❑ For tank filler flap lock‐

ing motor -V155-

9 - Tank filler flap locking motor

-V155-

❑ Removing and installing

⇒ page 56

10 - Securing bolt

❑ For tank filler flap lock‐

ing motor -V155-

❑ Qty. 2
❑ 1.5 Nm

11 - Securing bracket

❑ On rear right wheel

housing

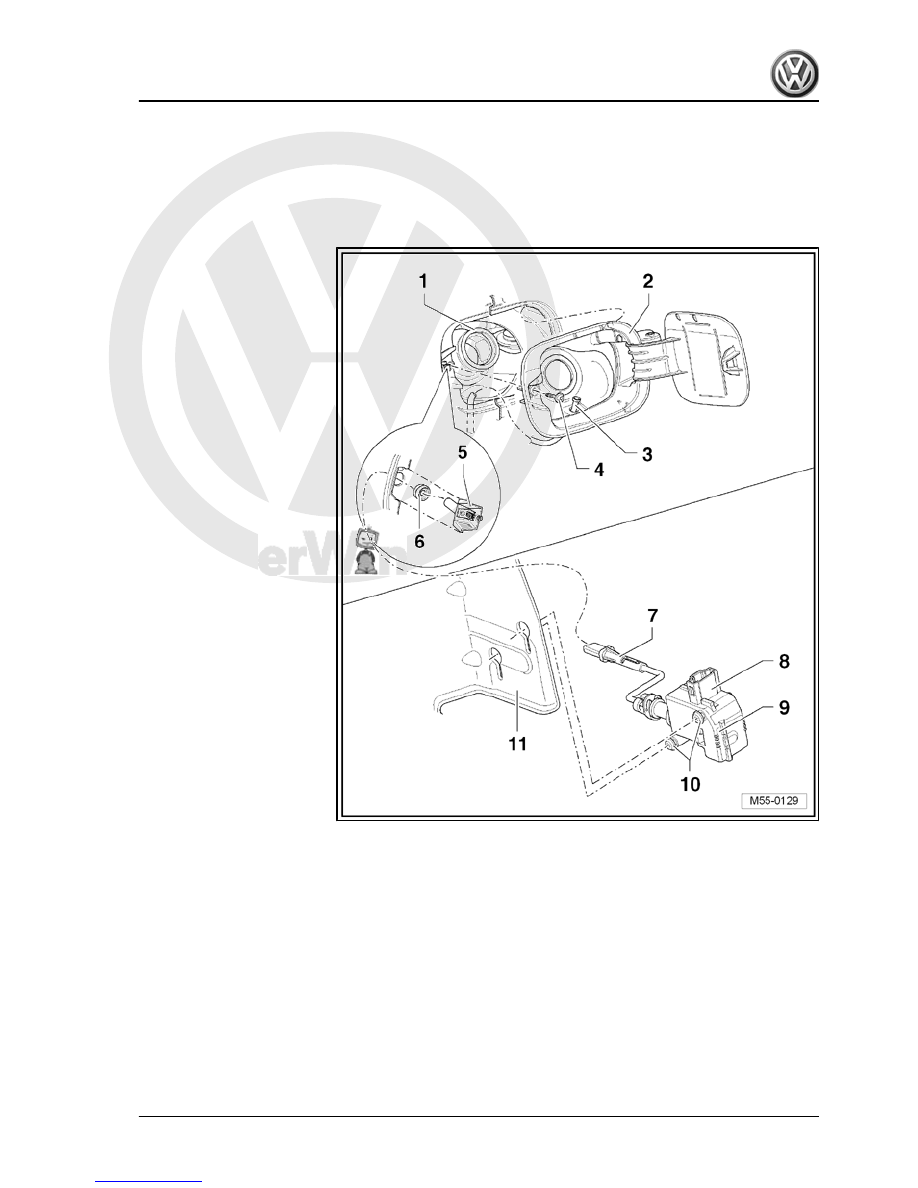

4.2

Removing and installing tank flap unit

4.2.1

Removing

Note

If fuel tank filler flap does not open, it can be opened by hand using the release rod -7-. Remove rear right

trim for this.

– Open fuel tank flap.
– Remove tank cap.
– Remove bolt -4-.

54



– Pull tank flap unit -2- with drain hose -3- to rear and swing fuel

tank flap unit out of side panel.

– Unclip assembly part -5- out of side panel and pull assembly

part off release rod -7-.

4.2.2

Installing

• The mounting part -5- has been pushed in.
– Feed drain hose -3- through aperture in tank flap unit -2- and

pull drain hose through as far as possible.

– Guide drain hose into side panel.
– With hinge side leading, guide tank flap unit -2- into side panel.
– Then swivel tank flap unit completely onto side panel.
Make sure that tank flap unit -2- locking devices engage correctly

in side panel at top and bottom.
– Pull rubber part of tank flap unit over filler neck and tighten bolt

-4-.

4. Fuel tank flap unit (saloon)

55

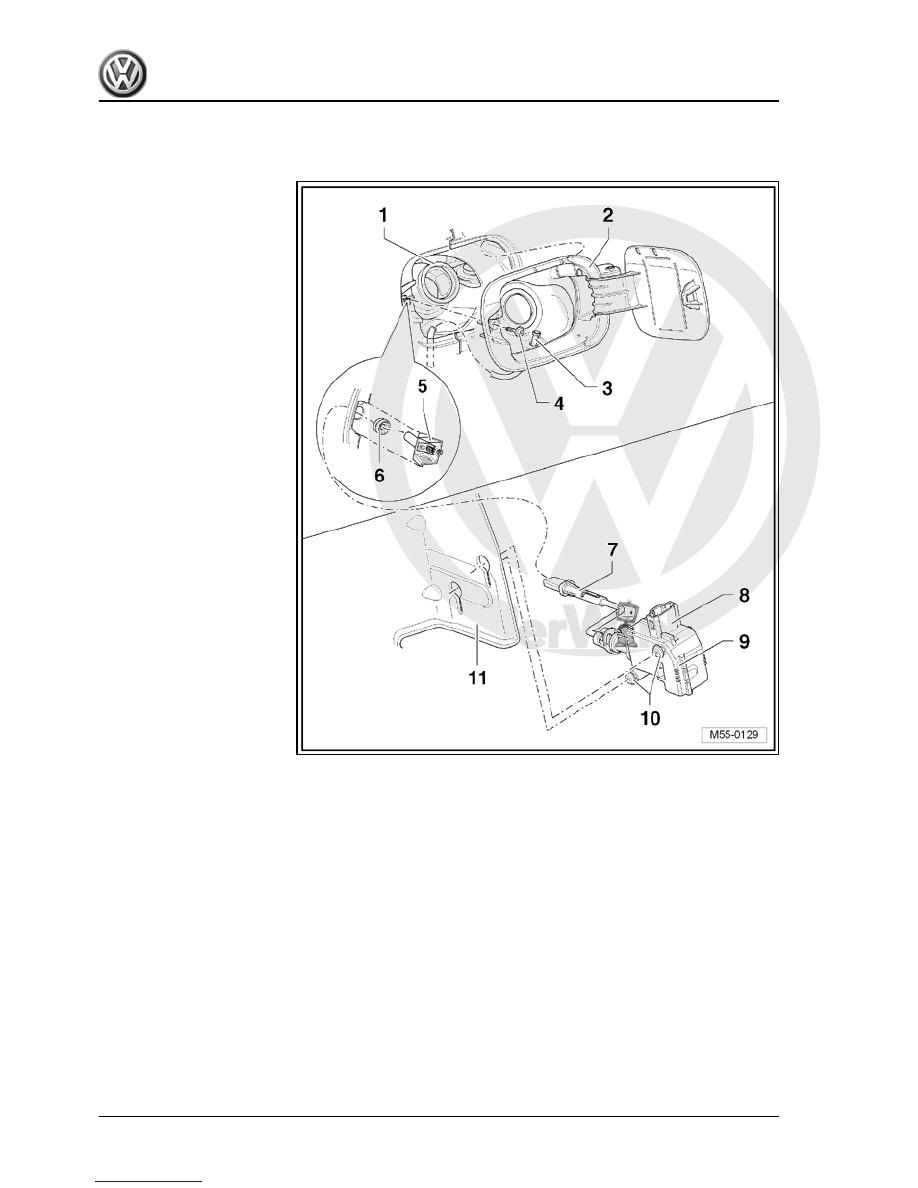

4.3

Removing and installing tank filler flap

locking motor -V155-

4.3.1

Removing

– Remove luggage compartment side trim on right ⇒  General

body repairs, interior; Rep. Gr.  70 ; Load area and luggage

compartment trim .

– Disconnect connector -8- on tank filler flap locking motor -

V155- -9-.

– Loosen bolts -10-.

56
