Note

Only the left side is shown. The right side is similar.

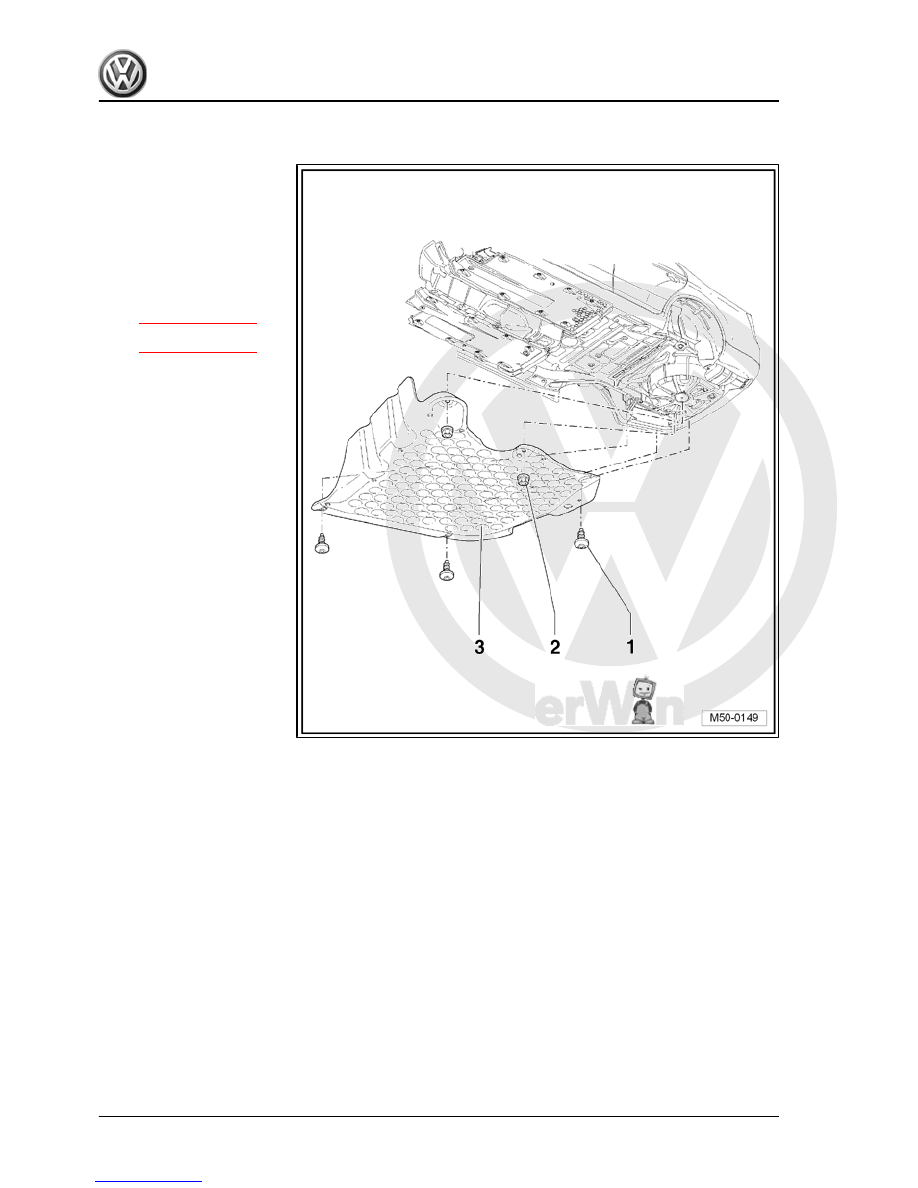

1 - Underbody cladding

❑ -Arrow- points forwards
❑ To remove, unbolt hex‐

agon nuts

⇒ Item 2 (page 13)

2 - Hexagon nut

❑ Qty. 8
❑ 1.5 Nm

3 - Cover

❑ To remove, unbolt bolts

⇒ Item 4 (page 13)

4 - Bolt

❑ Qty. 2
❑ 2 Nm

4. Underbody cladding

13



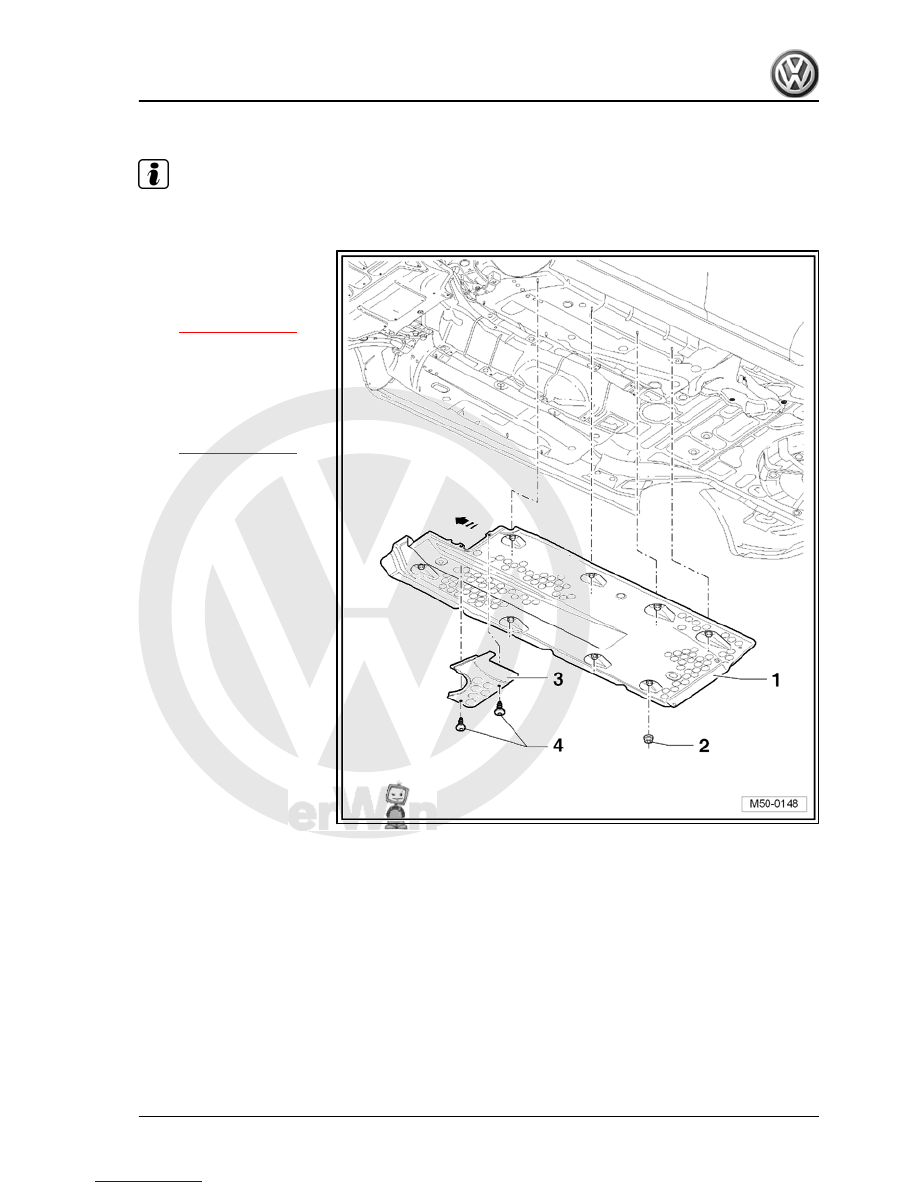

1 - Bolt

❑ Qty. 3
❑ 2 Nm

2 - Rear underbody cladding

❑ Installed only on right

side.

❑ To remove, remove

bolts

⇒ Item 1 (page 14)

 and

hexagon nuts

⇒ Item 3 (page 14)

3 - Hexagon nut

❑ Qty. 2
❑ 1.5 Nm

14



5.1

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

5.2

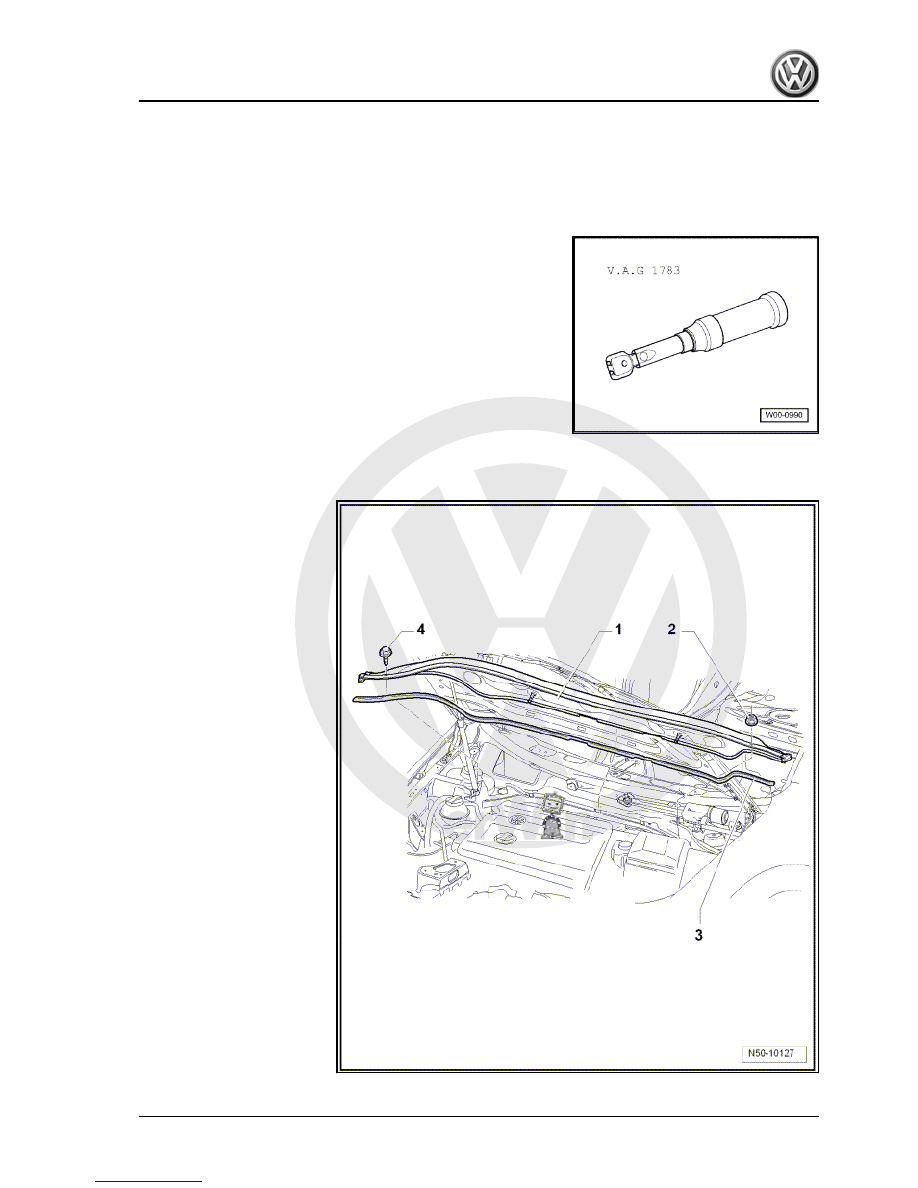

Assembly overview - plenum chamber bulkhead

1 - Plenum chamber bulkhead
2 - Hexagon nut

❑ 8 Nm

3 - Plenum chamber bulkhead

seal

❑ When installing bulk‐

head, ensure seal is cor‐

rectly seated.

4 - Bolt

❑ 8 Nm

5. Plenum chamber bulkhead

15



Bonnet

1.1

Tools

Special tools and workshop equipment required

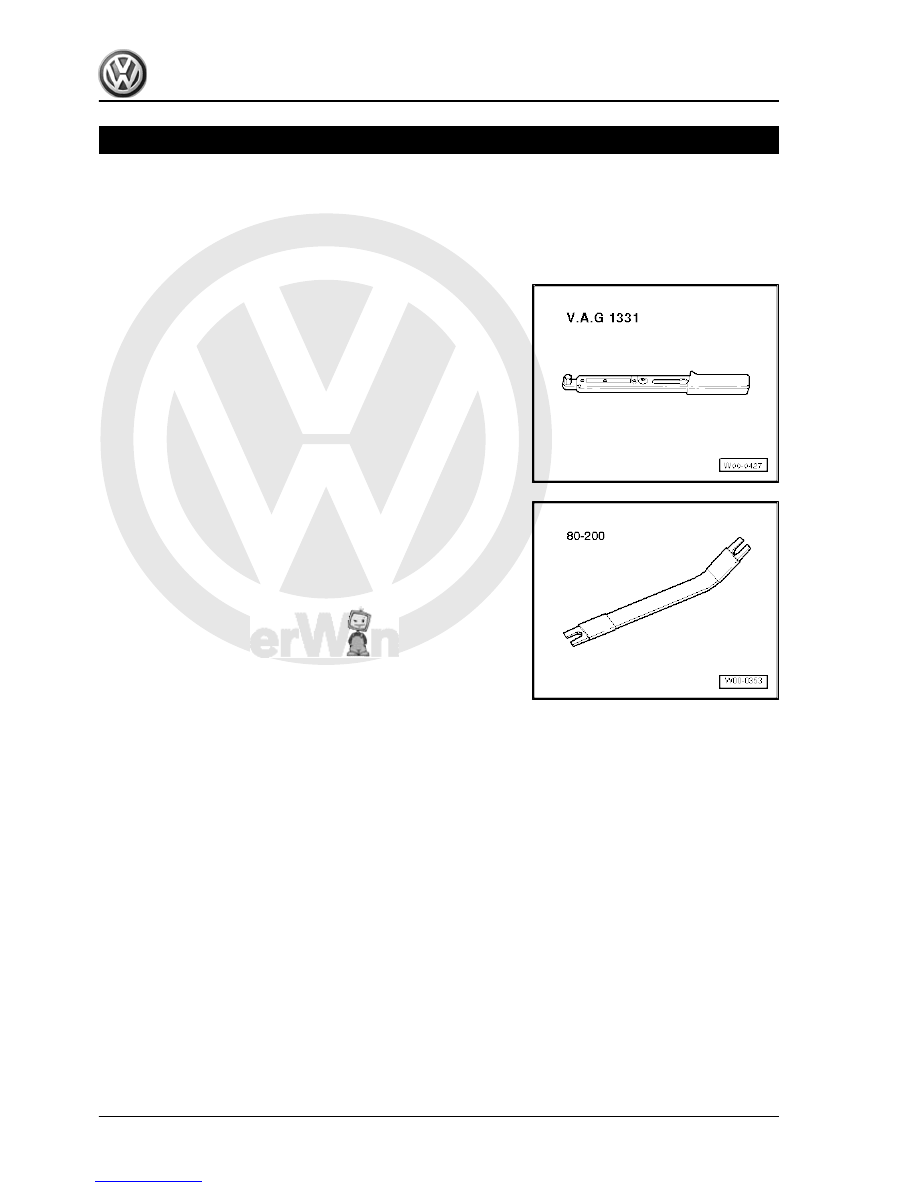

♦ Torque wrench -V.A.G 1331-

♦ Removal lever -80-200-

16
