Installing

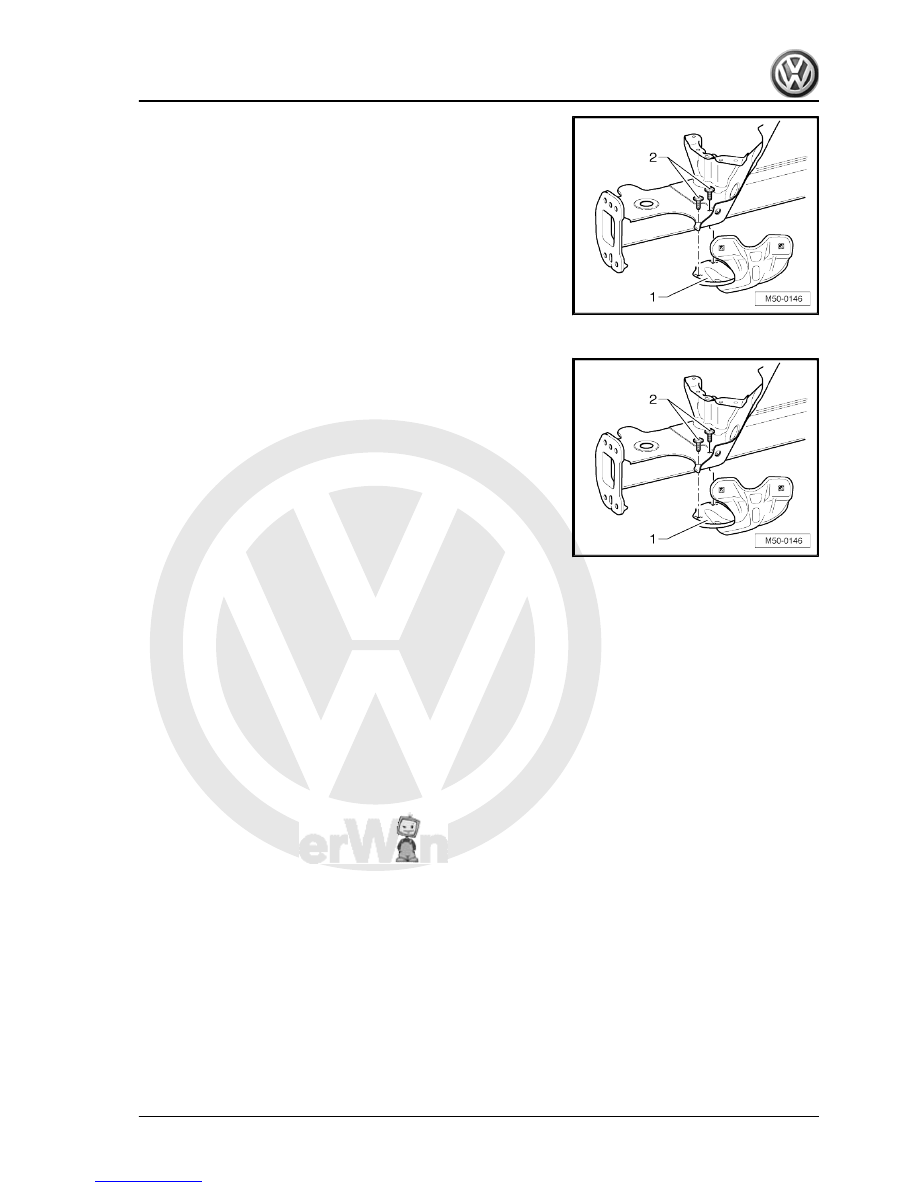

– Install wing bracket -1-.

Specified torque for bolts -2-: 6 Nm.

Wing and wing bracket must be aligned with bonnet and bumper

cover ⇒ Body Repairs; Rep. Gr.  00 ; Body dimensions .

2. Wing

9



3.1

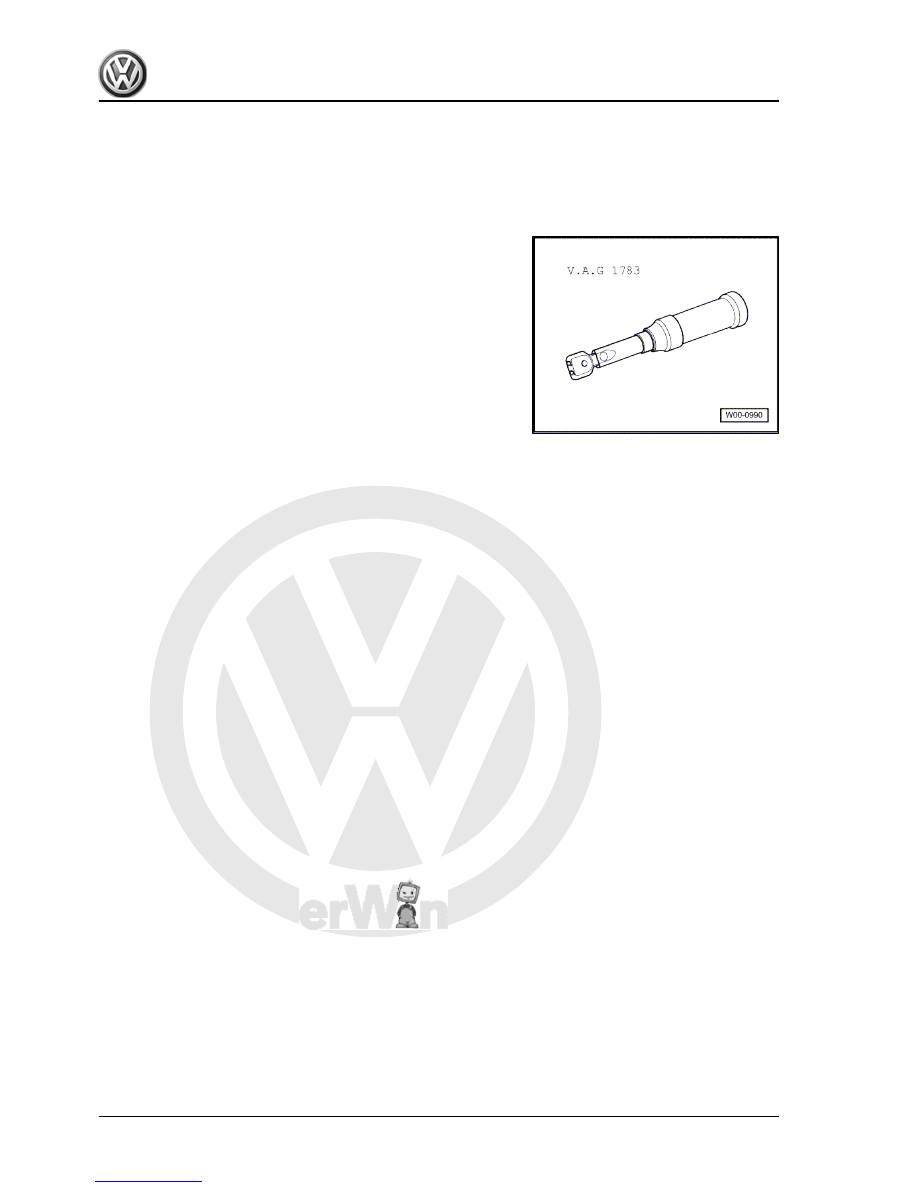

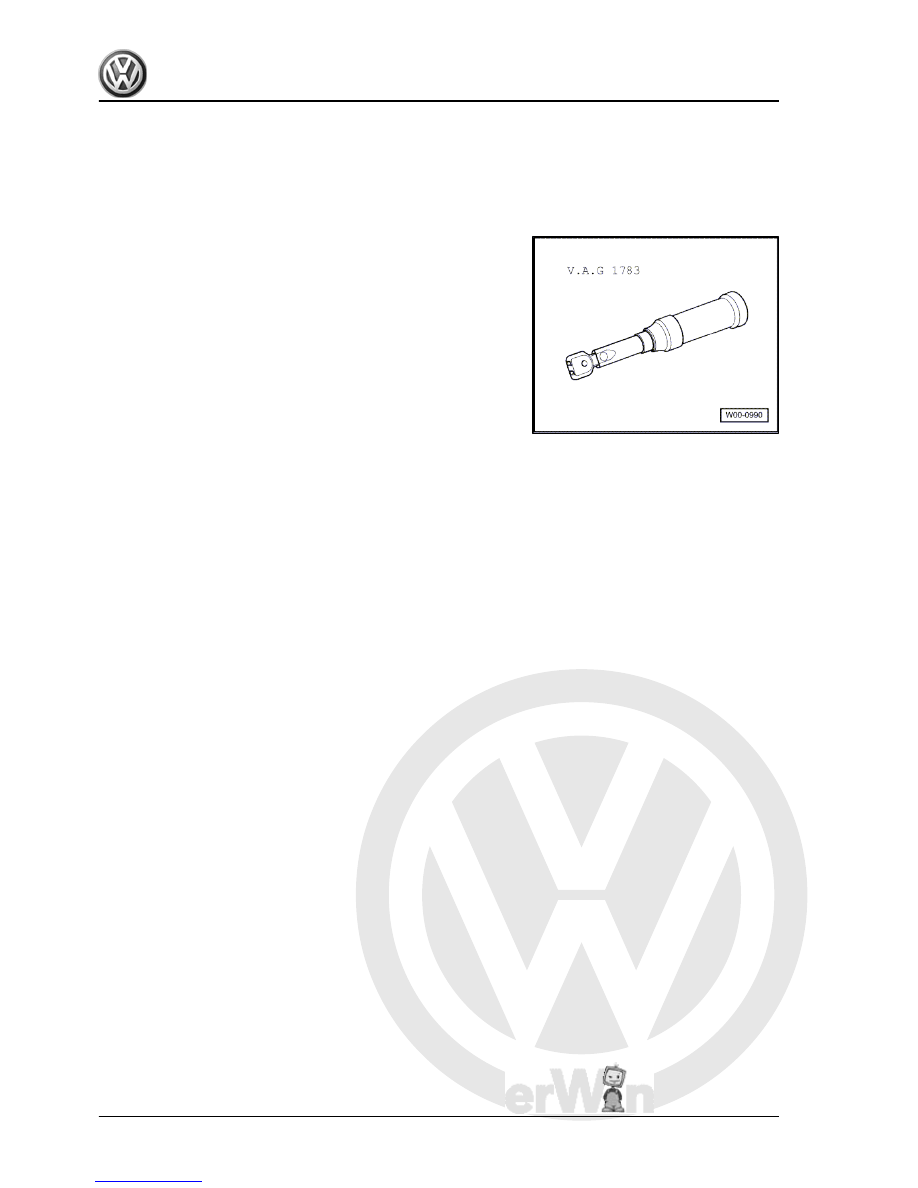

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

10



Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

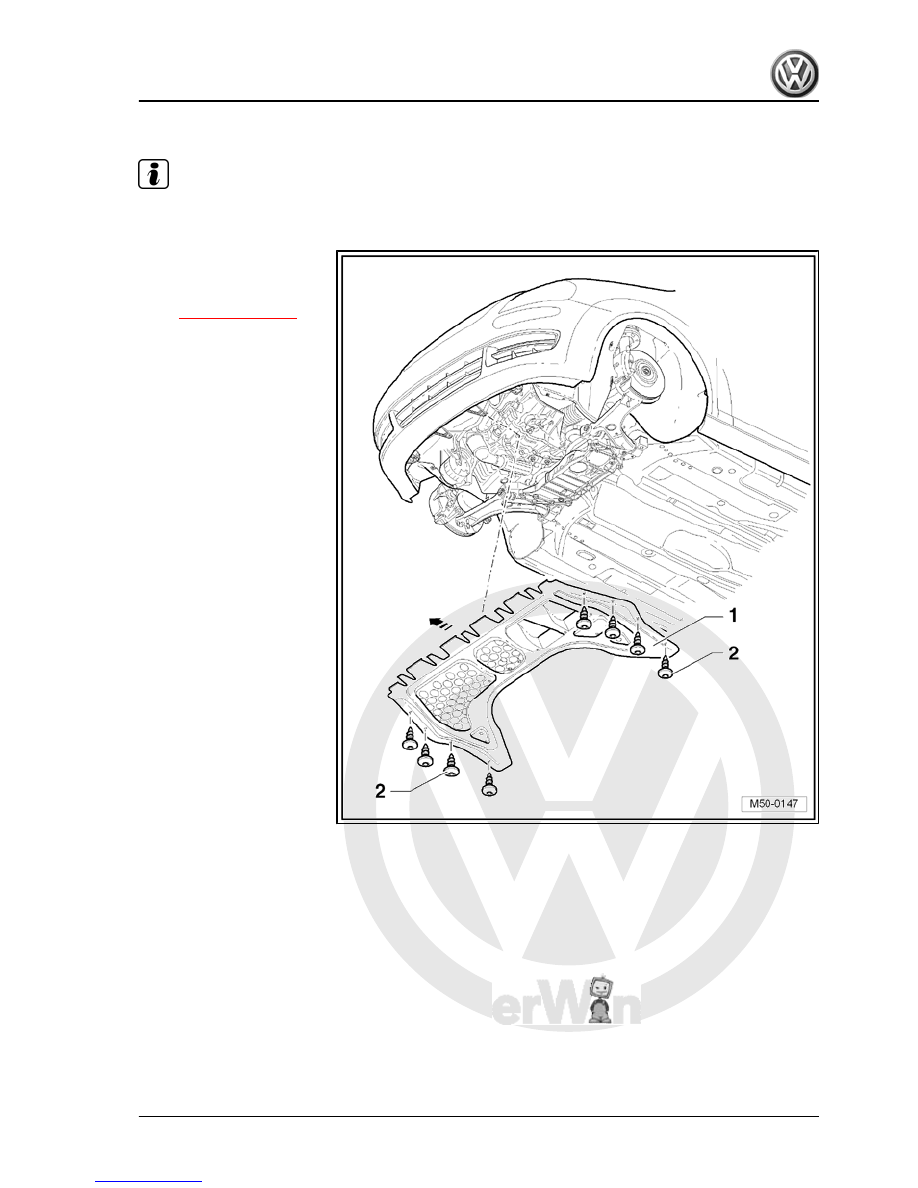

1 - Noise insulation

❑ -Arrow- points forwards
❑ To remove, unbolt bolts

⇒ Item 2 (page 11)

2 - Bolt

❑ Qty. 8
❑ 2 Nm

3. Noise insulation

11



4.1

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

12
