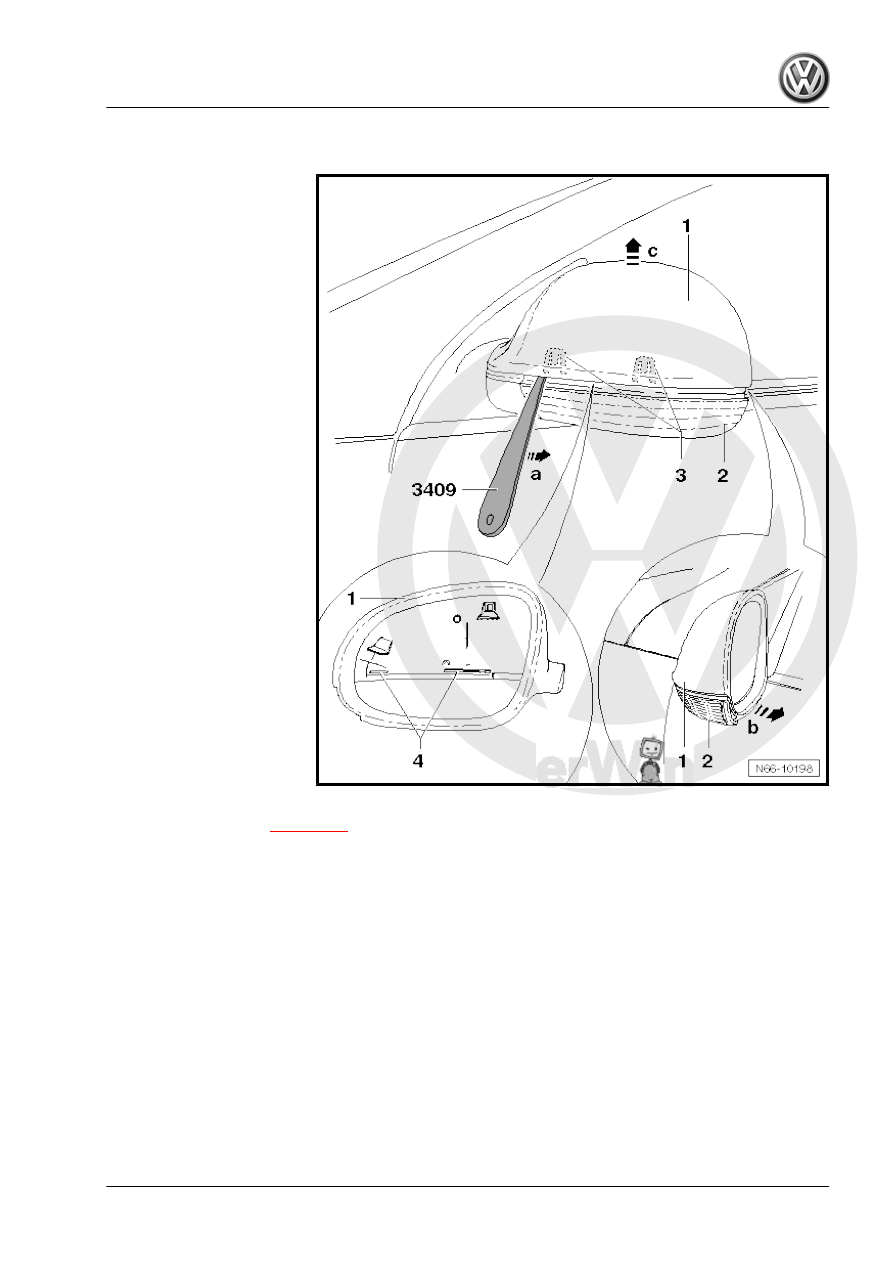

2.4.1

Removing

– Remove mirror glass

⇒ page 224

 .

– Insert removal wedge -3409- between mirror housing -1- and

side turn signal -2-.

– Move removal wedge -3409- in -direction of arrow a- along to

outer side of mirror.

– This releases latches for mirror housing -4- from locking hooks

-3-.

– Pull mirror housing -1- forwards off mirror mounting at front in

-direction of arrow b-.

– Remove mirror housing -1- upwards off mirror mounting in

-direction of arrow c-.

General body repairs, exterior - Edition 04.2008

2. Exterior mirror

225

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

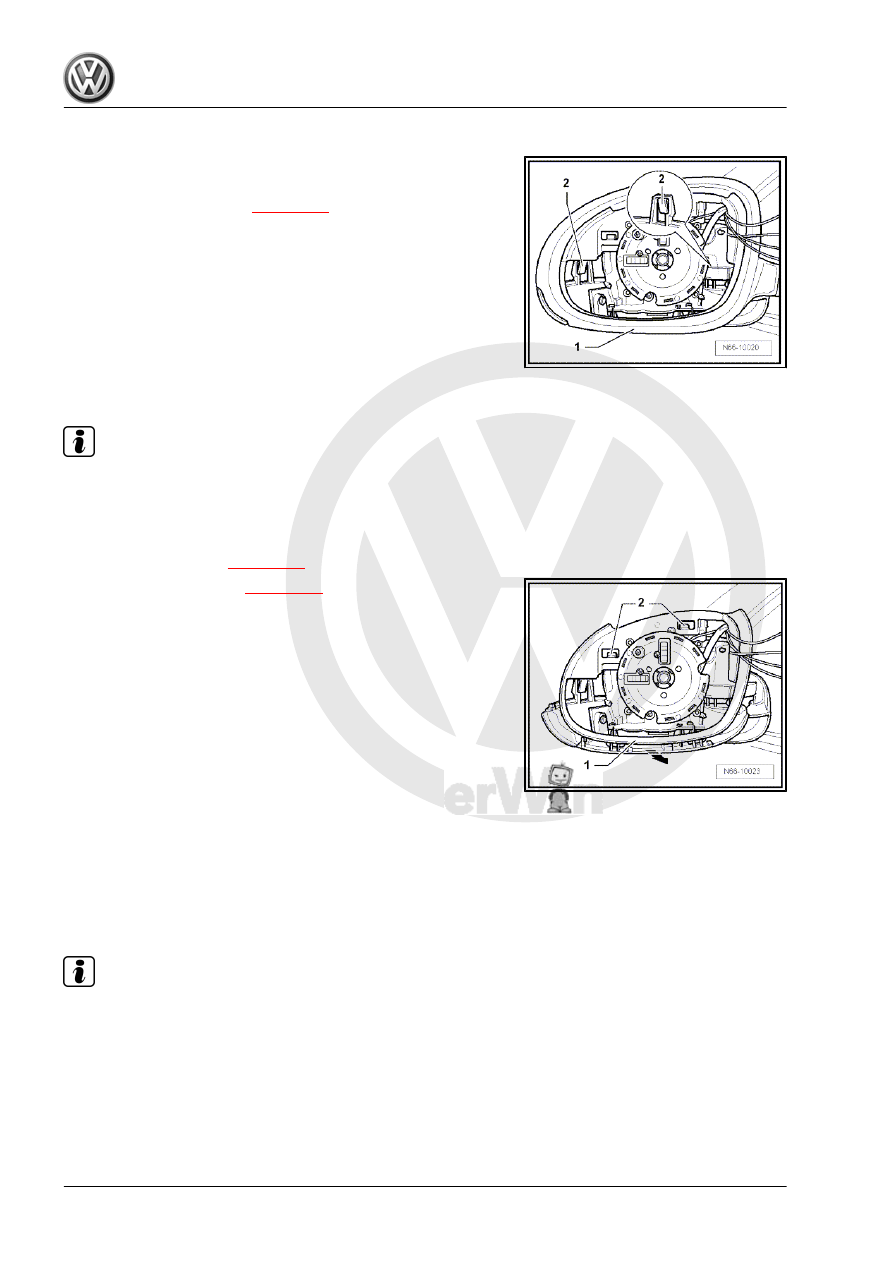

2.4.2

Installing

– Place mirror housing -1- on mirror base carrier and press mir‐

ror housing down until the locking hooks -2- engage audibly.

– Install mirror glass again

⇒ page 224

• Finally carry out a functional check.

2.5

Removing and installing trim

Note

The removal and installation sequence is only for the left trim

plate. The removal and installation of the right trim plate is similar.

2.5.1

Removing

– Remove mirror glass

⇒ page 224

 .

– Remove mirror housing

⇒ page 224

– Using a screwdriver lever locking hooks -2- out of mirror base

carrier.

– Pull trim plate -1- off in -direction of arrow-.

2.5.2

Installing

Installation is carried out in reverse order of removal.
• Finally carry out a functional check.

2.6

Removing and installing side turn sig‐

nals

Note

The removal and installation sequence is only for the left side

mounted turn signal. The removal and installation of the right

side mounted turn signal is similar.

There are no conventional bulbs but rather durable light emit‐

ting diodes (LEDs) installed in the side turn signals.

Therefore, changing bulbs is not necessary. In case of dam‐

age, the entire turn signal must be renewed.

General body repairs, exterior - Edition 04.2008

226

     Rep. Gr.66 - Exterior equipment

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

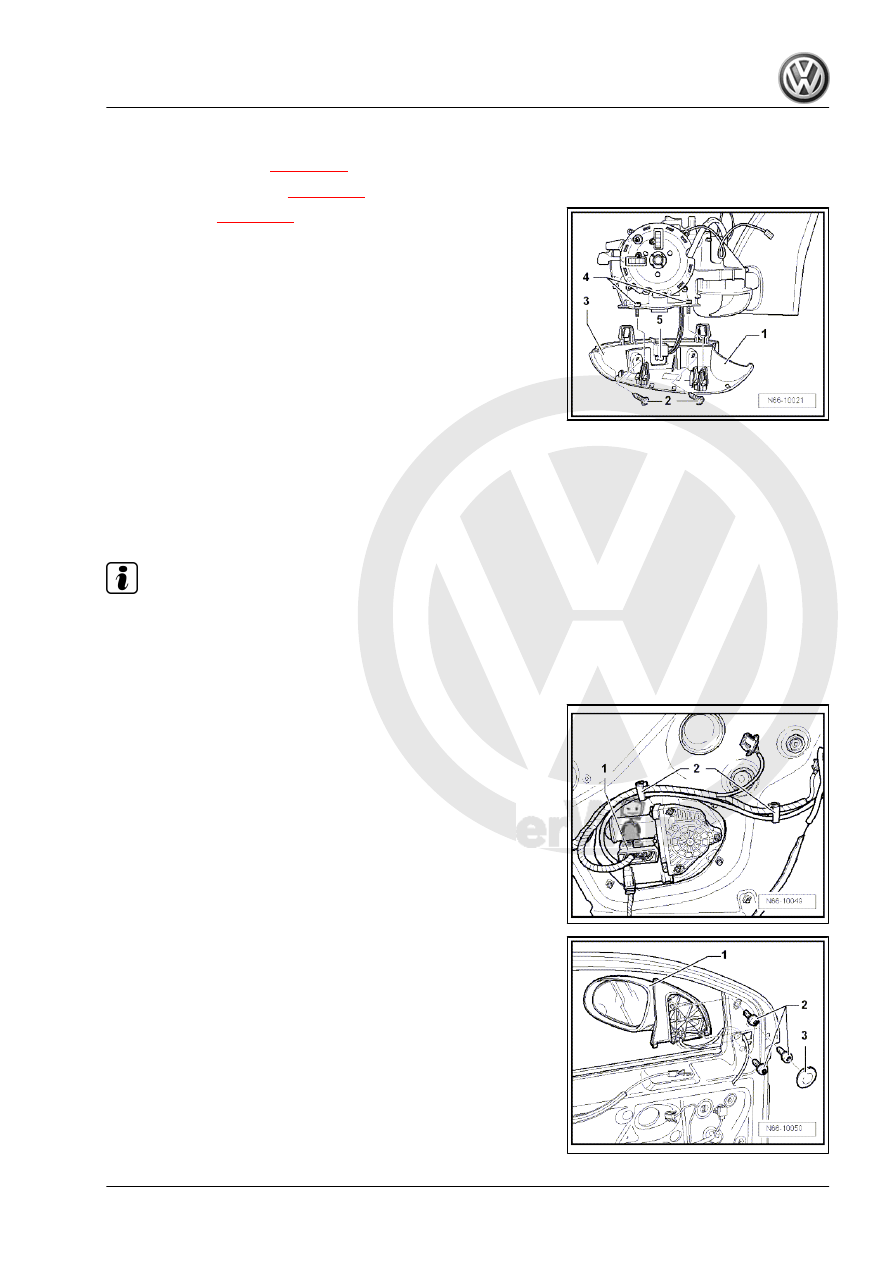

2.6.1

Removing

– Remove mirror glass

⇒ page 223

 .

– Remove mirror housing

⇒ page 224

– Remove trim

⇒ page 226

 .

– Remove bolts -4- and remove assembly piece -1- downwards.
– Detach connector -5- from turn signal -3-.
– Remove bolts -2- and take turn signal -3- off assembly piece

-1-.

2.6.2

Installing

Installation is carried out in reverse order of removal.
• Finally carry out a functional check.

2.7

Removing and installing exterior mirror

Note

The removal and installation sequence is only for the left exterior

mirror. The removal and installation of the right exterior mirror is

similar.

2.7.1

Removing

– Remove front door trim on driver side ⇒  General body repairs,

interior; Rep. Gr.  70 ; Trims, insulation; Removing and instal‐

ling front door trim on driver side .

– Release cable retainer -2- and detach connector -1- for exte‐

rior mirror.

– Lever cap -3- out of door and remove bolts -2-.
– Remove exterior mirror -1- and guide wire through aperture in

door.

General body repairs, exterior - Edition 04.2008

2. Exterior mirror

227

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.7.2

Installing

Installation is carried out in reverse order of removal.
– Specified torque for exterior mirror bolts: 8 Nm
• Test function before installing door trim.

General body repairs, exterior - Edition 04.2008

228
