Volkswagen Golf / Golf Plus. Manual - part 274





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

66 – Exterior equipment

1

Wheel housing liner

1.1

Tools

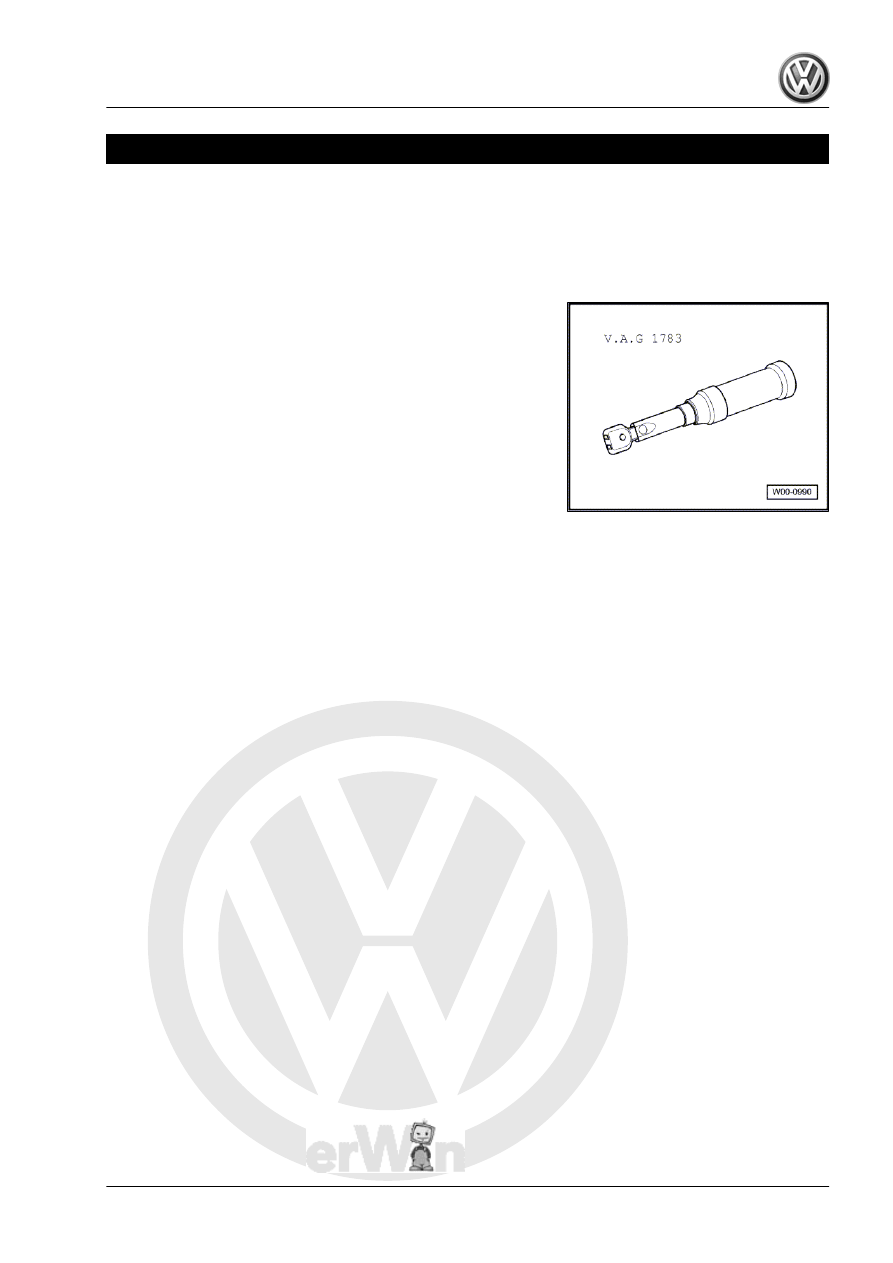

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

General body repairs, exterior - Edition 04.2008

1. Wheel housing liner

217

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.2

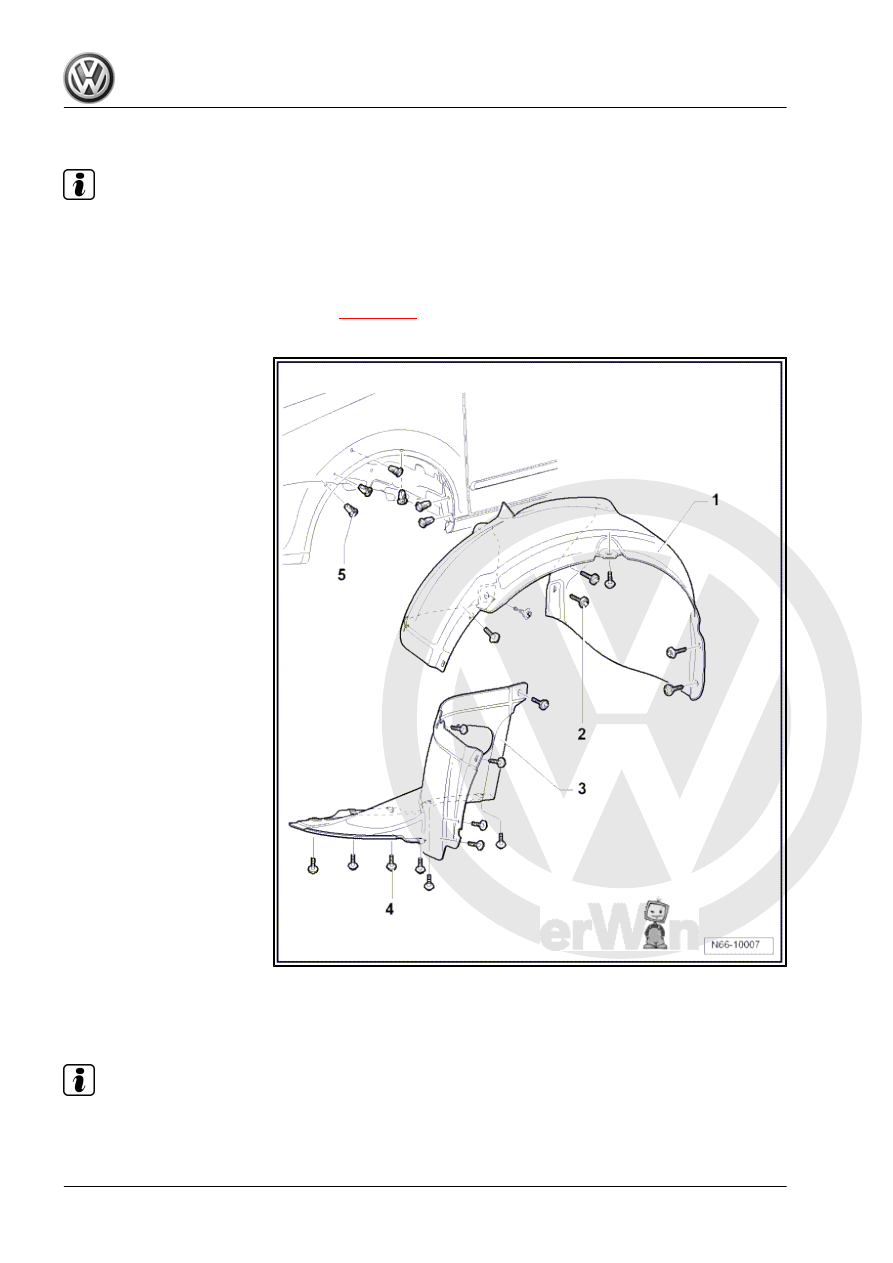

Assembly overview - front wheel housing liner

Note

Only the left side is shown. The procedure for the right side is similar.

The removal and installation procedures may have to be modified slightly depending on variations in equip‐

ment.

The wheel housing liner consists of a front and a rear part.

Vehicles with vermin repellent system

⇒ page 276

 .

1 - Wheel housing liner rear

part

❑ Material: PP/EPDM

2 - Bolt

❑ Qty. 7
❑ 2 Nm

3 - Wheel housing liner front

part

❑ Material: PP/EPDM

4 - Bolt

❑ Qty. 11
❑ 2 Nm

5 - Spreader nut

❑ Qty. 6

1.3

Removing and installing front wheel

housing liner

Note

The removal and installation sequence is only for the left wheel

housing liner. Removal and installation of the right wheel housing

liner are similar.

General body repairs, exterior - Edition 04.2008

218

     Rep. Gr.66 - Exterior equipment

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

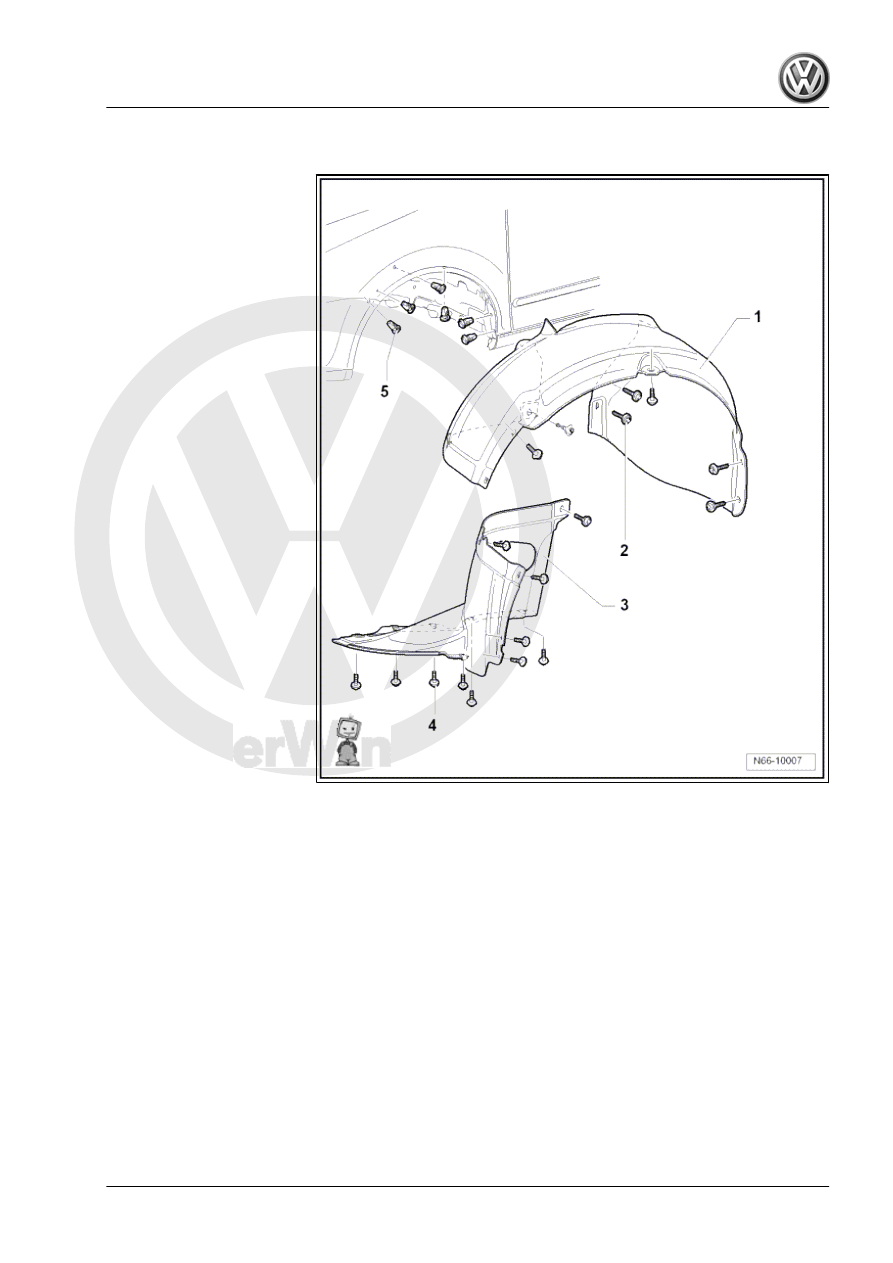

1.3.1

Removing

Wheel housing liner rear part
– Remove wheel ⇒  Running gear; Rep. Gr.  44 ; Specified tor‐

ques for wheel bolts .

– Remove bolts -2- (Qty 7).
– Pull off rear part of wheel housing liner -1-.
Wheel housing liner front part
– Remove bolts -4- (Qty 11).
– Pull off front part of wheel housing liner -3-.

1.3.2

Installing

Installation is carried out in reverse order of removal.

General body repairs, exterior - Edition 04.2008

1. Wheel housing liner

219

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.4

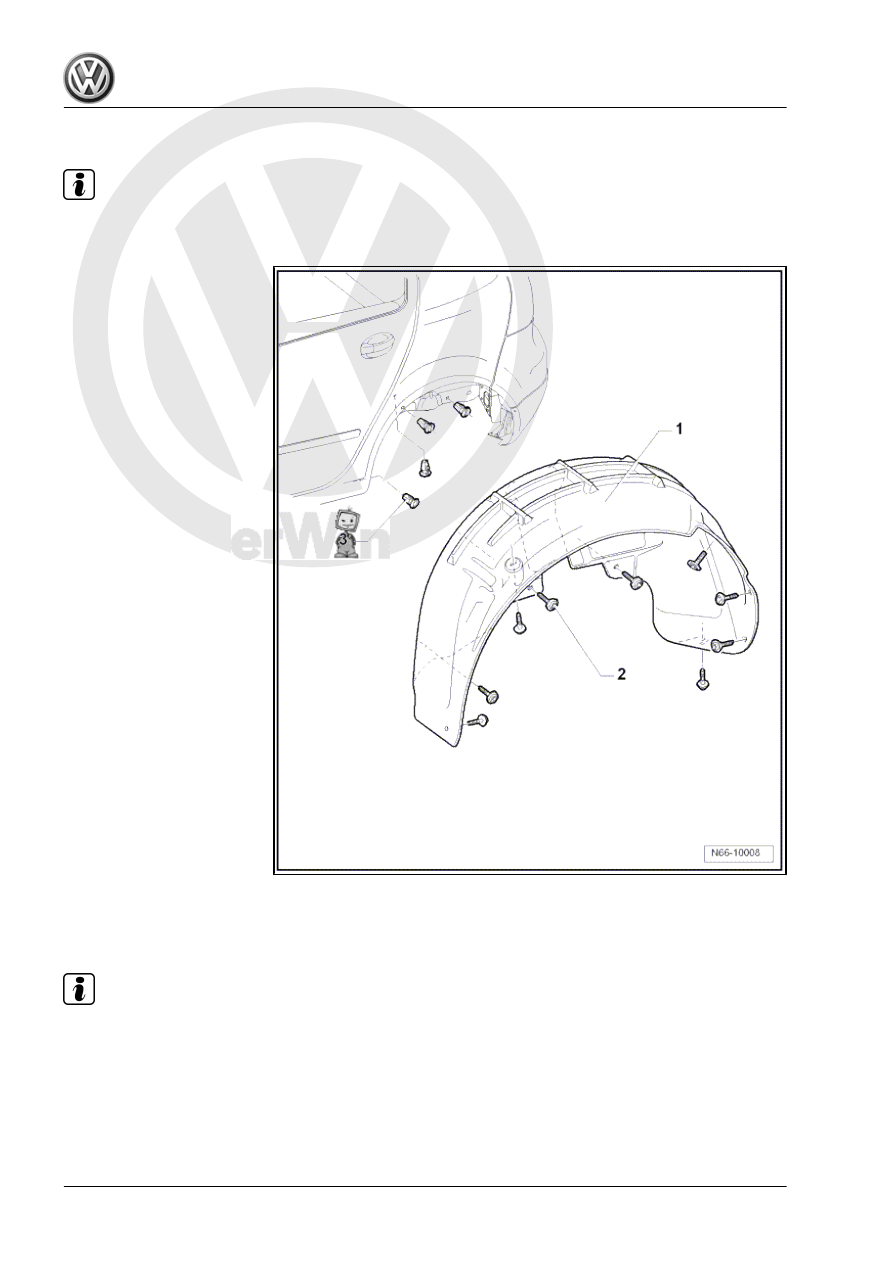

Assembly overview - rear wheel housing liner

Note

Only the left side is shown. The procedure for the right side is similar.

1 - Wheel housing liner

❑ Material: PP/EPDM

2 - Bolt

❑ Qty. 9
❑ 2 Nm

3 - Spreader nut

❑ Qty. 4

1.5

Removing and installing rear wheel

housing liner

Note

The removal and installation sequence is only for the left wheel

housing liner. Removal and installation of the right wheel housing

liner are similar.

General body repairs, exterior - Edition 04.2008

220

     Rep. Gr.66 - Exterior equipment
