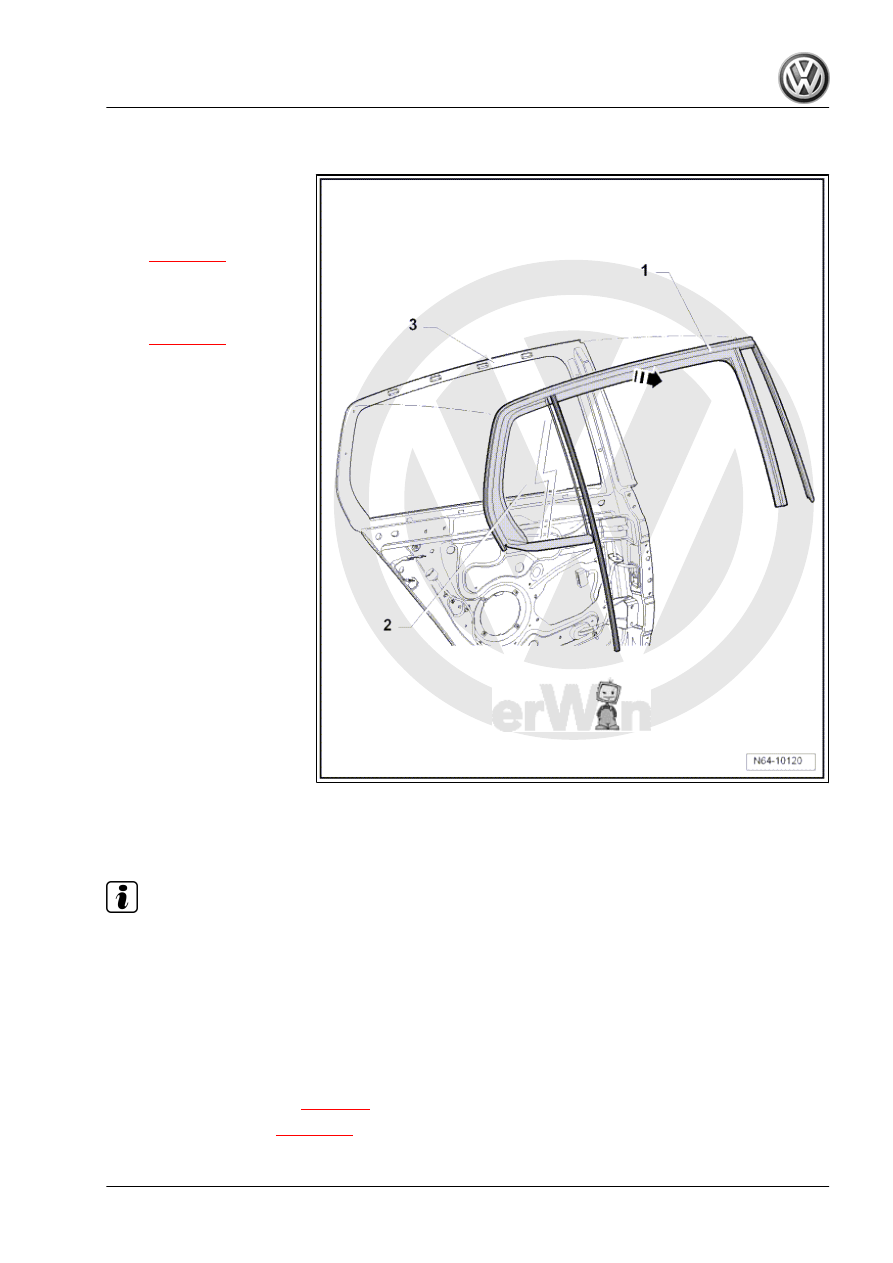

Assembly overview - fixed door window with window guide

1 - Window guide

❑ Component part of fixed

door window

❑ Removing and installing

⇒ page 209

2 - Fixed door window

❑ Part of widow guide
❑ Removing and installing

⇒ page 209

3 - Window frame on door inner

part

3.5

Removing and installing fixed door win‐

dow with window guide

Note

The removal and installation sequence is only for the right

fixed door window with window guide. The removal and in‐

stallation of the left fixed door window with window guide is

similar.

When door outer panel has been removed the spreader pin

and spreader plug to remove door window are accessible from

exterior.

3.5.1

Removing

– Remove door outer panel

⇒ page 94

 .

– Remove door window

⇒ page 206

 .

General body repairs, exterior - Edition 04.2008

3. Rear door windows

209

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

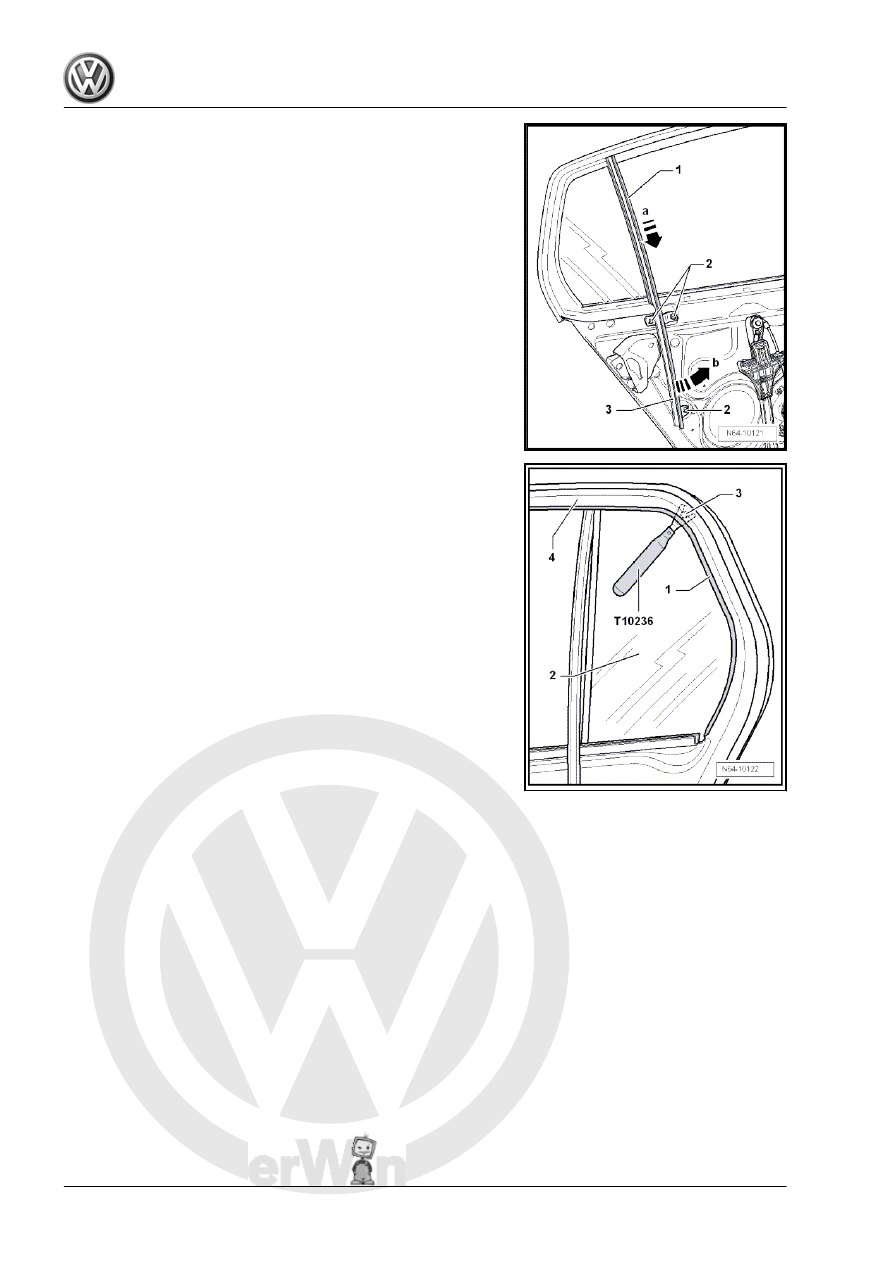

– Pull window guide -1- out of centre rib -3- and guide window

guide inwards.

– Remove bolts -2- and slide centre rib -3- downwards

-arrow a-.

– Pull centre rib -3- off fixed door window seal -arrow b-.

– Release window guide -1- with fixed door window -2- inside

and outside off window frame -4-.

– Using release tool -T 10236- release locking lugs on guide pin

-3- in window frame -4-.

General body repairs, exterior - Edition 04.2008

210

     Rep. Gr.64 - Glazing

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

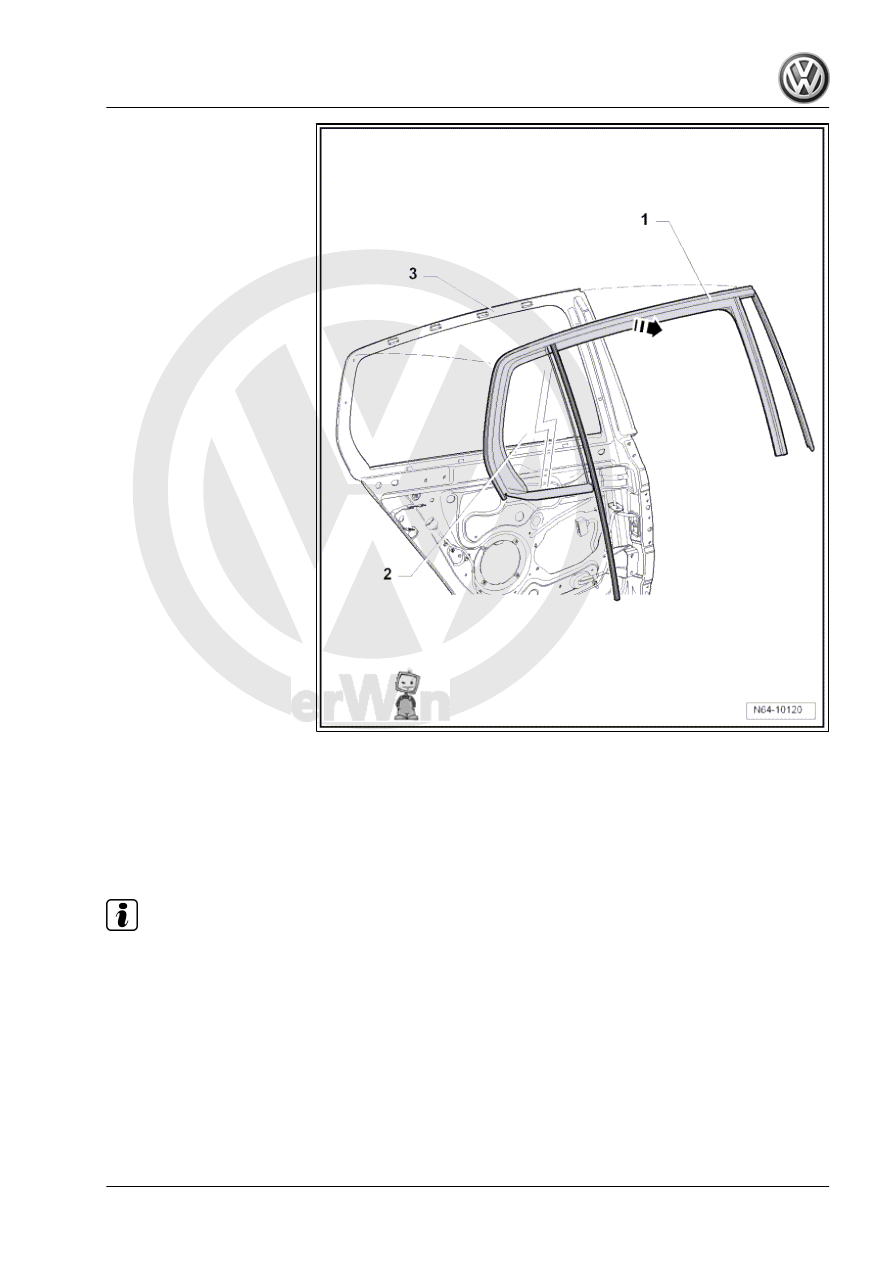

– Pull complete window guide -1- with fixed door window -2- off

window frame -3- in -direction of arrow-.

3.5.2

Installing

Installation is carried out in reverse order of removal.
Specified torque for bolts on middle frame: 5.5 Nm

Note

When installing fixed door window with window guide ensure it is

seated uniformly (wind noise).

General body repairs, exterior - Edition 04.2008

3. Rear door windows

211

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.6

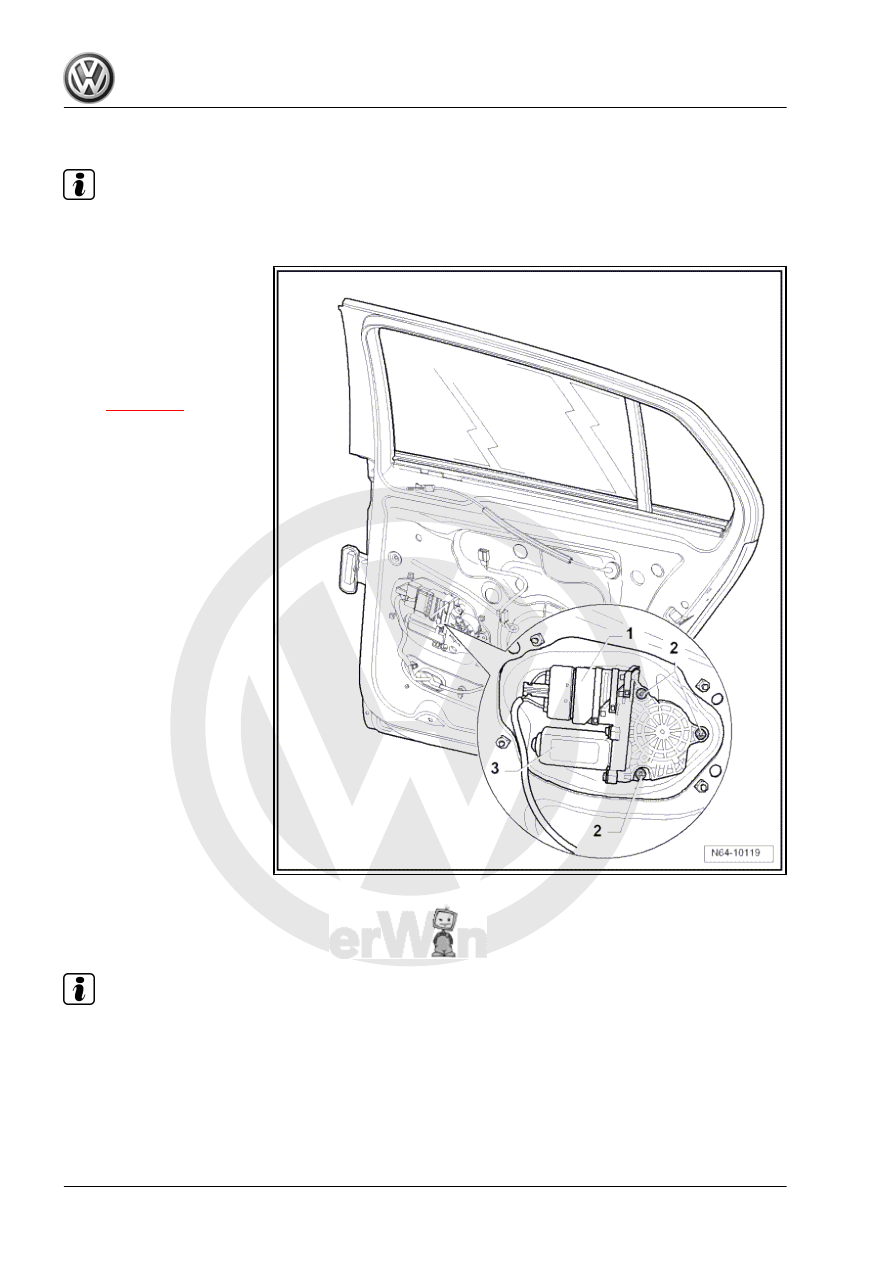

Assembly overview - window regulator motor

Note

The right side is shown. The left side is similar.

1 - Connector
2 - Bolt

❑ Qty. 3
❑ 3.5 Nm

3 - Window regulator motor

❑ Removing and installing

⇒ page 212

3.7

Removing and installing window regula‐

tor motor

Note

The removal and installation sequence is only for the right door

window regulator. The removal and installation of the left door

window regulator is similar.

The window regulator motor can also be removed with mount‐

ing plate when door outer panel is removed.

General body repairs, exterior - Edition 04.2008

212

     Rep. Gr.64 - Glazing
