3.7.1

Removing

– Removing door trim ⇒  General body repairs, interior; Rep. Gr.

70 ; Trims, insulation; Door trims .

– Secure door window against sliding down with adhesive tape.

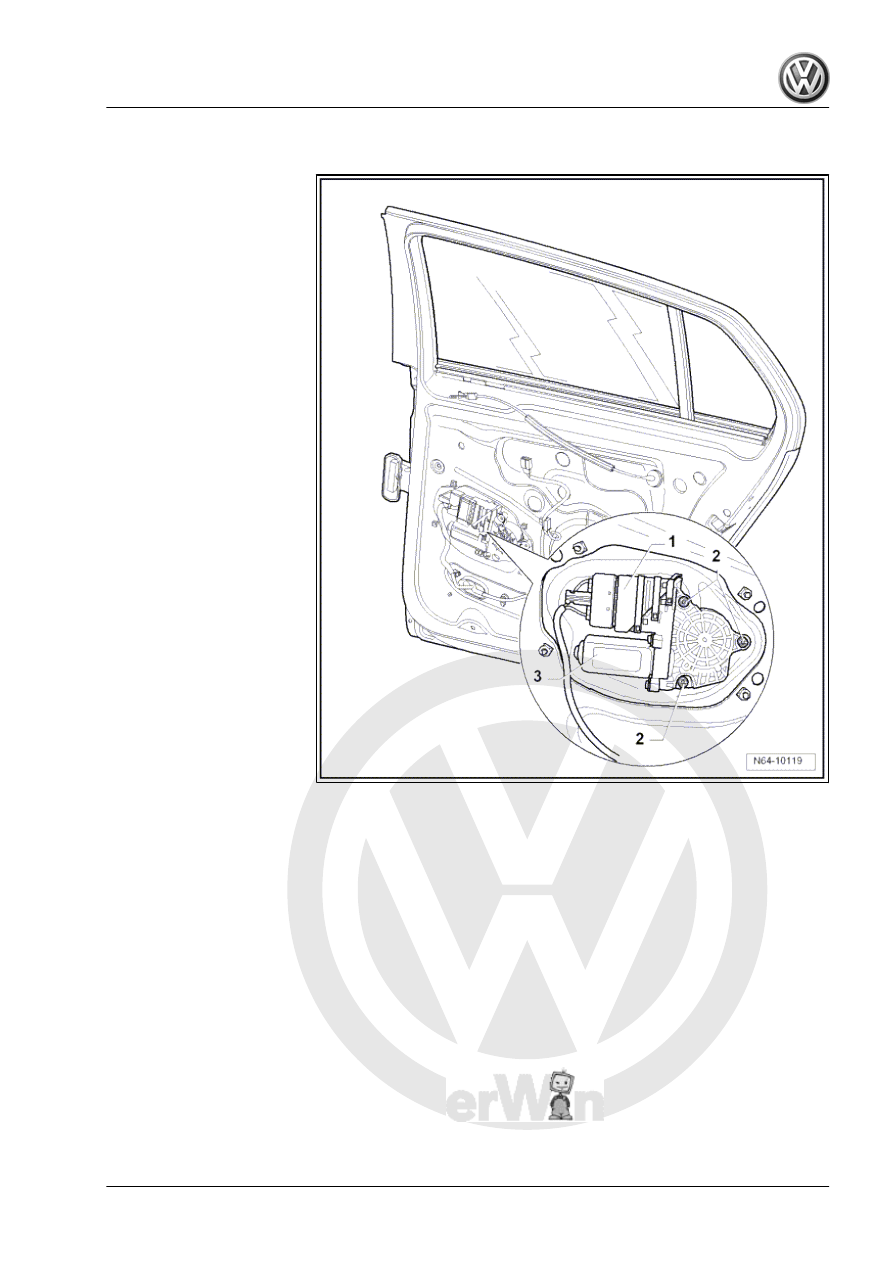

– Remove the three bolts -2-.
– Disconnect connector -1-.
– Remove window regulator motor and control unit -3- from

mounting plate.

General body repairs, exterior - Edition 04.2008

3. Rear door windows

213

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.7.2

Installing

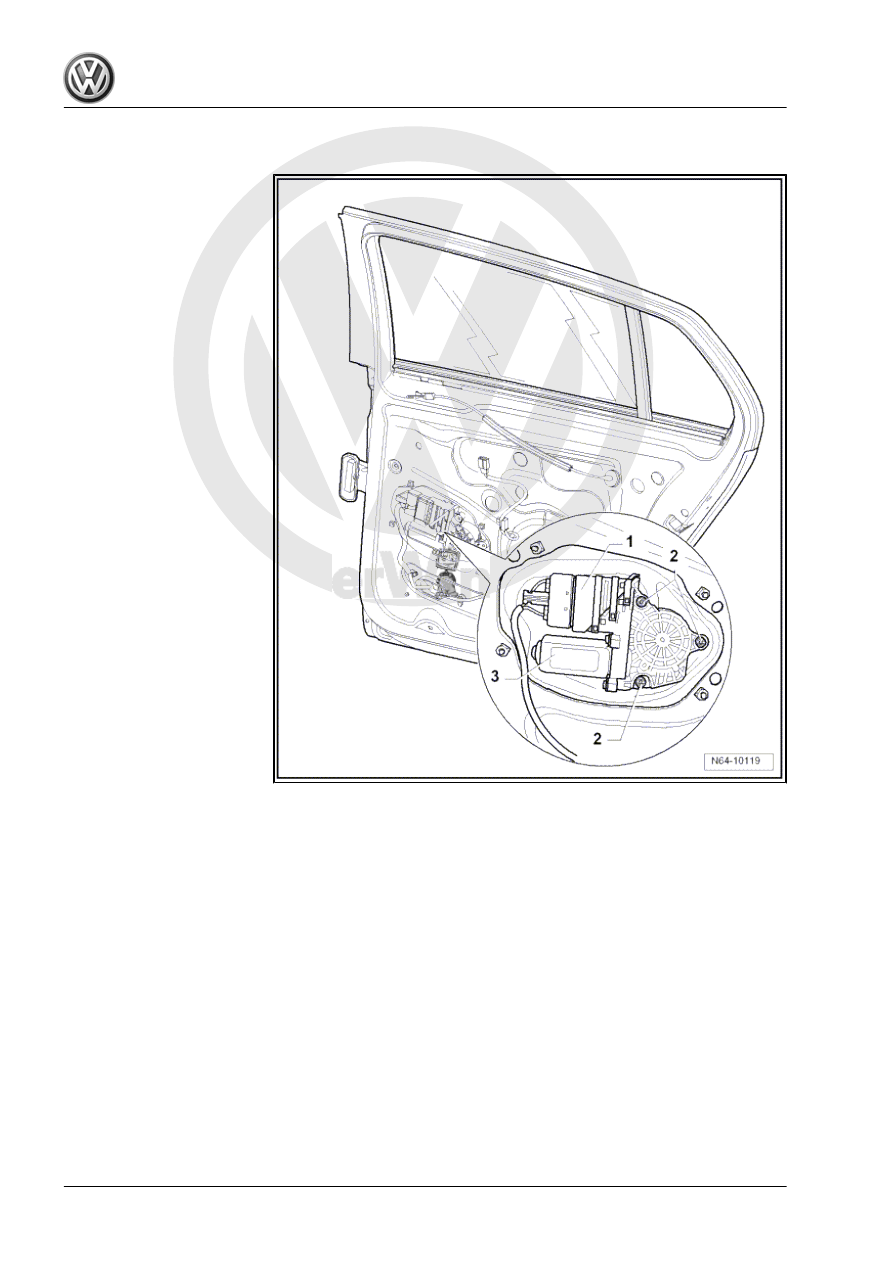

– Place window regulator motor -3- on and attach connector

-1-.

– Move door window lightly up and down so that the splines be‐

tween motor and cable drum engage easier.

– Tighten window regulator motor bolts -2-.
– Specified torque for bolts -2- 3.5 Nm
– Run window twice to upper stop and then down to lower stop.

This normalises and readies the window, it also activates the

pinch/roll-back function.

Then perform remaining installation in reverse order of removal.

General body repairs, exterior - Edition 04.2008

214

     Rep. Gr.64 - Glazing

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.8

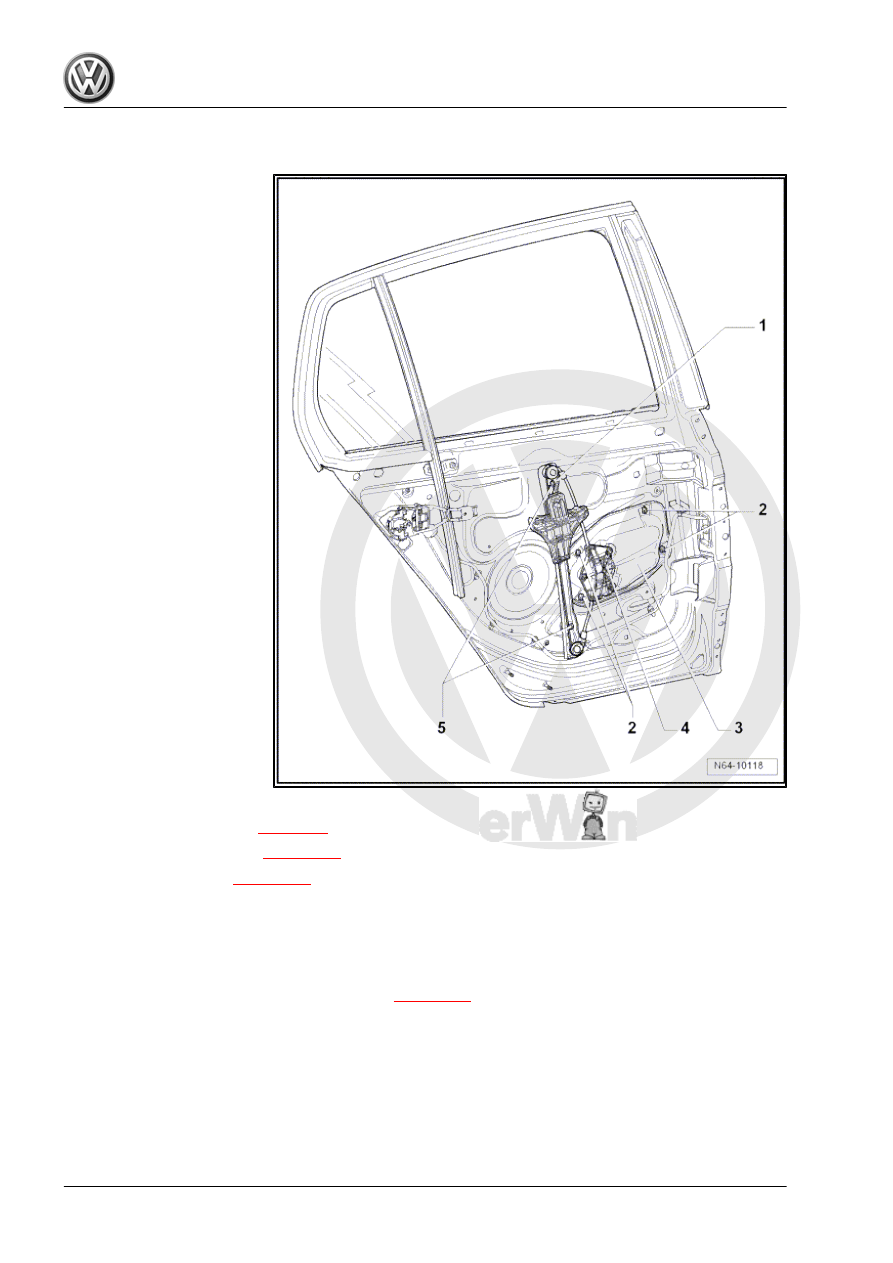

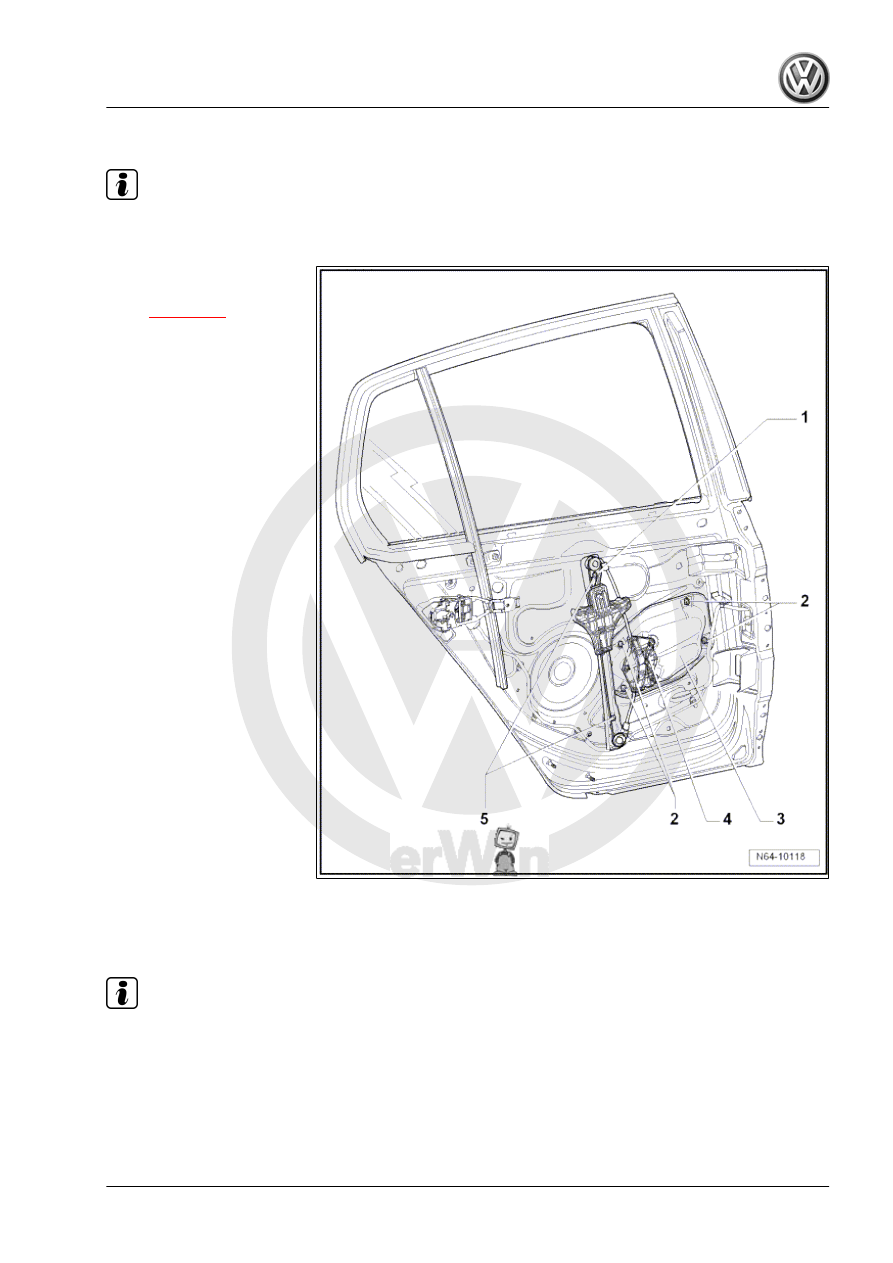

Assembly overview - window regulator

Note

The right side is shown. The left side is similar.

1 - Window regulator

❑ Removing and installing

⇒ page 215

2 - Bolt

❑ Qty. 4
❑ 8 Nm

3 - Mounting plate
4 - Drive
5 - Bolt

❑ Qty. 2
❑ 8 Nm

3.9

Removing and installing window regula‐

tor

Note

The removal and installation sequence is only for the right window

regulator. Removal and installation of the left window regulator is

similar.

General body repairs, exterior - Edition 04.2008

3. Rear door windows

215

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.9.1

Removing

– Remove door outer panel

⇒ page 94

 .

– Remove impact protection

⇒ page 111

– Remove door window

⇒ page 206

 .

– Remove bolts -2- from mounting plate -3-.
– Remove window regulator bolts -5-.
– Remove window regulator -1- with drive -4- and window reg‐

ulator motor mounting plate -3- off door inner part.

– Disconnect window regulator motor connector

⇒ page 213

3.9.2

Installing

Installation is carried out in reverse order of removal.
• Carry out functional check before installing door outer panel.

General body repairs, exterior - Edition 04.2008

216

     Rep. Gr.64 - Glazing
