Volkswagen Golf / Golf Plus. Manual - part 275





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.5.1

Removing

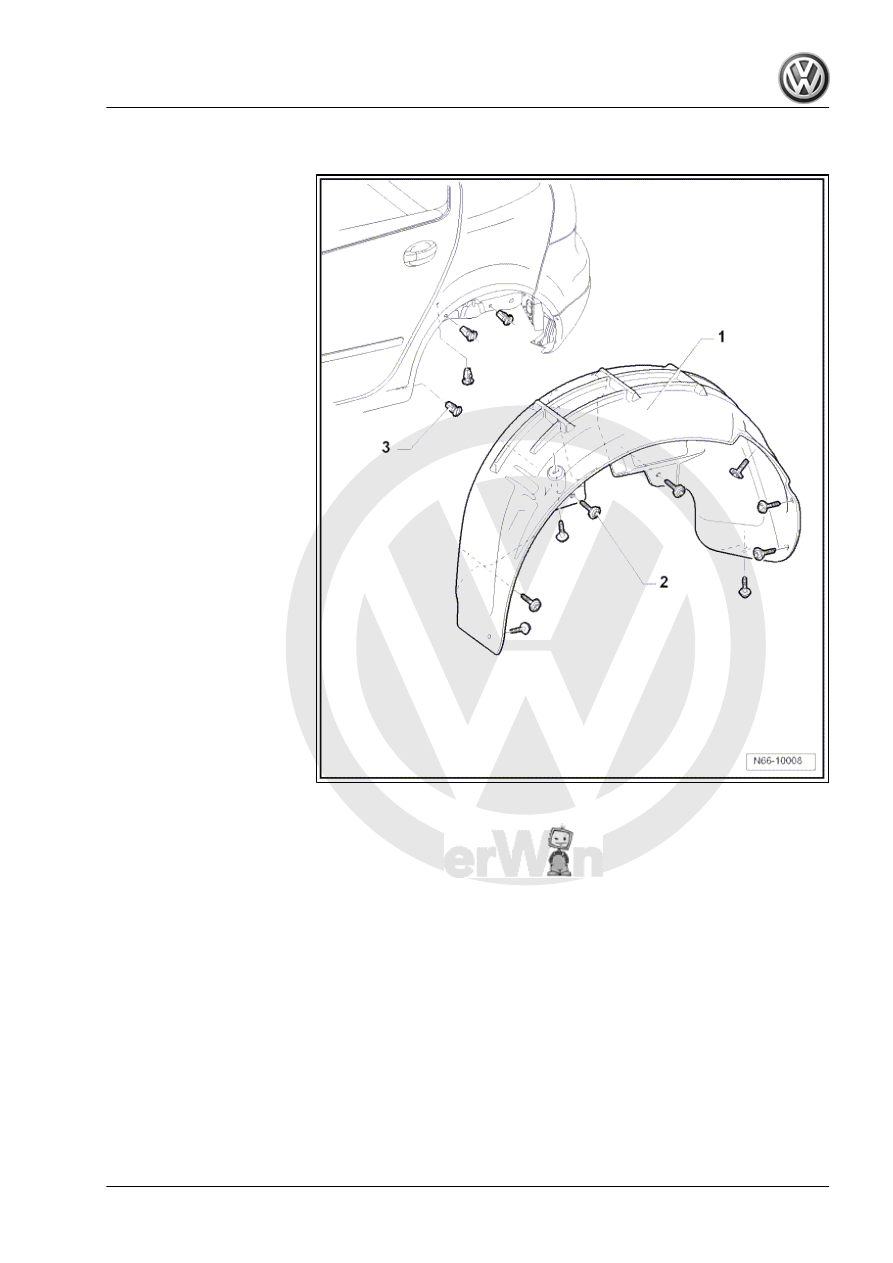

– Remove wheel ⇒  Running gear; Rep. Gr.  44 ; Specified tor‐

ques for wheel bolts .

– Remove bolts -2- (Qty 9).
– Pull off wheel housing liner -1-.

1.5.2

Installing

Installation is carried out in reverse order of removal.

General body repairs, exterior - Edition 04.2008

1. Wheel housing liner

221

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2

Exterior mirror

2.1

Tools

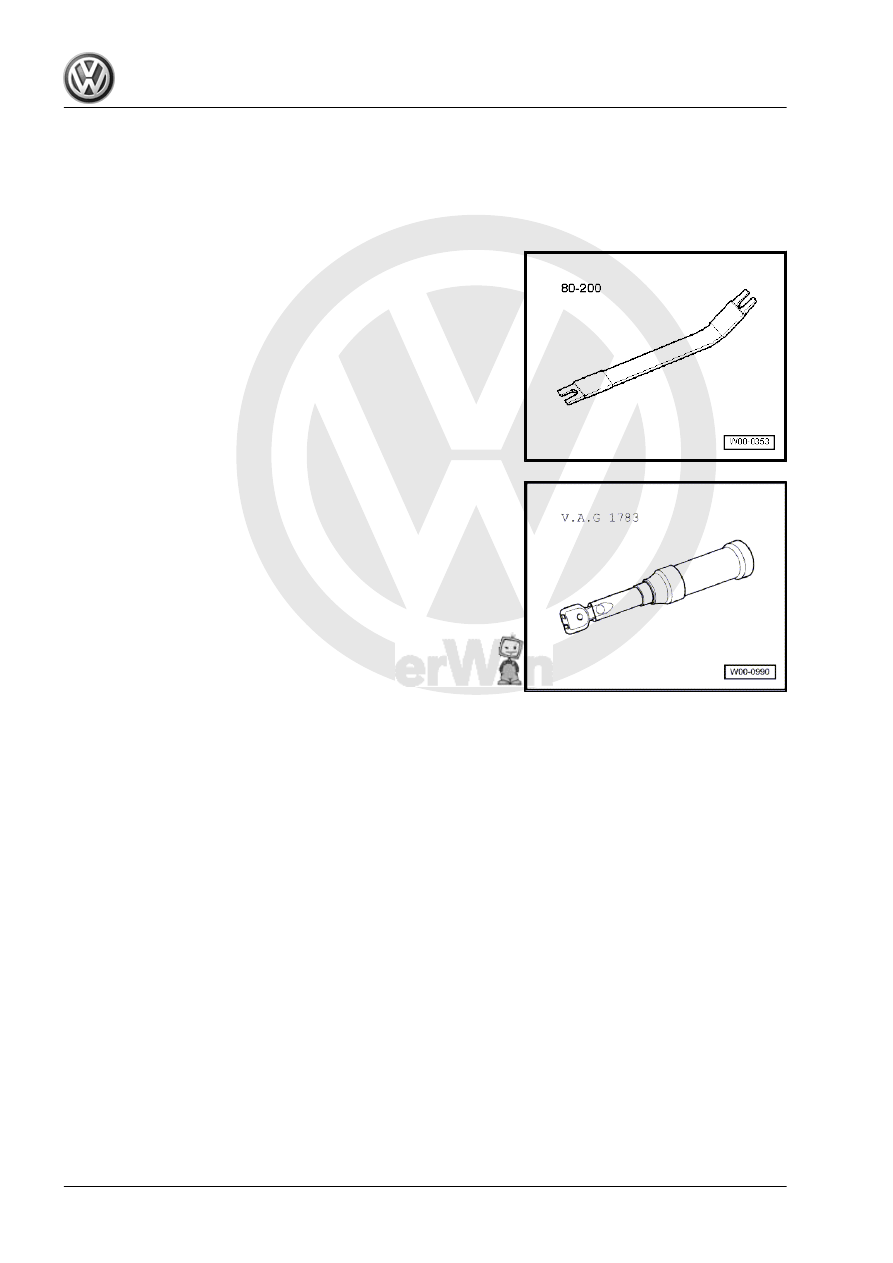

Special tools and workshop equipment required
♦ Removal lever -80-200-

♦ Torque wrench -V.A.G 1783-

General body repairs, exterior - Edition 04.2008

222

     Rep. Gr.66 - Exterior equipment

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.2

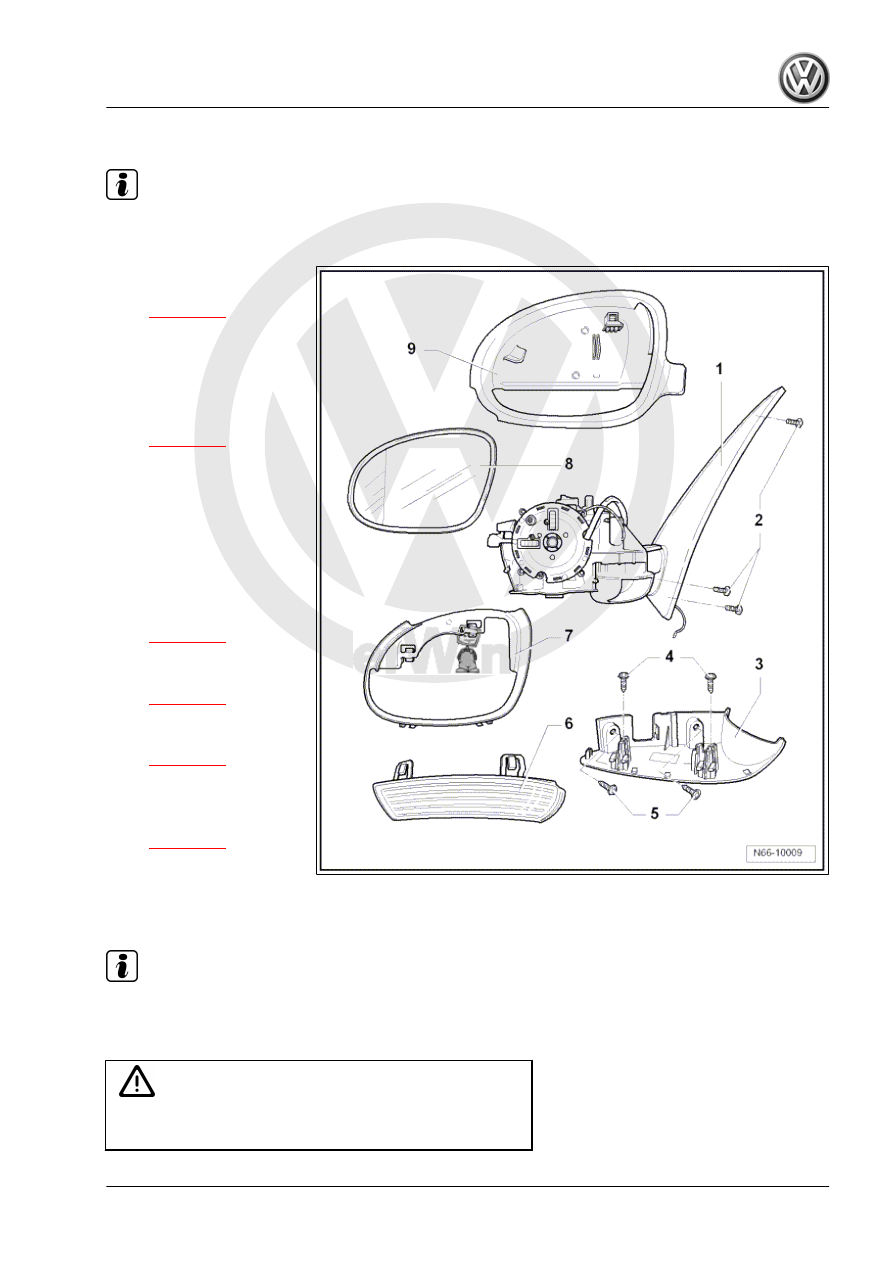

Assembly overview - exterior mirror

Note

Only the left side is shown. The procedure for the right side is similar.

1 - Mirror mounting

❑ Removing and installing

⇒ page 227

2 - Bolt

❑ Qty. 3
❑ 8 Nm

3 - Assembly piece

❑ Removing and installing

⇒ page 226

4 - Bolt

❑ Qty. 2
❑ 1 Nm

5 - Bolt

❑ Qty. 2
❑ 1 Nm

6 - Side turn signal

❑ Removing and installing

⇒ page 226

7 - Trim

❑ Removing and installing

⇒ page 226

8 - Mirror glass

❑ Removing and installing

⇒ page 223

9 - Mirror housing

❑ Material: ABS
❑ Removing and installing

⇒ page 224

2.3

Removing and installing mirror glass

Note

The removal and installation sequence is only for the left mirror

glass. The removal and installation of the right mirror glass is

similar.

WARNING

When doing this repair work, always wear protective goggles

and leather gloves!

General body repairs, exterior - Edition 04.2008

2. Exterior mirror

223

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.3.1

Removing

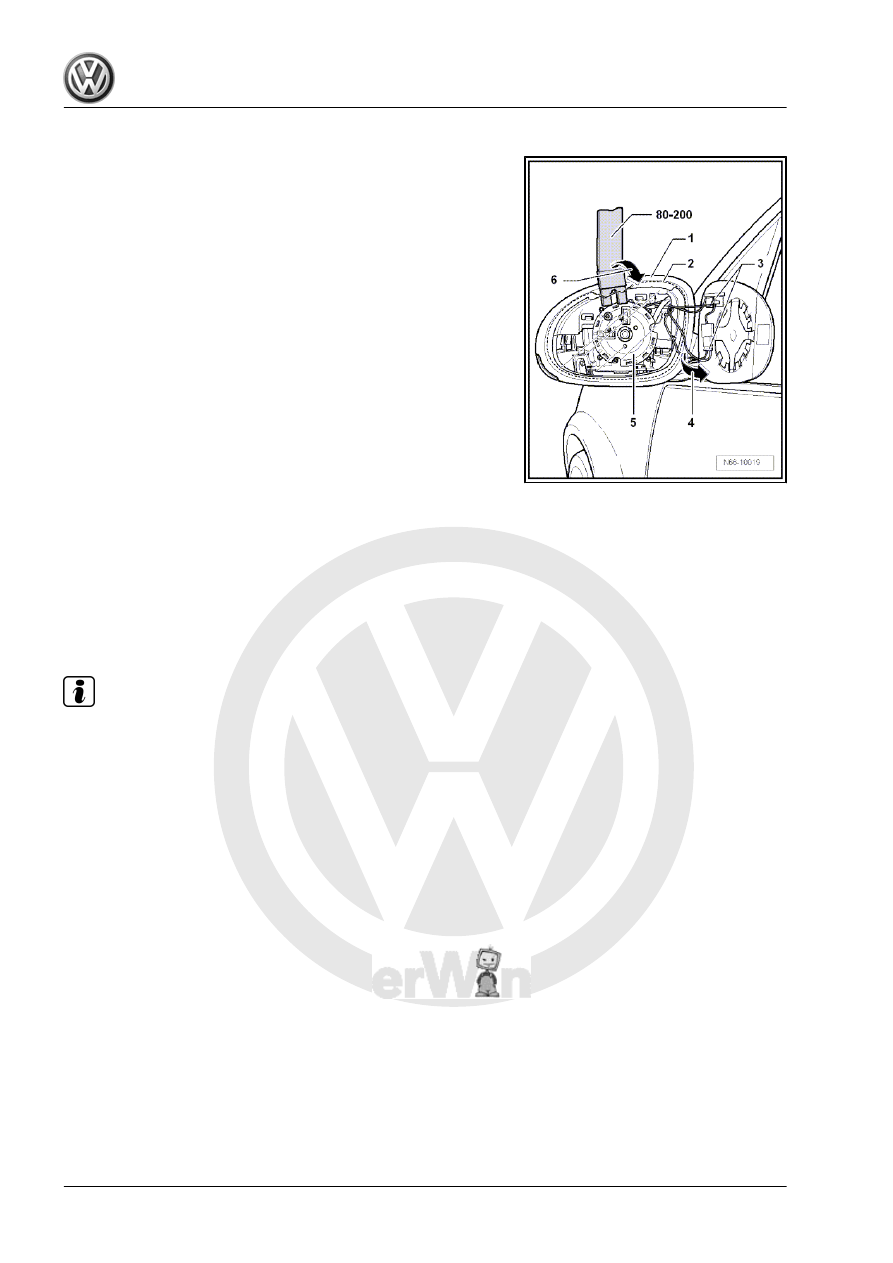

– Protect edge of housing -1- against paint damage with e.g.

fabric-reinforced adhesive tape.

– Press bottom of mirror glass -2- into mirror housing -1-.
– Using removal lever -80 - 200- , press mirror glass -2- off

bracket -5- and housing -1- -arrow 6-.

– Swivel mirror glass -2- to side -arrow 4- and detach connectors

-3- for electric dip and mirror heating on rear of mirror glass

-2-.

2.3.2

Installing

– Push contacts for mirror heating onto mirror glass.
– Press mirror glass centrally onto bracket in housing.
– Mirror glass engages audibly.
• Finally carry out a functional check.

2.4

Removing and installing mirror housing

Note

The removal and installation sequence is only for the left mirror

housing. The removal and installation of the right mirror housing

is similar.

General body repairs, exterior - Edition 04.2008

224

     Rep. Gr.66 - Exterior equipment
