2

Front door windows

2.1

Tools

Special tools and workshop equipment required
♦ Torque wrench 2...10 Nm -V.A.G 1783-

General body repairs, exterior - Edition 04.2008

2. Front door windows

193

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.2

Assembly overview - front door window

Note

The right side is shown. The left side is similar.

The bolt -4- is accessible from interior and exterior. From exterior the bolt has a right-hand thread. This

means: from exterior the bolt is removed by turning it to left, from interior the bolt is removed by turning it to

right.

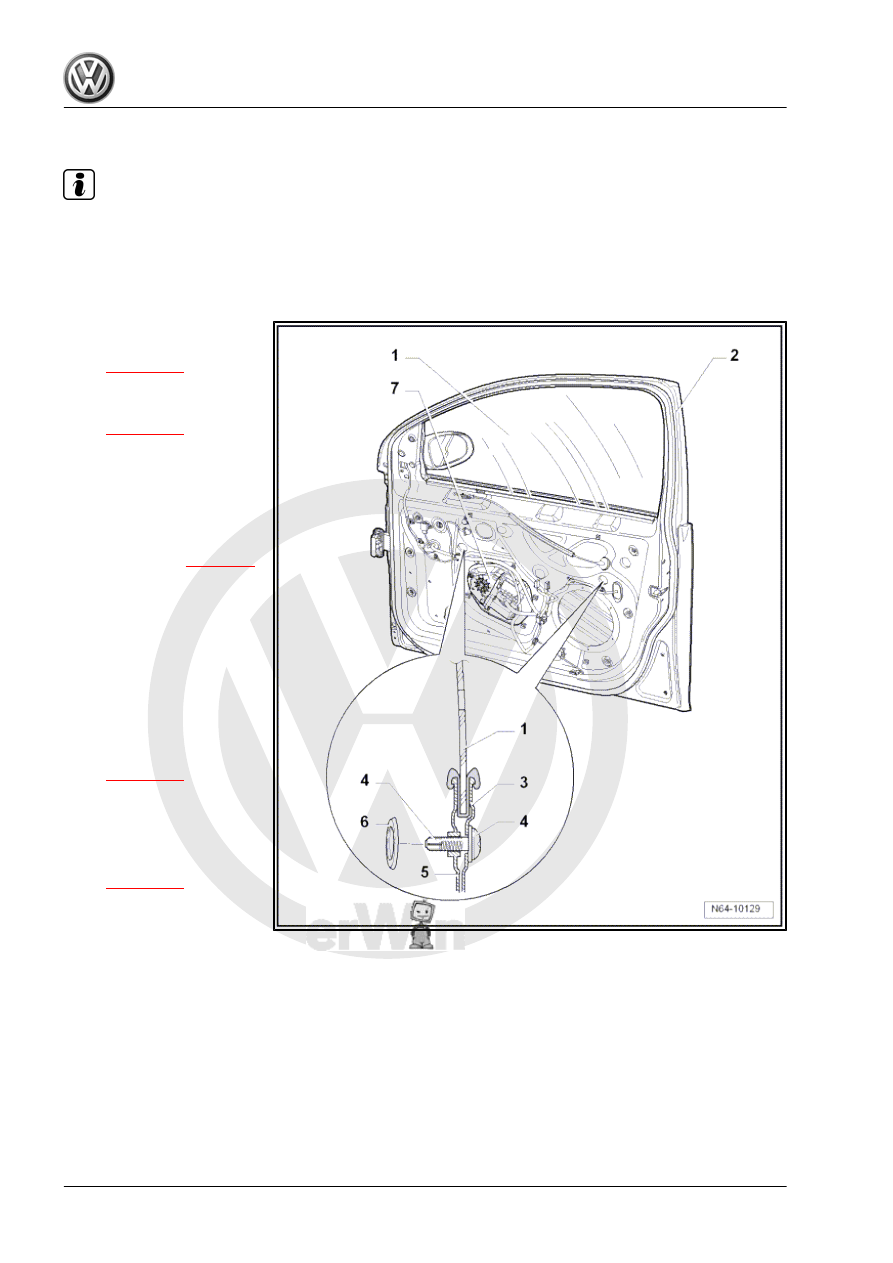

1 - Door window

❑ Removing and installing

⇒ page 195

2 - Window guide

❑ Removing and installing

⇒ page 201

3 - Mounting
4 - Bolt

❑ Accessible from exterior

(right-hand thread), re‐

move by turning anti-

clockwise, remove door

outer panel

⇒ page 94

❑ Accessible from interior,

remove by turning it to

right, removing front

door trim ⇒  General

body repairs, interior;

Rep. Gr.  70 ; Trims, in‐

sulation; Door trims

❑ Qty. 2
❑ 8 Nm

5 - Window regulator

❑ Removing and installing

⇒ page 203

6 - Cover

❑ Qty. 2

7 - Window regulator motor

❑ Removing and installing

⇒ page 199

General body repairs, exterior - Edition 04.2008

194

     Rep. Gr.64 - Glazing

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.3

Removing and installing door window

Note

The removal and installation sequence is only for the right door

window. The removal and installation of the left door window

is similar.

The bolt -4- is accessible from interior and exterior. From ex‐

terior the bolt has a right-hand thread. This means: from

exterior the bolt is removed by turning it to left, from interior

the bolt is removed by turning it to right.

2.3.1

Removing

– Remove front door trim ⇒  General body repairs, interior; Rep.

Gr.  70 ; Trim, insulation; Door trims .

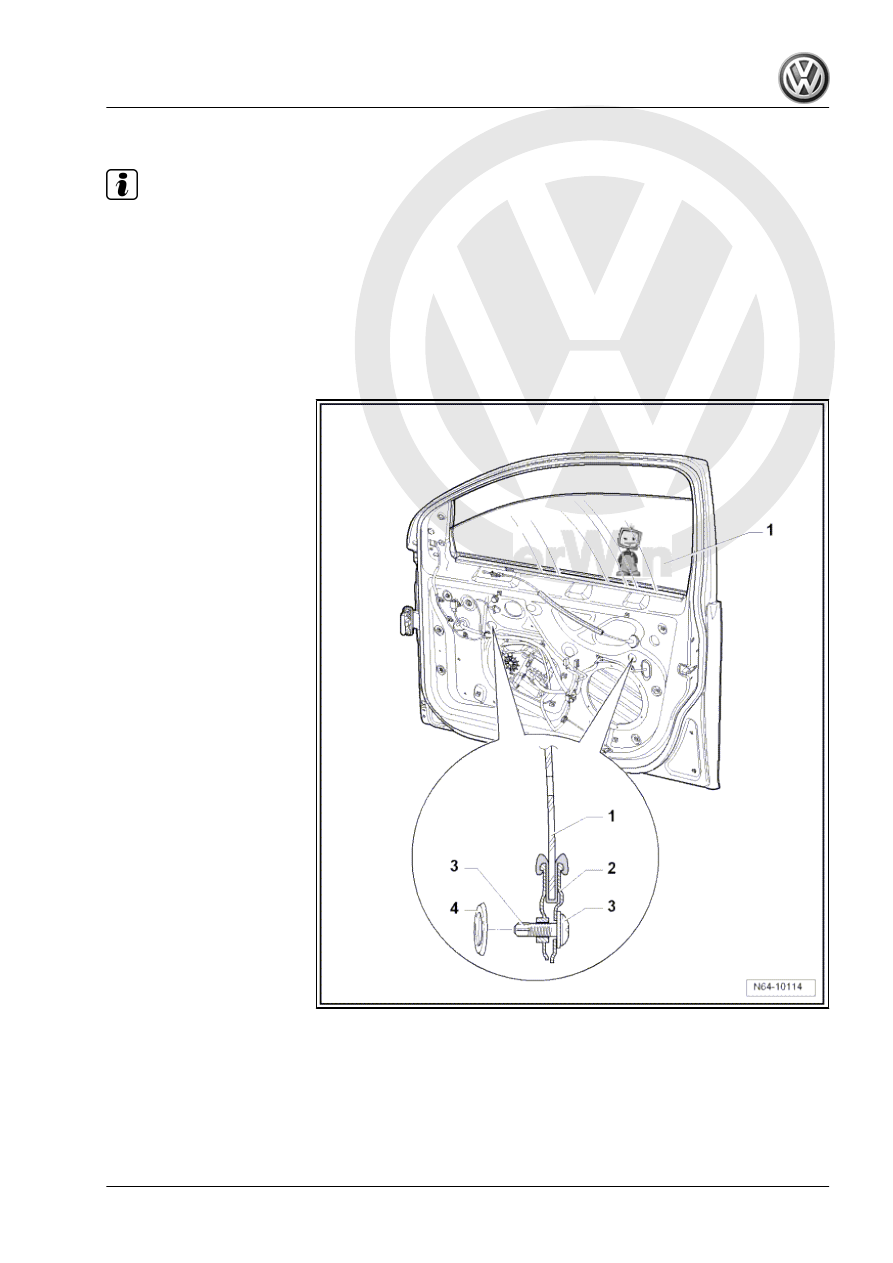

– Lever out caps -4-.
– Lower door window -1- until clamping bolts -3- for mounting

-2- are accessible.

General body repairs, exterior - Edition 04.2008

2. Front door windows

195

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

WARNING

Remove bolt -3- from interior by turning to right.

– Loosen bolts -3- (do not remove) from inside by turning to right

and press clamping jaws apart.

Note

If the work step cannot be carried out because there is a fault with the electric window motor, remove motor to

slide window down.

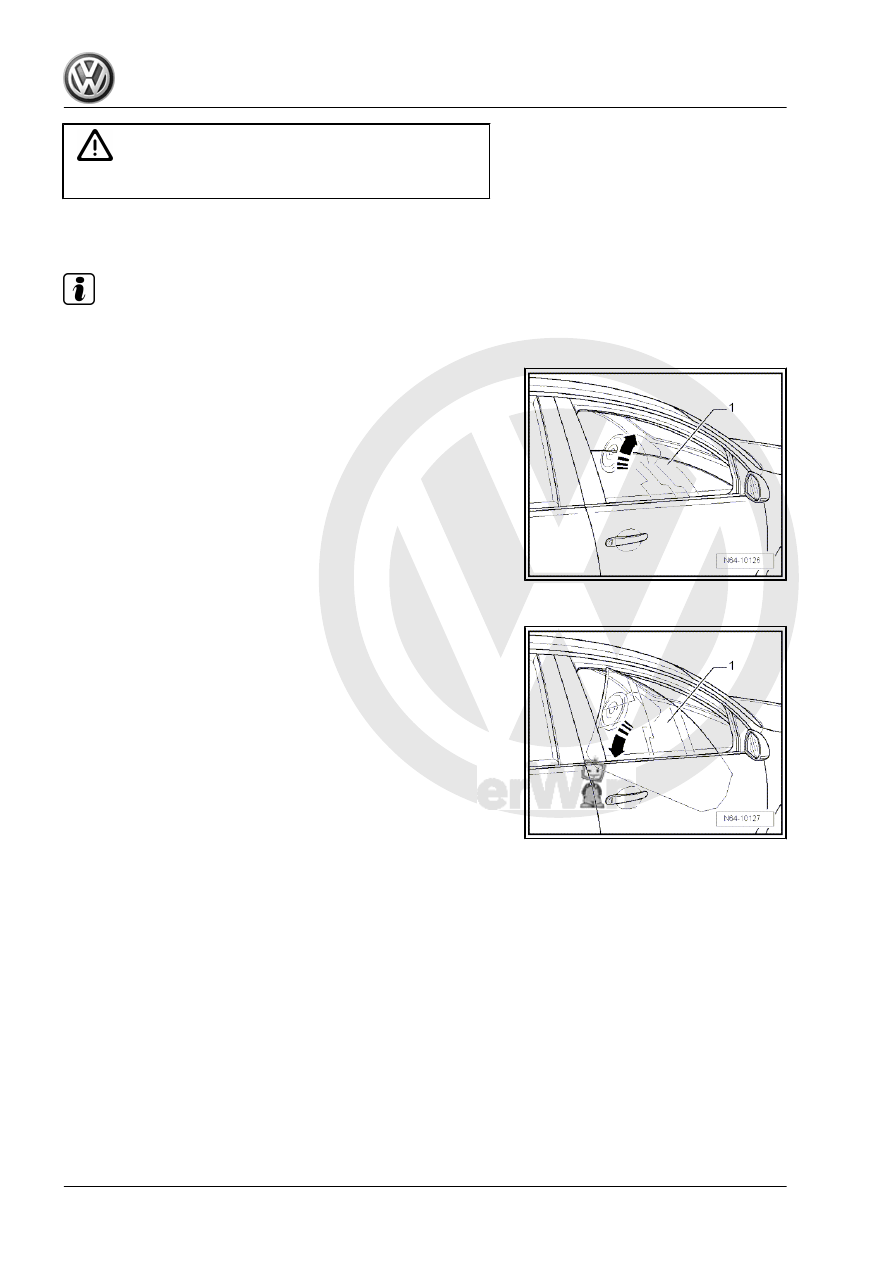

– Lift rear of door window -1- and swivel out of door forwards, in

-direction of arrow-.

2.3.2

Installing

– Insert door window -1- in door in -direction of arrow-.
– Ensure that door window -1- is properly located in window

guides.

– The bolt can now be tightened by turning to left.
Further installation is performed in the reverse order of removal.
• Then check for correct operation.

General body repairs, exterior - Edition 04.2008

196

     Rep. Gr.64 - Glazing
