❑ To seal use butyl adhesive sealing cord -AKL 450 005 05-

11 - Carrier unit

❑ Removing and installing carrier unit

⇒ page 132

❑ If necessary, guide channels should be lubricated only with special grease G 000 450 02, otherwise

function may be impaired

12 - Bolt

❑ Bolts are microencapsulated and must always be renewed after loosening
❑ Qty. 3
❑ 3.5 Nm

13 - Hexagon key for emergency operation

❑ The hexagon key to operate the system in an emergency has been discontinued. Use a commercially

available hexagon key to operate the system in an emergency

14 - Electric drive

❑ Removing

⇒ page 128

❑ Adjusting drive (0 position)

⇒ page 129

15 - Spring

❑ Qty. 2
❑ Pushes up wind deflector
❑ Is clipped onto wind deflector and can be renewed individually
❑ Removing

⇒ page 126

16 - Wind deflector

❑ Removing

⇒ page 126

❑ Adjusting on vehicles as of 08.2005 >

⇒ page 127

❑ The adjustable wind deflector cannot be retrofitted

17 - Wind deflector bearing

❑ Qty. 2
❑ Is clipped onto wind deflector and can be renewed individually
❑ Removing

⇒ page 126

18 - Front guide

❑ Can be removed separately from the guide rail
❑ Removing

⇒ page 135

19 - Lower rear guide

❑ Removed together with guide plate
❑ Removing

⇒ page 135

20 - Torx screw

❑ Torx T25
❑ Qty. 3 per side
❑ 5 Nm

21 - Guide plate

❑ Removing and installing

⇒ page 134

22 - Spacer

❑ Removing and installing

⇒ page 134

General body repairs, exterior - Edition 04.2008

1. Sliding/tilting sunroof with glass panel (Meritor)

121

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.4

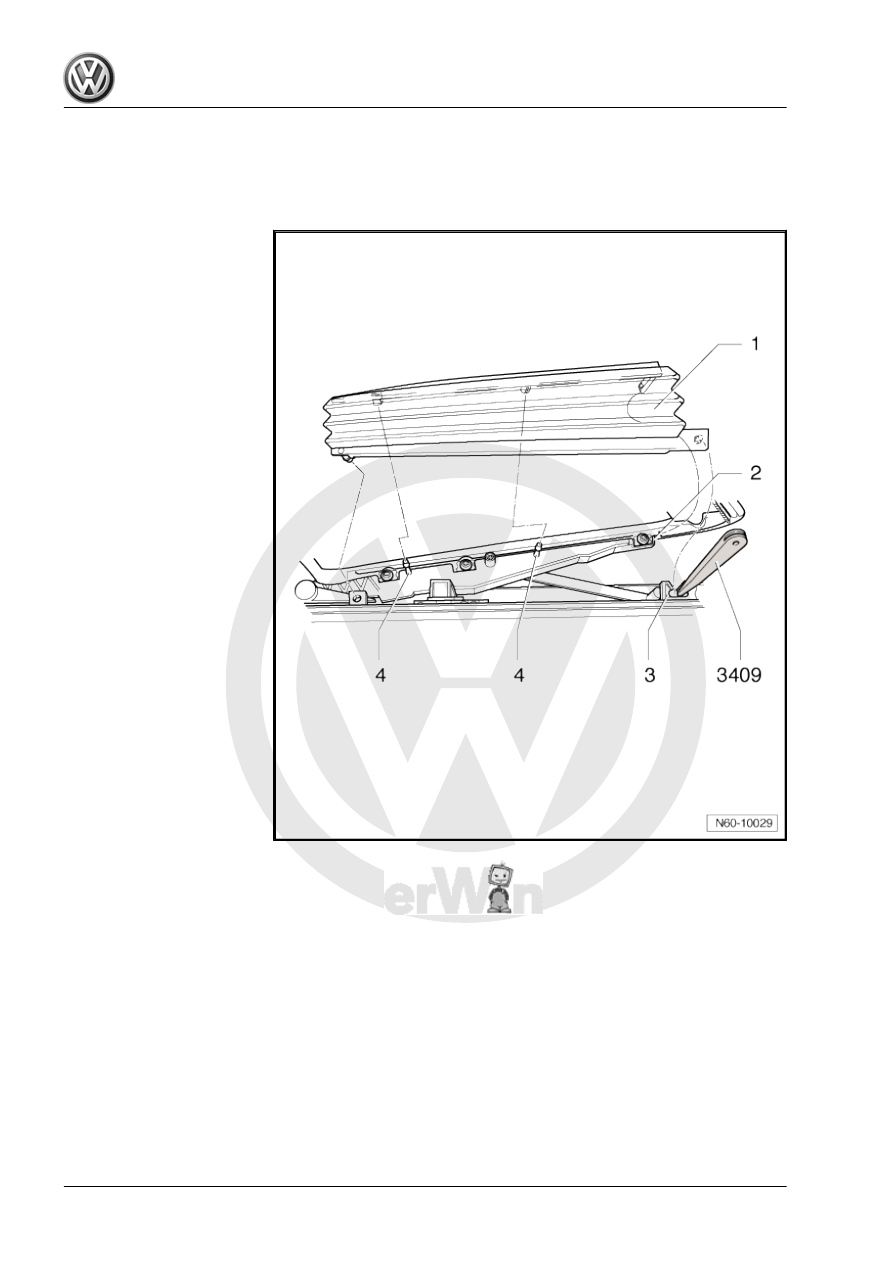

Removing and installing bellows

1.4.1

Removing

– Move sliding headliner to rear.
– Run sliding/tilting sunroof glass panel to tilted position.
– Carefully unclip bellows -1- from lower part of guide plate -3-

using a removal wedge -3409- .

– Pull bellows -1- off securing pins -4-.
– Detach bellows -1- at top rear -2-.
– Remove bellows -1-.

General body repairs, exterior - Edition 04.2008

122

     Rep. Gr.60 - Sunroof

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

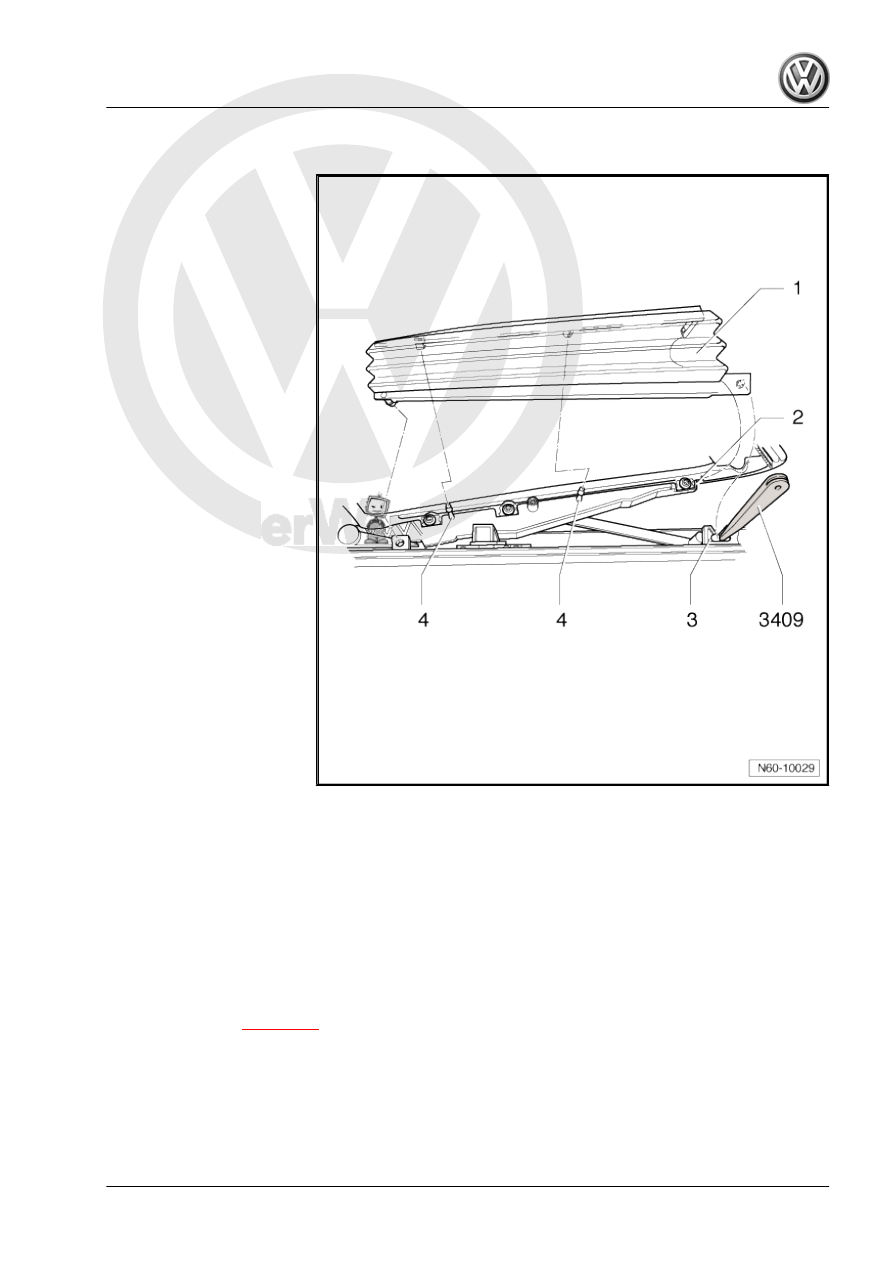

1.4.2

Installing

– Move sliding headliner to rear.
– Run sliding/tilting sunroof glass panel to tilted position.
– Fit bellows -1- first at top rear -2-.
– Clip bellows -1- with securing pins -4- in guide plate.
– Hook in bellows -1- at bottom rear -3- and clip in bellows,

starting from front, in lower part of guide plate.

1.5

Removing glass panel of sliding/tilting

sunroof

– Remove bellows

⇒ page 122

 .

General body repairs, exterior - Edition 04.2008

1. Sliding/tilting sunroof with glass panel (Meritor)

123

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

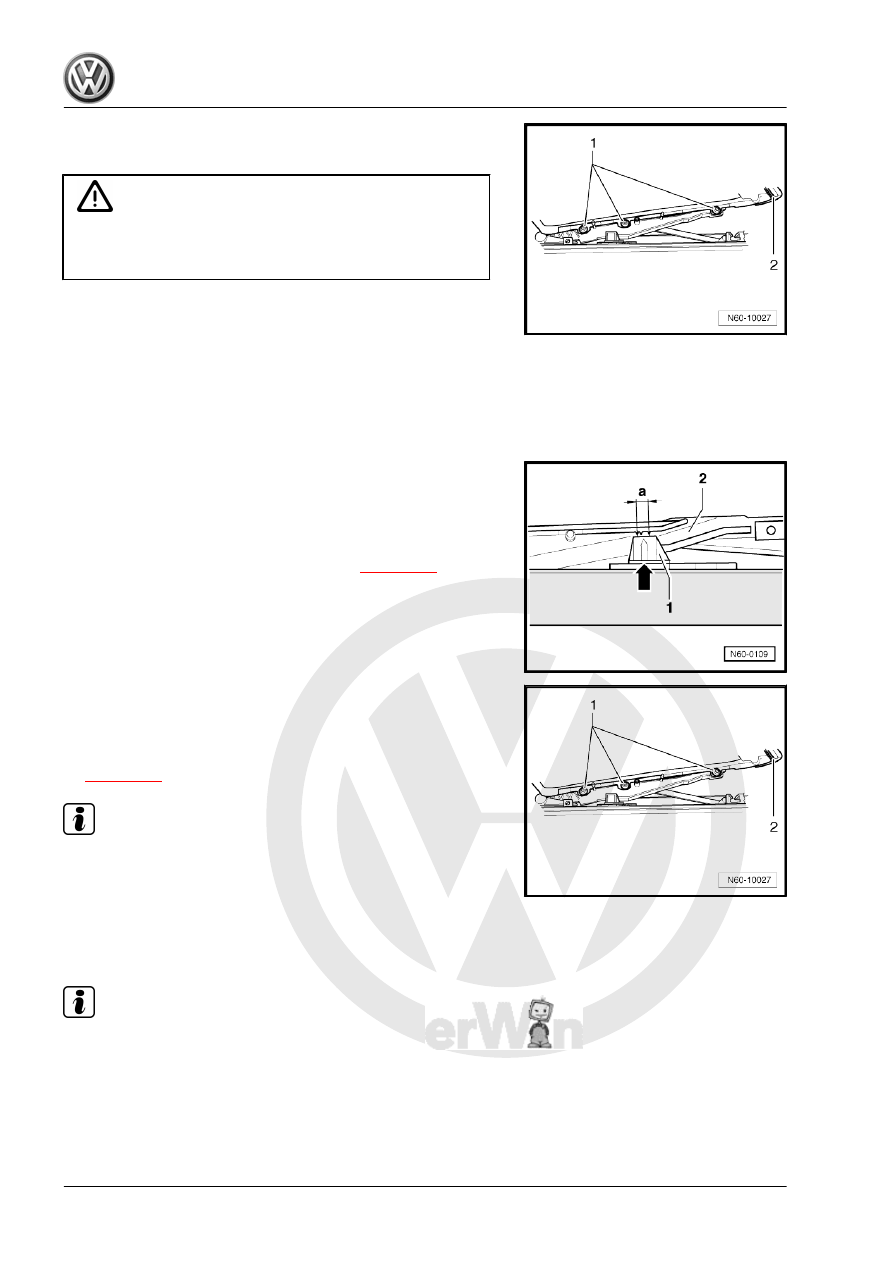

– Remove bolts -1- on left and right.
– Remove sliding/tilting sunroof glass panel -2- out upwards.

WARNING

The guide plate must not moved to “Open” position when re‐

moved, because the water channel will not be compressed by

the glass panel and can become wedged together in the roof.

1.6

Installing glass panel of sliding/tilting

sunroof

• Panel must be installed in 0 position (panel closed).

1.6.1

Zero position

The mark -arrow- on the rear of the guide upper section -1- must,

on both sides, lie within the marks dimension -a- on the guide

plate -2-.
The guide plate -2- must be located in the guide rails (cannot be

moved by hand).
If this is not the case, adjust parallel running

⇒ page 130

 .

– Insert sliding/tilting sunroof glass panel -2- from above and fit

bolts -1-.

– Lightly tighten bolts -1-.
– Adjusting height of glass panel of sliding/tilting sunroof:

⇒ page 124

Note

After adjusting panel height, tighten securing screws (4.5 Nm).

Install bellows after panel height adjustment.

1.7

Adjusting height of glass panel of slid‐

ing/tilting sunroof

Note

The glass panel height adjustment is performed after the glass

panel has been closed from slide open position.

Sliding/tilting sunroof glass panel 0 position OK.

General body repairs, exterior - Edition 04.2008

124
