1.21

Removing and installing door inner seal

Note

The removal and installation sequence is only for the right door

inner seal. The removal and installation of the left door inner seal

is similar.

1.21.1

Removing

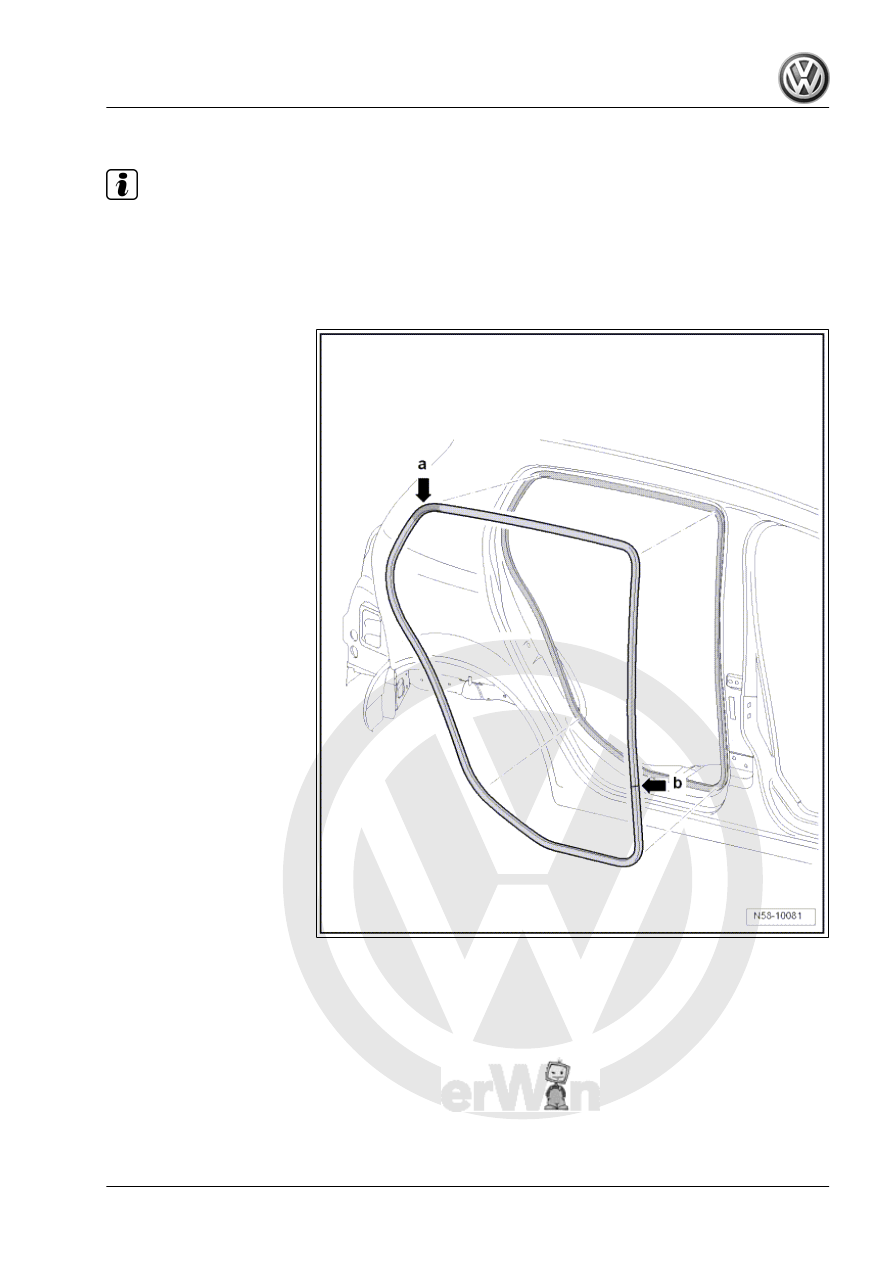

– Pull door inner seal off body flange.

General body repairs, exterior - Edition 04.2008

1. Rear door

113

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.21.2

Installing

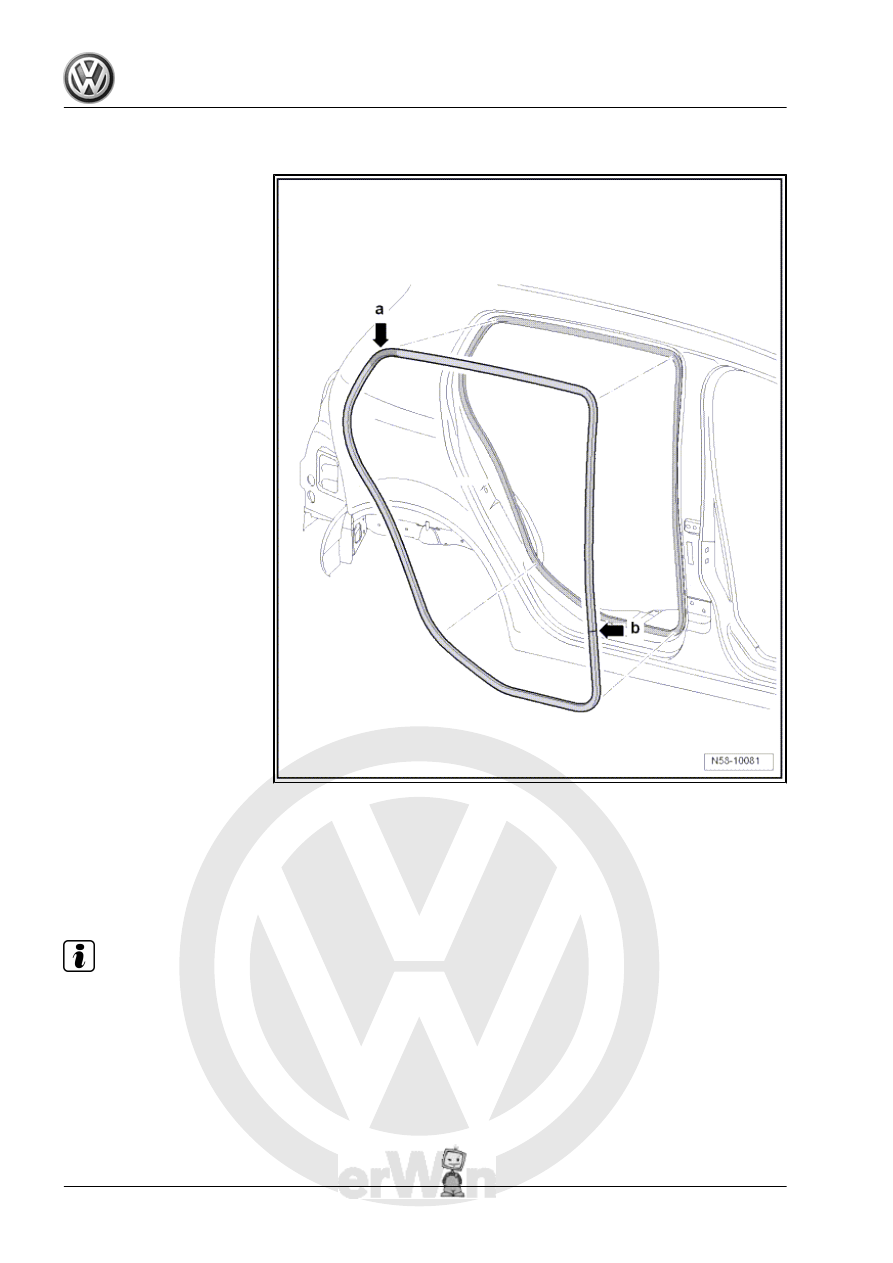

– Align door inner seal with vulcanisation point -arrow b- to

height of lower hinge.

– Begin installing door inner seal in upper radius -arrow a- of

door aperture.

1.22

Removing and installing door outer seal

Note

Removal and installation are described for the right door outer

seal only. Removal and installation of the left door outer seal

are similar.

Remove protective backing immediately before installation.

Working temperature approx. 20 °C.

Adhesive remover D 002 000 10 must be used exclusively.

The door outer seal must be bonded in place immediately after

cleaning.

General body repairs, exterior - Edition 04.2008

114

     Rep. Gr.58 - Rear doors, door components

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.22.1

Removing

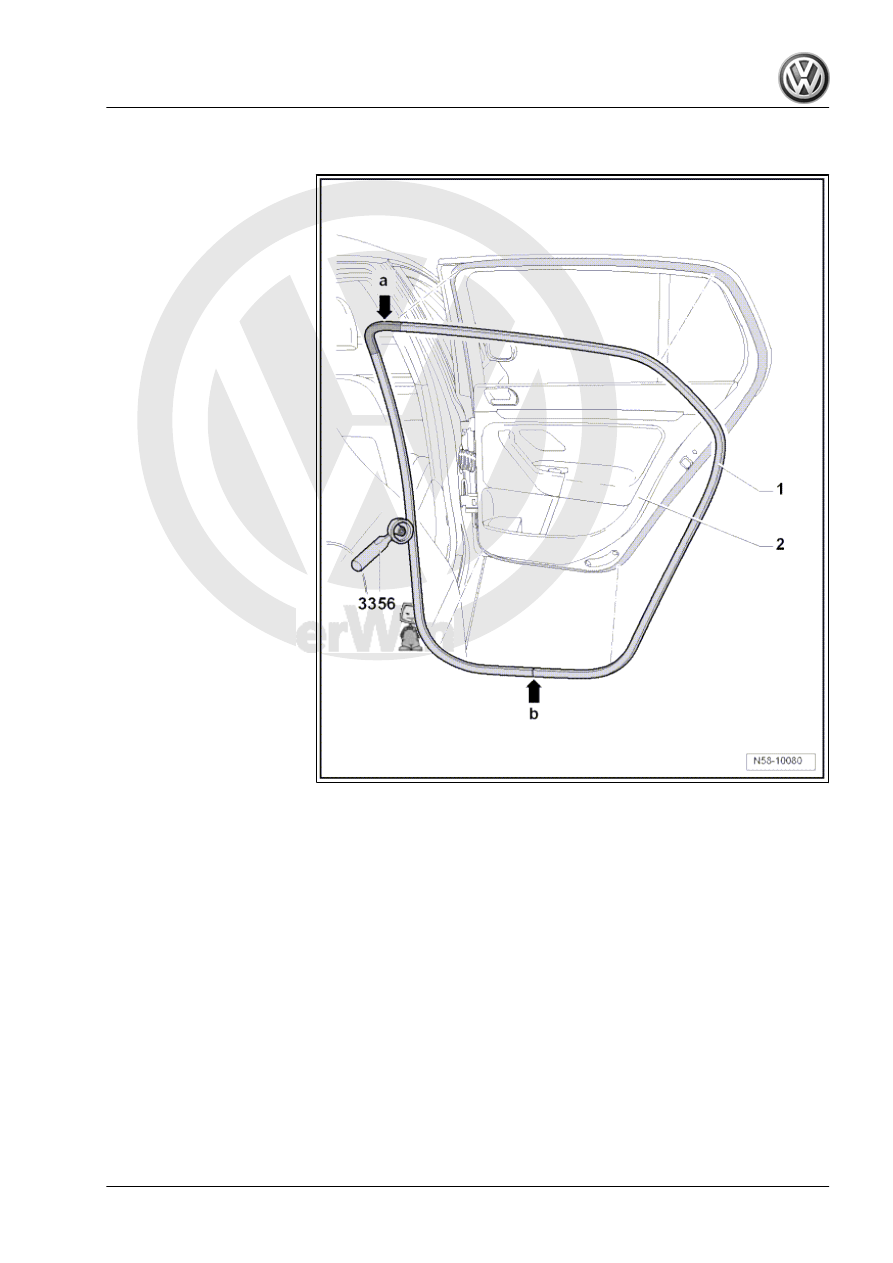

– Pull door outer seal -1- from door -2-.

General body repairs, exterior - Edition 04.2008

1. Rear door

115

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

1.22.2

Installing

– Remove existing adhesive residues with adhesive remains re‐

mover -VAS 6349- .

– Immediately before bonding the door outer seal, clean bond‐

ing surface thoroughly with adhesive remover D 002 000 10.

• Surfaces to be bonded must be free of dust and grease and

there should be no adhesive residue.

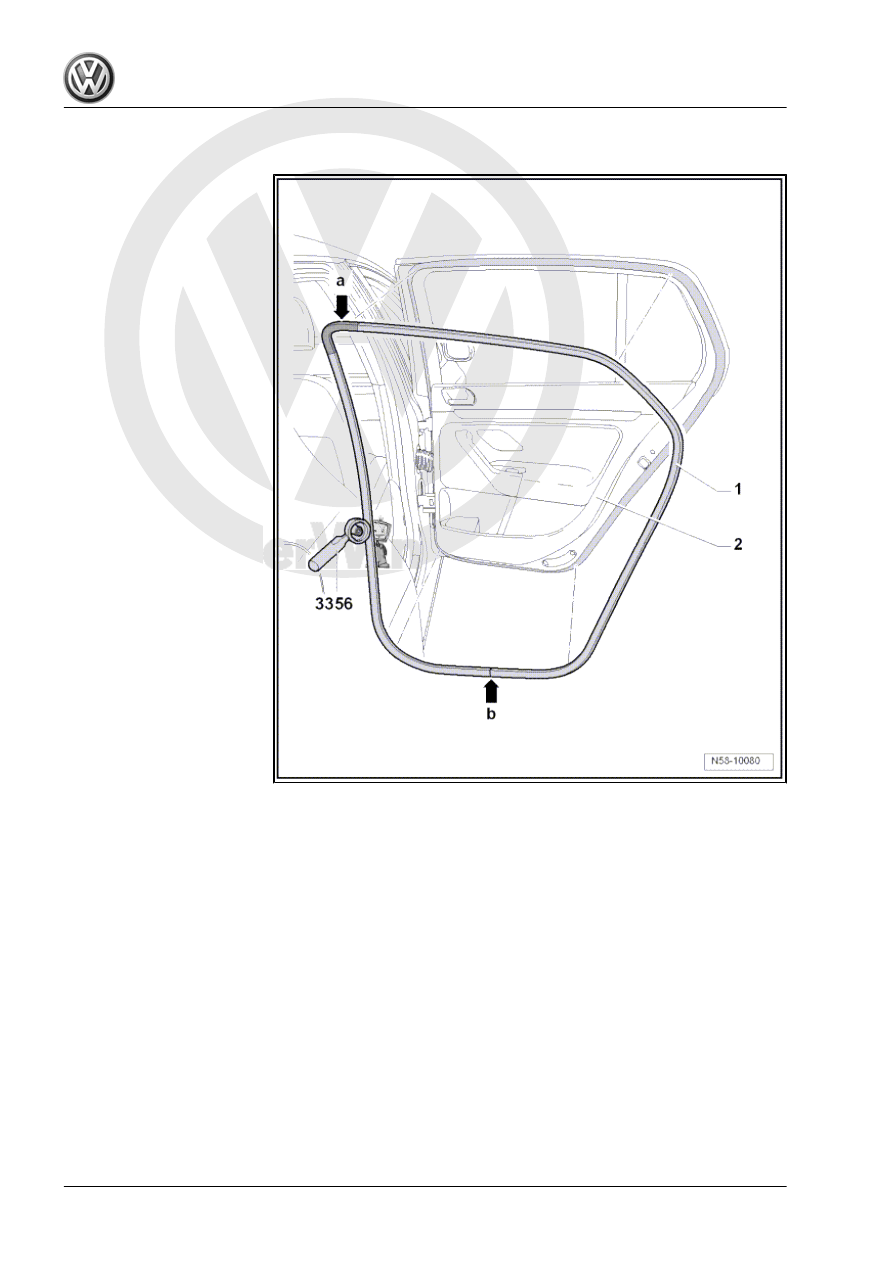

– The vulcanised point -arrow b- of outer door seal -1- must be

located in centre of side member.

– Pull protective backing off in stages and start fitting seal in

upper radius -arrow a- of door. Do not pull outer door seal to

avoid stretching seal.

General body repairs, exterior - Edition 04.2008

116

     Rep. Gr.58 - Rear doors, door components
