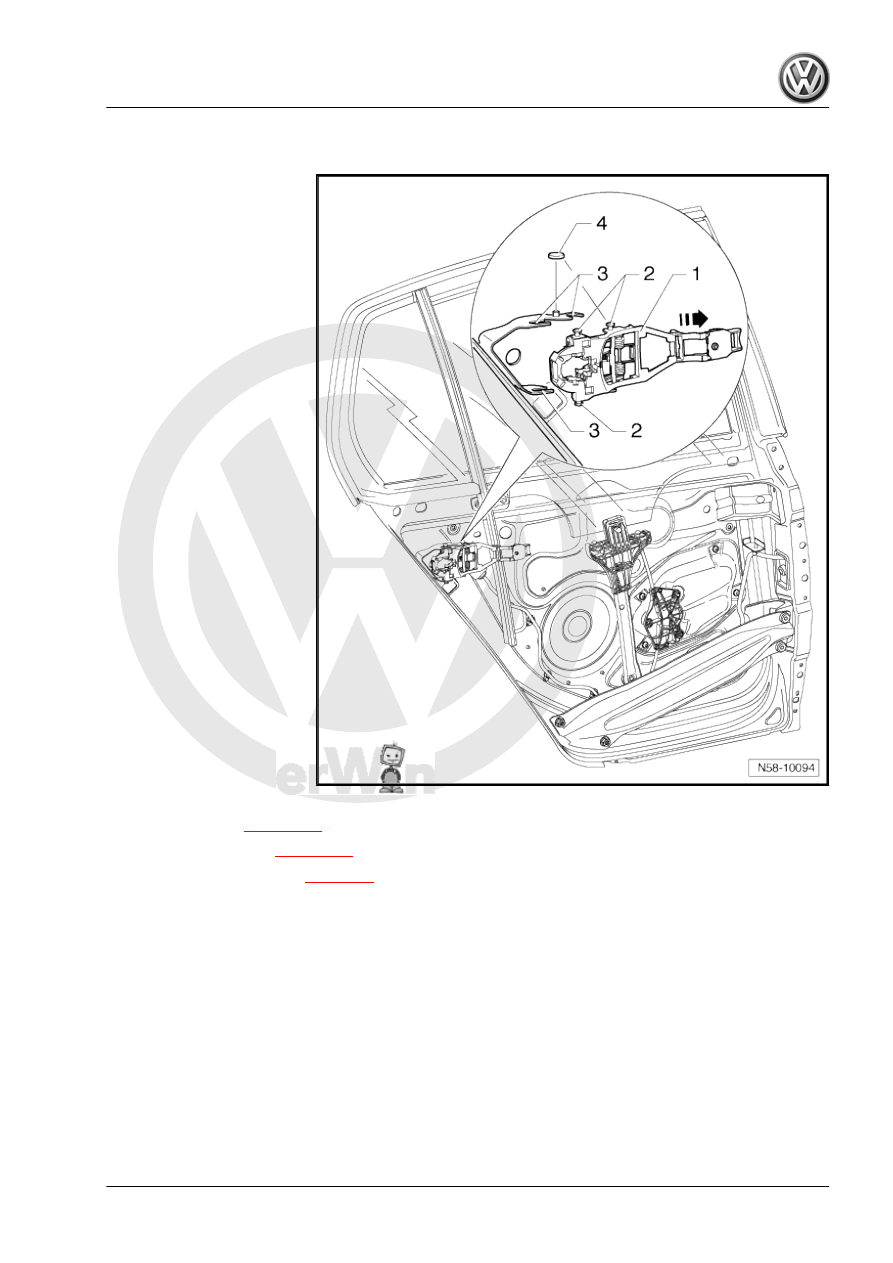

1.17.1

Removing

– Remove housing

⇒ page 106

– Remove door handle:

⇒ page 106

 .

– Remove door outer panel:

⇒ page 94

– Pull retaining rubber -4- off upwards from guide pins and re‐

taining pins on mounting.

– Pull mounting plate -1- with guide pins -2- out of mounting

-3-.

General body repairs, exterior - Edition 04.2008

1. Rear door

109

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

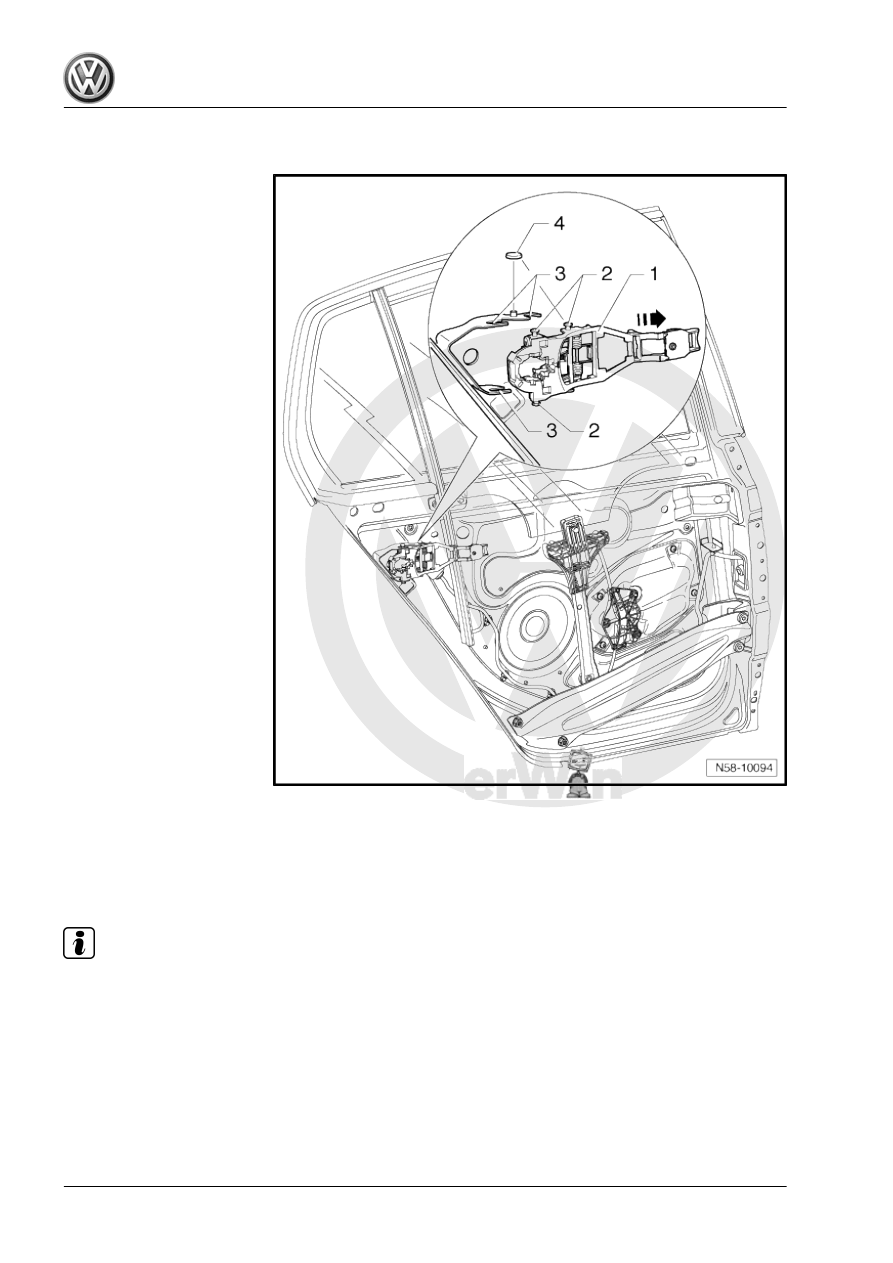

1.17.2

Installing

– Push mounting plate -1- with guide pins -2- in mounting -3-.
– Secure retaining rubber -4- to guide pins and securing pins on

mounting.

1.18

Removing and installing door lock

Note

The removal and installation sequence is only for the right door

lock. The removal and installation of the left door lock is similar.

General body repairs, exterior - Edition 04.2008

110

     Rep. Gr.58 - Rear doors, door components

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

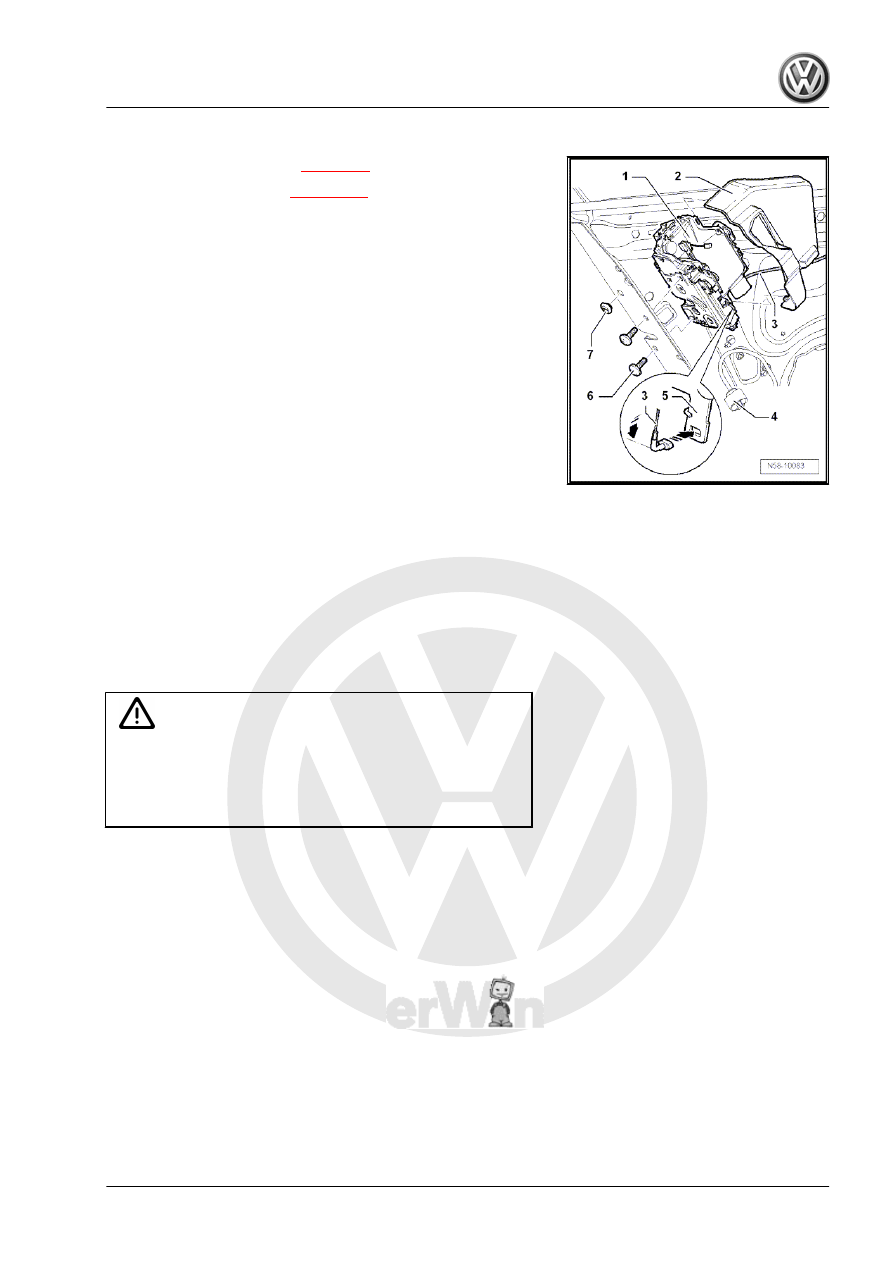

1.18.1

Removing

– Remove door outer panel

⇒ page 94

 .

– Remove mounting plate

⇒ page 108

 .

– Separate connector -4-.
– Remove bolts -6-.
– Release cable -3- from relay lever -5- and remove door lock

-1-.

Cover -2- is not supplied with door lock.

1.18.2

Installing

Installation is carried out in reverse order of removal.
Specified torque for bolts: 18 Nm.
• Then always check function while door is still open, as an in‐

correctly fitted and adjusted Bowden cable cannot open the

door.

1.19

Assembly overview - side impact pro‐

tection

Caution

The nuts and bolts of the side impact protection are also pain‐

ted  in  the  factory.  This  means  that  a  great  deal  of  force  is

required to remove them, resulting in some circumstances in

the threads shearing. If possible avoid loosening the nuts and

bolts.

General body repairs, exterior - Edition 04.2008

1. Rear door

111

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

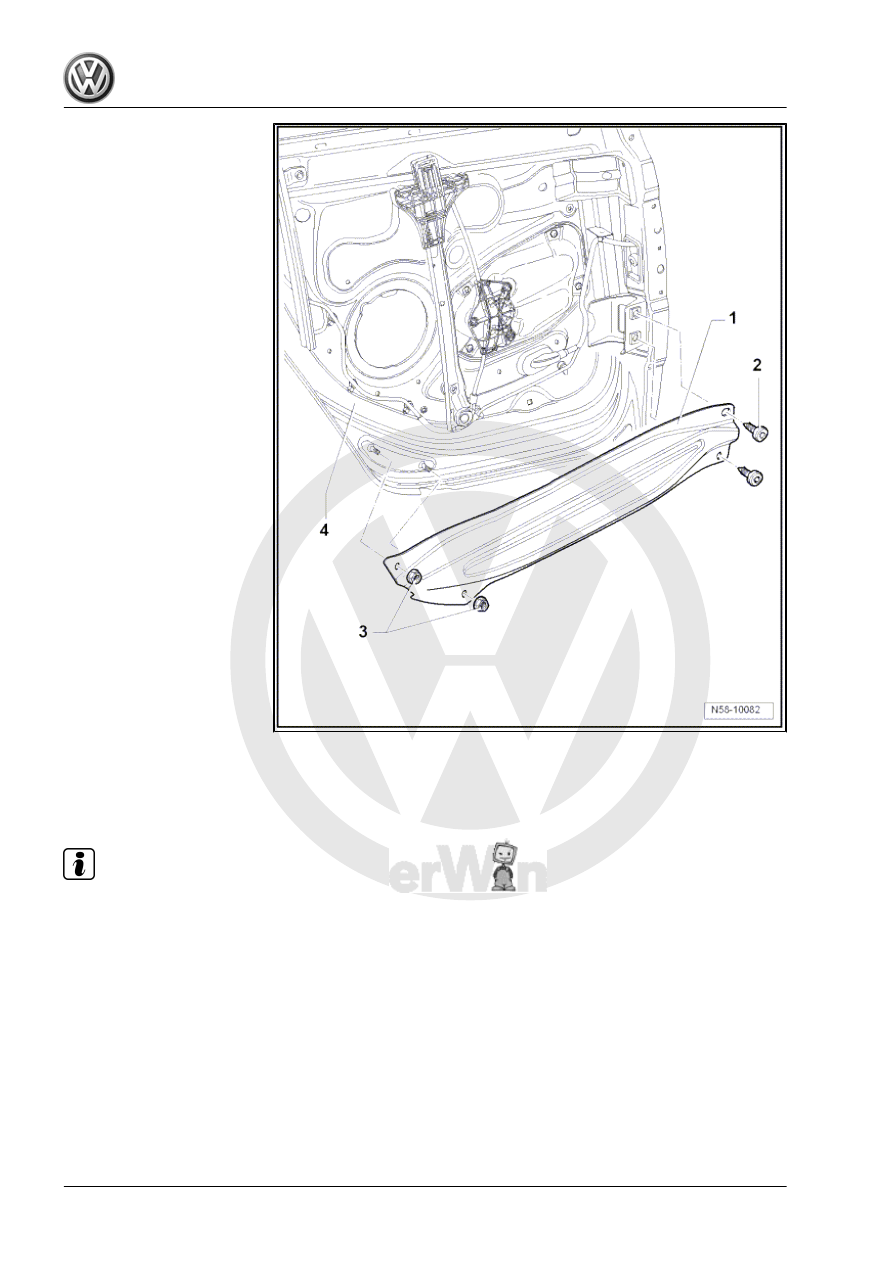

1 - Side impact protection
2 - Bolts

❑ Qty. 2
❑ 20 Nm

3 - Nut

❑ Qty. 2
❑ 20 Nm

4 - Door inner part

1.20

Door inner seals

During production, a sealant is applied to the door inner seals,

which are then placed on the door flange and rolled on.

Note

When seals are removed, the sealant will spread to the inside

of the seal and the flanks will be bent out slightly. If the seal is

then refitted, a tight seal is not guaranteed.

Therefore each seal which is removed completely should be

replaced by a so-called “tap-on” seal.

If a seal has been partially removed, squeeze sides of seal

together before installing.

General body repairs, exterior - Edition 04.2008

112

     Rep. Gr.58 - Rear doors, door components
