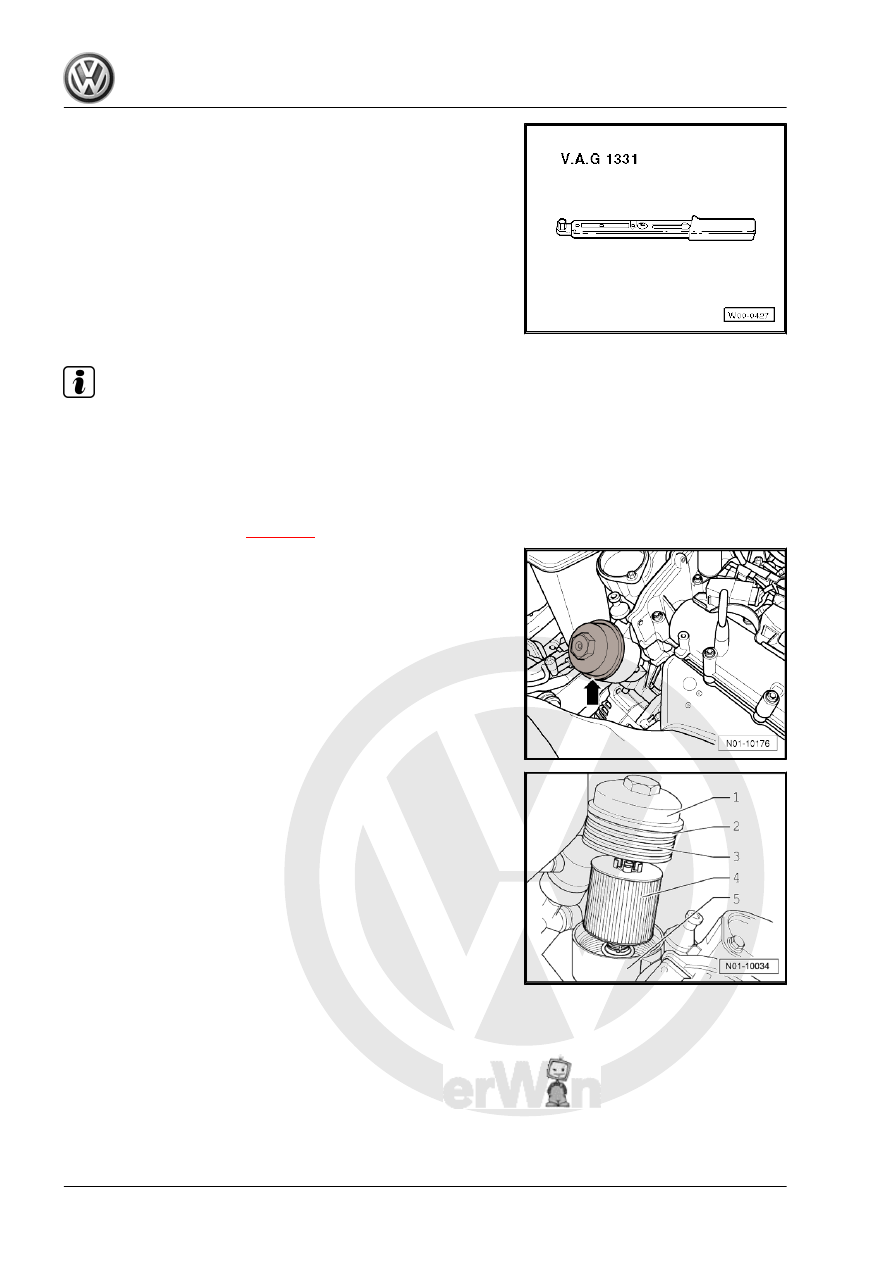

♦ Torque wrench -V.A.G 1331-

Note

Observe disposal regulations!

Oil new O-rings before installing.

Prevent engine oil from dripping onto subframe.

Removing
Remove engine cover, see

⇒ page 89

 .

– Loosen threaded cap -arrow- on hexagonal flats and remove.

– Take oil filter -4- out of threaded cap -1-.
– Clean sealing surfaces on threaded cap and oil filter housing.

Maintenance - Edition 11.2009

106

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Installing

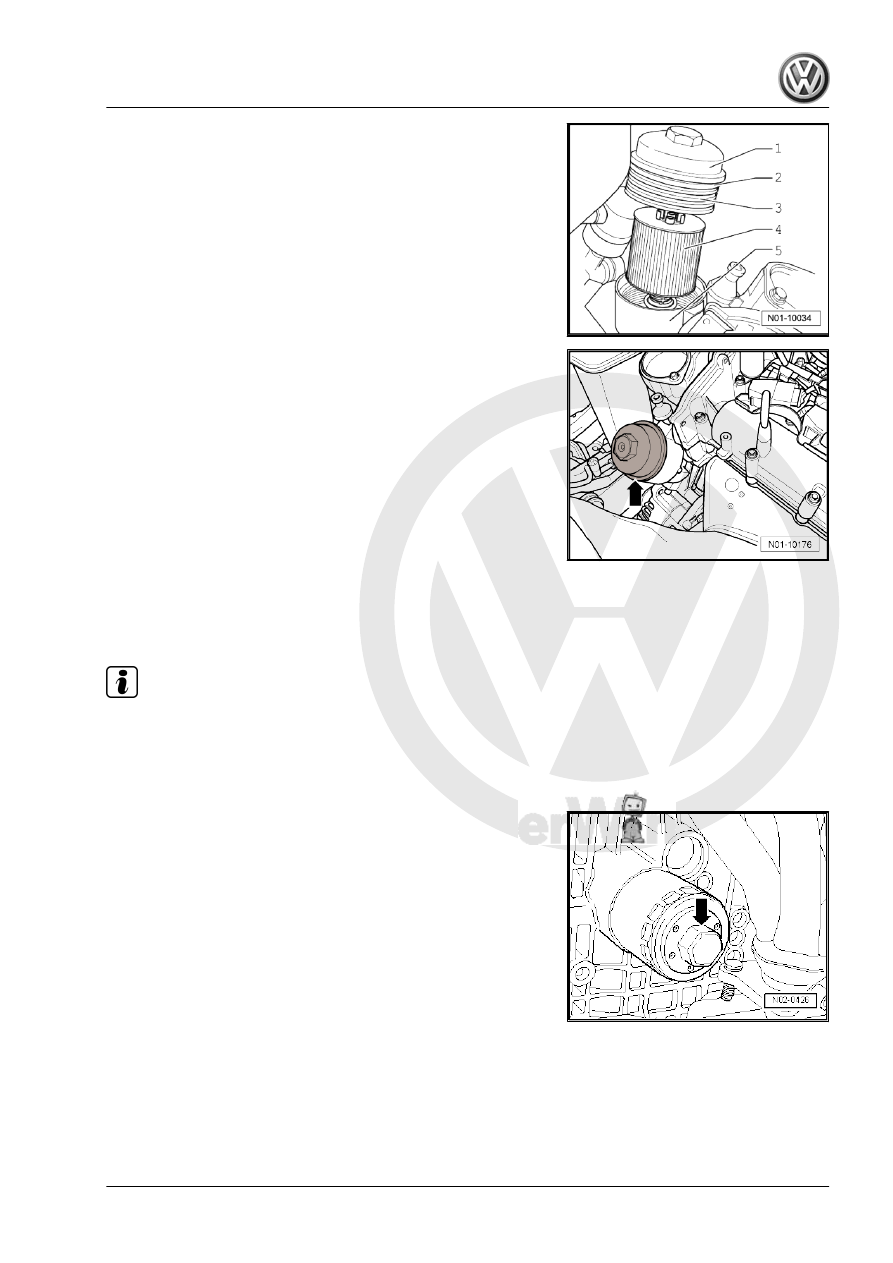

– Insert new filter element -4- into threaded cap.
– Renew sealing ring -2-.
– Lightly oil seal.
– Clean thread -3- and lightly moisten with oil.

– Tighten threaded cap -arrow- to 25 Nm.
The remaining assembly steps are basically a reverse of the dis‐

mantling procedure.

4.30.6

Renewing oil filter: 1.4 l injection en‐

gines

Removing

Note

Observe disposal regulations!

Oil new O-rings before installing.

Prevent engine oil from dripping onto components in engine

compartment.

– Loosen oil filter -arrow- e.g. using combination spanner, AF 30

-VAS 5399- or ring spanner, 30x32mm -VAS 5410- and re‐

move oil filter.

– Clean engine sealing surface.

Maintenance - Edition 11.2009

4. Descriptions of work

107

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Installing
– Oil rubber seal lightly on new filter.
– Screw in filter and tighten hand-tight.
The remaining assembly steps are basically a reverse of the dis‐

mantling procedure.

4.30.7

Renewing oil filter: 2.5 l petrol injection

engines, 2.0 l FSI and 2.0 l TFSI engines

Special tools and workshop equipment required
♦ Oil drain adapter -T40057-

♦ Oil filter tool -VAS 3417-

♦ Torque wrench -V.A.G 1331/-
Perform the following procedure:

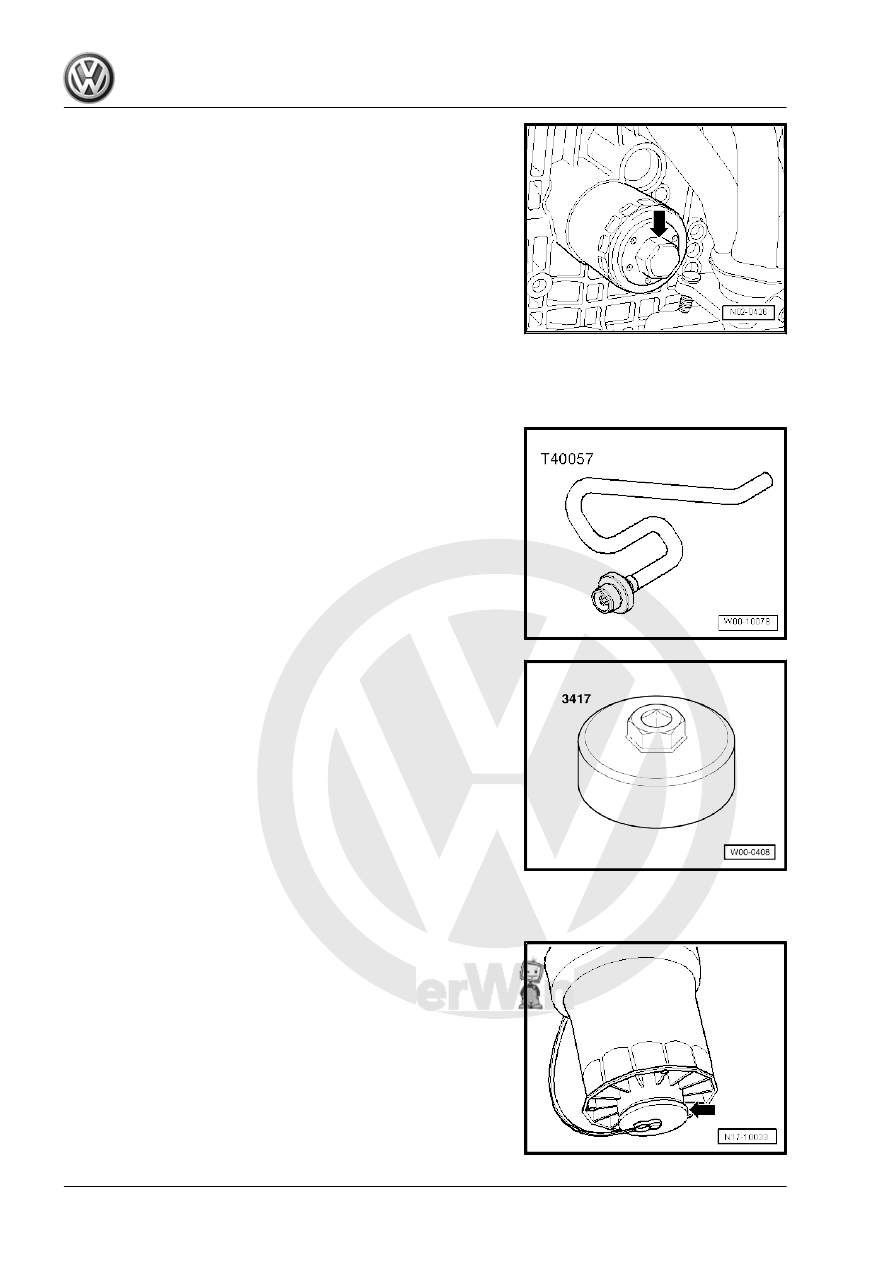

– Remove dust cap -arrow- from oil filter housing.
Before removing the oil filter housing, it must be drained.

Maintenance - Edition 11.2009

108

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

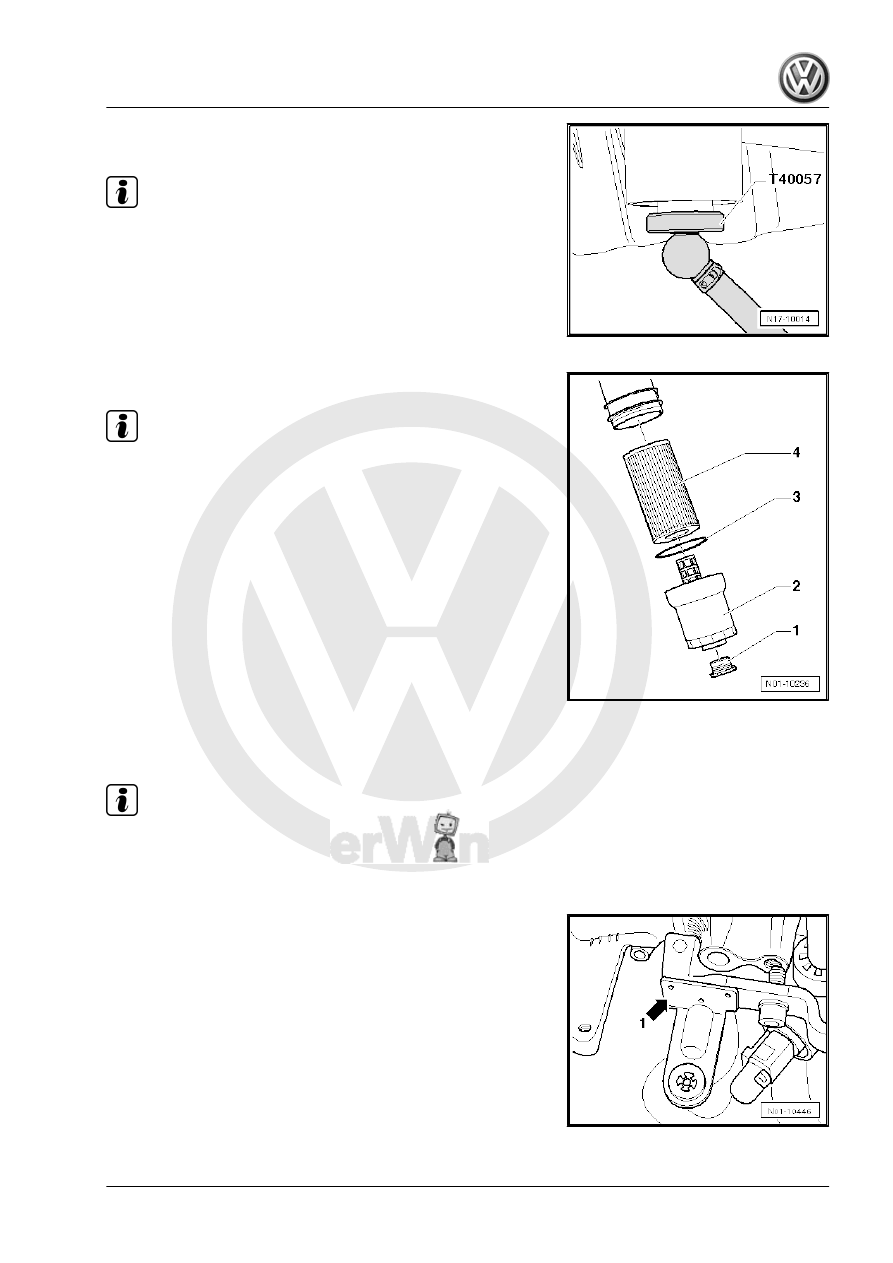

– Insert oil drain adapter -T40057- into oil filter housing and hold

hose in oil drip tray.

Note

When the oil drain adapter -T40057- is screwed in, a valve is

opened in oil filter housing. When the oil drain adapter -T40057-

is removed again, the valve closes automatically.

– Drain engine oil.
– Unscrew oil drain adapter -T40057- again.
– Unscrew oil filter housing using oil filter tool -VAS 3417- .

– Renew oil filter element -4- and seal -3-.

Note

Observe disposal regulations!

– Tighten oil filter housing -2- to 25 Nm.
– Insert dust cap -1- into oil filter housing -2- hand-tight.

4.30.8

Renewing oil filter: diesel engines

Removing

Note

Observe disposal regulations!

Oil new O-rings before installing.

– Unscrew retainer from intake manifold -1-.
– If necessary, unclip cable so that there is sufficient room to

remove the oil filter sealing cap.

Maintenance - Edition 11.2009

4. Descriptions of work

109
